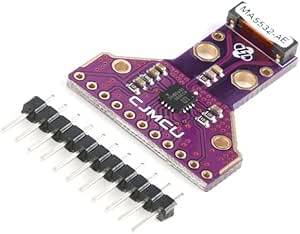

AS3935 Digital Lightning Sensor Module MA5532-AE Lighting Strike Thunder Storm Distance Detector SPI I2C Lightning Distance Detection Sensor Breakout Board

3.6 3.6 out of 5 stars 5 ratings
Currently unavailable.
We don't know when or if this item will be back in stock.
Brand JESSINIE
Model Name AS3935
Connectivity Technology I2C
Included Components Antenna, SPI and I2C interface cables
Operating System Linux

About this item

  • AS3935 Lightning sensor warns of lightning storm activity within a radius of 40km, Distance estimation to the head of the storm down to 1km in 14 steps
  • Detects both cloud-to-ground and intra-cloud (cloud-to-cloud) flashes
  • Embedded man-made disturber rejection algorithm
  • Programmable detection levels enable threshold setting for optimal controls, SPI and I2C interface is used for control and register reading
  • Supply voltage range 2.4V to 5.5V, Antenna Tuning to compensate variations of the external components, Power-down, listening, and active mode
› See more product details

Customers who bought this item also bought

Page 1 of 1 Start overPage 1 of 1
Previous set of slides
Next set of slides

Product Description

JESSNIE
JESSNIE
68993

The AS3935

Programmable fully integrated Lightning Sensor IC

  • detects the presence and approach of potentially hazardous lightning activity in the vicinity and provides an estimation on the distance to the head of the storm
  • The embedded lightning algorithm checks the incoming signal pattern to reject the potential man-made disturbers.

AS3935

AS3935

  • The AS3935 can also provide information on the noise level and inform the external unit (e.g. microcontroller) in case of high noise conditions, with the noise floor generator and noise floor evaluation blocks.
  • The AS3935 can be programmed via a 4-wire standard SPI or an I²C. Also, in case the latter is chosen, it is possible to choose among four different addresses.
  • Two clocks are internally generated by two different RC-Oscillators: TRCO and SRCO.

68993
68993

The AS3935

Supply Global Positioning System (GPS)

  • An automatic procedure can increase the precision of those oscillators. The AS3935 can be either supplied by an internal voltage regulator or directly by VDD.
  • AS3935 is ideal for Weather Stations, Clocks, Sports Equipment, Portables, Pool Safety, Uninterruptible Power Supply (UPS)

68993

AS3935

AS3935

AS3935 is ideal for Weather Stations, Clocks, Sports Equipment, Portables, Pool Safety, Uninterruptible Power Supply (UPS), Global Positioning System (GPS), Cellular phones, Watches, and Golf Equipment.

What's in the box

  • Antenna, SPI and I2C interface cables

    • Looking for specific info?

    From the brand

    Previous page

    2. Choose Quality,Choose JESSINIE

      Power Your Projects with JESSINIE Development Boards

    3. JESSINIE 8-Color Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Bo...
      JESSINIE Black Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boar...
      JESSINIE Blue Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Board...
      JESSINIE White Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boar...

      OK Wire 30 Gauge

      Visit the Store

    4. JESSINIE 63-37 Tin Lead Solder Wire 0.3mm for Electrical Soldering Tin 63% Lead 37% Sn63 Pb37 HX-...
      JESSINIE 63-37 Tin Lead Solder Wire 0.5mm for Electrical Soldering Tin 63% Lead 37% Sn63 Pb37 HX-...
      JESSINIE 63-37 Tin Lead Solder Wire 0.8mm for Electrical Soldering Tin 63% Lead 37% Sn63 Pb37 HX-...
      JESSINIE 63-37 Tin Lead Solder Wire 1.0mm for Electrical Soldering Tin 63% Lead 37% Sn63 Pb37 HX-...

      Solder Wire Sn63 Pb37

      Visit the Store

    5. JESSINIE Red Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Board ...
      JESSINIE Orange Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boa...
      JESSINIE Green Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boar...
      JESSINIE Yellow Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boa...

      OK Wire 30 Gauge

      Visit the Store

    6. JESSINIE WCS1800 Hall Current Sensor Detector 35A Current Sensor Module Board Short Circuit Overc...
      JESSINIE Industrial USB to Serial Adapter UART Serial Adapter FT232RL Serial to USB Converter USB...
      JESSINIE Signal Generator XY-KPWM 1-Channel PWM Generator 1Hz-150kHz Dual Mode PWM Pulse Frequenc...
      JESSINIE USB Serial Port Control Relay Module Sturdy Durable Lightweight USB Relay Module USB Int...

      Development Boards

      Visit the Store

    7. JESSINIE Grey Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Board...
      JESSINIE Purple Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boa...
      JESSINIE Brown Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Boar...
      JESSINIE Blue Electronic Wire DM-30-1000 Wire Wrapping Wire 30 AWG Single Core Wire Circuit Board...

      OK Wire 30 Gauge

      Visit the Store

    8. JESSINIE 5Pcs 1 Channel DC 3V/3.3V Power Relay Module 3V Relay Switch Module with Optocoupler Rel...
      JESSINIE 2Pcs RP-L Film Pressure Sensor Pressure Detector Flexible
      JESSINIE 10Pcs RC Absorption Snubber Circuit Module RC Loop Module Relay Contact Protection Circu...
      JESSINIE 8Pcs IC Socket 40P DIP IC Chip Socket Adaptor 2.54mm Pitch Dual Row 40 Flat Pin 15mm Row...

      JESSINIE Electronics Modules

      Visit the Store

    9. JESSINIE HLK-LD2410B-P Human Presence Radar Module Sensor Board with Pins Bluetooth LD2410B LD241...
      JESSINIE 10Pcs 16P IC Socket DIP Integrated Circuit IC Sockets Adaptor Solder Type 2.54mm Pitch D...
      JESSINIE 5Pcs PWM to Voltage Module 0%-100 PWM to 0-10V Voltage Signal Converter Voltage Converte...
      JESSINIE 5Pcs PAM8302 Single Channel Audio Amplifier Module Board D 2.5W MP4 Audio Power Amplifie...

      JESSINIE Development Boards

      Visit the Store

    Next page

    Product information

    Technical Details

    Collapse all
    Summary
    Other Technical Details

    Additional Information

    Warranty & Support

    Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.

    Feedback

    JESSINIE AS3935 Digital Lightning Sensor Module MA5532-AE Lighting Strike Thunder Storm Distance Detector SPI I2C Lightning Distance Detection Sensor Breakout Board

    Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

    Where did you see a lower price?
    /
    /
    /
    /
    Please sign in to provide feedback.

    Similar brands on Amazon

    Page 1 of 1Start OverPage 1 of 1
    Sponsored
    Previous page
    1. Shop the Store on Amazon ›
      Securitron XMS Exit Motion Sensor White
      Securitron XMS Exit Motion Sensor White
      4.94.9 out of 5 stars12
      $139.98
    2. Shop the Store on Amazon ›
      KEYESTUDIO 48 Sensors Modules Starter Kit for Arduino with LCD, 5v Relay, Sound, LED Modules, Servo Motor, Motion, Pressure Sensor, Gas Sensor, etc.Programming for Beginners Adults Learning
      KEYESTUDIO 48 Sensors Modules Starter Kit for Arduino with LCD, 5v Relay, Sound, LED Modules, Servo Motor, Motion, Pressure Sensor, Gas Sensor, etc.Programming for Beginners Adults Learning
      4.44.4 out of 5 stars141
      $49.99
    Next page

    Customer reviews

    3.6 out of 5 stars
    5 global ratings

    Review this product

    Share your thoughts with other customers
    Write a customer review
    Must have!
    5 out of 5 stars
    Must have!
    I recently acquired the AS3935 Digital Lightning Sensor Module, and I’m thoroughly impressed. Setting up the AS3935 was a breeze. The clear documentation and straightforward interface made it a joy to integrate into my weather station project. The downside is that it did not come with any type of instructions, which is fine, but not so great if unfamiliar with these boards.The AS3935’s lightning detection capabilities are nothing short of remarkable. It accurately senses lightning activity in the vicinity, providing real-time alerts. Whether you’re a hobbyist or a professional meteorologist, this sensor won’t disappoint. What truly sets the AS3935 apart is its ability to estimate the distance to the head of the storm. With a range of up to 40 kilometers, it’s like having a lightning radar right at your fingertips. The AS3935 doesn’t stop at lightning detection. It also provides information on noise levels. This feature ensures reliable data even in challenging environments.The module’s compact design makes it easy to integrate into various projects. Plus, its robust build ensures longevity and consistent performance. In summary, the AS3935 Digital Lightning Sensor Module is a must-have for anyone interested in weather monitoring, storm tracking, or just geeking out over lightning.
    Hide
    Thank you for your feedback
    Sorry, there was an error
    Sorry we couldn't load the review

    Top reviews from the United States

    • Humphrey-Tech
      5.0 out of 5 stars Perfect
      Reviewed in the United States on August 7, 2024
      Amazon Vine Customer Review of Free Product( What's this? )
      I am very happy with this item.

      I bought this item to use in my home made weather station. I've tested it using an Arduino and the AS3935MI library. I was actually able to test it with a thunderstorm approaching and it actually works.
      It detected lightning from an approaching thunderstorm and the distance got shorter and shorter as it approached! Very cool.

      I highly recommend this module for lightning detection. It would be a great experiment for a STEM classroom too.
      Helpful
       Report
    • Jo Chew
      1.0 out of 5 stars Can't get it to work
      Reviewed in the United States on October 9, 2024
      Verified Purchase
      I've spent a few hours trying to get this to work with a Raspberry PI, in both i2c and spi. At best i can get a bunch of addresses randomly appearing in i2cdetect but not showing up as it should. It comes with no docs so i can only try different pinout combinations from what I find on the internet, but still can't get it to show up as it should.
      Helpful
       Report
    • Kenneth Farmer
      4.0 out of 5 stars It works. (Preliminary findings)
      Reviewed in the United States on June 3, 2024
      Verified Purchase
      Using the Arduino library, AS3935MI, (AS3935I2C header) from github, it came up on I2C and worked. By happenstance, I finished hookup just before a major storm, and I can say that it did detect lightning. The reason for the preliminary findings gotcha in the header, is that there are a lot of configuration options for this thing and I am just beginning to figure them out.

      Be sure and wire jumpers as follows. This is not addressed with most websites and libraries.
      Plug it into 3.3 volts, not 5.
      MOSI is SDA if you are wondering. (Which I was)
      SI, A0 and EN_VREG tied to +3.3
      A1 to GND (I2C won't run if address is left at 0 Why? Beats me.)
      CS and MISD can be left alone.

      The above instructions are also in the Arduino code from Github.

      A piezo firestarter will trigger it for test. It will usually think it is noise, but on occasion thinks it saw lightning. But it will tell you if it is at least seeing the outside world.

      FYI. I cannot speak for SPI connections, but with I2C you need to keep the wires as short as possible. Don't even use the standard 8 inch wire jumpers. Otherwise you will get false events that overwhelm the output. My idea of using a two foot I2C cable to get the detector away from the Arduino Uno backfired big time with false detections hitting the max and throwing errors. Making the wires about three inches got it back to working pretty well. A shield would be best, and is what I am building right now.

      EDIT: Ignore the warning about I2C cable length. By coincidence, the power went out just as I was changing cabling, requiring me to crank up a small generator. That is where the noise was coming from. Took a while to realize the problem. Generator off: long cable back on: no problem.

      To really understand this thing, you need to download the datasheet for the AS3935 chip. Lots of options that can be used.

      Fun little device if you live where thunderstorms are common.
