| Part Number | 321155K |
|---|---|
| Item Weight | 325 pounds |
| Product Dimensions | 45 x 38 x 20 inches |
| Item model number | 321155K |
| Size | L |
| Power Source | corded-electric |
| Horsepower | 3 HP |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | 2 Year |

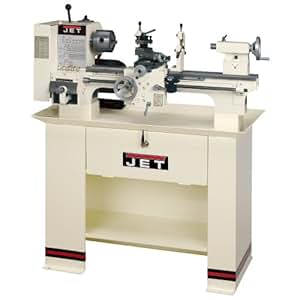

JET BD-920W Lathe with S-920N Stand
Available from these sellers.
- Enter your model number to make sure this fits.
- Spindle supported by precision tapered roller bearings
- Hardened and ground bedways
- Power longitudinal feed allows threading
- Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories
- Reversing switch included for added versatility
This fits your .
1 new from $3,211.25
This item’s packaging will indicate what is inside and cannot be hidden.
Note: This product is 300 lbs or heavier, which means our carriers may not be able to bring this item to your front door.
Customers Who Viewed This Item Also Viewed
Page 1 of 1 Start overPage 1 of 1
Product Description
Product Description
The JET BD-920W bench lathe is built with same innovation, quality and dependability JET puts into all its metalworking products. The BD-920W comes with a standard 1/2in. x 8 TPI spindle mount that allows for many aftermarket accessories, a reversing switch for added versatility, plus the S-920N stand so you can set up and get to work on metal lathe projects right away. Dimensions L x W x H (in.): 38 x 20 x 48, HP: 3/4, Thread Cutting (mm): 0.5-3, Spindle Speeds (qty.): 6, Speed (RPM): 130-2,000, Volts: 115, Width Between Centers (in.): 20, Stand Included: Yes, Thread Cutting (in.): 8-56 TPI, Carriage Travel (in.): 16
Amazon.com
Full length splash guard (view larger).
Precision Built and Designed to Last
The JET 9 x 20-inch belt drive bench lathe (model BD-920W / 321155K) features an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splashguard provides maximum protection and the quick-change gearbox allows for fast and easy gear changes. Backed by an industry-leading two year warranty, every JET machine features premier customer support and professional manuals to ensure optimal functioning and operation.
This version of the BD-920W comes with the sturdy S-920N metal stand with chip pan, which includes a hinged door with lock to store supplies.
Includes S-920N stand (view larger).
The JET Advantage
Reliable, quality engineering and manufacturing goes into each and every JET machine. JET machines are built and tested to tight tolerance standards to insure consistent quality and precision operations. Professional user manuals help you put JET saws to work faster, safer and more efficiently. And because JET backs all its machines with the industry's top warranty, you can have confidence that your JET machines will continue providing superior cuts every time you flip the switch. JET also offers over 750 authorized service centers across the USA, so you can be assured a qualified local technician can help troubleshoot, order parts, and repair your equipment should a problem arise.
Red Assurance 2-Year Warranty
If your JET tool needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
Control panel detail (view larger).
Specifications
| Swing over bed | 9 inches |
|---|---|
| Swing over cross slide | 5-5/16 inches |
| Distance between centers | 20 inches |
| Spindle bore | 7/8-inch |
| Spindle mount (TPI) | 1/2 x 8 |
| Spindle taper with sleeve | MT-3 |
| Spindle speeds | 6; 130 to 2,000 RPM |
| Longitudinal feeds | 60; 0.0006 to 0.037 |
| Inch threads | 30; 8 to 60 TPI |
| Metric threads | 18; 0.4 to 3.5 |
| Maximum tool size | 1/2 x 1/2-inch |
| Compound slide travel | 1-7/8 inches |
| Cross slide travel | 4-3/8 inches |
| Carriage travel | 16 inches |
| Tailstock spindle travel | 1-9/16 inches |
| Taper in tailstock spindle | MT-2 |
| Steady rest capacity | 1/4 to 1-7/8 inches |
| Follow rest capacity | 1/4 to 1-7/8 inches |
| Width of bed | 4-1/2 inches |
| Overall dimensions | 37 x 18-3/4 x 17-3/8 inches (LxWxH) |
| Motor | 3/4 HP, 1Ph, 115-volt only |
| Weight | 265 pounds |
About JET
JET began as a small dealer of manual chain hoists and trolleys, sold from a single hardware store in Tacoma, Washington. Today, JET has an expert team of engineers both in the USA and overseas and a world-class supply chain ensuring prompt delivery of quality products. JET still carries the same message of quality product, with the best features and benefits in it's product class; all the while providing excellent service.
BD-920W / 321155K 9 by 20-Inch Belt Drive Bench Lathe with Stand
At a Glance
- Includes S-920N stand
- Spindle supported by precision tapered roller bearings
- Hardened and ground bedways
- Reversing switch included for added versatility
- Backlash adjustments provided throughout the carriage
- Quick change gearbox provides wide range of inch and metric threads
- Power Longitudinal feed allows threading and reverse threading
- Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
- Tailstock is adjustable for taper cuts
Standard Equipment
- 4-inch, 3-jaw chuck with threaded back plate
- 7-inch, 4-jaw chuck with threaded back plate
- Metric change gears
- Enclosed gear box
- Centers
- Threading dial
- Full length splash guard
