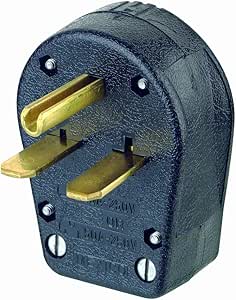

Leviton 931 30/50 Amp, 250 Volt, Plug, Angle, Grounding, Black

4.5 out of 5 stars 32 customer reviews

Price: $14.77 & FREE Shipping on orders over $49. Details
In Stock.
Ships from and sold by Amazon.com. Gift-wrap available.
    This fits your .
  • Enter your model number to make sure this fits.
  • Leviton® 2-Pole Commercial Grade Angle Plug With Interchangeable Blades, Black, Nema 6-30P / 6-50P, 250 Volts, 30 / 50 Amps
  • Electrical Specifications Grounding: Grounding
  • This is manufactured in Mexico
  • Tough thermoplastic shell for long life
  • Shell and bottom are hinged in front for ease of assembly
  • Solid brass blades with color-coded terminals simplify wiring
  • Each dual combination plug supplied with 30A blades and flat 50A blade
  • Interchangeable blades eliminate need for stocking different devices
28 new from $10.67 1 used from $19.86

Featured deals during Home Improvement's Summer Renovation Event
Summer Renovation Event - Grohe
Grohe
Summer Renovation Event - American Standard
American Standard
Summer Renovation Event - Primeline
Prime-Line
Summer Renovation Event - Shop all
See all deals
$14.77 & FREE Shipping on orders over $49. Details In Stock. Ships from and sold by Amazon.com. Gift-wrap available.

Frequently Bought Together

  • Leviton 931 30/50 Amp, 250 Volt, Plug, Angle, Grounding, Black
  • +
  • Leviton 061-05372-000 Power Receptacle 30 Amp 250 Volt Flush Mount
  • +
  • Leviton 84028 1-Gang Flush Mount 2.15-Inch Diameter, Device Receptacle Wallplate, Device Mount, Stainless Steel
Total price: $28.03
Buy the selected items together


Product Description

Product Description

Electrical Specifications Grounding: Grounding Amperage: 30/50 Amp Voltage: 250 Volt NEMA: 6-30P/6-50P Pole: 2 Wire: 3 Dielectric Voltage: Withstands 2000V per UL498 Current Interrupting: Certified for current interrupting at full rated current Temperature Rise: Max 30°C after 50 cycles OL at 150 percent rated current^^Environmental Specifications Flammability: Rated V-2 per UL94 Operating Temperature: -40°C to 60°C^^Material Specifications Body Material: Thermoplastic Blades/Contacts: Brass Assembly Screws: Steel, Zinc Plated Color: Black^^Mechanical Specifications Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral Terminal Accom.: 14-6 AWG Product ID: Ratings and NEMA I.D. permanently marked on device Cord Range: .630 - 1.050^^Standards and Certifications NEMA: WD-6 ANSI: C-73 UL498: File E13393 CSA C22.2 No. 42: File LR-406 NOM: 057 Warranty: 10-Year Limited.

From the Manufacturer

Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity. 30/50 Amp, 250 Volt, Plug, Straight Blade, Commercial Grade, Angle, Grounding, Black.

Product Information

Technical Details

Part Number R50-00931-000
Item Weight 8 ounces
Product Dimensions 3.8 x 3.8 x 2.5 inches
California residents Click here for Proposition 65 warning
Item model number 931
Discontinued by manufacturer Yes
Color Black
Material Thermoplastic
Item Package Quantity 1
Batteries Included? No
Warranty Description 10 Year Limited

Additional Information

ASIN B00004YUKC
Customer Reviews
4.5 out of 5 stars 32 customer reviews

4.5 out of 5 stars
Best Sellers Rank #26,001 in Home Improvements (See top 100)
#65 in Home Improvement > Electrical > Plugs
#1,984 in Home Improvement > Contractor Supply
Shipping Weight 8 ounces (View shipping rates and policies)
Domestic Shipping This item is also available for shipping to select countries outside the U.S.
International Shipping This item is not eligible for international shipping. Learn More
Date First Available October 6, 2004

Feedback

Would you like to tell us about a lower price?

Customer Questions & Answers

Customer Reviews

Top Customer Reviews

Verified Purchase
I purchased this to replace a welder power plug that had burned a connection inside the original molded non servicable plug. This is a well constructed heavy duty replacement, and was easy to wire. The individual blades are removable for that purpose. I also like the idea of four screws holding down the outer cover for extra strength. The plug is made of a semi-soft material and is made to handle abuse.
Comment 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
Nice solid texture and weight to the housing... nice thick conductors... easy to connect the wires (just screw them down)... good clamping mechanism (not just wrapping wire around screws but real clamps to hold the wire).
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
By Rodney on March 15, 2014
Verified Purchase
Well built and comes with a design that will work with several configurations. Leviton does seems to make good products. Had to make this article more wordy than necessary, but the guidelines require too many words!
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
I bought the NEMA 10-30P version of this same product made by Leviton and it works great. Just be careful when assembling the blades so that the contacts with wires attached are not in any way close enough to touch each other.
Comment 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
I purchased this plug for my 50A plasma cutter which do not come with a plug assembled since they can run at variable voltages.
Item was easy to install and configure.
I used it as a 50A plug to match my Lincoln 180 welder.
Comment 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
This is a good plug that can have several configurations. Simple instructions and sturdy design.
Comment 2 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
Being a Leviton product, one might suppose it is the industry standard. Nevertheless, the connectors on the plug I got would not cinch tight on #10 stranded wire, which should be a very common wire type for this application (and apparently among the gauges the plug is designed for). I had to bend two ears on each terminal to get an improved fit when the terminal was screwed down tight. This took care of two of the three prongs, but it was still easy to pull the wire out of the terminal on the third prong. Unfortunately the third prong was the one that required some persuasion to force it into its proper position (the other two went in quite easily), and the wire kept slipping out.

After enough fussing it all went together, looks good, and works fine; but I was surprised by the hassle.
4 Comments One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
Verified Purchase
Solid, simple construction. The only complaint I have is that it is sometimes hard to get all of the parts into their respective holes if you're using stiff wire, but that's more user error than anything.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
