Product Description
MAKITA 10 In. Dual Slide Co
Amazon.com

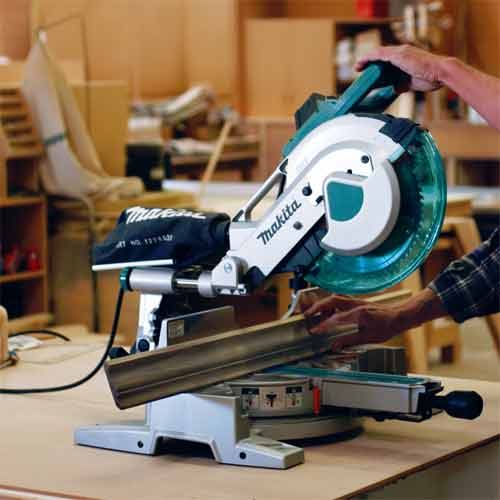

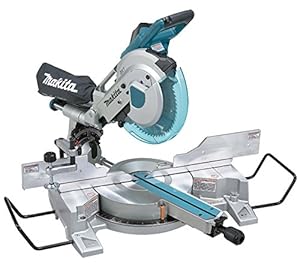

Makita changes the game with the new LS1016 10-Inch Dual Slide Miter Saw featuring a crown molding cutting capacity of 6-5/8 inches (vertically nested)--the largest in its class. It has a patented 4-Steel Rail Sliding System that increases rigidity to produce superior cuts, and the exclusive six linear ball bearings design allows for smooth, adjustment-free, accurate cuts.
| LS1016 Features | CAPACITY - 6-5/8-inch crown molding (vertically nested) and 4-3/4-inch baseboard (vertical) cutting capacity
ACCURACY - Exclusive six linear ball bearings deliver smooth, solid, adjustment-free, and accurate cuts
PRECISION - Designed with a patented 4-steel rail sliding system that increases rigidity to produce superior cuts
PORTABILITY - Less weight (53.1 pounds) and most compact design in its class for easy jobsite portability
INCLUDES - Blade, vertical vise, dust bag, triangular ruler, and socket wrench |
|
| Tool Specifications |  | | Blade Diameter | 10" | | Arbor | 5/8" | | Crown Molding (nested) | 6-5/8" | | Baseboard (vertical) | 4-3/4" | | Max. Cutting Capacity (Miter Capacity) 90° | 2-13/16" x 12" | | Max. Cutting Capacity 45° L/R | 2-13/16" x 8-1/2" | | No Load Speed | 3,200 rpm | | AMPS (120V) | 15 | | Size (L x W x H) | 28-1/4" x 25-1/4" x 26-1/2" | | Net Weight | 53.1 lbs. |
|
Large Cutting Capacity and Increased AccuracyThe LS1016 has an innovative direct-drive gearbox and patented retractable guard system engineered for increased vertical cutting capacity. At 6-5/8 inches, the LS1016 has the largest crown molding cutting capacity (vertically nested) in its class. The patented retractable rear guard also provides the LS1016 with 4-3/4-inch baseboard cutting capacity (vertical) and a 12-inch capacity at 90 degrees. In addition, the exclusive six linear ball bearings deliver smooth, solid, and adjustment-free accurate cuts. The saw also has a patented 4-Steel Rail Sliding System that further increases rigidity to produce superior cuts, as the four steel rails provide less deflection. The result is a larger cutting capacity and more accuracy.
Precise Miter and Bevel Cuts
The LS1016 has an exclusive 4-3/4-inch sliding fence system, with four sliding fences featuring upper and lower fence adjustments for more precise miter and bevel cuts in a variety of cutting applications. The saw miters 0 to 52 degrees left and 0 to 60 degrees right, with positive stops at 0, 15, 22.5, 31.6, and 45 degrees (left and right). The dual rear-handle bevel lock is easily accessible with adjustments from 0 to 45 degrees (left and right), with positive stops at 22.5, 33.9, and 45 degrees (left and right).
Precise adjustments are made easy with dual front bevel scales for improved visibility. The easy one-touch (push in & turn) miter lock system is designed for accurate adjustments and increased efficiency.
Ergonomic and Compact Design
In addition to the large cutting capacity, power, and accuracy, the LS1016 offers a range of convenient and ease-of-use features. The LS1016 has less weight and the most compact design in its class, so it's portable and easily transported. In addition, the patented 4-Steel Rail Sliding System requires 2-inches less rear space than competing dual sliding miter saws. The see-through blade guard system provides greater visibility of blade and line of cut and has a one-step blade change process for increased efficiency. The rubberized horizontal D-handle design has an ergonomic fit for added comfort, and the large trigger switch is designed for easy operation.
15 AMP Power for Smoother, Higher-Quality Cutting
The LS1016 has a 15 amp direct-drive gearbox motor that never slips, bogs down, or requires maintenance like belt-driven saws. The soft-start feature delivers smoother start-ups, and the electronic speed control maintains constant speed under load for smoother, higher-quality cutting.
Best in Class for a Range of Applications
The LS1016 is engineered for finish work, remodeling, trim work, and furniture making. It is ideal for a broad range of trades, including finish carpenters, professional woodworkers, case and base installers, cabinet installers, cabinet manufacturers, closet installers, decking and flooring applications, siding installers, stair installers, and general contractors seeking a superior 10-inch dual slide compound miter saw for the jobsite or on the benchtop. The LS1016 is just another example of Makita's commitment to innovative technology and best-in-class engineering.
About Makita Miter Saws with DXT
Makita's new miter saws with DXT (Deep and eXact Cutting Technology) are designed with an innovative direct-drive gearbox and patented retractable guard system engineered for large vertical cutting. In addition, the exclusive six linear ball bearings deliver smooth, solid, and adjustment-free "dead-on" accurate cuts. The saws also have a patented 4-Steel Rail Sliding System that further increases rigidity to produce superior cuts, as the four steel rails provide less deflection. The four steel rails also enable a more compact rear design than standard two-rail systems. Makita's new miter saws deliver a larger cutting capacity and more accuracy combined with a more compact rear design.
About Makita
Makita is a worldwide manufacturer of industrial-quality power tools and offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are compact and energy efficient, yet deliver industrial-strength power and results. Makita USA, Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit the website at makitatools.com. Makita is Best-in-Class Engineering.
Warranty
Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. Please see makitatools.com for complete details.
What's in the Box
Makita LS1016 10-Inch Dual Slide Compound Miter Saw, 60T TCT saw blade, vertical vise, dust bag, triangular ruler, socket wrench, and hex wrench.
