Makita LS1216L 12" Dual Slide Compound Miter SawMakita LS1216L 12" Dual Slide Compound Miter Saw Features:; Miter saw; Large cutting capacity up to 8" crown molding nested, 6-1/2" baseboard vertical, and 15" crosscut at 90 °; Compact design with a patented 4 steel rail sliding system further increases rigidity to produce superior cuts; Exclusive 6 linear ball bearings deliver smooth, solid and adjustment free dead on accurate cuts; Exclusive 5-1/2" tall dual sliding fence system features versatile upper and lower fence adjustments for more precise miter and bevel cuts; Patented retractable rear guard and triple gear system for increased vertical cutting capacity; Independent laser indicates line of cut whether blade is turning or not, with on and off switch and micro adjustments for precise left of blade or right of blade cutting; Electronic speed control maintains constant speed under load for smoother higher quality cutting; Powerful 15 amp direct drive motor requires less maintenance and delivers 3,200 RPMs with soft start for smoother power ups; Miters 0 ° to 50 ° left and 0 ° to 60 ° right with positive stops at 0 °, 15 °, 22.5 °, 31.6 ° and 45 ° left and right; Bevels 0 ° to 45 ° left and right with positive stops at 22.5 °, 33.9 ° and 45 ° left and right; Ergonomic rubberized horizontal D handle design with oversized trigger switch for better fit and added comfortMakita LS1216L 12" Dual Slide Compound Miter Saw Specifications:; Includes: 60T carbide tipped blade (A-93712), vertical vise (122854-6), dust bag (122852-0), triangular rule (762001-3), socket wrench #13 (782232-8) and wrench #2.5(783208-8); Blade Diameter: 12 ; Arbor: 1 ; Crown Molding (Nested): 8 ; Baseboard (Vertical): 6-1/2 ; Max Cutting Capacity (Bevel/Miter): 90 °/90 ° - 3-5/8 x 15 , 45 °/ 45 ° LR “ 3-5/8 x 10-1/2 ; No Load Speed: 3,200 RPM; AMPS (120V): 15.0; Dimensions (LxWxH): 31-3/4 x 25-1/4 x 28-3/8 ; 58.6 lbs

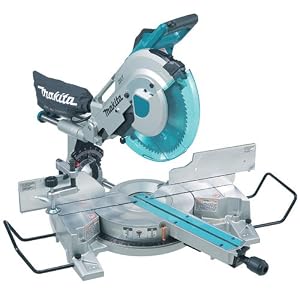

The Makita LS1216L 12" dual slide miter saw delivers the largest crosscutting and crown cutting capacity in its class. It has a patented 4-Steel Rail Sliding System that further increases rigidity to produce superior cuts, and an exclusive 6 linear ball bearing design for smooth, adjustment-free, "dead-on" accurate cuts. The LS1216L is ideal for benchtop and jobsite use, as well as high-production/manufacturing settings.
Large Cutting Capacity, Increased Accuracy
|CAPACITY - 8" crown molding (vertically nested), 6-1/2" baseboard (vertical), and 15" crosscut at 90°|
|ACCURATE - Exclusive 6 linear ball bearings and 4-steel rail system deliver maintenance-free "dead-on" accurate cuts|

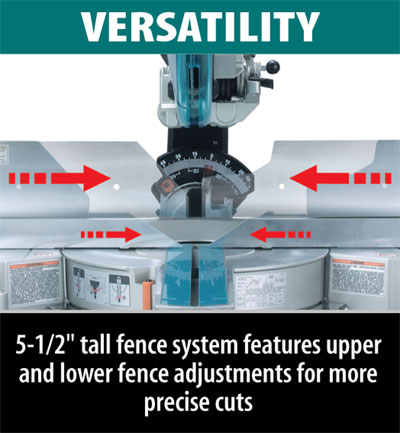

|VERSATILITY - 5-1/2" tall fence system features upper and lower fence adjustments for more precise cuts|
|DURABILITY - Powerful 15 AMP direct drive motor requires less maintenance than belt-driven saws|
|INCLUDES - Blade, dust bag, vertical clamp, wrench, and triangle|
|Crown molding (nested||8"|
|Max. cutting capacity (90°)||3-5/8" x 15"|
|Max. cutting capacity (45° L/R )||3-5/8" x 10-1/2"|
|No-load speed||3,200 RPM|
|Dimensions (LxWxH)||31-3/4" x 25-1/4" x 28-3/8"|
|Net weight||58.2 lbs.|
The LS1216L will crosscut wide boards up to 15" wide at 90°, right out of the box with no special setup required. It has an innovative direct drive gearbox and patented retractable guard system engineered for increased vertical cutting capacity and the largest crown molding cutting capacity (8" vertically nested) in its class. The patented retractable rear guard also provides the LS1216L with 6-1/2" baseboard cutting capacity (vertical). In addition, the exclusive 6 linear ball bearings deliver smooth, solid and adjustment-free "dead-on" accurate cuts. The saw also has a patented 4-Steel Rail Sliding System that further increases rigidity to produce superior cuts, as the four steel rails provide less deflection. The result is a larger cutting capacity and more accuracy.
Precise Miter and Bevel Cuts
The LS1216L has an exclusive 5-1/2" tall sliding fence system, with four sliding fences featuring upper and lower fence adjustments for more precise miter and bevel cuts to accommodate a variety of cutting applications. The saw miters 0° to 52° left and 0° to 60° right, with positive stops at 0°, 15°, 22.5°, 31.6°, and 45° (left and right). The dual rear-handle bevel lock is easily accessible with adjustments 0° to 45° (left and right), with positive stops at 0°, 22.5°, 33.9°, and 45° (left and right). Precision adjustments are made easier with dual front bevel scales for improved visibility. The easy one-touch (push in and turn) miter lock system is designed for accurate adjustments and increased efficiency. For more precise cuts, a built-in laser indicates the line of cut, whether the blade is turning or not, and also includes an on/off switch and microadjustments for precise "left-of-blade" or "right-of-blade" cutting.
In addition to the large cutting capacity, power, and accuracy, the LS1216L offers a range of conveniences and ease-of-use features. The LS1216L has a patented 4-Steel Rail Sliding System that requires less rear space than competitor dual sliding miter saws. The see-through blade guard system provides greater visibility of blade and line of cut, and has a one-step blade change process for increased efficiency. The ergonomic rubberized horizontal D-handle design has a better fit and added comfort, and the large trigger switch is designed for easier operation.
15 AMP Power for Smoother, Higher-Quality Cutting
The LS1216L has a 15 AMP direct gear box motor that never slips, bogs down, or requires maintenance like belt-driven saws. The soft start feature delivers smoother startups, and the Electronic Speed Control maintains constant speed under load for smoother, higher-quality cutting.
Best in Class for a Range of Applications
The LS1216L is engineered for precision tasks in woodworking shops, as well as for cutting large materials like 4" x 16" beams and wide boards up to 15". It is ideal for a broad range of tradespeople, including finish carpenters, professional woodworkers, case and base installers, cabinet installers, cabinet manufacturers, closet installers, decking and flooring professionals, siding installers, stair installers, and general contractors seeking a best-in-class 12" dual slide compound miter saw for the jobsite, benchtop, or high-production/manufacturing setting.
About Makita's Miter Saws with DXT
Makita's new miter saws with DXT (Deep and eXact Cutting Technology) are designed with an innovative direct drive gearbox and patented retractable guard system engineered for large vertical cutting. In addition, the exclusive 6 linear ball bearings deliver smooth, solid and adjustment-free "dead-on" accurate cuts. The saws also have a patented 4-Steel Rail Sliding System that further increases rigidity to produce superior cuts, as the four steel rails provide less deflection. The four steel rails also enable a more compact rear design than standard two-rail systems. Makita's new miter saws deliver a larger cutting capacity and more accuracy combined with a more compact rear design.
Makita is a worldwide manufacturer of industrial-quality power tools, and it offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are more compact and energy efficient, yet deliver industrial-strength power and results. Makita U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800-4-MAKITA (800-462-5482) or visit makitatools.com. Makita is Best in Class Engineering.
What's in the Box
See all Product description
Makita LS1216L 12-inch Dual Slide Compound Miter Saw, 60T TCT Saw Blade, Vertical Vise, Dust Bag, Triangular Rule and Wrench.
