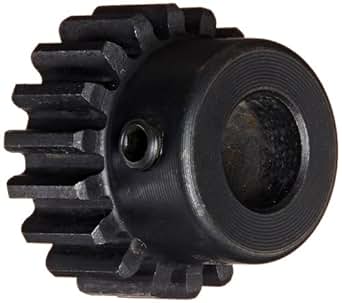

Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

Martin Spur Gear, 14.5° Pressure Angle, High Carbon Steel, Inch, 20 Pitch

Available in multiple versions

5.0 out of 5 stars 2 customer reviews

Price: $5.11 - $97.90
Product Specifications
Brand Name Martin
Material Type High Carbon Steel
Bore Diameter Tolerance + 0.001 - 0.000  inches
Face Width 0.375  inches
Pitch 20
UNSPSC Code 31171707

Currently showing 1-20 of 50 Next »
ASIN
The Amazon Standard Item Number (ASIN) uniquely identifies the item in the Amazon catalog.
Pitch Diameter String Outside Diameter Bore Diameter Number of Teeth Price Quantity

B004BDO3S2 20 inches 0.7 inches 5/16 inches 11
$12.78
B004BDO3SM 20 inches 0.7 inches 5/16 inches 12
$12.78
B004BDO3T6 20 inches 0.75 inches 5/16 inches 13
$14.19
B004BDO3TQ 20 inches 0.8 inches 5/16 inches 14
$14.98
B004BDO3UA 20 inches 0.85 inches 3/8 inches 15
$15.98
B004BDO3UU 20 inches 0.9 inches 3/8 inches 16
$17.26
B004BDO3V4 20 inches 0.95 inches 3/8 inches 17
$18.07
B004BDO3VE 20 inches 1 inches 3/8 inches 18
$17.78
B004BDO3VO 20 inches 1.05 inches 3/8 inches 19
$19.16
B004BDO3VY 20 inches 1.1 inches 3/8 inches 20
$19.18
B004BDO3W8 20 inches 1.15 inches 3/8 inches 21
$9.06
B004BDO3WI 20 inches 1.2 inches 3/8 inches 22
$21.96
B004BDO3WS 20 inches 1.25 inches 3/8 inches 23
$5.12
B004BDO3XC 20 inches 1.35 inches 3/8 inches 25
$5.11
B004BDO3XM 20 inches 1.5 inches 3/8 inches 28
$22.78
B004BDO3XW 20 inches 1.6 inches 3/8 inches 30
$25.47
B004BDO3Y6 20 inches 1.7 inches 3/8 inches 32
$6.32
B004BDO3YG 20 inches 1.85 inches 3/8 inches 35
$31.96
B004BDO3YQ 20 inches 1.9 inches 3/8 inches 36
$32.77
B004BDO3Z0 20 inches 2.1 inches 3/8 inches 40
$33.77
Currently showing 1-20 of 50 Next »
Could not load your selection

We're sorry. An error occured when we tried to load your product family table. Rest assured, we're working to resolve the problem as soon as possible. Please refresh the page.


Product Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 14.5 degrees for a higher contact ratio between gears, resulting in quieter operation than larger pressure angles
  • Diametral pitch of 20 for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision
  • High carbon steel for tensile strength and hardness

Product Description

The Martin high carbon steel spur gear with 14.5-degree pressure angle (PA) and a diametral pitch (DP) of 20 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 14.5-degree pressure angle for a higher contact ratio between gears than larger pressure angles, resulting in quieter operation, and a 20-diametral pitch for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of high carbon steel for tensile strength and hardness. This Martin spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company was founded in 1951 and is headquartered in Arlington, TX. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
