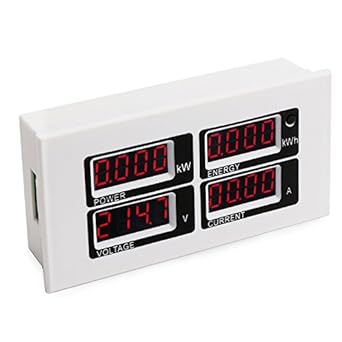

AC Digital Multimeter, DROK Voltmeter Ammeter AC 80-260V 100A 110V 220V Voltage Amperage Power Energy 4in1 Meter 22kW 9999kWh Volt Amp Power Energy Monitor Detector Testing Gauge Red LED Digital Tube Display

18 ratings

| 9 answered questions

Currently unavailable.

We don't know when or if this item will be back in stock.

Specifications for this item

Brand Name	DROK
Clothing Size	LED 4 in 1 Meter
Included Components	no
Item Weight	5.6 ounces
Measurement Accuracy	inch
Measurement System	US
Model Number	200127
Number of Items	1
Part Number	200127
Size	LED 4 in 1 Meter
UNSPSC Code	41110000

Customers also viewed these products

Page 1 of 1 Start overPage 1 of 1

Special offers and product promotions

Amazon Business : Discover discounts and FREE shipping on work supplies. Register a free business account

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Product description

Parameters: Working Voltage: 80 ~ 260VAC Measuring Range: 80 ~ 260VAC Rated Power: 100A/22000W Operating Frequency: 45-65Hz Measuring Accuracy: 1. 0 grade Test range and display format: Power Range: 0~22kW within 0~10kW, display 0. 000~9. 999; within 10~22KW, display 10. 00~22. 00. Energy Range: 0~9999kWh within 0~10KWh, display 0. 000~9. 999; within 10~100KWh, display 10. 00~99. 99; within 100~1000KWh, display 100. 0~999. 9; within 1000~9999KWh, display 1000~9999. Voltage Range: 80~260V(display 80. 0~260. 0V) Current Range: 0~100A(display 00. 00~99. 99A) Note: This module is suitable for indoor, please do not use outdoor. Applied load should not exceed the rated power. Wiring order can't be wrong. Packing Includes: 1x AC Power Mustimeter

Product details

Is Discontinued By Manufacturer : No
Product Dimensions : 4.65 x 2.36 x 0.43 inches; 5.64 Ounces
Item model number : 200127
Date First Available : September 23, 2015
Manufacturer : DROK
ASIN : B015PRF04I

Customer Reviews:
18 ratings

Customer Questions & Answers

See questions and answers

Customer reviews

5 star		37%
4 star		20%
3 star		21%
2 star		11%
1 star		12%

How are ratings calculated?

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Wayne Wilson

Easy to use, bright LED's.

Reviewed in the United States on June 22, 2018

Verified Purchase

I have the LED version of this. It works well. I have not done a calibration check, but based on the readings I am getting, it's certainly within 5% and probably closer to the rated 1% I am using on a 120V circuit but will be moving it to a 240V circuit sometime in the future. The one thing, which others have mentioned, is that the leads on the current sensor are not long enough to allow mounting anywhere other than directly beside an outlet and even that is tight. True, these can easily be extended with wire, solder and heat shrink tubing, but it would nice to not have to do that.

One person found this helpful

Helpful

Dave R.

Great Features for the price.

Reviewed in the United States on October 20, 2016

Verified Purchase

Works great so far. I have not put it into service yet, but have hooked it up in a test mode and the display mode seems to work just fine. I have not been able to test the TTL serial output, but I will. I have not been able to get the adapter I purchased to convert from TTL to USB working so far. I have not checked accuracy yet, but I am not too worried about exact precision in the application I am planning on using this for. 2-5% accuracy will be fine. One note, but not a complaint, this unit is a little larger than the black face/blue background units without the TTL output. Not an issue, I just did not look closely at the specs. I will update this review if my opinion changes as more testing is done, and the unit is put into service.

Helpful

DullRazr

Easy to install

Reviewed in the United States on December 25, 2017

Verified Purchase

Bought the LED version to measure the energy consumption of a new hybrid water heater. It was easy to install in a 30 Amp 2-Pole circuit using the diagram on the back of the unit. Just passed one of the hot leads through the CT loop and connected the voltage meter leads to the two hot leads.

One person found this helpful

Helpful

VM370Guy

DROK Digital Multimeter AC Voltage Amperage Power Energy 4in1 Meter 80-260V 100A Volts Amps Testing Gauge 22kW 9999kWh Power

Reviewed in the United States on October 11, 2017

Verified Purchase

I've gone through two of these in about three months and need a third. They just don't last. Which is a shame, because the display is much clearer than the LCD models from another manufacturer. And those LCD models have performed flawlessly now for about a year running 24 hours a day.

One person found this helpful

Helpful

Good but not lasting very long.

Reviewed in the United States on November 28, 2017

Verified Purchase

I bought 3 of these and two of them have died within a few months. While they worked the were great!

2 people found this helpful

Helpful

Peter Drez

Great unit, installed to monitor electric usage at my ...

Reviewed in the United States on January 12, 2018

Verified Purchase

Great unit, installed to monitor electric usage at my dock to remotely verify heat is active on my boat in the cold weather. Doing the job at a great price.

One person found this helpful

Helpful

Leala

It died after 16 days from installation.

Reviewed in the United States on January 28, 2018

Verified Purchase

It died after 16 days from installation. Was used continuously. Very sad :(. Worked great when it worked.

Helpful

DFilbert

Excellent meter.

Reviewed in the United States on October 19, 2016

Verified Purchase

Excellent meter. I use it with my Variac to monitor power in my tube electronic circuits!!

One person found this helpful

Helpful

Top reviews from other countries

KP63

I liked it

Reviewed in Canada on January 8, 2020

Verified Purchase

Worked perfectly until I screwed up, created a short circuit and blew some component on the board... Would have re-order the same but they were all out of, so...
A little Bulky and I was honestly believed that it was a stand-alone unit, not needing an enclosure. But you do need an enclosure. My bad.
