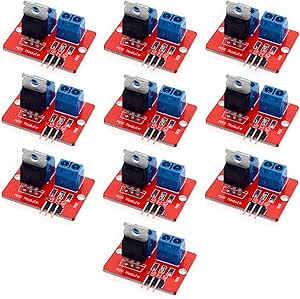

10pcs 0-24V MOSFET Button IRF520 MOS Driver Module for Arduino MCU ARM Raspberry pi

4.3 4.3 out of 5 stars 112 ratings
$9.99
Get Fast, Free Shipping with Amazon Prime
FREE Returns
{"desktop_buybox_group_1":[{"displayPrice":"$9.99","priceAmount":9.99,"currencySymbol":"$","integerValue":"9","decimalSeparator":".","fractionalValue":"99","symbolPosition":"left","hasSpace":false,"showFractionalPartIfEmpty":true,"offerListingId":"3JS1FjdFxhHY0fVQIVyQuQPHWPGFw%2FSYbF8UZ3dxg%2FzIlrPhPrelu0AosFt5pdTCUM2RKn0z%2Fj%2F%2Bf5dDhU46HI%2BsUYm2NLTngefPiOTETdYMMulcuQHWo196XlvxnYjJo1hkjGvThWrZIziRqyRhY056Pyi8mo7dxABoOVMqcUnLsF56DVv1%2FNt5ZVTQ2q9j","locale":"en-US","buyingOptionType":"NEW","aapiBuyingOptionIndex":0}]}

Purchase options and add-ons

  • Using original IRF520 power MOS tube, can adjust PWM output
  • Can let the Arduino drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valve
  • By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation
  • Platform for Arduino, SCM, ARM, Raspberry Pi
  • Max load (drain) current: <5A,Output load voltage :0-24V

Frequently bought together

Onyehn 10pcs 0-24V MOSFET Button IRF520 MOS Driver Module for Arduino MCU ARM Raspberry pi
$9.99
Get it as soon as Thursday, Mar 28
Only 20 left in stock - order soon.
Sold by Onyehn and ships from Amazon Fulfillment.
+
Anmbest 5PCS DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOSFET Trigger Switch Drive Module 0-20KHz PWM Adjustment Electronic
$8.99 ($1.80/Item)
Get it as soon as Wednesday, Mar 27
In Stock
Sold by Anmbest and ships from Amazon Fulfillment.
+
ELEGOO 120pcs Multicolored Dupont Wire 40pin Male to Female, 40pin Male to Male, 40pin Female to Female Breadboard Jumper Rib
$6.98
Get it as soon as Wednesday, Mar 27
In Stock
Sold by ELEGOO Official US and ships from Amazon Fulfillment.
Total price:
To see our price, add these items to your cart.
Details
Added to Cart
Some of these items ship sooner than the others.
Show details Hide details
Choose items to buy together.

Looking for specific info?

Product Description

Product parameters:
Size: 33.4 * 25.6MM
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0 to 24V
The output load current: <5A (more than 1A need to add heat sink)
Platform: the Arduino, MCU, ARM, raspberry pie

The product instructions:
PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V) :
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V) :
V + and V - between 0, work lights out, don't work load

Package included:
10PCS x IRF520 Module

Product information

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Onyehn

Onyehn 10pcs 0-24V MOSFET Button IRF520 MOS Driver Module for Arduino MCU ARM Raspberry pi

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Customer reviews

4.3 out of 5 stars
4.3 out of 5
112 global ratings

Customers say

Customers like the performance of the controller. They say it works perfectly, and is great with Arduino. They also say the PWM signals work as expected. However, some customers have mixed opinions on ease of use.

AI-generated from the text of customer reviews

6 customers mention6 positive0 negative

Customers are satisfied with the performance of the controller. They mention that it works perfectly, works great with Arduino, and the PWM signals work as expected.

"...Used one for solenoids and other for ignition. Simple to use and work every time." Read more

"...Worked as expected, i like that it has an led that lights up when mosfet is on." Read more

"The units work very well with an Arduino or RPi source, and PWM signals work as expected...." Read more

"Very simple connection. Works great. I was using arduno to control 12v pc fans with pwm" Read more

6 customers mention4 positive2 negative

Customers are mixed about the ease of use of the controller. Some mention it's simple to use and work every time, while others say that there are no instructions or schematics.

"...Used one for solenoids and other for ignition. Simple to use and work every time." Read more

"...Unfortunately, they don't provide a schematic or wiring diagram, so it took me a bit of time to figure out how the thing works...." Read more

"I ordered 6 pack, and all of them worked. These are super easy to hook up and run. Perfect for what I needed. I will be buying more soon!" Read more

"Very simple connection. Works great. I was using arduno to control 12v pc fans with pwm" Read more

Great product...
5 Stars
Great product...

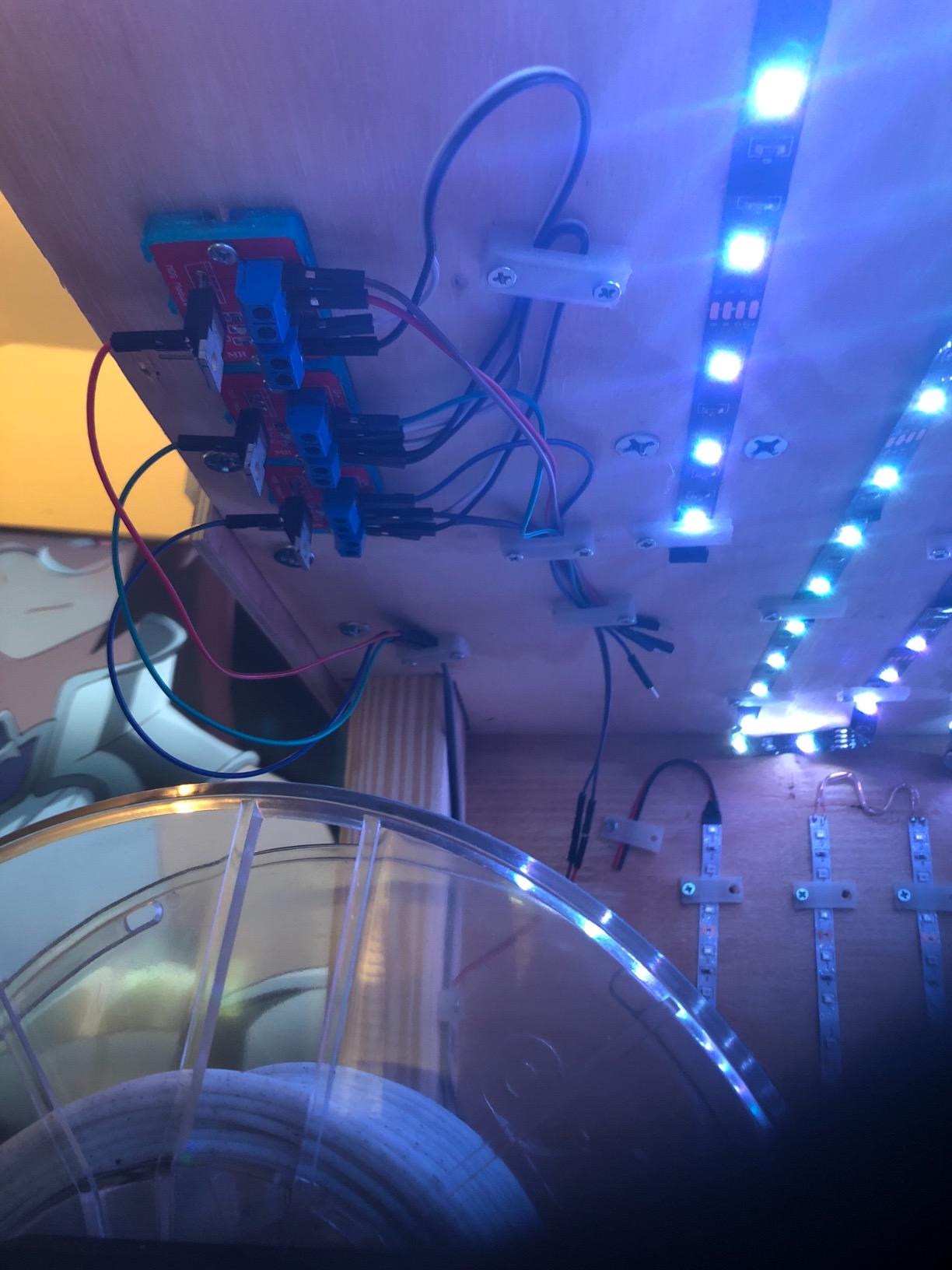

Product is awesome. It’s being used for my 12Volt RGB LED so that I can connect then to my 3-D printer and be able to monitor Temperature by just looking at the color of the enclosure. Blue for cold, red for hot, green for done, and white while in operation.
