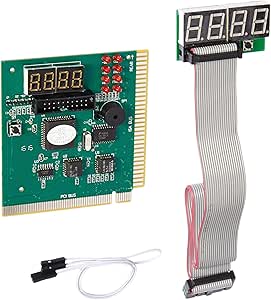

4 Digit PCI and ISA PC Computer Motherboard Power Diagnostic Analyzer Post Tester Card

Visit the Optimal Shop Store

3.7 219 ratings

| Search this page

$10.99

Get Fast, Free Shipping with Amazon Prime

FREE Returns

Eligible for Return, Refund or Replacement within 30 days of receipt

{"desktop_buybox_group_1":[{"displayPrice":"$10.99","priceAmount":10.99,"currencySymbol":"$","integerValue":"10","decimalSeparator":".","fractionalValue":"99","symbolPosition":"left","hasSpace":false,"showFractionalPartIfEmpty":true,"offerListingId":"x688slWrZjiFjhcV45og0i67TWChIhwtihg7A6CR5mp3cslcxeJOe1Hs%2BRBljcAP6BZqv6rew4%2Bb34HuTcFNovcsozqFFjS0wmXjGxic1hhtvsNZ2SfFyVcHT1uXu8DbqqJmC%2FWcuBwkBQbnEiulQArQJ9PP0rm8EHh9FHge61HFqMgxp3dyy13Cih%2BiqndY","locale":"en-US","buyingOptionType":"NEW","aapiBuyingOptionIndex":0}]}

Purchase options and add-ons

Brand	Optimal Shop
Compatible Devices	Personal Computer
Platform	Not Machine Specific
CPU Model	1.2GHz Cortex A8 Processor
Memory Storage Capacity	8 GB
Graphics Card Interface	PCI
Memory Slots Available	4
System Bus Standard Supported	SATA 3
Number of USB 2 Ports	4
Manufacturer	Optimal Shop

About this item

PCI and ISA 4 digit PCI analyzer:standard PCI and ISA interface, easy access to desktop PC.
Standard PCI and ISA interfaces for easy access to desktop PCS.4 digit display,the first 2 digits indicate the current error code,and the last 2 digits indicate the previous error code.
After power on self test,the card will quickly display the error code,the provided error code table allows you to easily understand the error details.
Compatible with all mainstream motherboards.Support code search function.
Support motherboard bus speed test.

Report an issue with this product or seller

Frequently bought together

Optimal Shop 4 Digit PCI and ISA PC Computer Motherboard Power Diagnostic Analyzer Post Tester Card

$10.99

Get it as soon as Wednesday, Jun 12

In Stock

Sold by Optimal Shop and ships from Amazon Fulfillment.

Computer PC Power Supply Tester, ATX/ITX/IDE/HDD/SATA/BYI Connectors Power Supply Tester, 1.8'' LCD Screen (Aluminum Alloy En

$15.99

Get it as soon as Monday, Jun 10

In Stock

Sold by Fuhengli and ships from Amazon Fulfillment.

Lingvetron New V8 PCIe USB Post Test Card Motherboard Diagnostic Tester Kit Unique USB Diagnosis for PC Laptop Server All in

$49.50

Get it as soon as Wednesday, Jun 12

In Stock

Sold by nice_gadgets and ships from Amazon Fulfillment.

Total price:

To see our price, add these items to your cart.

Try again!

Details

Added to Cart

These items are shipped from and sold by different sellers.

Show details Hide details

Choose items to buy together.

Product information

Product Dimensions

4.9 x 4.1 x 0.3 inches

Item Weight

3.17 ounces

Manufacturer

Optimal Shop

ASIN

B008BZBKXC

Country of Origin

China

Item model number

PA006

Customer Reviews

3.7 219 ratings

3.7 out of 5 stars

Best Sellers Rank

#366 in Computer Motherboards

Is Discontinued By Manufacturer

Date First Available

June 16, 2012

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to tell us about a lower price?

Product Description

Features:
PCI and ISA 4 digit PCI analyzer:standard PCI and ISA interface,easy access to desktop PC.
Standard PCI and ISA interfaces for easy access to desktop PCS.4 digit display,the first 2 digits indicate the current error code,and the last 2 digits indicate the previous error code.
After power on self test,the card will quickly display the error code,the provided error code table allows you to easily understand the error details.
Compatible with all mainstream motherboards.Support code search function.
Support motherboard bus speed test.
Hexadecimal character display. Support 80H,84H,300H ports.In the test,press the S1 button for 1 second to start searching,press S1 half a second to start searching until the end,then press the S1 button again for 1 second to start searching,and then press S1 Search the previous error code in half a second until the end.
When searching downward, press and hold the S1 button for 1 second to start the bus speed test function. Support self test.
During the bus speed test,press the S1 button for 1 second to start the self test function,then press S1 to repeat once every half a second,and then press the S1 button for 1 second to return to the analysis state.
Supports AMI,Award, Phoenix and Tandy 300 BIOS.The S1 button can be used for multi-function operation.The speaker can use jumpers and cables.8 LED indicators can be used for +3.3V, +5V, + 12V, -12V, reset, frame, irdy, CLK.

Looking for specific info?

Customer reviews

3.7 out of 5

219 global ratings

How customer reviews and ratings work

Customers say

Customers like the quality, diagnostics, and accuracy of the motherboard. They mention that it's a great tool to quickly diagnose PC problems, and that the measurements are precise and steady. That said, some complain about the ease of use, saying that the manual introduction is hard to read and not understandable for the most part. They also dislike the codes, and display. Opinions are mixed on performance.

AI-generated from the text of customer reviews

7 customers mention7 positive0 negative

Customers are satisfied with the quality of the motherboard. They mention it's a great product, a nice little unit, and perfect.

"Pretty nice little unit. Tried in both ISA and PCI and it helped me diagnose 2 different motherboards problems...." Read more

"Great product. Very easy to use. Everyone should have one in their shop." Read more

"perfect!" Read more

"Excellent Product and Service" Read more

4 customers mention4 positive0 negative

Customers find the diagnostics of the motherboard to be a great help, making diagnosing a problem so much easier. They also say it's a handy tool to quickly diagnose PC problems.

"Definitely worth the money. It makes diagnosing a problem so much easier...." Read more

"Handy tool to quickly diagnose PC problems... my only misgiving is that its unable to mount in a PCI Express slot- as they are the norm now...." Read more

"This one is a lot better. Glad I bought it and now can diagnose common motherboard issues. Fast shipping as usual and I'm very satisfied." Read more

"Works great on older mobos. A great help for diagnostics." Read more

3 customers mention3 positive0 negative

Customers are satisfied with the accuracy of the motherboard. They mention that the measurements are precise and steady. They also appreciate the accurate description.

"Simple, ease to use. Accurate description. Saved me $$ and time." Read more

"So far it's working like champ. Measurements are precise and steady. It exceeds my expectations." Read more

"Very accurate" Read more

28 customers mention14 positive14 negative

Customers are mixed about the performance of the motherboard. Some mention that it works well, is useful for testing, and is a handy power on tester. However, others say that it fails to work, produces smoke when powering up, and includes no instructions or information for use.

"This device works great and the remote LED display is helpfull when the card is upagainst another card or the chassis making reading the built in..." Read more

"...that their card lets out the smoke when powering up and failing to work...." Read more

"...It makes diagnosing a problem so much easier. It helps eliminate wasted time and effort by identifying the problem instead of you counting blinks..." Read more

"...Essentially, the device failed to do what it’s supposed to do: work and help diagnose errors. Don’t recommend." Read more

30 customers mention7 positive23 negative

Customers find the manual introduction hard to read, not understandable for the most part, and difficult to read. They also say the manual looks to be roughly translated from Chinese and is missing a lot of basic information. Customers also mention that the documentation is poor and confusing to use.

"...The manual introduction was hard to read but the codes themselves are good enough...." Read more

"...This is probably the most serious as the documentation fails to mention the distinction and actually incorrectly documents this as the proper..." Read more

"...The manual is written in "Chinglish" and is hard to read but is relatively understandable." Read more

"...He loves how easy it is to use, with a digital display that he can read." Read more

3 customers mention0 positive3 negative

Customers are dissatisfied with the codes on the motherboard. They say the codes don't work correctly, and that the displaying codes is a false notion.

"...No codes, nothing." Read more

"...The codes don't display propeller and change hundreds of times per second." Read more

"...Dont buy this it doesnt even work correctly and displaying codes is a false notion." Read more

3 customers mention0 positive3 negative

Customers find the display of the motherboard difficult to read. They also mention that the letters are small in the manual and the light bleeding to other sections makes it hard to read the display. Some customers also say that the analyzer is too small to be of any use.

"It is hard to read the display because of the light bleeding to other sections of the LCD...." Read more

"The analyzer is too small to be of any use and the booklet is a joke. I had to enlarge it just to read how bad the tester really is...." Read more

"...Letters are so small in manual makes it very difficult to read. I regret purchasing it and would not recomend it" Read more

3 customers mention0 positive3 negative

Customers are dissatisfied with the lighting of the motherboard. They mention that the LEDs do not light up.

"Tried testing it straight out of the covers to diagnose a PC and no lights turned on or speaker beeped...." Read more

"...Plug it in to the board and no response, no power no lights, nothing. This was on a full working computer...." Read more

"Tried it on 2 mobo's... no LEDs lit up." Read more

Reviews with images

See all photos

Sort reviews by

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Michael

Works well.

Reviewed in the United States on October 16, 2022

Verified Purchase

Pretty nice little unit. Tried in both ISA and PCI and it helped me diagnose 2 different motherboards problems. One has a clock issue and the other had a dead short. I found and fixed the short and am waiting on parts to fix the clock.
Having the ribbon was really nice as there is no way I would have been able to read the codes as the card ends up facing the bottom of the machine. On my ISA machine it faced up so I could read both the card and the cable. Double check that the rear label on the card faces the rear (back) of the motherboard/computer (follow the arrow).
The manual introduction was hard to read but the codes themselves are good enough. Make sure you know your bios manufacturer which is likely printed on a chip on the motherboard or will flash when you power it on.
I give this 5 stars because it works. Seriously considered giving it 4 because of the manual but it works so well it deserves 5. Just be careful and make sure you put it in right.

Helpful

Russell J. Dill

4 ways to plug it in wrong, only 2 ways to plug it in right

Reviewed in the United States on July 1, 2022

Verified Purchase

There's a lot of reviews mentioning that their card lets out the smoke when powering up and failing to work. Most are blaming this on poor build quality, but I suspect that the issue is poor design and documentation. There are precisely 2 ways to plug the card in correctly, and at least 4 to plug it in wrong.

Correct #1: Plugged into an ISA slot with the "ISA BUS" label side, and the "REAR" arrow pointing towards the rear of the PC

Correct #2: Plugged into a 5V PCI slot with the "PCI BUS" label side and the other arrow pointing towards the *front* of the PC. Note that this is the only orientation it can be plugged into a 5V PCI slot because of the notch in the card.

Fail #1: The "ISA BUS" side of the card plugged into an ISA slot backwards. This can be avoided by ensuring that the "REAR" arrow always points to the rear of the PC when using the ISA bus connector.

Fail #2: Plugging the "PCI Bus" side into an ISA slot. This one should be pretty obvious

Fail #3: Plugging the "PCI bus" slot side into a PCIe x16 slot. This one is an easy mistake to make as many newer motherboards don't have any PCI slots. It's a design fail by the manufacturer because they shaved off a few pennies by making the card narrower than a regular PCI card. If the PCI bus fingers were the proper width, it would not fit into a PCIe slot.

Fail #4: Plugging the "PCI bus" slot side into a 3.3V PCI slot. This is probably the most serious as the documentation fails to mention the distinction and actually incorrectly documents this as the proper configuration. 3.3V and 5V PCI slots use a different notch to make sure that PCI cards that only support 3.3V only fit in a 3.3V PCI slot, 5V only cards only fit in 5V slots, and cards that support both fit in either slot. Physically, the slot itself is just rotated 180°. 5V slots have the key away from the back of the PC, 3.3V slots have the notch towards the rear of the PC. Almost all older PCs have 5V slots. Some newer PCs have 3.3V slots. The card itself actually fits perfectly into a 3.3V slot *if* it is rotated 180° and plugged in backwards. This will cause many shorts of signal lines to ground or power.

The documentation not only fails to mention the distinction, it actually has the instruction "Notice: the component side should face to the power pin". This is correct for plugging into the ISA slot, but incorrect for plugging into the PCI slot.

I haven't tested these 4 fail configurations to see if they actually lead to smoke. I suspect at a minimum #2 and #3 would. #1 and #4 may, but protections within the card and motherboard may prevent actual damage.

14 people found this helpful

Helpful

Amazon Customer

Great for PCI (NOT PCI-E); External digit display allows reading when placed sideways in buss

Reviewed in the United States on December 18, 2023

Verified Purchase

Can be used on older ISA bus and PCI buss only; NOT on PCI-E buss. Supports AMI, Award, Phenix, and IBM BIOS that send error codes on 80H, 84H, and 300H ports. External digit display allowed card use in either type buss slot (vertical or sideways card orientation depending on connector type) while still being easily readable. The 2-pin connector allows attachment to an external speaker for noisy environments, but it does have an onboard buzzer. 4-digit display shows current and prior codes. LEDs indicate presence of +3.3v, +5v, +12v, -12v, reset, frame, IRDY, CLK signals. The manual is written in "Chinglish" and is hard to read but is relatively understandable.

Helpful

John S. Kjellman

BIOS POST error codes are a life saver

Reviewed in the United States on November 18, 2023

Verified Purchase

This device works great and the remote LED display is helpfull when the card is upagainst another card or the chassis making reading the built in display difficult. I used it to diagnosis a couple of PCs where the BIOS didn't POST, turned out to need the RAM chips reseated.

Helpful

Aoune Syed

Did not work.

Reviewed in the United States on March 20, 2024

Verified Purchase

Tried testing it straight out of the covers to diagnose a PC and no lights turned on or speaker beeped. Essentially, the device failed to do what it’s supposed to do: work and help diagnose errors. Don’t recommend.

Helpful

Mrs. Samantha R Jackson

My husband loves it

Reviewed in the United States on March 16, 2020

Verified Purchase

This is the second of three diagnostic tools I got my husband for his birthday that has already paid for its self. One of the systems my husband built was having problems which usually means the motherboard has to be sent back to the manufacturer for testing or replacement. He was able to test and diagnose the problem rather quickly, then was able to repair the problem. He loves how easy it is to use, with a digital display that he can read.

Helpful

Top reviews from other countries

Hardik Brahmkshatriya

Find something better

Reviewed in Canada on October 21, 2022

Verified Purchase

It's not worth to buy because there is switch on it which is no use , showing same error in every cpu disappointing

Kevin

Great to debug old ISA computer... *OLD 3.3V PCI only, not modern 5V PCI*

Reviewed in Canada on August 30, 2019

Verified Purchase

Fortunately I purchased for ISA computer use, as the PCI portion is not usable in modern PCs. Ensure you watch the notch carefully!
