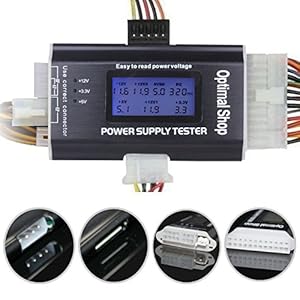

Optimal Shop 20/24 4/6/8 PIN 1.8" LCD Computer PC Power Supply Tester for SATA,IDE,HDD,ATX,ITX,BYI Connectors

4.2 out of 5 stars 100 customer reviews
| 14 answered questions
Price: $15.57 & FREE Shipping on orders over $49. Details
In Stock.
Want it Monday, Nov. 28? Order within and choose Two-Day Shipping at checkout. Details
Sold by Optimal Shop and Fulfilled by Amazon. Gift-wrap available.

Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .

If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .

    This fits your .
  • Enter your model number to make sure this fits.
  • This power supply tester is the ultimate tool for all computer repair people. It comes with an 8-in-1 ATX power supply tester that outputs the voltage levels of your connectors to a 1.8 inch screen that is built into the device!You can accurately detect problems with power supplies and prevent damage to your motherboard. Will test 20, 24pin, 4-pin power, SATA, Floppy Power, PCI-e, 4-pin, ATX12V, and 8-pin connectors.
  • Aluminum alloy material。ATX POWER Power Tester (LED screen Blu-ray version).ATX POWER dedicated power supply tester POWER * let you know whether the supply is normal! ! !Desktops | Servers POWER TESTER power tester fully supports ATX BTX ITX power supply.POWER tester plug as long as the POWER!The POWER connector plugged into the power of this group tester POWER you can know immediately if there is a problem! ! !
  • This is new power supplies go, this tester is up to the task because it can test 8 pin cpu, pci express, and sata. Features:Voltage Source 20/24 pin connector. 1.8 Inch Screen.Screen tells you outputted voltages for your .connectors.Features:Voltage Source 20/24 pin connector. 1.8 Inch Screen.Screen tells you outputted voltages for your .connectors.
  • Fault alarm, test interfaces are available, compact and handsome appearance, test functions and so on. Rapid detection of PC power is the best choice. It is your most reliable helper. More and more number of groups, not just the way in which problems, computer system hardware may work even burn related accessories. Measure the output voltage of the power supply output is stable, usually players will use a multimeter, but for the average user or trouble spots.
  • This power supply tester need only plug in the power of the ATX connector can be simple and intuitive to know the power and the brightest of the output is normal. Star power supply tester is a robust power supply test equipment that can detect ATX, BTX, ITX, TFX computer power, and the ability of each group LCD voltage and PG value of computer power to facilitate rapid detection instrument.
› See more product details
Used & new (2) from $11.00 & FREE shipping.
Computers and Accessories Gift Guide
$15.57 & FREE Shipping on orders over $49. Details In Stock. Sold by Optimal Shop and Fulfilled by Amazon. Gift-wrap available.

Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .

If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .

Frequently Bought Together

  • Optimal Shop 20/24 4/6/8 PIN 1.8" LCD Computer PC Power Supply Tester for SATA,IDE,HDD,ATX,ITX,BYI Connectors
  • +
  • Pc Motherboard USB & PCI Analyser Diagnostic Card Tester
  • +
  • Optimal Shop 4 Digit PCI and ISA PC Computer Motherboard Analyzer Tester Diagnostic Debug POST Card External Display
Total price: $33.45
One of these items ships sooner than the other. Show details
Buy the selected items together

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)

Compare to Similar Items


This item Optimal Shop 20/24 4/6/8 PIN 1.8" LCD Computer PC Power Supply Tester for SATA,IDE,HDD,ATX,ITX,BYI Connectors
Customer Rating 4 out of 5 stars (100) 4 out of 5 stars (170) 4 out of 5 stars (54) 4 out of 5 stars (96)
Price $15.57 $34.99 $22.64 $16.99
Shipping FREE Shipping FREE Shipping FREE Shipping FREE Shipping
Sold By Optimal Shop Amazon.com DataVision Computer Video LLYtech
Item Dimensions 3.7 x 8.3 x 0.8 in 0.97 x 2.95 x 5.12 in 4.5 x 7.5 x 1 in 2.36 x 2.76 x 0.39 in
Item Weight 3.2 ounces 3.2 ounces 6.4 ounces 4 ounces
Add to Cart Add to Cart Add to Cart Add to Cart

Product Description

Product Description：
Support 20Pin, 24Pin ATX power supply
Supports SATA power
Support the P4 4Pin, 8Pin interface
Support for PCI-E graphics card power connector 6Pin
Support molex / Xeco Power Interface
Support floppy drive power connector
4Pin power connector supports standard SATA interface
test voltage + 3.3V, -12V, + 5VSB, + 12V1, + 12V2, + 5V
Features: PG automatic alarm, LCD display case every volts Method of operation:
 a. the power 24PIN and P4, P6 or P8 plug into a power tester corresponding position.
 b. Turn on the power, while the "bit" sound twice startup sound, if the value of each group were not flashing, it means the input power supply is normal.
 c. If a circuit voltage signal is not detected (eg 20PIN 20PIN connector jack) or the detected voltage exceeds the normal range, the buzzer will emit a long time, "Didi" warning sound, and the corresponding voltage value or PG Displays the status blinks, it indicates that this is a failed power supply!
Specifications:
Input voltage: 20 / 40PIN (ATX power supply)
Voltage detection: + 12V -12V + 5V -5V + 3.3V 5VSB 12VPG
Ports: Floppy HDD COROM SATA 4pin (P4) 8pin (Dual-CPU) 6pin (PCI-E)
Any supply voltage or PG problems will alarm and display the voltage value, solve the first generation of a set of low voltage tester to test out the problem! Very convenient, is the power sales and merchant rare detection tool!
Package Includes:1 x Optimal Shop LCD POWER SUPPLY TESTER

Product Information

Technical Details

Additional Information

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to update product info or give feedback on images?
Would you like to tell us about a lower price?

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

4.0 out of 5 starsHow It Works
By Lyman on August 17, 2015
Verified Purchase
I am an electrical engineer and needed a simple tester. The unit came with inadequate instructions so I proceeded to dissemble it to learn how it works. The floppy, Molex, and SATA connectors are routed to the three LEDs. The LEDs begin to light at about 1.8 V which is typical. If an LED lights, it only means there is at least +1.8 V present with respect to the ground pin. Do not rely on the LED as an accurate voltage measurement.

When connection is made to the 20/24 pin connector, two beeps will be heard and the LCD display will become active showing various voltages and (I think) the time it took the power supply to become active in ms. If no connection is made to the 4P, 6P, or 8P connectors, then the +12V2 display will flash "L.L" and the unit will beep about once a second. When connection is made to the 4P/6P/8P connector, the +12V2 voltage will be displayed and the beeping will cease.

Measured verses indicated voltages: “-12V” -11.45/11.8, “+12V2” +12.28/12.3, “5VSB” +4.86/5.1, “PG” ?/300, “+5V” +5.04/5.0, “+12V1” +12.28/12.3, “+3.3V” +3.33/3.3.

It is a useful tester. Would have been better if circuitry were included to insure LEDs only lighted at predetermined voltages.
2 Comments 29 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsSurprise! It's not junk!
By Person on Earth on March 23, 2015
Verified Purchase
I'm a stickler for build quality, and for less than $20, I don't feel ripped off at all. It's made with a one-piece aluminum body, and it doesn't give you that bottom-dollar cheap Chinese feel you get with a lot of cheap electronics like this. I've been in IT for 19 years now, and it's actually something that if I saw in person, I would still buy. In action, it works as expected. I plugged and unplugged in various connectors while it was on, and it had no problem accomodating/adapting to the inputs changing status (connected/not connected). Easy to read backlit display. Connector sockets aren't cheap and wobbly feeling. Actually a good part. It's got sockets for all the connectors I could think of. Would definitely recommend.
1 Comment 20 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsComprehensive Power Supply Tester
By Otto Pilot on June 2, 2015
Verified Purchase
Yet another decent tool for a technology troubleshooting situation, this power supply tester offers a fast and somewhat comprehensive method of verifying proper voltages in some of those "mystery problem" situations when hard failure is not occurring. Now, when I train someone to troubleshoot a computer, I can give specific instructions on both connection and what to look for. This is much easier than using a multimeter to check voltages independently, and can be a real time saver. What I like best about it is the ability to see all voltages simultaneously; a big advantage over doing it one by one with the meter. I don't believe this thing is quite as all-inclusive as it is being advertised; What is missing in this setup is a little wiring harness that would allow you to connect this device in line with the mains so that you could observe the voltage readings under full load of the system. There are some decent Youtube videos that can save you some time on figuring out how it is supposed to work, so I recommend watching those instead of trying to figure out the included nonsense. The real downer here is there are no instructions; the back of the package has some scribbles on it but there isn't even a diagram of the display showing what you should expect to see. I am sure it is not so easy to get decent translations, but the directions are real "Du-Du". With proper instructions and full functionality this would be a 5 star item.
9 Comments 12 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsSuccesfully identified a bad power supply
By Ali Julia #1 HALL OF FAMETOP 10 REVIEWER on May 5, 2015
Length: 1:02 Mins
This tester does exactly what it is supposed to do. The information is easy to read and understand - it shows both the expected reading and the actual reading. All computers in our house have always been built from components and many parts are re-used as old computers get upgraded. I tested this power supply tester with two old power supplies, one of them was known to be bad (the computer no longer starts with it installed). The tester showed a reading of 11.1V (when a reading of 12V was expected) on one of the rails confirming that this supply was no longer good. The tolerances should be +- 5% of the expected voltage. The reading on my other power supply matched the specs and was good.

The tester supports different standards (old and new) - 4 pin, 8 pin, 6 pin, 20/24 pin. In addition to testing the mother board, it allows has connections to test power for disk drives: the old style Molex connectors (for IDE drives) as well as SATA connectors.

Voltage tests: +12V,-12V,+5V,-5V,+3.3V,5VStandby(SB) 12V power Good (PG)
The tollerances should be +- 5% of the expected voltage, i.e.
3.3V should be 3.135V to 3.465
5V should be 4.75V to 5.25V
12V should be 11.4V to 12.6V

Voltage source: 20/24pin (ATX-connector)
Connectors: Floppy, HDD, CDROM, SATA, 4 pin (P4),8 pin (Dual-CPU),6 pin (PCI-Express)

When a computer does not start the problem could be either the mother board or the power supply. This tester makes it easy to tell what is at fault. It is easier to use the a regular Volt meter because with a Volt meter you need to short the pins for the on/off switch where as this tester does it for you.

This tester is provided by Optimal Shop.

Ali Julia review
2 Comments 19 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse

Most Recent Customer Reviews

1.0 out of 5 starsOne Star

Display doesn't work and my psu failed after attempting to use this.

Published 21 days ago by jacob pontius
4.0 out of 5 starsFour Stars

good

Published 26 days ago by Solomon Tekle
4.0 out of 5 starsGood news is that my Power Supply is good. Bad news is that my PC is...

This works well enough for me to know that the power supply is good and that something else in my computer is bad. Read more

Published 29 days ago by J. Durben
5.0 out of 5 starsNice device, better than expected.

This is a nice little device and it works as advertised. Used it to check out a Corsair CX430M, 24pin and CPU 4 pin connectors. Read more

Published 1 month ago by Wingnut
4.0 out of 5 starsit does the job

ok. nothing special; its the same unit that everyone else sells, that looks like this.

Published 1 month ago by linux-works
1.0 out of 5 starsPlugged in a 600w 2 year old Corsair power supply ...

Plugged in a 600w 2 year old Corsair power supply and it lit up for a half second, popped and smells of burnt electronics. Read more

Published 1 month ago by B. Hamilton
3.0 out of 5 starsdoes what it is supposed to

It works, as far as I can tell. The package said it comes with documentation, but there was only the small amount on the packaging that was barely helpful. Read more

Published 1 month ago by Nobody
5.0 out of 5 starsFive Stars

works as descirbed

Published 1 month ago by Tinyt1553
5.0 out of 5 starsAnyone who works on pcs should have one

Super easy to use and the price is attractive. I recommend testing any power supply a few times to see if it will consistently pass the start up test.

Published 3 months ago by Michael J. Stager
5.0 out of 5 starsFive Stars

Highly Recommend

Published 3 months ago by Amazon Customer
