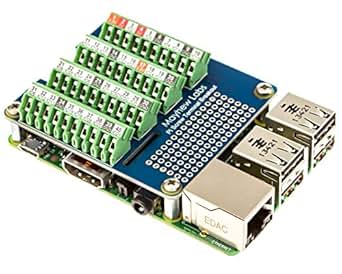

Pi Screw Terminal Breakout - For Raspberry Pi

5.0 out of 5 stars 9 customer reviews
Currently unavailable.
We don't know when or if this item will be back in stock.
Specifications for this item
Brand Name Mayhew Labs
EAN 0635040975096
Import Designation Made in USA
Item Weight 1.6 ounces
Part Number Pi Screw Terminal Breakout
UNSPSC Code 32000000
UPC 635040975096
A Full Selection of Industrial Electrical Supplies
Outlets
Outlets 		Terminals
Terminals 		Electric Motors
Electric Motors 		Pushbutton Switches
Pushbutton Switches
Currently unavailable. We don't know when or if this item will be back in stock.

Product Features

  • No soldering required
  • Comes with mounting screws and standoffs
  • Comes with terminal block labels
  • Openings for the Raspberry Pi's display and camera connectors
  • Accepts wire sizes from 16 AWG to 26 AWG

Product Description

The Pi Screw Terminal Breakout is the perfect way to connect to the power and signal pins on your Raspberry Pi. It breaks out all 40 pins of the GPIO header to easily accessible and secure screw terminal blocks with labels for each pin function. There’s even a prototyping area for adding circuits or ICs, like level shifters, debounce circuits, or LEDs for example.

Product Details

  • Product Dimensions: 2.8 x 2.1 x 0.1 inches ; 1.6 ounces
  • Shipping Weight: 1.6 ounces
  • ASIN: B016757GVW
  • Average Customer Review: 5.0 out of 5 stars  See all reviews (9 customer reviews)
  • Amazon Best Sellers Rank: #50,345 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
    • Product Warranty: For warranty information about this product, please click here
Customer Questions & Answers
See questions and answers

Customer Reviews

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
See all verified purchase reviews
Share your thoughts with other customers
Write a customer review

Top Customer Reviews

5.0 out of 5 starsA great board for anyone building a serious machine with their RPi
By J. Turner on August 5, 2016
Verified Purchase
A great board for anyone building a serious machine using a Raspberry Pi. A perfect choice once you're ready to move off that breakout breadboard but not quite ready for a custom PCB. It's sturdy. Well soldered. Even has a via for the camera ribbon cable and includes metal standoffs and screws. I love the angled terminals. Only minor complaint: I wish the sticker labels were more clear about labeling PWM and i2c ports, but this is only a minor gripe (there is only so much room on those tiny terminals for info...).

Very pleased.
Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starswhich is my only real disappointment. You have to apply the stickers yourself
By J. Cameron Cooper on October 7, 2016
Verified Purchase
Indispensable for any Pi used for anything real. A few minor changes (to the case or the board) and it could almost fit in the standard case, which is my only real disappointment. You have to apply the stickers yourself, but that's no big issue.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsExcellent add on board
By Traveler on April 27, 2016
Verified Purchase
Does exactly what I bought it for. Sometimes you have to apply what seems to be a lot of torque to get the wire to stay put and not wiggle loose, but if you use the right screwdriver it works fine. Using this device is far better than fooling around with plugging single wires onto the connector pins because you won't bend any pins, you won't short any pins together and, if you apply the label stickers properly, it is very easy to identify the pins.
Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsGreat little breakout board
By EngineerGuy on August 9, 2016
Verified Purchase
Great little breakout board. All 40 pins accessible and even a good-sized prototyping space. I added a DB-15, a little bit of software and created this great little interface to my Yaesu Quadra.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsFive Stars
By J. Garvin on September 21, 2016
Verified Purchase
Very well built and a much easier way to hook up projects than directly to the gpio pins.
