| Brand Name | Portta |
|---|---|
| Item Weight | 2.32 ounces |
| Product Dimensions | 3.7 x 2.4 x 0.8 inches |
| Item model number | N3CCSHP |
| Batteries | 1 Product Specific batteries required. (included) |
| Is Discontinued By Manufacturer | No |
| Color Name | No |
| Specification Met | CE, FCC |
Portta PETCSHP 3 RCA Composite S-Video R/L Audio to HDMI Converter Upscaler 720p/1080p
We don't know when or if this item will be back in stock.
| Connector Type | HDMI to HDMI |
| Color | No |
| Item Dimensions LxWxH | 3.7 x 2.4 x 0.8 inches |
| Brand | Portta |
| Finish Type | Hdmi |
About this item
- * Input: RCA Composite S-video Video, R/L Audio. * Output: HDMI.
- * Scales up Composite Video or s-video to HDMI. * Analog to be integrated into digital Composite/S-video to HDMI Converter.
- * HDMI Transmission Rate: 5Gbps. * Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
- * Motion Compensated 3D Wavelet Video Coding Technology is applied to make the converted picture rich in color and more vivid;* Input audio is integrated into HDMI output as well as pass-through to earphone or sound box; * Input video systems - NTSC and PAL is automatically detected and adjusted.
- Please find the trouble shooting steps as below : 1.Please try different resolution,please try lower resolution for testing. 2.Please try another power adapter if any. 3.Please try short HDMI Cable,such as 1m,2m. 4.Please try another Composite Cable.
Similar items that may deliver to you quickly
Important information
To report an issue with this product or seller, click here.
Compare with similar items

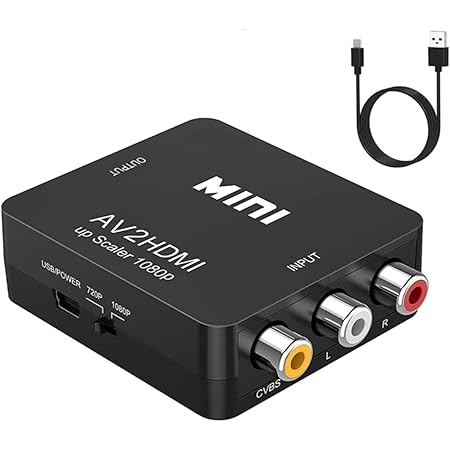

This item Portta PETCSHP 3 RCA Composite S-Video R/L Audio to HDMI Converter Upscaler 720p/1080p | SUNNATCH RCA Svideo to HDMI Converter with RCA + S-Video Cables, RCA Composite CVBS AV or Svideo + R/L Audio Input to HDMI Output Upscale Converter | ABLEWE RCA to HDMI,AV to HDMI Converter, 1080P Mini RCA Composite CVBS Video Audio Converter Adapter Supporting PAL/NTSC for TV/PC/ PS3/ STB/Xbox VHS/VCR/Blue-Ray DVD Players | Tensun 3RCA AV CVBS Composite & S-Video R/L Audio to HDMI Converter Adapter Support 720P/1080P for PS2 PS3 NES SNES Nintendo 64 HDTV, TEN-HD069 | BD&M AV to HDMI Converter, RCA to HDMI, 1080P Mini RCA Composite CVBS Video Audio Converter Adapter Support PAL/NTSC for TV/PC/ PS3/ STB/Xbox VHS/VCR/Blue-Ray DVD Players - Black | Mini VGA to Video Converter, Composite AV to VGA Adapter, TV SetTop Box Audio Video Converter (White) | |
|---|---|---|---|---|---|---|
| Customer Rating | 4.0 out of 5 stars (802) | 4.4 out of 5 stars (108) | 4.4 out of 5 stars (45072) | 4.1 out of 5 stars (404) | 4.3 out of 5 stars (2086) | 4.2 out of 5 stars (288) |
| Price | Unavailable | $31.99$31.99 | $11.99$11.99 | $31.99$31.99 | $9.95$9.95 | $12.79$12.79 |
| Shipping | — | FREE Shipping on orders over $35.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime | FREE Shipping on orders over $35.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime | FREE Shipping on orders over $35.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime | FREE Shipping on orders over $35.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime | FREE Shipping on orders over $35.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime |
| Sold By | — | DECOKON | ABLEWE | CJX-US | BD&M | Diyeeni us |
| Brand Name | Portta | SUNNATCH | ABLEWE | Tensun | BD&M | Diyeeni |
| Connector Type | HDMI to HDMI | DVI, HDMI, RCA, Auxiliary | HDMI, RCA | RCA | RCA, HDMI | VGA |
| Input Voltage | 1 volts | 5.00 volts | 5 volts | 5 volts | 5 volts | 5 volts |
| Number of Ports | 3 | 5 | 3 | 6 | 3 | 1 |
| Power Plug | Type A - 2 pin (North American) | Type A - 2 pin (North American) | No Plug | Type B - 3 pin (North American) | — | — |
What's in the box
Product guides and documents
Looking for specific info?
Product information
Technical Details
Additional Information
| ASIN | B003NS0UUQ |
|---|---|
| Customer Reviews |
4.0 out of 5 stars |
| Best Sellers Rank | #1,398 in Video Converters |
| Date First Available | May 24, 2010 |
Warranty & Support
Feedback
Product Description
Portta Composite/S-video to HDMI Converter
The Composite/S-video to HDMI Converter offers seamless conversion for a legacy Composite or S-video source to a digital HDMI output. The device has a built-in scaler that will allow you to adjust the output signal to a resolution (720p/1080p) that is compatible with your HDMI enabled display.
It helps reduce equipment costs by eliminating the need to upgrade individual analog components, by offering a solution that converts an analog video source (Composite/S-video) for use with a digital HDMI display.
For added benefit, the converter features a 3.5mm audio, ideal for splitting the audio out of a HDMI device to earphones or speaker system.
RCA (AV, composite, CVBS) to HDMI Converter
Specifications
*Signal Input: Composite, S-video Signal
*Input Video Signal: 0.5-1.0volts/p-p
*Output Video: HDMI Signal
*DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
*Video Amplifier Bandwidth:1.65Gbps/165MHz
*Vertical Frequency Range: 50/60Hz
*Interlaced Resolutions(50&60Hz): 480i,576i,1080i
*Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p
Key Features
- Scales Composite video or s-video resolution to HDMI 720p/1080p
- HDMI Transmission Rate: 5Gbps
- Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
- Input video systems-NTSC and PAL is automatically detected and adjusted
Connection & Operation
1) Connect the Composite or s-video source to the input of Converter.
2) Connect HDTV to the output of converter via HDMI cable.
3) Plug one power supply into the Converter.
Package Content
- Main unit x 1
- Power Supply x 1
- User Manual x 1
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonReviews with images

-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Enter this little item, which allows me to run my S-Video systems through an HDMI input on my TV, upscaling the picture quality up to 1080p resolution. It works beautifully and makes my old systems look better than ever. Visuals are incredibly sharp and the colors are very vibrant. I never thought SNES games could look this good.
There is only one S-Video input on the box, so I have my systems run through a multi-select box first and then through this and it works just fine. There is an option for 720p or 1080p resolution, but I don't really notice much of a difference between the two. You can also choose between S-Video and composite hookup with the push of a button, seeing how it also has the Yellow video cable input with the Red/White audio. Sound is also very good going from the Red/White to the HDMI.
The only bad things I can say about this item is the fact that it doesn't have a power button/switch (requires the use of an AC adapter *included*) and the box tends to get a little warm after using it for extended periods. So, it's probably a good idea to unplug it when not in use. Not a huge problem for me, but I'm sure some won't like that.
Other than that, it's worth every dollar for what it does. Highly recommended.
Unfortunately for the longest time external upscalers were tremendously expensive, until now. Using this particular product, which is reasonably priced, you can get a quality upscaler and play your older games on your HDTV beautifully, in 720 or 1080 (there's a switch on the box). This particular upscaler does an extremely good job of translating an s-video (or RCA) signal into an HDMI stream that is free of blurring, artifacting, tearing, etc. While it may not be the best upscaler in existence, it certainly is much better than most stock upscalers built into standard HDTVs.
Just make sure you have a free power outlet nearby, the converter requires external power through an included adapter. No big deal in my book, as I can understand how electricity is needed to power the chips converting the image signal... why other people can't understand that I don't know. It's not like enough volts are provided from an s-video signal alone to power a converter, duh...
So bust out your old Genesis or Jaguar, and hook them up to this converter, and game on regardless of your HDTVs traditional dilemmas. Thanks to this product, those dilemmas are solved.

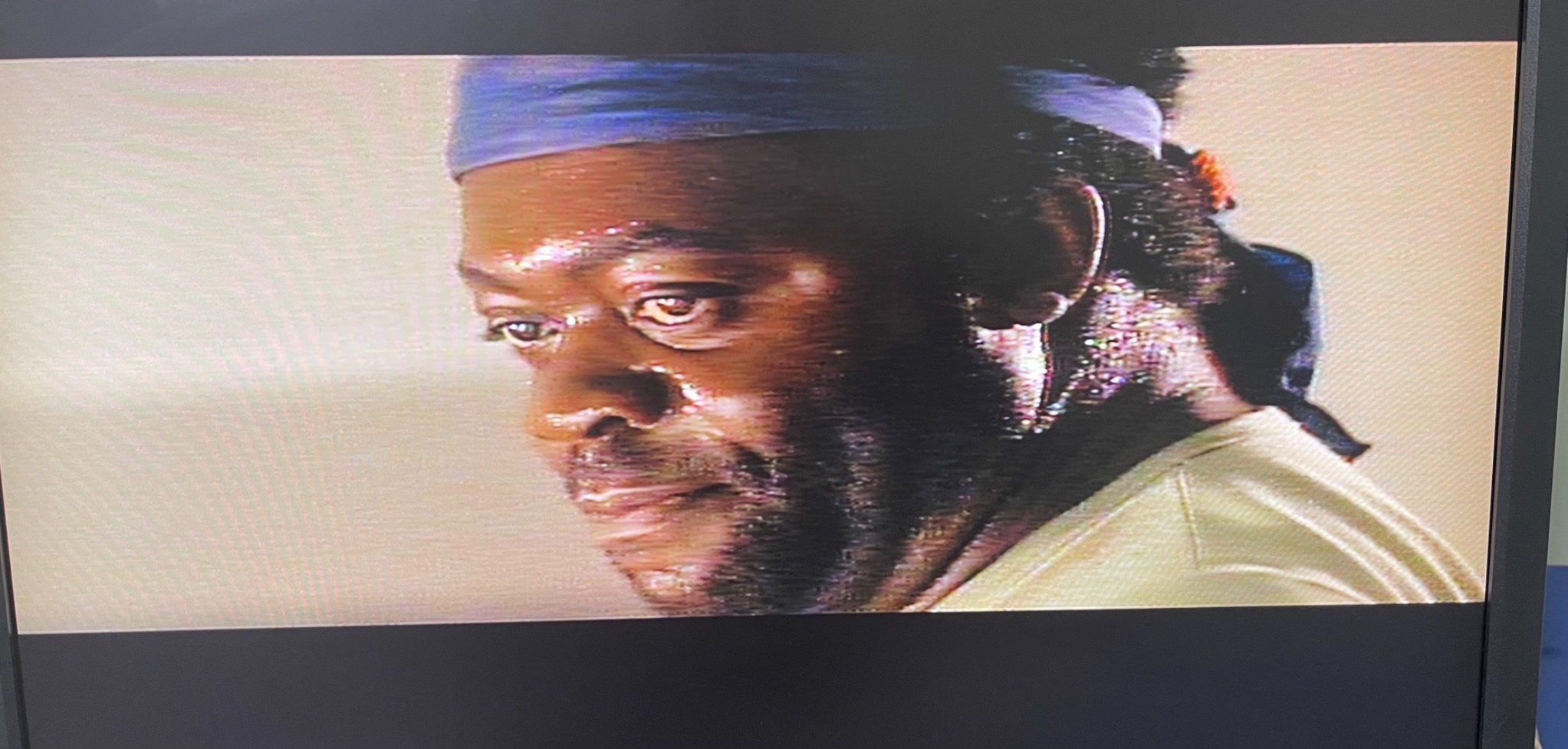

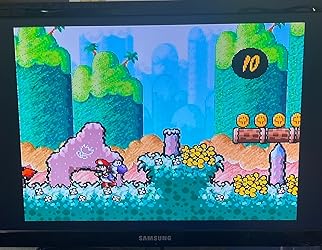

This Portta surprised me…..at least the composite video upscaling. It actually looks pretty darn good for composite video! For retro games like the SNES, it provides a nice clean image. There is still dot crawl in text, but pixel wobble isn’t noticeable at all. In fact, the composite video image on retro games looks nearly as good wirh this as it does in my Retrotink 2x, and the 2x has noticeable pixel wobble. The color is also much more vibrant with the Portta via composite. It is doing some type of upscaling, it’s not just a transcoder. There’s a button to switch between 1080p and 720p, but you’ll be hard pressed to tell the difference. 720p mode also caused some games to black out for a few seconds. 1080p had no problems.

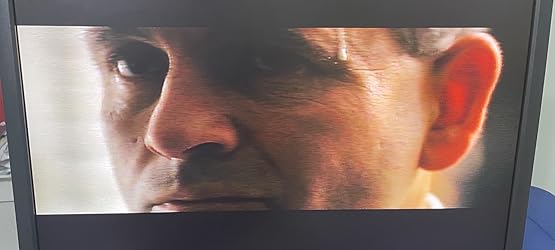

Another supervising thing about this scaler; it works great with old video players like VHS and Laserdisc. If used in conjunction with a modern HDTV with upscaling, you can get a fairly good image. I took some pics from My Alien/Aliens laserdiscs sets. Not bad at all.
Now for the bad.
As others have noted, S-video is absolute crap with this. Like the worst I’ve ever seen. There are white streaks, bleeding and horrible dot crawl when using this with retro consoles. It’s like they put all the effort in making this into the composite image, and just said “to heck with it” with the s-video. And I used an OEM Nintendo S-video cable with the SNES, but it didn’t matter a bit. So, if you’re planning on getting this just for S-video, DON’T.
But for composite video, for games or old video formats, this is a great performer.
Reviewed in the United States on September 11, 2021
This Portta surprised me…..at least the composite video upscaling. It actually looks pretty darn good for composite video! For retro games like the SNES, it provides a nice clean image. There is still dot crawl in text, but pixel wobble isn’t noticeable at all. In fact, the composite video image on retro games looks nearly as good wirh this as it does in my Retrotink 2x, and the 2x has noticeable pixel wobble. The color is also much more vibrant with the Portta via composite. It is doing some type of upscaling, it’s not just a transcoder. There’s a button to switch between 1080p and 720p, but you’ll be hard pressed to tell the difference. 720p mode also caused some games to black out for a few seconds. 1080p had no problems.
Another supervising thing about this scaler; it works great with old video players like VHS and Laserdisc. If used in conjunction with a modern HDTV with upscaling, you can get a fairly good image. I took some pics from My Alien/Aliens laserdiscs sets. Not bad at all.
Now for the bad.
As others have noted, S-video is absolute crap with this. Like the worst I’ve ever seen. There are white streaks, bleeding and horrible dot crawl when using this with retro consoles. It’s like they put all the effort in making this into the composite image, and just said “to heck with it” with the s-video. And I used an OEM Nintendo S-video cable with the SNES, but it didn’t matter a bit. So, if you’re planning on getting this just for S-video, DON’T.
But for composite video, for games or old video formats, this is a great performer.
