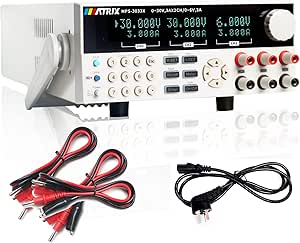

MATRIX Programmable Linear DC Power Supply Variable, Triple Output Bench Power Supply 0~30V/0~6V/0~3A, Adjustable Power Supply High Precision 1mV/1mA Resolution Low Ripple and Noise, MPS-3033X

3.5 3.5 out of 5 stars 3 ratings

Currently unavailable.
We don't know when or if this item will be back in stock.
  • 【TRUE 3 output channel adjustable lab bench power supply】Three channels show and adjust current and voltage at the same time,CH1 and CH2 is dual 0~30V/0~3A adjustable output, CH3 is 0~6V,0~3A adjustable output.
  • 【High quality and high cost performance】Compared with products of hte same level, the accuracy is higher and ther price is lower. 1mV/1mA resolution.
  • 【110V/220V switchable with SENSE interface】Can be calibrated and monitored through computers With SENSE function, can compensate voltage drop on the line
  • 【high resolution, high precision and high stability】Production line work bench routine test Lab and institute;Electronic repair,Intelligent temperature controlled fun to redu-ce the noise
  • 【Various function of settings】Series mode, Parallel mode, Track mode, Timing output function(0~99999.9s), Timing off output
See more product details

Additional Details

Verified by Transparency
The brand applies a unique Transparency code to each item. We verify this code before shipping. You can verify this code using the Amazon Shopping app to confirm it comes from the brand and view additional product details.
Verified by Transparency
Each item has a unique code that we verify before shipping. Learn more


Product Description

1

AC/DC Power Supply

Electronic Load

LCR Meter

Power Meter

Digital Multimeter

Function Generator/Digital Oscilloscope

1

Triple channel programmable DC power supply

Three-channel programmable DC power supply, each output voltage and output current can be set from 0 to the maximum rated output value.

The three-channel power supply has high resolution, high precision and high stability, and has the functions of over-voltage and overheat protection.

In addition,

series and parallel operation modes are provided to increase the output capacity of voltage or current. With a resolution of up to 1mV/1mA, it can meet various application requirements.

It is an excellent choice for R&D departments, manufacturers, and teaching and research units.

1

The main special functions and advantages are as follows:

Optional serial, parallel or synchronous

Three channels can display voltage and current values at the same time

1/2 2U ultra small size

Vacuum fluorescent display (VFD)

Panel function keys LED display

Remote measurement function to compensate for line voltage drop

High resolution and accuracy and high stability

Output can be controlled independently

Over-voltage, overheat protection

Intelligent temperature control fan to reduce noise

1

1

1

1

Application scenario 1

Application scenario 2

Application scenario 3

Application scenario 4

Main technical parameters

Rated output(Voltage) 0~30V*2CH/0~6V*1CH
Rated output(Current) 0~3A*2CH/0~3A*1CH
Rated output(Power) 90W/90W/18W
Output temperature coefficient ≤0.03%+10mV
Memory(Storage /recall) 40 groups
Interface RS232、USB
Working temperature 0~40℃
Setting resolution(Voltage) 1mV
Setting resolution(Current) 1mA
Readback resolution(Voltage) 1mV
Readback resolution(Current) 1mA

From the brand

Looking for specific info?

Product information

Technical Details

Additional Information

Warranty & Support

Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions here.

Feedback

MATRIX Programmable Linear DC Power Supply Variable, Triple Output Bench Power Supply 0~30V/0~6V/0~3A, Adjustable Power Supply High Precision 1mV/1mA Resolution Low Ripple and Noise, MPS-3033X


Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?

Price Availability
/
/
/
/
Please sign in to provide feedback.

Important information

Wattage

196 watts


Customer reviews

3.5 out of 5 stars
3 global ratings
Excellent Programmable Triple Output Linear Power Supply!!!
5 out of 5 stars
Excellent Programmable Triple Output Linear Power Supply!!!
The Matrix MPS-3033X is a clone of the ITECH/KEITHLEY/BK Precision triple output linear power supplies that support 30V/30V/6V at 3A per channel (it actually goes a bit higher, see image for details). So far, this device holds up to its claims and operates similarly to the brand names mentioned above.First off, the matrix MPS-3033X came well packed with a manual and cal sheet. I spot checked a few values on the cal sheet and it seems to be accurate. One of the first things I did with this unit was tear it down to do an internal inspection to verify the internals matched the listing images - it does!. My initial impression was that the boards were clean and well laid out, connectors were glued, it uses a nice toroidal transformer that was properly isolated from the chassis, the internal AC connections and grounding were clean and properly connected to the chassis, and the AC components were isolated from the DC in the same way the above brand(s) isolate. Fan noise is always a complaint with power supplies and I am pleased to say that this unit is SILENT! Even when I have it under full load, the fans kick on only as much as needed and are barely audible. The back of the unit has the terminals for sense line inputs for all channels, as well as USB and RS-232 with settings that can be changed in the menus. There is no GPIB port on the Matric MPS-3033X, which means that remote control is limited to the digital serial interfaces. The one gripe that I have (which isn’t worth taking off a star) is that the binding posts are not the standard 0.75” spacing for banana to BNC adapters (see images).This supply has a resolution of 1mV/1mA, which is usually considered a “high resolution” feature that other units in this price range don’t offer. Additionally, I could not find a three-output linear supply with sense inputs for less than the $1200 price range (being the new Rigol DP2031) Using this supply, I noticed that the measurements were accurate (verified using calibrated measuring equipment) and the software operation of the unit was nearly identical to the other brands(s). The display is larger and brighter than the equivalents, and the panel layout is the same. If you are already familiar with the above products, you will be right at home with the MPS-3033X.Over at the EEVBlog, I wrote an in-depth review with scope captures comparing the Matrix MPS-3033X with the BK Precision 9130B (its BK equivalent) to see how it stacked up to an established product. Overall, it performed quite favorably!I performed several stress and fault tests, which the unit handled and recovered from without issue. One of those tests was a 1Ω constant load test that causes other supplies (like the Rigol DP800 series) to aggressively alternate between constant voltage and constant current mode (and in some cases damaging the channel). Like the BK I had, the Matrix went into constant current mode and stayed there until the load was disabled, at which point it quickly recovered. Other features like the independent/serial/parallel/track modes also work very well.Amazon prohibits external URL’s in reviews, but my EEVBlog review can be seen in the attached (long) image. Additionally, searching for “Matrix MPS-3033X 3-channel 198W Isolated PSU - REVIEW (UPDATED WITH CONTENT!)” in the EEVBlog Forum site will bring up the thread with user feedback.The Matrix MPS-3033X is a solid unit with very competitive features at its price point! Thanks Matrix!Quick Comment: I wanted to address something that was mentioned in another review about the screen being scratched and smudged. There is a protective film that you need to remove over the clear plastic. It is there to protect the screen during shipment as the packing foam presses up against the face and the unit moves in transit. I pealed the film off and the screen is perfect.
Thank you for your feedback
Sorry, there was an error
Sorry we couldn't load the review

Top reviews from the United States

Reviewed in the United States on February 5, 2023
After doing my research, Matrix offered a lot of options for the price, so I went all in and bought this power supply and their 150w electronic load. I was super excited to have 1mv/1ma precision for this price point when the iTech and Rigol options are almost double.

When I recieved my package I was discouraged when I saw the condition of the box. It has been dropped on a corner, and the side of the box was dented in. Thankfully Matrix packages the power supply with plenty of padding so there want any visible damage.

After removing the power supply from the plastic wrap, I noticed issues with the screen. First, there was a hazy, smeared marks on it. Then i noticed that the right most part of the screen was scratched over the voltage digits. It was very noticeable.

Looking over the rest of the power supply, there were lots of scratches on the bottom. I recognize that scratches on the bottom are cosmetic, and won't be seen, but are indication of quality in the manufacturing process.

I did plug it in, and it starts up almost instantaneous. The UI is pretty intuitive, and I was able to figure things out pretty quickly. Put a multimeter on it and the supply output was always within a couple of mV and mA of what the multimeter was reading. However, the scratches on the display were very pronounced when it was on, because the scattered, refracted the light and made the digits look blurry. It was really annoying.

At this point I started to wonder if I got a return from someone else, as they only had a couple of items left in stock when I ordered it.

After spending 20 minutes looking over it, I packaged it back up and started the return process. The device itself looks to be a great value, but the QC control is very lacking on the item I had. I am still not sure if I want to reorder another one or go a different direction.
Customer image
3.0 out of 5 stars Wanted to love...but QC issues
Reviewed in the United States on February 5, 2023
After doing my research, Matrix offered a lot of options for the price, so I went all in and bought this power supply and their 150w electronic load. I was super excited to have 1mv/1ma precision for this price point when the iTech and Rigol options are almost double.

When I recieved my package I was discouraged when I saw the condition of the box. It has been dropped on a corner, and the side of the box was dented in. Thankfully Matrix packages the power supply with plenty of padding so there want any visible damage.

After removing the power supply from the plastic wrap, I noticed issues with the screen. First, there was a hazy, smeared marks on it. Then i noticed that the right most part of the screen was scratched over the voltage digits. It was very noticeable.

Looking over the rest of the power supply, there were lots of scratches on the bottom. I recognize that scratches on the bottom are cosmetic, and won't be seen, but are indication of quality in the manufacturing process.

I did plug it in, and it starts up almost instantaneous. The UI is pretty intuitive, and I was able to figure things out pretty quickly. Put a multimeter on it and the supply output was always within a couple of mV and mA of what the multimeter was reading. However, the scratches on the display were very pronounced when it was on, because the scattered, refracted the light and made the digits look blurry. It was really annoying.

At this point I started to wonder if I got a return from someone else, as they only had a couple of items left in stock when I ordered it.

After spending 20 minutes looking over it, I packaged it back up and started the return process. The device itself looks to be a great value, but the QC control is very lacking on the item I had. I am still not sure if I want to reorder another one or go a different direction.
Images in this review
Customer image Customer image Customer image
Customer imageCustomer imageCustomer image
One person found this helpful
Report
Reviewed in the United States on January 22, 2023
The Matrix MPS-3033X is a clone of the ITECH/KEITHLEY/BK Precision triple output linear power supplies that support 30V/30V/6V at 3A per channel (it actually goes a bit higher, see image for details). So far, this device holds up to its claims and operates similarly to the brand names mentioned above.

First off, the matrix MPS-3033X came well packed with a manual and cal sheet. I spot checked a few values on the cal sheet and it seems to be accurate. One of the first things I did with this unit was tear it down to do an internal inspection to verify the internals matched the listing images - it does!. My initial impression was that the boards were clean and well laid out, connectors were glued, it uses a nice toroidal transformer that was properly isolated from the chassis, the internal AC connections and grounding were clean and properly connected to the chassis, and the AC components were isolated from the DC in the same way the above brand(s) isolate. Fan noise is always a complaint with power supplies and I am pleased to say that this unit is SILENT! Even when I have it under full load, the fans kick on only as much as needed and are barely audible. The back of the unit has the terminals for sense line inputs for all channels, as well as USB and RS-232 with settings that can be changed in the menus. There is no GPIB port on the Matric MPS-3033X, which means that remote control is limited to the digital serial interfaces. The one gripe that I have (which isn’t worth taking off a star) is that the binding posts are not the standard 0.75” spacing for banana to BNC adapters (see images).

This supply has a resolution of 1mV/1mA, which is usually considered a “high resolution” feature that other units in this price range don’t offer. Additionally, I could not find a three-output linear supply with sense inputs for less than the $1200 price range (being the new Rigol DP2031) Using this supply, I noticed that the measurements were accurate (verified using calibrated measuring equipment) and the software operation of the unit was nearly identical to the other brands(s). The display is larger and brighter than the equivalents, and the panel layout is the same. If you are already familiar with the above products, you will be right at home with the MPS-3033X.

Over at the EEVBlog, I wrote an in-depth review with scope captures comparing the Matrix MPS-3033X with the BK Precision 9130B (its BK equivalent) to see how it stacked up to an established product. Overall, it performed quite favorably!

I performed several stress and fault tests, which the unit handled and recovered from without issue. One of those tests was a 1Ω constant load test that causes other supplies (like the Rigol DP800 series) to aggressively alternate between constant voltage and constant current mode (and in some cases damaging the channel). Like the BK I had, the Matrix went into constant current mode and stayed there until the load was disabled, at which point it quickly recovered. Other features like the independent/serial/parallel/track modes also work very well.

Amazon prohibits external URL’s in reviews, but my EEVBlog review can be seen in the attached (long) image. Additionally, searching for “Matrix MPS-3033X 3-channel 198W Isolated PSU - REVIEW (UPDATED WITH CONTENT!)” in the EEVBlog Forum site will bring up the thread with user feedback.

The Matrix MPS-3033X is a solid unit with very competitive features at its price point! Thanks Matrix!

Quick Comment: I wanted to address something that was mentioned in another review about the screen being scratched and smudged. There is a protective film that you need to remove over the clear plastic. It is there to protect the screen during shipment as the packing foam presses up against the face and the unit moves in transit. I pealed the film off and the screen is perfect.

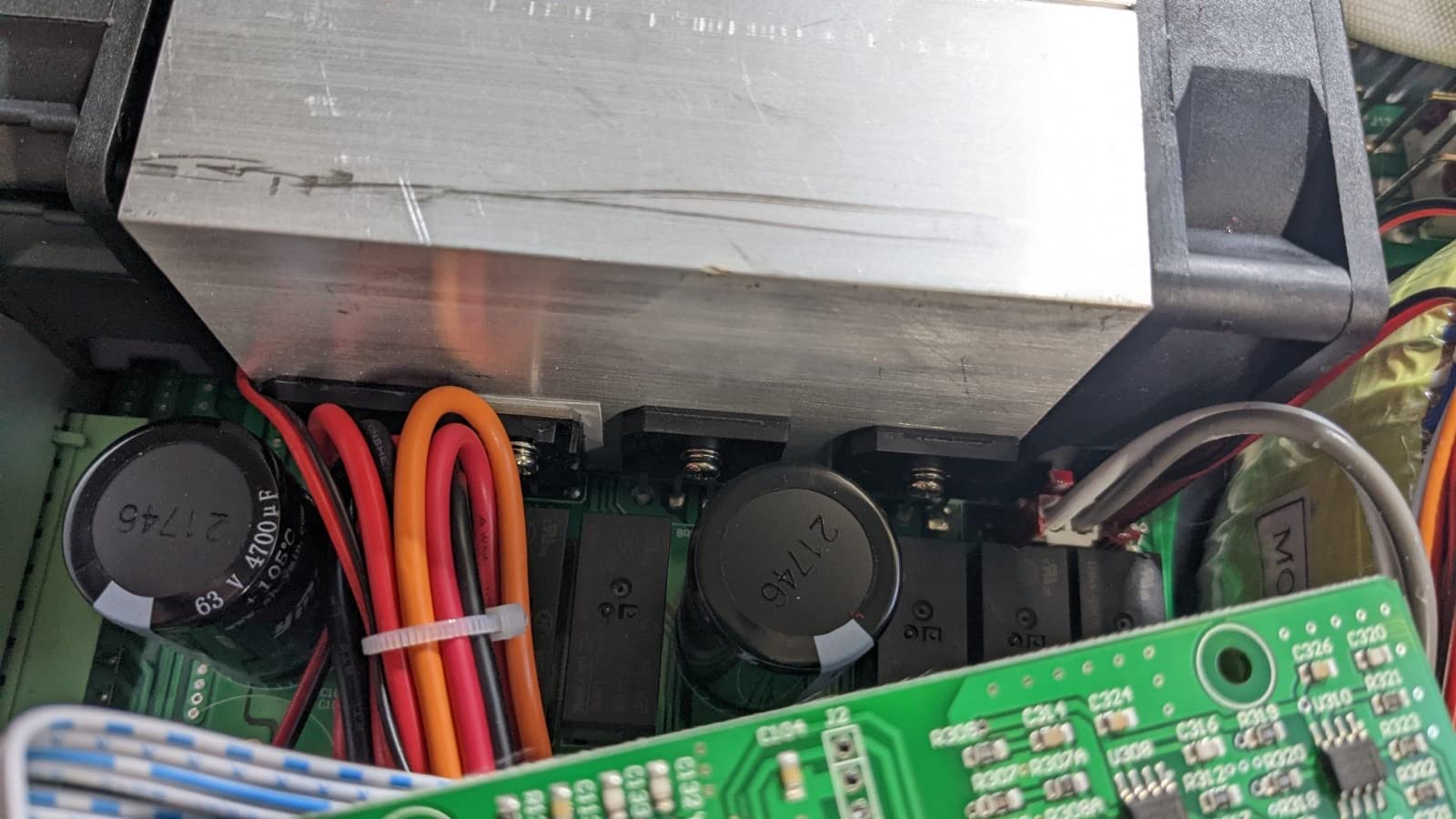

Customer image
5.0 out of 5 stars Excellent Programmable Triple Output Linear Power Supply!!!
Reviewed in the United States on January 22, 2023
The Matrix MPS-3033X is a clone of the ITECH/KEITHLEY/BK Precision triple output linear power supplies that support 30V/30V/6V at 3A per channel (it actually goes a bit higher, see image for details). So far, this device holds up to its claims and operates similarly to the brand names mentioned above.

First off, the matrix MPS-3033X came well packed with a manual and cal sheet. I spot checked a few values on the cal sheet and it seems to be accurate. One of the first things I did with this unit was tear it down to do an internal inspection to verify the internals matched the listing images - it does!. My initial impression was that the boards were clean and well laid out, connectors were glued, it uses a nice toroidal transformer that was properly isolated from the chassis, the internal AC connections and grounding were clean and properly connected to the chassis, and the AC components were isolated from the DC in the same way the above brand(s) isolate. Fan noise is always a complaint with power supplies and I am pleased to say that this unit is SILENT! Even when I have it under full load, the fans kick on only as much as needed and are barely audible. The back of the unit has the terminals for sense line inputs for all channels, as well as USB and RS-232 with settings that can be changed in the menus. There is no GPIB port on the Matric MPS-3033X, which means that remote control is limited to the digital serial interfaces. The one gripe that I have (which isn’t worth taking off a star) is that the binding posts are not the standard 0.75” spacing for banana to BNC adapters (see images).

This supply has a resolution of 1mV/1mA, which is usually considered a “high resolution” feature that other units in this price range don’t offer. Additionally, I could not find a three-output linear supply with sense inputs for less than the $1200 price range (being the new Rigol DP2031) Using this supply, I noticed that the measurements were accurate (verified using calibrated measuring equipment) and the software operation of the unit was nearly identical to the other brands(s). The display is larger and brighter than the equivalents, and the panel layout is the same. If you are already familiar with the above products, you will be right at home with the MPS-3033X.

Over at the EEVBlog, I wrote an in-depth review with scope captures comparing the Matrix MPS-3033X with the BK Precision 9130B (its BK equivalent) to see how it stacked up to an established product. Overall, it performed quite favorably!

I performed several stress and fault tests, which the unit handled and recovered from without issue. One of those tests was a 1Ω constant load test that causes other supplies (like the Rigol DP800 series) to aggressively alternate between constant voltage and constant current mode (and in some cases damaging the channel). Like the BK I had, the Matrix went into constant current mode and stayed there until the load was disabled, at which point it quickly recovered. Other features like the independent/serial/parallel/track modes also work very well.

Amazon prohibits external URL’s in reviews, but my EEVBlog review can be seen in the attached (long) image. Additionally, searching for “Matrix MPS-3033X 3-channel 198W Isolated PSU - REVIEW (UPDATED WITH CONTENT!)” in the EEVBlog Forum site will bring up the thread with user feedback.

The Matrix MPS-3033X is a solid unit with very competitive features at its price point! Thanks Matrix!

Quick Comment: I wanted to address something that was mentioned in another review about the screen being scratched and smudged. There is a protective film that you need to remove over the clear plastic. It is there to protect the screen during shipment as the packing foam presses up against the face and the unit moves in transit. I pealed the film off and the screen is perfect.

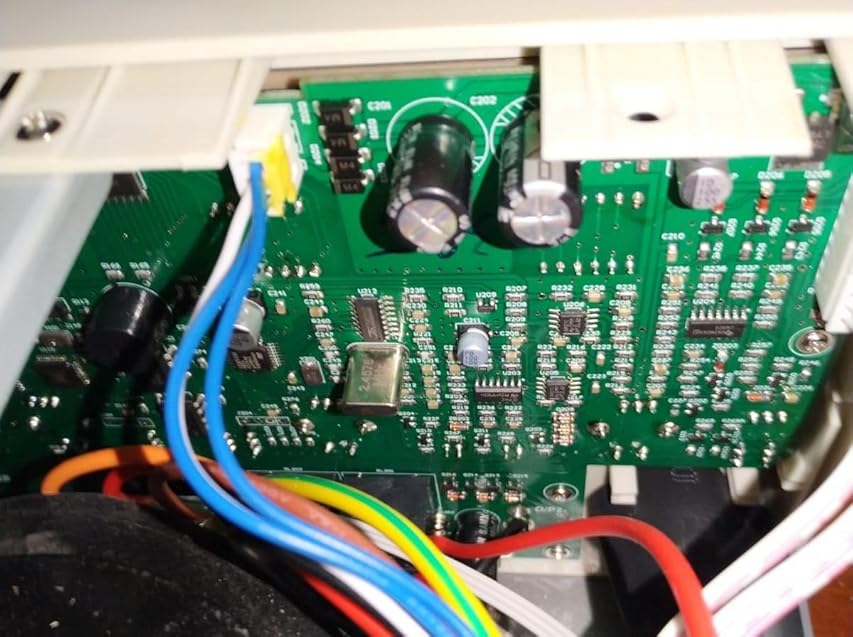

Images in this review
