TL/DR: very happy so far. Install was challenging due to circumstances beyond the charger’s scope. Product arrived quickly and undamaged, and upon installation works perfectly. If anything could be improved, it’s the clasp mechanism that holds the J1772 connector in the holster. It doesn’t seem to grab very well and takes a few tries to get it to hold. I wired the unit up myself, but I’m an electrical engineer and comfortable with this kind of project. I definitely recommend hiring an electrician to most users.

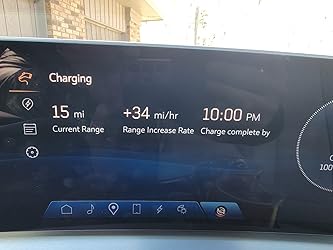

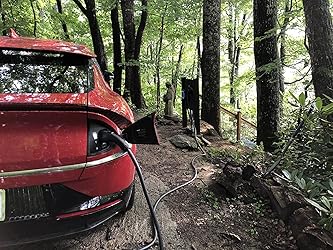

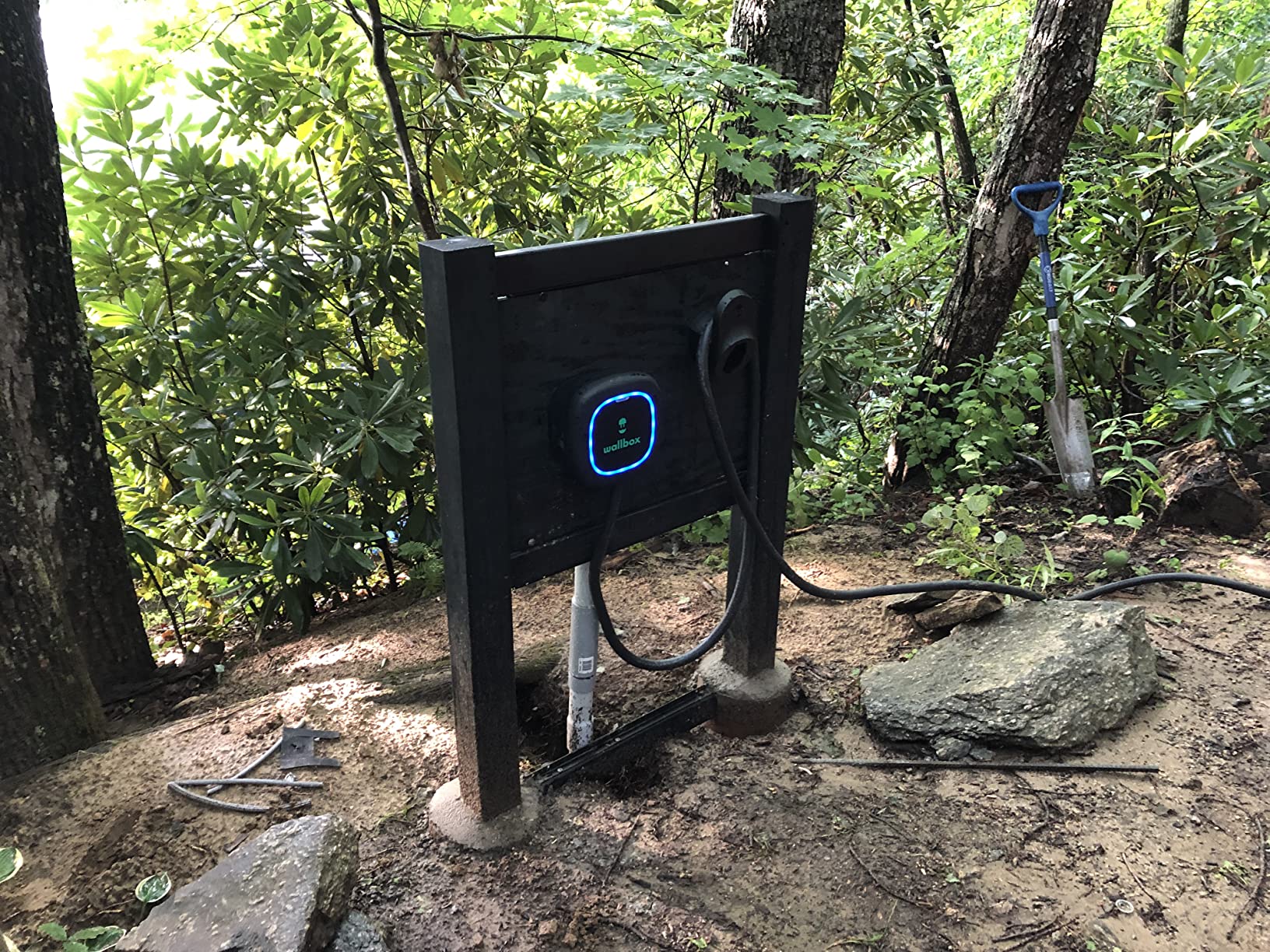

I purchased the 48A version, since EVs are getting bigger and bigger ranges these days. We just purchased an EV with 300 mile range and I wanted to be able to charge at our vacation rental near Asheville NC. Since the driveway is about 40 ft from the house and there is no garage, I installed the charger on a structure made from treated 4x4 posts and plywood. Ran #6/3 UF-B cable through 1.5” PVC SCH 40 Conduit up to a 60A disconnect box. Realized after $500 of cable was purchased that you don’t need the neutral cable so I could have used #6/2 and marked the white wire with black tape and connected to the other phase. Sigh…that’s what I get for not reading the instructions in the manual before purchasing cable! Connected to a new 60A GFCI breaker (another $250) and it’s working like a champ. Charged my car to 80% the first night and then topped off to 100% before the 235 mile drive to Raleigh today. Got home with 18% left! I haven’t set up the app yet but will do that next month in hopes not to enable the charger unless someone is staying at the rental house. I will also build a shed roof for the charging station to make it more weather proof (all enclosures are NEMA4 rated so it’s fine out in the elements as-is).
Update: after a month I installed the app and like the features such as statistics, remote locking, setting the charging current, etc. The only complaint I have is the WiFi receiver is weak. Wallbox customer support said the WiFi receiver works best if the WiFi router is in front of the charger. Well in my installation the router is about 50 ft behind. It works about half the time, but I can usually lock/unlock the charger remotely. I hope to set up the charger as a public charger sometime and if I can figure out that will update my review.
| Manufacturer | Wallbox Chargers SL |
|---|---|
| Brand | W Wallbox |
| Model | Pulsar Plus |
| Item Weight | 22 pounds |
| Product Dimensions | 15.55 x 18.7 x 10.04 inches |
| Country of Origin | Spain |
| Item model number | PUP1-U-1-6-0-002-A |
| Manufacturer Part Number | PUP1-U-1-6-0-002-A |
| Special Features | Dynamic load balancing with POWER BOOST, Charge multiple EVs at once with POWER SHARING, Solar EV charging with ECO-SMART, View real time statistics and notifications, set charging schedules, unlock/lock your charger with myWallbox app, Voice control with Amazon Alexa and Google Assistant |
| Amperage | 48 Amps |
| Wattage | 11.5 KW |
