| Processor | athlon |
|---|---|
| RAM | DDR4 |
| Memory Speed | 2133 MHz |
| Wireless Type | 802.11a/b/g/n/ac |
| Number of USB 3.0 Ports | 5 |

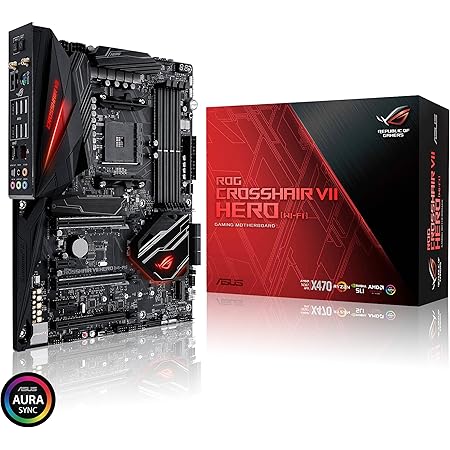

ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard
| Brand | ASUS |
| CPU Socket | Socket AM4 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR4 |
| Compatible Processors | AMD Athlon |
| Chipset Type | AMD 785E |
| Memory Clock Speed | 2133 MHz |
| Platform | Windows 7, Windows 10 |
| CPU Model | Athlon |
| Memory Storage Capacity | 64 GB |
About this item
- Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, onboard 802.11ac Wi-Fi, front panel USB 3.1 Gen2 and gigabit LAN
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance with external clock generator.Form Factor ATX Form Factor(Inches) : 12 x 9.6
- Aura Sync RGB lighting with two addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products. Operating System - Windows 10 64-bit.Windows 7 64-bit *7
- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality. Wireless Data Network : Wi-Fi 802.11 a/b/g/n/ac. Supports dual band frequency 2.4/5 GHz
- Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors
- Perfected cooling: dedicated water cooling zone, comprehensive fan controls, and M.2 heatsink
There is a newer model of this item:
Similar items that may ship from close to you
Important information
To report an issue with this product, click here.
From the manufacturer
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating one of the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality.
Overview
Powered by AMD Ryzen 2 (AM4), the ROG Crosshair VII Hero with WiFi strikes the perfect balance for gamers and enthusiasts alike combining powerful features and performance with easy-to-use interfaces for complete system control. Push your system performance to the next level with improved overclocking support and Aura Sync RGB for style.
- Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4
- Aura Sync RGB lighting with two addressable headers
- Pre-mounted I/O shield ensures streamlined installation
- 8-channel HD audio with the ROG exclusive SupremeFX S1220
Features
|
|
|
|
|---|---|---|
THE HERO EVERYONE WANTSThe ROG Crosshair VII Hero conceals potent power, smarter cooling, and faster memory support under a stealthy new skin. Loaded with renowned ROG features, from one-click overclocking and cooling to attention-grabbing Aura Sync illumination, it's the perfect foundation for your AMD Ryzen rig. |
OUTSHINE THE COMPETITIONASUS Aura offers full RGB lighting control with a variety of functional presets for built-in RGB LEDs and for lighting strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. |
AURA SYNC X PHILIPS HUEROG Crosshair VII Hero takes ASUS Aura into the home — and now it also lets you synchronize effects with Philips Hue personal wireless lighting. Easily control your Hue light bulbs, strips and lamps from the simple Aura app, and create immersive illumination that extends beyond your rig to make the whole room part of your gaming experience. |
|
|
|
|
|---|---|---|
ONE-CLICK OVERCLOCKING AND COOLINGASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig. Fans stay whisper-quiet during everyday computing, and deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks. |
COOLER BY DESIGNROG Crosshair VII Hero gives you comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all. |
SUPREMEFXROG's SupremeFX audio technology delivers an exceptional 113dB signal-to-noise ratio on the line-in connection. We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS Sabre Hi-Fi ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments RC4580 op amp for high gain with low distortion. |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| ROG CROSSHAIR VII HERO (WI-FI) | ROG CROSSHAIR VII HERO | ROG STRIX X470-F Gaming | ROG STRIX X470-I Gaming | Prime X470-PRO | TUF X470-PLUS GAMING | |
| CPU | AMD Ryzen 2 AM4 and 7th generation Athlon processors | AMD Ryzen 2 AM4 and 7th generation Athlon processors | AMD Ryzen 2 AM4 and 7th generation Athlon processors | AMD Ryzen 2 AM4 and 7th generation Athlon processors | AMD Ryzen 2 AM4 and 7th generation Athlon processors | AMD Ryzen 2 AM4 and 7th generation Athlon processors |
| Chipset | AMD X470 Chipset | AMD X470 Chipset | AMD X470 Chipset | AMD X470 Chipset | AMD X470 Chipset | AMD X470 Chipset |
| Memory | 4 x DIMM; Max. 64GB DDR4; 3466+ MHz (O.C.) | 4 x DIMM; Max. 64GB DDR4; 3466+ MHz (O.C.) | 4 x DIMM; Max. 64GB DDR4; 3466+ MHz (O.C.) | 2 x DIMM; Max. 32GB DDR4; 3466 MHz (O.C.) | 4 x DIMM; Max. 64GB DDR4; 3466+ MHz (O.C.) | 4 x DIMM; Max. 64GB DDR4; 3200 MHz (O.C.) |
| PCIe x16 Slots | 2 x PCIe 3.0 x16 slots (@ x16 or x8/x8) 1 x PCIe 2.0 x 16 slots (max. @x4) | 2 x PCIe 3.0 x16 slots (@ x16 or @ x8/x8) 1 x PCIe 2.0 x 16 slots (max. @x4) | 1x 22110 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 2 and SATA modes) | 1 x PCIe 3.0 x16 slot | 2 x PCIe 3.0 x16 (@x16 or @x8/x8) 1 x PCIe 2.0 x16 (max. @x4) | 1 x PCIe 3.0 x16 (@x16 or @x8 ) 1 x PCIe 2.0 x16 (max. @x4) |
| Graphics | N/A | N/A | HDMI/DP | HDMI | HDMI/DP | HDMI/DVI-D |
| Audio | SupremeFX S1220 | SupremeFX S1220 | SupremeFX S1220 | SupremeFX S1220 | Realtek S1220A | Realtek ALC887 |
| 32Gb/s M.2 | 1x 22110 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 4) | 1x 22110 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 4) | 1x 22110 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 2 and SATA modes) | 1 x 2280 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 4 mode) | 1x 22110 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 2 and SATA modes) | 1x 22110 (PCIE 3.0 x 4 and SATA modes) 1 x 2280 (PCIE 3.0 x 2 and SATA modes) |
| Wireless | 2x2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac | N/A | N/A | 2x2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac | N/A | N/A |
| Aura Sync | Yes | Yes | Yes | Yes | Yes | Yes |
| Form Factor | ATX | ATX | ATX | Mini ITX | ATX | ATX |
Compare with similar items
This item ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard | MSI Meg X570 Unify Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6GB/s, M.2, USB 3.2 Gen 2, Ax Wi-Fi 6, Bluetooth 5, ATX) | ASUS AM4 TUF Gaming X570-Plus (Wi-Fi) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage | ASUS ROG X570 Crosshair VIII Formula AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard with PCIe 4.0, on-Board WiFi 6 (802.11Ax), 5 Gbps LAN | ASUS ROG Strix B550-F Gaming AMD AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Gaming Motherboard (PCIe 4.0, 2.5Gb LAN, BIOS Flashback, HDMI 2.1, Addressable Gen 2 RGB Header and Aura Sync) | |
|---|---|---|---|---|---|
| Customer Rating | 4.5 out of 5 stars (1473) | 4.6 out of 5 stars (737) | 4.7 out of 5 stars (7588) | 4.3 out of 5 stars (372) | 4.6 out of 5 stars (8144) |
| Price | $398.86$398.86 | $229.99$229.99 | $184.00$184.00 | $489.99$489.99 | $164.99$164.99 |
| Sold By | USA BUY | Amazon.com | Amazon.com | Electropedia llc | Amazon.com |
| Chipset Type | AMD 785E | AMD 570X | AMD 570X | AMD 570X | AMD B550 |
| CPU Socket | Socket AM4 | Socket AM4 | Socket AM4 | Socket AM4 | Socket AM4 |
| Device Type | Motherboards | — | — | — | — |
| Item Dimensions LxWxH | 12 x 4.4 x 9.6 inches | 13.46 x 10.55 x 3.39 inches | 10.74 x 2.68 x 13.31 inches | 14.57 x 12.28 x 4.25 inches | 13.3 x 10.7 x 2.7 inches |
| Item Weight | 3.07 lbs | 3.00 lbs | 2.65 lbs | 7.35 lbs | 2.36 lbs |
| Memory Slots Available | 4.0 | 4 | 4 | 4 | 4 |
| RAM Memory Technology | DDR4 | DDR4 | DIMM | DIMM | DDR4 |
| Motherboard Compatability | ATX | ATX | ATX | ATX | ATX |
What's in the box
Looking for specific info?
Videos
Videos for this product

8:42
Click to play video

ASUS ROG Crosshair VIII Hero Motherboard
ThinkComputers

Videos for related products

6:35
Click to play video

Asus ROG Strix X570-E Motherboard Unboxing
Off The Jacks - Sheryl Loch

Videos for related products

1:11
Click to play video

ROG X570 Series Motherboard
ASUS Computer International Direct
Videos for related products

0:34
Click to play video

ASUS B550 AMD Ryzen WiFi 6 Gaming Motherboard Series
ASUS Computer International Direct
Videos for related products

1:20
Click to play video

Quick thoughts on this motherboard
🙎🏻♂️The Moyers🙍🏼♀️

Videos for related products

2:13
Click to play video

Installing the Ultimate Ryzen 9 5950x CPU on an x570 Board!
UTECHPIA

Videos for related products

0:49
Click to play video

This MSI MAG B550 motherboard rocks!
Geek Main Base

Videos for related products

1:31
Click to play video

ASUS Z790 motherbaord
ASUS Computer International Direct
Product Description
Powered by AMD Ryzen 2 (AM4), the ROG Crosshair VII Hero with Wi-Fi strikes the perfect balance for gamers and enthusiasts alike combining powerful features and performance with easy-to-use interfaces for complete system control. Push your system performance to the next level with improved overclocking support and Aura Sync RGB for style. Bluetooth V4.2.
Product information
Technical Details
| Brand | ASUS |
|---|---|
| Item model number | ROG Crosshair VII Hero (Wi-Fi) |
| Item Weight | 3.07 pounds |
| Product Dimensions | 12 x 4.4 x 9.6 inches |
| Item Dimensions LxWxH | 12 x 4.4 x 9.6 inches |
| Computer Memory Type | DDR4 SDRAM |
| Manufacturer | ASUS Computer International Direct |
| ASIN | B07C5JKH91 |
| Is Discontinued By Manufacturer | No |
| Date First Available | April 12, 2018 |
Additional Information
| Customer Reviews |
4.5 out of 5 stars |
|---|---|
| Best Sellers Rank | #1,278 in Computer Motherboards |
Warranty & Support
Feedback
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonReviews with images
Submit a report
- Harassment, profanity
- Spam, advertisement, promotions
- Given in exchange for cash, discounts
Sorry, there was an error
Please try again later.-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
It is currently running a 5900x with 2x16 Corsair ddr4 3600 and there have been 0 hiccups. The bios is easy to navigate and configure. The auto performance settings on the motherboard are pretty tame so if want to really push whatever cpu you have you have to do it manually. Personally i had the best results turning the PBO all the way up and tuning each core with the curve optimizer which honestly took forever.
RGB works well and while the armory crate software isn't great it's better than any other motherboard specific software i've used
Only thing i was disappointed by was 2.5Gb lan instead of 5 or 10 but that is purely a "id like this" opposed to an actual issue of any sort.
Lastly and the reason this board was 4 stars instead of 5 is the price point. This isn't worth $400 imo which is why i got the Aorus in the first place. The Asus is better but it's not $150 better. I spent the $ on the Asus because i needed my system back up and running asap and this was my best, fastest option. Obviously AM5 boards are out now so prices for all the AM4 boards will vary wildy but yea, don't overpay for this.
There have been some issues with the RAM overclock I believe. The PC shuts down unexpectedly and I believe that RAM might indeed be the case here. I restored the settings to auto in order to check if that was the problem and now the system runs smoothly. Although, I believe that with 1.4v instead of the initial 1.35v that I had, the problem will be fixed. Unfortunately I don't have time to test it now but as soon as I do will update my review again. Also, when I tried to overclock my RAM above its advertised speed the PC wouldn't post and the settings were reverted without any problems.
General thoughts:
I installed this board today with a Ryzen 7 2700x processor and a 2x8GB Corsair Vengeance RGB 3466MHz kit (CMR16GX4M2C3466C16). My PC booted from the start with no issues whatsoever. First thing I did was update the BIOS to latest firmware using ASUS EZ flash 3 (easy as pie). The process in general went through without any problems. The board looks fantastic and the provided software works like a charm.
RAM:
After updating the BIOS, I used the DOCP feature to overclock my ram kit to its advertised 3466MHz speed. I have never fiddled with RAM speed before but it was very simple to do so. The BIOS also comes preloaded with memory profiles for Samsung B-Die RAM kits with speeds up to 3600MHz that you can use. The PC posted with no issues and my RAM was running at 3466MHz which provided a very nice boost to benchmarks and framerates.
Issues:
The only issues I had were regarding third party control software. These were Corsair Link and Speedfan. Corsair Link couldn't let me customize the RAM leds but otherwise it worked as intended. Speedfan couldn't recognize the motherboard PWM ports so I couldn't use it to set fan speeds.
Workaround for issues:
I believe though that it's not the boards fault. Most probably the software were not update for the X470 platform. Instead, I used the AURA sync software to control all the RGB components of my system. It was pretty easy to figure out and does it's job pretty well. Regarding fan control, the Fan Xpert 4 software from the AI Suite 3 worked wonders. I used it to automatically tune the fans based on their individual RPM. After that there's no need to further adjust the fans but if you want, each PWM fan port provides an RPM chart that can be adjusted from the software. The software also created four profiles for all the fan speeds: Silent, Standard, Turbo, Full Speed. These can be easily cycled through the software.
Conclusion:
Admittedly, this is just the first day of use of the new system but I felt the need to post this review because this board is in my opinion the top X470 that you can buy right now and with fore coming BIOS update it can only get better (I hope :p ).
*3800x (need to use the flash bios - very easy... Plug USB with bios file in associated USB port, hold down the bios flash button until it starts blinking, wait until blinking is done)
*32GB of RAM (F4-3600C16D-16GVKC - 4*8GB sticks). Easy XMP set to 3733Mhz (1867 FCLK) with zero issues after memtest.
Works well with my Ryzen system. Has RGB if you like that. M.2. heat sink has thermal pad (not really convinced this really helps with temps).
*** For this board, if you have a NVMe m.2. drive, plug into the bottom m.2. slot, not the one next to the first PCIe (graphics card) slot. This prevents any possibility of reducing the 16x bandwidth to 8x on the card. Read up on Google for more info. If you look at the board (or manual) it'll show that the 1st m.2. slot is actually the bottom one. You can move the heatsink to that slot, it'll fit. Haven't tested this, but didn't want to go through the troubles as Google has enough info to convince me to use the bottom m.2. slot rather than the top one like most other boards.
Issue:
Only gripe is the wifi randomly disconnects. Updated drivers and even tried rolling them back to various versions, verified windows updates, checked physical connections, etc. Not too often... But it acts as if there is no wifi chip and doesn't even search for networks. Restart fixes it for that time being, but happens about once a day randomly. Sometimes it lasts only a few seconds, other times it's off for at least 30+ minutes before I decide to restart the PC. Currently working with Amazon customer support so we'll see how that goes (pending a call from them after they contact Asus).
Reviewed in the United States on December 7, 2019
*3800x (need to use the flash bios - very easy... Plug USB with bios file in associated USB port, hold down the bios flash button until it starts blinking, wait until blinking is done)
*32GB of RAM (F4-3600C16D-16GVKC - 4*8GB sticks). Easy XMP set to 3733Mhz (1867 FCLK) with zero issues after memtest.
Works well with my Ryzen system. Has RGB if you like that. M.2. heat sink has thermal pad (not really convinced this really helps with temps).
*** For this board, if you have a NVMe m.2. drive, plug into the bottom m.2. slot, not the one next to the first PCIe (graphics card) slot. This prevents any possibility of reducing the 16x bandwidth to 8x on the card. Read up on Google for more info. If you look at the board (or manual) it'll show that the 1st m.2. slot is actually the bottom one. You can move the heatsink to that slot, it'll fit. Haven't tested this, but didn't want to go through the troubles as Google has enough info to convince me to use the bottom m.2. slot rather than the top one like most other boards.
Issue:
Only gripe is the wifi randomly disconnects. Updated drivers and even tried rolling them back to various versions, verified windows updates, checked physical connections, etc. Not too often... But it acts as if there is no wifi chip and doesn't even search for networks. Restart fixes it for that time being, but happens about once a day randomly. Sometimes it lasts only a few seconds, other times it's off for at least 30+ minutes before I decide to restart the PC. Currently working with Amazon customer support so we'll see how that goes (pending a call from them after they contact Asus).
Top reviews from other countries
主な変更点
・チップセットの冷却ファンを無くし、ヒートシンクでのファンレス冷却へ変更
マザーボード上の可動パーツが無くなり、故障率低下&静音化&長寿命化 の可能性
・VRM が 60A から 90A へ
VRM 14+2 構成はそのままで、より多くの電力をMBから安定供給できるように
・より高速なメモリに対応(QVL比較)
・Bluetooth 5.0 から 5.1(方向探知機能追加)へ
※基本的なスロット配置は同じなので、下記の旧 HERO 同様に 3スログラボを使用しても 無駄なく全スロットが使用できる
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
【ASUS X570 ROG CROSSHAIR VIII HERO (WI-FI)】について
【PCI Express Gen4】
「第3世代 RYZEN CPU」以降を使用すれば CPU制御と X570チップセット制御の全てが GEN4 稼働するので、PCI-E 4本 と M.2 2本 全てを GEN4 動作で同時使用できる
同シリーズの FORMURAだと、3スロ占有タイプのグラボを挿すと PCIEX1 に重なり1本使えなくなる
PCI-E の拡張性を重視するなら HERO の方がお勧め
その代わり、M.2スロットの1本がCPUのすぐ下にあり、グラボの上側となるので 簡易水冷構成だと風が当たりにくく 下の M.2接続に比べ 5℃~8℃程 温度が高くなる。
今回、その温度差が気になったので、上部に「H115i RGB PLATINUM 280mm 水冷式 CPUクーラー」を上部排気で設置して十分な排気を確保し、背面の排気ファンを吸気に変更する事で CPU側に風を当て 下のM.2接続SSDとほぼ同じ温度にまで下げることができた。メモリの温度も下がり良い感じに。
これに比べて FORMURA は PCIEX16_2 と PCIEX16_3 の間に横に 2本 M.2スロットがあるので温度管理はやりやすい
【SATA】
SATA 端子は8個。BDドライブや HDDを多く使用する構成でも拡張性に余裕がある
【Formuraとメモリの互換性は同じ】
Formura とは同一シリーズの扱いとなり、DDR4 メモリの QVL は共通
QVL 上は、4枚刺し可能なメモリは DDR4-3600 が上限で、これを超えるメモリは 全て 2枚刺しになる
【スロット、コネクタの排他制御について】
このマザーでは、選択式の排他制御となるコネクタは無く、全てのスロット&コネクタの同時使用が可能
【オンボード USB2.0 コネクタ】
オンボード USB2.0 コネクタは 2個。Corsair iCUE 対応製品とも相性が良い。ただ、製品毎にUSB端子が必要になるので、色々つける場合は USB HUB が必須
【日本語マニュアル】
日本語マニュアルが付属。ただし、マニュアルは古いまま更新されていないので「UEFI BIOS」の解説が、実際とは一部画面構成が異なるので注意
【エラー表示ディスプレイ】
MBの右上の「7セグメント LED ディスプレイ」は「Q-CODE」でエラー表示するだけではなく、PC起動後は「CPU温度をリアルタイム表示」することが可能で かなり便利 (BIOS設定)
【WI-FIアンテナ】
「指揮官っぽいアンテナ」が付属。Bluetooth との共用アンテナで、Wi-Fi 未使用でも、Bluetooth の安定接続に重宝する。
(※重量は60g程なので、2cm角の強めのマグネットシートを4~5枚 張り付ければスチールケースに張り付く)
【CPU制御 と X570制御 の PCI-E、M.2スロットについて】
CPU側の「M.2_1」「PCIEX16_1」「PCIEX16_2」はCPU制御になりますが、グラボを挿す「PCIEX16_1」と「PCIEX16_2」を両方使用するとどちらも x16⇒ x8 動作になる。 M.2は影響無し
とはいえ x16 も x8 もベンチで差を見つけるのが難しいほどなので、それほど気にする必要はないと思います
なお、第3世代 Ryzen CPU だと、これらCPU制御の全てが GEN4 動作するが、第2世代以前の古いCPUだと GEN3 動作になる
X570 チップセットによる制御は 下部の「M.2_2」「PCIEX1」「PCIEX16_3」で、これらはCPUの種類に関係なく GEN4 動作する
【購入半年で トラブった点】
・「オーディオドライバーと一部プログラムの不具合」
MB付属の「Realtek Audio Driver」は単体でのインストールになりますが、新しいドライバや「ARMOURY CRATE」経由のインストールだと「Sonic Studio」も抱き合わせでインストールされます。
自環境ではどちらの場合でも「.NET」の機能を使用した一部プログラム「TMSR(TMPGEnc MPEG Smart Renderer 6)」のプレビュー機能でフリーズする問題が発生した為、Microsoft提供(デフォルト)のオーディオドライバを使用することで 不具合を回避しています。音質自体は変わらないとの事
※オーディオドライバをインストールせずに ネット接続環境で PCを再起動すると自動的にインストールされる
ちなみに.NETの機能を使用しているのは「TMSR」だけらしく(TMPGEnc Video Mastering Works)等の製品には影響がない。
【SATAケーブルの接触不良】
システムドライブのケーブルが接触不良を起こし、すぐに使えなくなったので同梱ケーブルには注意
【「AURA」トラブルと「ARMOURY CRATE」】
「AURA」の機能は現在「ARMOURY CRATE」に統合されており、単体でインストールすると 高確率でトラブります。
「ARMOURY CRATE」は、OS をインストールした直後の初起動時に画面右下に ウィンドウが表示され「入れろ」と指示されます。後からインストールするとインストール不完全になり高確率でトラブルを起こすので、必ずこの最初のタイミングでインストールするようにしましょう。そのために わざわざ BIOS で設定されているとの事。
【「8d」エラー】
「BIOS ver.1201」「Ryzen9 3900X」「G.skill TRIDENT Z neo F4-3600C16D-32GTZNC」のXMP規定値動作 の組み合わせで、PC電源投入時に QーCode「8d」エラーで起動が止まる事象が 3割ほどの確率で出ています。
リセットすれば100%問題なく起動するし、再起動ではこの事象は起きない。電源投入時のみ。
同一メモリを新たに購入して挿し変えても同じ。MBを交換しても同じ。どちらの場合でも 複数のメモリチェックでエラーは無く、実際 2枚⇒ 4枚刺し 64GB をXMP規定値動作で使用できます。
メモリ2枚と4枚で「8d」エラー確率に大差無し。昔は出ていなかったので、この構成とBIOSとで相性が出ている可能性が高い。
※その後の BIOS更新により自環境での「8d」エラーは全く出なくなりました。( ゚Д゚ノノ"☆パチパチ
起動時の安定性を重視した変更がされたのだと思います
【メモリスロット】
メモリを挿すスロットは、1枚だとA2、2枚だとA2&B2、4枚だと全部 のスロット の順で優先順位があるので注意。間違えてもPCは起動するが、XMP動作しないので注意
※追記
「古いBIOSだと 一部メモリで 動作タイミングの値が XMP(D.O.C.P)で正しく設定されない 不具合があります(ASUS側の設定ミスらしい)その場合は BIOS上で正しい値に変更しましょう
【M.2接続時のSSD温度と内蔵HDD温度】
室温 28℃ 湿度62% のアイドル時
上部 NVMeSSD「CSSD-M2B1TPG3VNF(Gen4)」44℃
下部 NVMeSSD「Samsung 970 EVO Plus 500GB(Gen3)」42℃
この時の内蔵 HDD温度
WDC WD80EFAX-68KNBN0 35℃
WDC WD60EZAZ-00ZGHB0 29℃
TOSHIBA MN05ACA800 30℃
TOSHIBA MD05ACA800 31℃
MB付属のヒートシンクでも冷却性能が高く基本的には問題ありませんが、CPU側の M.2 スロットはグラボの上に位置し、ヒートシンクも短いタイプなので、簡易水冷だと風が当らず温度が高めになります
気になる場合は「AIF-08」等で PCI-E 接続に変更したり、今回の様に 上部に簡易水冷のCPUクーラのラジエータ&ファンを上部排気設定で取り付け、ケース背面の排気ファンを吸気に変更して CPU側に風を当てる事で下部のM.2接続と同レベルの温度にすることも可能です
【SSDのベンチマークへの影響「RAMCASHEⅢ」】
付属のアプリ RAMCASHEⅢは、たとえ未使用でもインストールするだけで NVMe SSD のランダムアクセス性能が 1/3以下にまで低下します。
容量を適切に割り当てる事で、Seq 性能は跳ね上がりますが、ランダム性能は下がったまま ほとんど上がりません。
ベンチを取る場合は RAMCASHEⅢ を削除してから実行するようにしましょう
高性能・多機能だからこその注意点やトラブルもありますが、OCメモリに強いマザーです
Reviewed in Japan on September 20, 2019
主な変更点
・チップセットの冷却ファンを無くし、ヒートシンクでのファンレス冷却へ変更
マザーボード上の可動パーツが無くなり、故障率低下&静音化&長寿命化 の可能性
・VRM が 60A から 90A へ
VRM 14+2 構成はそのままで、より多くの電力をMBから安定供給できるように
・より高速なメモリに対応(QVL比較)
・Bluetooth 5.0 から 5.1(方向探知機能追加)へ
※基本的なスロット配置は同じなので、下記の旧 HERO 同様に 3スログラボを使用しても 無駄なく全スロットが使用できる
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
【ASUS X570 ROG CROSSHAIR VIII HERO (WI-FI)】について
【PCI Express Gen4】
「第3世代 RYZEN CPU」以降を使用すれば CPU制御と X570チップセット制御の全てが GEN4 稼働するので、PCI-E 4本 と M.2 2本 全てを GEN4 動作で同時使用できる
同シリーズの FORMURAだと、3スロ占有タイプのグラボを挿すと PCIEX1 に重なり1本使えなくなる
PCI-E の拡張性を重視するなら HERO の方がお勧め
その代わり、M.2スロットの1本がCPUのすぐ下にあり、グラボの上側となるので 簡易水冷構成だと風が当たりにくく 下の M.2接続に比べ 5℃~8℃程 温度が高くなる。
今回、その温度差が気になったので、上部に「H115i RGB PLATINUM 280mm 水冷式 CPUクーラー」を上部排気で設置して十分な排気を確保し、背面の排気ファンを吸気に変更する事で CPU側に風を当て 下のM.2接続SSDとほぼ同じ温度にまで下げることができた。メモリの温度も下がり良い感じに。
これに比べて FORMURA は PCIEX16_2 と PCIEX16_3 の間に横に 2本 M.2スロットがあるので温度管理はやりやすい
【SATA】
SATA 端子は8個。BDドライブや HDDを多く使用する構成でも拡張性に余裕がある
【Formuraとメモリの互換性は同じ】
Formura とは同一シリーズの扱いとなり、DDR4 メモリの QVL は共通
QVL 上は、4枚刺し可能なメモリは DDR4-3600 が上限で、これを超えるメモリは 全て 2枚刺しになる
【スロット、コネクタの排他制御について】
このマザーでは、選択式の排他制御となるコネクタは無く、全てのスロット&コネクタの同時使用が可能
【オンボード USB2.0 コネクタ】
オンボード USB2.0 コネクタは 2個。Corsair iCUE 対応製品とも相性が良い。ただ、製品毎にUSB端子が必要になるので、色々つける場合は USB HUB が必須
【日本語マニュアル】
日本語マニュアルが付属。ただし、マニュアルは古いまま更新されていないので「UEFI BIOS」の解説が、実際とは一部画面構成が異なるので注意
【エラー表示ディスプレイ】
MBの右上の「7セグメント LED ディスプレイ」は「Q-CODE」でエラー表示するだけではなく、PC起動後は「CPU温度をリアルタイム表示」することが可能で かなり便利 (BIOS設定)
【WI-FIアンテナ】
「指揮官っぽいアンテナ」が付属。Bluetooth との共用アンテナで、Wi-Fi 未使用でも、Bluetooth の安定接続に重宝する。
(※重量は60g程なので、2cm角の強めのマグネットシートを4~5枚 張り付ければスチールケースに張り付く)
【CPU制御 と X570制御 の PCI-E、M.2スロットについて】
CPU側の「M.2_1」「PCIEX16_1」「PCIEX16_2」はCPU制御になりますが、グラボを挿す「PCIEX16_1」と「PCIEX16_2」を両方使用するとどちらも x16⇒ x8 動作になる。 M.2は影響無し
とはいえ x16 も x8 もベンチで差を見つけるのが難しいほどなので、それほど気にする必要はないと思います
なお、第3世代 Ryzen CPU だと、これらCPU制御の全てが GEN4 動作するが、第2世代以前の古いCPUだと GEN3 動作になる
X570 チップセットによる制御は 下部の「M.2_2」「PCIEX1」「PCIEX16_3」で、これらはCPUの種類に関係なく GEN4 動作する
【購入半年で トラブった点】
・「オーディオドライバーと一部プログラムの不具合」
MB付属の「Realtek Audio Driver」は単体でのインストールになりますが、新しいドライバや「ARMOURY CRATE」経由のインストールだと「Sonic Studio」も抱き合わせでインストールされます。
自環境ではどちらの場合でも「.NET」の機能を使用した一部プログラム「TMSR(TMPGEnc MPEG Smart Renderer 6)」のプレビュー機能でフリーズする問題が発生した為、Microsoft提供(デフォルト)のオーディオドライバを使用することで 不具合を回避しています。音質自体は変わらないとの事
※オーディオドライバをインストールせずに ネット接続環境で PCを再起動すると自動的にインストールされる
ちなみに.NETの機能を使用しているのは「TMSR」だけらしく(TMPGEnc Video Mastering Works)等の製品には影響がない。
【SATAケーブルの接触不良】
システムドライブのケーブルが接触不良を起こし、すぐに使えなくなったので同梱ケーブルには注意
【「AURA」トラブルと「ARMOURY CRATE」】
「AURA」の機能は現在「ARMOURY CRATE」に統合されており、単体でインストールすると 高確率でトラブります。
「ARMOURY CRATE」は、OS をインストールした直後の初起動時に画面右下に ウィンドウが表示され「入れろ」と指示されます。後からインストールするとインストール不完全になり高確率でトラブルを起こすので、必ずこの最初のタイミングでインストールするようにしましょう。そのために わざわざ BIOS で設定されているとの事。
【「8d」エラー】
「BIOS ver.1201」「Ryzen9 3900X」「G.skill TRIDENT Z neo F4-3600C16D-32GTZNC」のXMP規定値動作 の組み合わせで、PC電源投入時に QーCode「8d」エラーで起動が止まる事象が 3割ほどの確率で出ています。
リセットすれば100%問題なく起動するし、再起動ではこの事象は起きない。電源投入時のみ。
同一メモリを新たに購入して挿し変えても同じ。MBを交換しても同じ。どちらの場合でも 複数のメモリチェックでエラーは無く、実際 2枚⇒ 4枚刺し 64GB をXMP規定値動作で使用できます。
メモリ2枚と4枚で「8d」エラー確率に大差無し。昔は出ていなかったので、この構成とBIOSとで相性が出ている可能性が高い。
※その後の BIOS更新により自環境での「8d」エラーは全く出なくなりました。( ゚Д゚ノノ"☆パチパチ
起動時の安定性を重視した変更がされたのだと思います
【メモリスロット】
メモリを挿すスロットは、1枚だとA2、2枚だとA2&B2、4枚だと全部 のスロット の順で優先順位があるので注意。間違えてもPCは起動するが、XMP動作しないので注意
※追記
「古いBIOSだと 一部メモリで 動作タイミングの値が XMP(D.O.C.P)で正しく設定されない 不具合があります(ASUS側の設定ミスらしい)その場合は BIOS上で正しい値に変更しましょう
【M.2接続時のSSD温度と内蔵HDD温度】
室温 28℃ 湿度62% のアイドル時
上部 NVMeSSD「CSSD-M2B1TPG3VNF(Gen4)」44℃
下部 NVMeSSD「Samsung 970 EVO Plus 500GB(Gen3)」42℃
この時の内蔵 HDD温度
WDC WD80EFAX-68KNBN0 35℃
WDC WD60EZAZ-00ZGHB0 29℃
TOSHIBA MN05ACA800 30℃
TOSHIBA MD05ACA800 31℃
MB付属のヒートシンクでも冷却性能が高く基本的には問題ありませんが、CPU側の M.2 スロットはグラボの上に位置し、ヒートシンクも短いタイプなので、簡易水冷だと風が当らず温度が高めになります
気になる場合は「AIF-08」等で PCI-E 接続に変更したり、今回の様に 上部に簡易水冷のCPUクーラのラジエータ&ファンを上部排気設定で取り付け、ケース背面の排気ファンを吸気に変更して CPU側に風を当てる事で下部のM.2接続と同レベルの温度にすることも可能です
【SSDのベンチマークへの影響「RAMCASHEⅢ」】
付属のアプリ RAMCASHEⅢは、たとえ未使用でもインストールするだけで NVMe SSD のランダムアクセス性能が 1/3以下にまで低下します。
容量を適切に割り当てる事で、Seq 性能は跳ね上がりますが、ランダム性能は下がったまま ほとんど上がりません。
ベンチを取る場合は RAMCASHEⅢ を削除してから実行するようにしましょう
高性能・多機能だからこその注意点やトラブルもありますが、OCメモリに強いマザーです
the packing and shipping are very good
board looks grate
- awesome sound
- awesome wifi
- lots of sata ports (8) + two nvme slots
- future proofing with pci 4 standards.
- good power loading that will not compromised the safety of the system.
- bios loading button at the back without the need for physical cpu.
- reset bios button is just right at the back if the settings are screwed. With AMD, you will need that.
- nice big start button at the motherboard.
what i dont like
- the cable length for the wifi/bluetooth is too short. If i am not supposed to be near the antenna, am i not supposed to be near the case as well?
- PCI 16 holding clip design in the motherboard is handicap. Never had issues taking out GFX card before in other boards.
- the chipset with the so called awesome cooling is a constant 58c . That is hotter than my 3600 from 41c to 68c max (ambient 31c).
Conclusion : IMO, It is a better if not the best board currently for amd for power loading stability.
