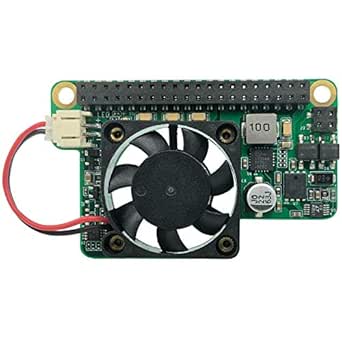

Raspberry Pi POE Module 15W for Raspberry Pi 5/4/Pi 3 b+/cm3/cm3+/cm4 Compatible with IEEE 802.3at/802.3af Peak Current 3.5A Fan Speed can be Controlled Fix Most Cases

4.1 4.1 out of 5 stars 23 ratings
Currently unavailable.
We don't know when or if this item will be back in stock.
Brand innomaker
Connectivity Technology I2C
Wireless Communication Standard 802.11a/b/g/n
Product Dimensions 2.56"L x 1.61"W x 0.37"H
UPC 781520762776

About this item

  • Raspberry Pi POE Module PI-POE15W is compatible with Raspberry Pi 4, Pi 3B+, CM3/CM3+/CM4, etc…
  • Raspberry Pi POE Module PI-POE15W is compatible with IEEE 802.3at (25.5W), IEEE 802.3af (13W)
  • Raspberry Pi POE Module Output Voltage 5V, Peak current up to 3.5A, continuous current 3A
  • Raspberry Pi POE Module PI-POE15W is a small size module 65mm*41mm*9.5mm (L*W*H), with a small size, low noise fan(Fan Maxim Speed only 23 dB)
  • Raspberry Pi POE Module PI-POE15W Fan Speed can be controlled by i2c, easy setup, come with Quick Start, we provide design service for raspberry pi

Product details

  • Product Dimensions ‏ : ‎ 2.56 x 1.61 x 0.37 inches; 1.45 ounces
  • Item model number ‏ : ‎ PI-POE15W
  • Date First Available ‏ : ‎ March 18, 2021
  • Manufacturer ‏ : ‎ innomaker
  • ASIN ‏ : ‎ B08ZCN7W94
  • Customer Reviews:
    4.1 4.1 out of 5 stars 23 ratings

From the brand

Previous page
  2. innomaker

    WHO WE ARE?

    INNOMAKER was founded in Shenzhen the city of makers in China, created by a group of passionate open source hardware fans, including professional Embedded Development Engineers, experienced technicians and excellent production managers. We love open source hardwares, maker cultural and passionate life, so we get together here for a common struggle of dream.

  3. USB to CAN Converter Cable for Raspberry Pi5/4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board and ...
    Dual Channels USB to CAN Converter for Raspberry Pi5/4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Bo...
    USB CAN Converter Module for Raspberry Pi 5/4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board and A...
    USB CAN Converter Module for Raspberry Pi 5/4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board and A...

    USB to CAN Module

  4. innomaker Raspberry Pi Camera Module 5MP 1080P OV5647 Sensor with M12 FOV90 IR Filter LEN for Ras...
    innomaker Camera OV9281 up to 453fps External Trigger Stream Mode Monochrome Global Shutter Senso...
    innomaker GS Camera OV7251 Sensor with Global Shutter External Trigger Stream Mode 0.3MP Frame Ra...
    Raspberry Pi Industrial Camera Module STARVIS IMX327LQR Color CMOS Sensor 2.13M Pixel for Rasp Pi...

    Industrial Camera Module

Next page

Product Description

InnoMaker 15W/15W POE Module for Raspberry Pi 4/Pi 3 b+/cm3/cm3+/cm4

15W POE Module for Raspberry Pi

Fix Most Cases like Raspberry PI official Cases,Argon Cases

Raspberry Pi 4 PoE
15W POE Module for Raspberry Pi 4/Pi 3 b+/cm3/cm3+/cm4

15W/25W POE for Raspberry Pi

15W-PI-POE Module is compatible with IEEE 802.3at (25.5W), IEEE 802.3af (13W), output voltage 5V, peak current up to 3.5A, continuous current 3A

25W-PI-POE Module is compatible with IEEE 802.3at (25.5W), IEEE 802.3af (25W), output voltage 5V, peak current up to 3.5A, continuous current 3A

15W POE Module for Raspberry Pi 4/Pi 3 b+/cm3/cm3+/cm4

i2c Controlled FAN

Fan Maximum Speed up to 6500 RPM, Fan Speed can be controlled by software through I2C (GPIO2, GPIO3), When power up, it runs at maxim speed.

Quick Start:

Step1:

Edit config.txt by command 'sudo nano /boot/config.txt', add 'dtparam=i2c_arm=on,dtparam=i2c_vc=on' and save file;

Step2:

Install tools by command 'sudo apt-get install i2c-tools', 'sudo reboot' ;

Step3:

Check I2C Bus Quantity by command 'i2cdetect -l' ,'i2cdetect -y 1' ;

Step4: Initialize PWM

  • For Raspberry PI Legacy OS, i2c address is 1

Set PWM initialize By Total 4 commands (Must run all 4 command )

'i2cset -f -y 1 0x62 0x00 0x00'

'i2cset -f -y 1 0x62 0x01 0x04'

'i2cset -f -y 1 0x62 0x08 0x03'

'i2cset -f -y 1 0x62 0x02 0xff'

  • For Raspberry PI bullseye OS, i2c address is 10

Set PWM initialize By Total 4 commands (Must run all 4 command )

'i2cset -f -y 10 0x62 0x00 0x00'

'i2cset -f -y 10 0x62 0x01 0x04'

'i2cset -f -y 10 0x62 0x08 0x03'

'i2cset -f -y 10 0x62 0x02 0xff'

Step5:Fan control

  • We normally set it by command, 'i2cset -f -y 1 0x62 0x06 0xff' ;(Raspberry PI Legacy OS)
  • We normally set it by command, 'i2cset -f -y 1 0x62 0x06 0xff' ;(For Raspberry PI bullseye OS)

Note: 'value 00-ff, 00 means max, ff means minimum, when the value is less than 80, the fan will have noise, so the recommended value between 80-ff' ;

Step6:

Check Temperature by command '/opt/vc/bin/vcgencmd measure_temp'

Looking for specific info?

Customer reviews

4.1 out of 5 stars
4.1 out of 5
23 global ratings

Top reviews from the United States

DIYGUY
5.0 out of 5 stars Might be the best PoE hat for the Pi4
Reviewed in the United States on December 21, 2021
Verified Purchase
Might be the best PoE hat for the Pi4. I have two, one on a Pi4 and the other on a Pi CM4 io board since May 2021. The fan is a little loud @ full speed but it's easy to slow it down or turn it off(for cm4 io board) with the i2c commands provided. I tried a PoE hat w/o a fan and it caused idle temps to jump 25c to 30c on the Pi4. I also tried the official Pi PoE hat (older one, not 2021 version) and it would cause the Pi to shut down @ full load. Has enough juice to run a Noctua NF-A8 PWM 12 volt fan on the CM4 io board. Note that I needed header pin extensions for the hat to work on the CM4 io board because the rtc battery holder gets in the way. Probably will buy a 3rd one soon.
One person found this helpful
Helpful
 Report
Jerry S.
3.0 out of 5 stars Won't work with the Raspberry Pi CM4 board
Reviewed in the United States on August 28, 2022
Verified Purchase
It looks like a pretty good product, BUT.. I bought it to add POE powering to two Raspberry Pi CM4 carrier boards. That can't happen without header extenders (probably short ones to make the clearance on my waveshare CM4-IO-BOARD-CASE-A). The board just can't seat properly due to the RTC battery holder. If they are going to advertise CM4 compatibility, then they should provide the two header extenders required. Had they provided those extenders I definitely would have given them a 5 star rating. Works great with a standard RP4.
Helpful
 Report

Top reviews from other countries

Translate all reviews to English
ムジク
5.0 out of 5 stars コードもLANケーブルのみですっきり。満足。
Reviewed in Japan on June 2, 2022
Verified Purchase
ラズパイを何台か運用していますが、コードが邪魔なため、本品を購入。
カチッと嵌めないと、接触不良を起こします。（当たり前ですが）

既存のラズパイで、ヒートシンクがついているラズパイにつけようとしましたが、
CPUなどにヒートシンクに干渉して、つけられませんでした。

工夫すれば、PWM制御やCPU温度をモニターしてON/OFFできるのでありがたい。

☆５つ。
Report
にょろ
5.0 out of 5 stars 問題なく使用できました
Reviewed in Japan on November 18, 2021
Verified Purchase
Raspberry Pi 4 4GB モデルで使用しています。
給電には、NETGEARのGS308EPというモデルのスイッチングハブを使用しています。

USBから給電する場合、電圧が低い旨の警告が常時出ていたのですがこちらのPoE HATを使用すると警告が出なくなりました。

気になる点として、PoE HAT に耳を近づけると（10cmくらい？）コイル鳴きのような音が聞こえました。
こちらは環境や個体差などもあると思いますが、50cm以上離れれば聞こえなく個人的には問題ないです。

ファンの制御の方法は、付属の資料のURL（ECサイト？）へ飛ぶと出てきます。
Linuxコマンドに使い慣れている人であれば問題なく設定できると思います。
温度に応じて回転数等を制御する方法等は、時間が無く調べられていません。

正確な検証等は後日、気が向けば追記します。
Report
匿名
4.0 out of 5 stars 25W…？
Reviewed in Japan on January 4, 2022
Verified Purchase
クラスタの構築のため、15Wのものを3つ買い、とても満足に動いています。今回バスパワーのHDDを2台を繋ぎたく、25Wの方を買ってみたのですが、15Wのもの同様、2台目はやはり電力不足のためかディスクが落ちてしまいました。
ファンの大きさと音が15Wのものより大きく、多分冷却性能が高いのかなと推測してます。ただ、予定していた使い方はできなそうなので少し残念です。普通に使う分には15Wの方で足りると思いました。
ただ、上記を踏まえても公式hatより薄くて使い勝手の良いファンであるのは変わりなく、良い商品です。
Report
hwt
1.0 out of 5 stars 接触が悪く使用できない
Reviewed in Japan on April 22, 2022
Verified Purchase
PoEに使用する4PINのXHコネクタの接触が甘く、基盤を圧迫して接触を改善しなければ
接続したRaspberry Pi が起動しない状態でした。
固定用のワッシャーやナットなども付属されていないため、まともに使用できませんでした。
Report
