Revised my prior review. This is an affordable yet robust entry level scope that is upgradable. I gave it 5 stars because what you get significantly outweighs the shortcomings.
But understand a few things.
1. The the cooling fan creates a lot of noise. But if you’re looking into buying one of these things then you probably know enough to competently open the device - at your own risk - and replacing and/or shielding it better.
2. Not the best probes but certainly not the worst. Maybe I got a bad batch but mine are obnoxiously difficult to tune. Again, this is an impressive device for the price so you have to accept the tradeoff to be fair. The $5000 analog scopes I recall using in undergrad couldn’t do half of the things this is capable of and took up twice the bench top real estate.
3. It’s a bit slow at times to trigger but again. This is easily one of the ‘highest-end-budget-scopes’ … at least available on Amazon.
If anyone from Rigol is reading this please also consider making a detailed series [See Keystone] on how to use this scope. There are a lot of reviews, and many videos on oscilloscopes readily available, however there is something left to be desired on practical ways to use the versatility of this scope for more intermediate and advanced folks.
Add to your order
-
Coverage for accidental damage including drops, spills, and broken parts, as well as breakdowns (plans vary) -
24/7 support when you need it. -
Quick, easy, and frustration-free claims.
Cover this product:
3-Year Protection $39.99
4-Year Protection $52.99
Cover all of your eligible devices:
Asurion Complete Protect: One plan covers all eligible past and future purchases (Renews Monthly Until Cancelled) $16.99/month
Select a plan
Add to your order
- Coverage for accidental damage including drops, spills, and broken parts, as well as breakdowns (plans vary)
- 24/7 support when you need it.
- Quick, easy, and frustration-free claims.
Cover this product:
Select a plan
Enjoy fast, free delivery, exclusive deals, and award-winning movies & TV shows with Prime
Try Prime
and start saving today with fast, free delivery
Frequently bought together
This item: Rigol DS1054Z Digital Oscilloscope 50Mhz Bandwidth,4 Channels,1GSa/s Sampling Rate,24Mpts Memory Depth
$349.00
Get it as soon as Tuesday, Oct 8
Only 5 left in stock - order soon.
+
$14.97
Get it Oct 8 - 9
Only 8 left in stock - order soon.
+
$6.99 ($3.50/Count)
Get it as soon as Sunday, Oct 6
In Stock
Total price: $00
To see our price, add these items to your cart.
Choose items to buy together.
From the brand
RIGOL-Possibilities and More
RIGOL unite highly innovative and visionary talents to build a testing and measurement foundation for creating an intelligent world.
-
For over 20 years since its establishment, RIGOL strives to meet demands from scientists and developers of electronic products with measurement instruments of superior quality, reasonable prices and the best value. Today, RIGOL has become a highly acclaimed industrial brand that exceeds the expectation from professional customers.
-
-
-
Product Description
RIGOL Digital Oscilloscope DS1000Z Series
The 1000Z Series is RIGOL’s Digital Oscilloscope platform for Basic Visualization. It offers unprecedented value in customer applications with its innovative technology. They come as 4 channel oscilloscopes in 50, 70, or 100 MHz versions with a 7 inch display and RIGOL's UltraVision technology.
Innovative UltraVision Technology(Analog Channel)
- Deep Memory Depth (up to 24 Mpts)
- Higher Waveform Capture Rate (up to 30,000 wfms/s)
- Real-time Waveform Recording&Playback (up to 60,000 frames)
- Intensity Graded Color Display
Main Features
- Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz
- 4 analog channels, 16 digital channels (only available for DS1000Z Plus that has been upgraded with the RPL1116 probe kit)
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div
- Built-in dual-channel 25 MHz function/arbitrary waveform generator (only for "-S" Models)
- Various interfaces: USB Host&Device, LAN (LXI), AUX
- Compact size, light weight, easy to use
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display
|
|
|
|
|
|---|---|---|---|
4 Analog ChannelsVisualize 4 analog channels simultaneously with full bandwidth. Find bugs and resolve problems faster with better visibility and signal comparison. |
24Mpts Storage DepthStandard 24 MPts memory depth (in 1 channel mode) allows the user to give full consideration to the overall signal details, while maintaining a high sampling rate for a longer period of time. Zoom in to view small signal details in the complete waveform record. |
Hardware Waveform Recording and PlaybackRecord up to 60,000 frames of a dynamic signal and play them back like a movie for analysis and training. Locate infrequenct issues over long time periods and go directly to the issue. |
Serial Bus Triggering and DecodingDecode and trigger on serial bus systems including RS232, UART, I2C, and SPI all from the Oscilloscope's display. Gather data in hex, binary, or ascii and export to an event table for further analysis. |
|
|
|
|
|
|---|---|---|---|
Digital Fluorescent DisplayGray level display capability, similar to fluorescent display effect, highlighting the smallest changes in the waveform over time |
Mixed Signal Analysis CapabilityThe "plus" models accepts the optional accessory probe (RPL1116). Together these provide 16 digital logic channels in addition to the 4 analog channels. Use this to test multiple analog and digital signals at the same time and analyze bus signals more conveniently. |
Two 25MHz Signal SourcesThe "-S" models contain two 25MHz arbitrary waveform generator channels. Use these for comparison, validation, and convenience with the analog channels. Move captured wave data directly to the generator channel for signal verification. |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| DS1054Z | DS1074Z Plus | DS1074Z-S Plus | DS1104Z Plus | DS1104Z-S Plus | RPL1116 Probe | |
|
|
|
|||||
| Customer Reviews |
6
|
10
|
— |
29
|
— |
21
|
| Price | $349.00 | $459.00 | — | $699.00 | — | $199.00 |
| Analog BW | 50 MHz | 70 MHz | 70 MHz | 100 MHz | 100 MHz | RIGOL 16 Channel Digital Logic Probe for Use with DS1000Z Plus Mixed Signal Oscilloscopes |
| Number of Analog Channels | 4 | 4 | 4 | 4 | 4 | |
| Number of Digital Channels | Not Available | DS1000Z Plus supports 16 digital channels with the addition of the RPL1116 optional probe | DS1000Z Plus supports 16 digital channels with the addition of the RPL1116 optional probe | DS1000Z Plus supports 16 digital channels with the addition of the RPL1116 optional probe | DS1000Z Plus supports 16 digital channels with the addition of the RPL1116 optional probe | |
| Max. Real-time Sample Rate | DS1000Z Plus supports 16 digital channels with the addition of the RPL1116 optional probe | Analog channel: 1 GSa/s(sigle-channel), 500 MSa/s(dual-channel), 250 MSa/s(three/four-channel) Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) | Analog channel: 1 GSa/s(sigle-channel), 500 MSa/s(dual-channel), 250 MSa/s(three/four-channel) Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) | Analog channel: 1 GSa/s(sigle-channel), 500 MSa/s(dual-channel), 250 MSa/s(three/four-channel) Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) | Analog channel: 1 GSa/s(sigle-channel), 500 MSa/s(dual-channel), 250 MSa/s(three/four-channel) Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) | |
| Max. Memory Depth | Analog channel: standard 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel) Digital channel: standard 24 Mpts (8-channel), 12 Mpts (16-channel) | Analog channel: standard 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel) Digital channel: standard 24 Mpts (8-channel), 12 Mpts (16-channel) | Analog channel: standard 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel) Digital channel: standard 24 Mpts (8-channel), 12 Mpts (16-channel) | Analog channel: standard 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel) Digital channel: standard 24 Mpts (8-channel), 12 Mpts (16-channel) | Analog channel: standard 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel) Digital channel: standard 24 Mpts (8-channel), 12 Mpts (16-channel) | |
| Max. Waveform Capture Rate | 30,000 wfms/s | 30,000 wfms/s | 30,000 wfms/s | 30,000 wfms/s | 30,000 wfms/s | |
| Hardware Real-time Waveform Recording and Playback Functions | Up to 60,000 frames | Up to 60,000 frames | Up to 60,000 frames | Up to 60,000 frames | Up to 60,000 frames | |
| Standard Probes | 4 sets of PVP3150 150 MHz Passive HighZ Probes | 4 sets of PVP3150 150 MHz Passive HighZ Probes | 4 sets of PVP3150 150 MHz Passive HighZ Probes | 4 sets of PVP3150 150 MHz Passive HighZ Probes | 4 sets of PVP3150 150 MHz Passive HighZ Probes | |
| Built-in 2Ch 25MHz Source | ✓ | ✓ |
Videos
Page 1 of 1Start OverPage 1 of 1
Videos for this product
0:57
Click to play video
Overview - Rigol DS1054Z Digital Oscilloscope
Tiny Living
Videos for this product
0:55
Click to play video
RIGOL DS1000Z Series
RIGOL Official Store

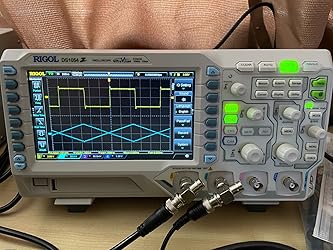

Great value; expandable; has a few manufacturing/interface issues.

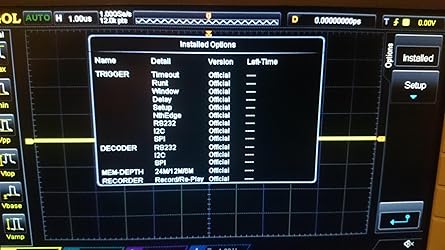

As the executive summary that you get , to save from having to watch all the YouTube videos on the scope:> It is super value for the money, you get an great basic expandable scope for very little money <Is it as good as a $5000 or $10,000+ Rhode&Schwarz or Tektronix scope? No, but if your not working in frequency ranges up there in the cell phone region, you don't need that capability.And as noted: the scopes now (2020) come with many of the add-on options already enabled:The ability to record/playback, the full memory depth of 24M/12M/6M are on out of the box.The trigger options from Timeout and Runt through to the serial RS232, I2C and SPI are all enabled out of box.The serial decoder capability for RS232, I2C, SPI data packets are enabled out of the box.And you can turn on the bandwith to upgrade this 50MHz scope to the 100MHz capability very easily.And you can turn on the extra small vertical sensitivity down to 500uV capability very easily.The scope comes with 4 probes and yes, it does come with colored plastic rings to color code the probes to match the colors on the physical front side and display trace colors.EXCEPT: this is issue #1 - the 4th channel is navy blue, a dark blue. But the rings (Aug 2020) don't have that color, they instead have a pastel green ring set. So the 4th channel probes cannot be color coded to match the scope with whats delivered - you would have to leave off the color rings for the 4th probe, or first paint the green rings with navy blue permanent marker, and then snap them on. (Seriously Rigol, this little stuff really does matter). I asked Rigol support about this and they said they changed it from the darker blue as the dark blue and cyan blue were too similar. Good idea, bit you needed to also change the front panel adhesive face to be green on channel 4 and the firmware to draw in green.The only other issue I've noticed so far is, what has been an issue from the beginning and still is as the hardware wasn't updated in production. The INTENSITY knob, that you also use to select between options or to select letters/numbers in the keyboard mode, and then have to PRESS in to choose that option/letter/digit... is badly designed such that quite often, your selection will shift by one as you are pressing the button down. What a pain in #*$* that is, as you will have to double check and very carefully press that button every time you're making an adjustment with that knob. Sheesh. Entering a 24 digit activation code requires not 24, but more like 50-65 presses and back-space re-do to get the right letters/numbers keyed in. For adjusting brightness its no issue, but when your are choosing, say your probe multiplier (to switch between 10x and 1x) and the damn thing constantly jumps to 2x as you press the button, it gets old fast. Rigol, seriously. Increase the price $10 and put a light detent having, higher quality rotary encoder in this position.So if it wasn't for the sloppy missing color ring for probe 4, and the absolute error prone pain that INTENSITY selector knob is, this would be a 5 star scope.. but its not. Still 4 stars ain't bad and it does only cost 350-ish.Maybe someone will hack it and recommend an upgraded encoder knob hardware some day. But wait, they have. Search YouTube for “Rigol Rotary Switch replacement”.
