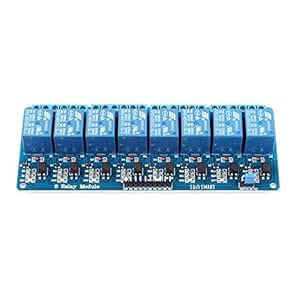

SainSmart 8-Channel Relay Module

4.4 out of 5 stars 124 customer reviews
| 26 answered questions
List Price: $11.53
Price: $10.49 Free Shipping for Prime Members | Fast, FREE Shipping with Amazon Prime
You Save: $1.04 (9%)

This item at this price, sold by Amazon.com, is currently reserved exclusively for Prime members.

Prime free trial and invitee customers: We will automatically apply an Amazon.com Gift Card to your Gift Card Balance in the amount equal to the Prime exclusive discount after you become a paid Prime member. If you cancel your paid Prime membership or return the qualifying smartphone within the first 3 months of your paid Prime membership, we may void your Gift Card or charge you in the amount of the Gift Card. Terms and Conditions apply.
In Stock.
Ships from and sold by Amazon.com.
Standard Packaging
  • 5V 8-Channel Relay interface board, and each one needs 15-20mA Driver Current
  • Equipped with high-current relay, AC250V 10A ; DC30V 11A
  • Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP432, TTL logic)
  • Indication LED's for Relay output status
6 new from $5.37 2 used from $8.39
Prime free two-day shipping
$10.49 Free Shipping for Prime Members | Fast, FREE Shipping with Amazon Prime In Stock. Ships from and sold by Amazon.com.

Frequently Bought Together

  • SainSmart 8-Channel Relay Module
  • +
  • Kalevel® 120pcs Multicolored 40pin Male to Female, 40pin Male to Male, 40pin Female to Female Breadboard Jumper Wires Ribbon Cables Kit
  • +
  • Raspberry Pi 3 Model B Motherboard
Total price: $60.47
These items are shipped from and sold by different sellers. Show details
Buy the selected items together

Special Offers and Product Promotions

Product Packaging: Standard Packaging
  • Save Big On Open-Box & Used Products: Buy "SainSmart 8-Channel Relay Module” from Amazon Open-Box & Used and save 27% off the $11.53 list price. Product is eligible for Amazon's 30-day returns policy and Prime or FREE Shipping. See all offers from Amazon Open-Box & Used.

Product Features

Product Packaging: Standard Packaging
  • Size (LWH): 7 inches, 6.4 inches, 1 inches
›  See more technical details

Product Description

Product Packaging:Standard Packaging

This is a 5V 8-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller(Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Product Information

Product Packaging:Standard Packaging

Feedback

If you are a seller for this product, would you like to suggest updates through seller support?
Would you like to tell us about a lower price?
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsAdditional detailed information
By Anthony R Bundy on January 3, 2012
Package Type: Standard Packaging
When I received my module, it included a card with an email to the makers.
I asked a few questions and they sent full detail along with schematics and layout information.
I'm posting the additional detail they sent. The rest of the pin out information seemed pretty straightforward. Overall it is a neat, compact, durable design so far. We are using it in for HW design test purposes.

Power Supply: 5V DC / 400mA (relay all ON)
Input control signal voltage:
0V - 0.5V Low stage (relay is ON)
2.5V -5V High state (relay is OFF).
Input control signal LOW state current:
2.5V: 0.1mA.
3.3V: 0.18mA.
5V: 0.35mA.
JD-VCC or VCC: Power supply input, 5V DC. (JD-VCC RELAY POWER VCC:SYSTEM VCC)
GND: Power supply ground and control signal ground.
CH_x: Control signal input, Low: relay ON, High: relay OFF.
COM / NO / NC: (C1=COM1, C2=COM2)
Control signal state low, the relay ON, COM - NO disconnected, COM - NC connected.
Control signal stage high, the relay OFF, COM - NO connected, COM - NC disconnected
6 Comments 79 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsEasy to hook up, didn't blow up my Arduino!
By Aaron on November 28, 2012
Package Type: Standard Packaging Verified Purchase
Experience: Software engineer, learning electronics with my Arduino. My dad is an EE talked me through all current measurements.

SETUP:
- Connect arduino powersupply 5v to VCC
- Connect arduino Digital ground to ground
- Connect arduino digital output to any IN1-IN8
- You're in business!

CURRENT:
I connected my meter in series and found I was drawing 64mA across the Arduino 5v power supply and 1.9mA across the Arduino output pin.
I flipped it over and measured 7100ohms across the coil, meaning the coil is drawing 0.7mA at 5v.
These numbers honestly seem a little low to me - e.g. I expected more like 19mA across the output, but 64mA across the power supply seems very reasonable with all eight relays drawing 400mA per the spec.
Note: Arduino max power supply voltage is 500mA on USB, so you're good there too.

PROS:
- This won't blow up your Arduino.
- I didn't realize this model had LEDs. I looked at the 4 relay model and the LEDs are bigger, but these are smaller and work great.
- LED's in the circuit act as diodes. My dad told me when the field collapses on a DC coil it generates a negative voltage. If you don't have a diode in the way you could burn up your output transistor.
- This has NC (Normal Closed) and NO (Normal Open) contacts on the high voltage side. So if you want your lights ON or OFF by default you can do that. It has a nice diagram on the board showing how the high voltage contacts are laid out.
- Price
- 4 mounting holes on the board if you need to bolt it to something!
- Lot's of fun - you should buy one!

CONS:
- N/A

OTHER:
- The header PINs are really nice, but I only have male breadboard jumpers and need to buy some male-female jumpers from radio shack before I can hook this baby up to my xMas light setup!!
2 Comments 23 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsExcellent and inexpensive
By D. Hamilton on December 7, 2012
Package Type: Standard Packaging
I must say it again - AMAZON, this is not a toy! Why are these types of products always labeled as toys? It's really not much of a problem until you go to the review and see "How much fun is this toy? How would you rate this toy's educational value? How durable is this toy? How would you rate this toy overall?"

The board is constructed pretty well and for the price I was surprised to find that every relay (I bought two boards) was working flawlessly. I love that there are two VCC connections - one for the reference voltage to control the circuits, and one to actually switch the circuits. Because each relay takes 15-20mA to switch, this allows you to connect a separate power supply to the switching voltage and use the arduino to control the inputs. The arduino (at least the uno) will not output enough power on its own to physically switch the relays. By default there is a jumper connecting the two voltages, so you will need to pull that off and connect a separate supply. I had both boards connected and tested within 10 minutes. However, I am very familiar with this circuit as I constructed them myself last year. However, when I did it myself it took me a long time to solder it all and it cost more than simply buying these boards. The other thing I love about these boards is that the relay has 3 connections out where you can set up two separate circuits that alternate when the relay switches. When the relay is "off" (it's resting state) one circuit will be connected and when it is "on" the other circuit is connected. This means you can default your circuits either on or off. The relays I've used before didn't have that feature.

I only have two complaints. There was one loose solder connection on an output terminal that would cause the light on that relay to flicker.Read more ›
3 Comments 29 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsExactly as described; Works great with Raspberry Pi
By brnt on May 20, 2013
Package Type: Standard Packaging Verified Purchase
Exactly as described. Works great with a Raspberry Pi. Please note, however, that the RPi doesn't provide enough power to activate more than 5-6 of the relays at once. Activating more than that draws too much power and the RPi seizes up. That's not a problem with this device, just a shortcoming of the RPi.

Other things of note: For an electromechanical (not solid state) relay, this is very fast. But, as with many electromechanical relays, toggling a module on this unit off/on makes a pretty distinct "click" so you won't want to install it in a location that is sound sensitive (baby's room, for example). If you need silence, go with a solid state relay.

Lastly, please note that (as the product description states) this is a 5v relay, and cannot be triggered by 3.3v.
3 Comments 14 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
