I honestly just do not see myself using any other microcontroller for my non-wifi projects.
I had to do some shopping for libraries to use to get everything working but I think most of that was just inexperience on my part.

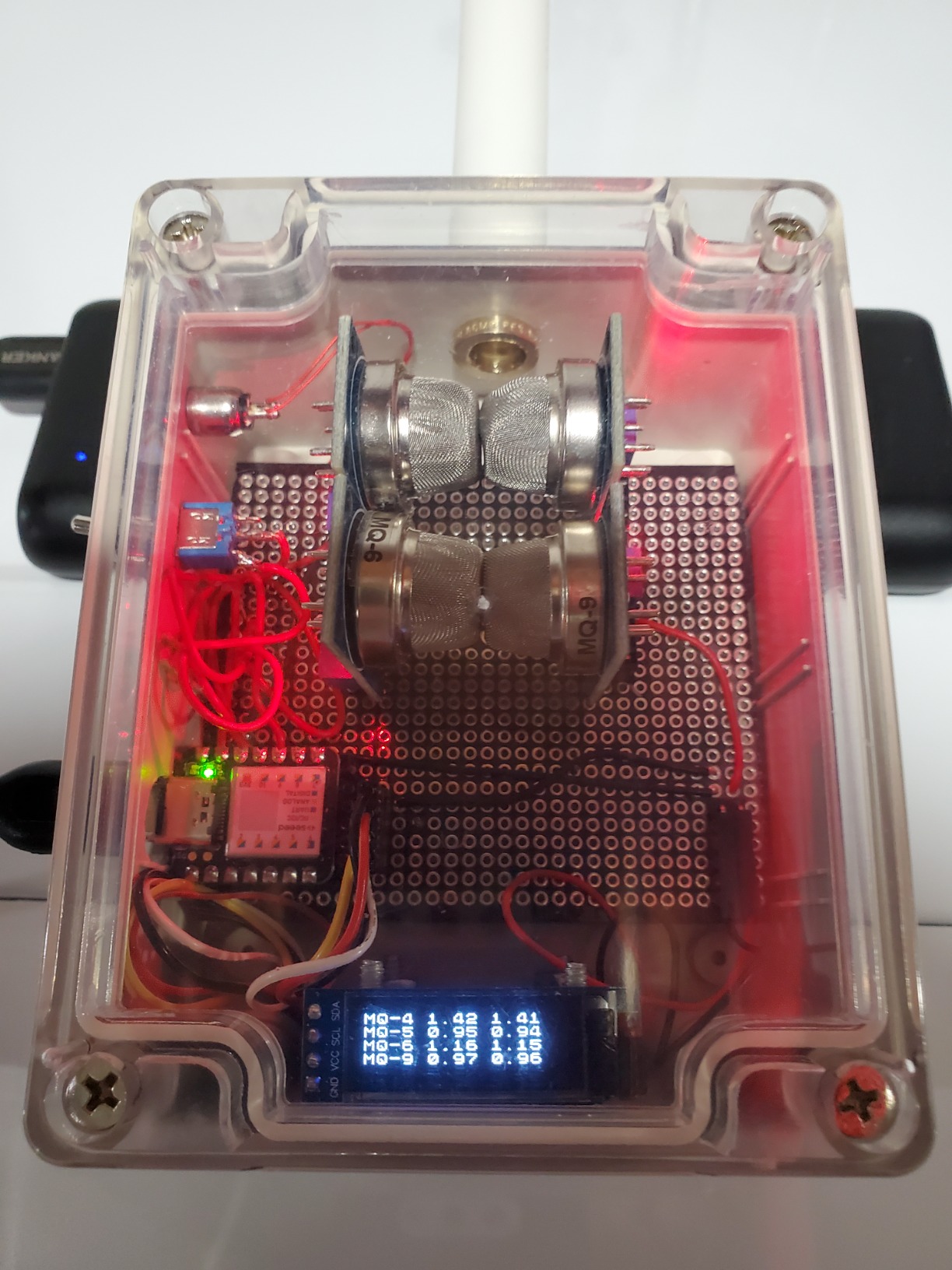

The project pictured above is a four MQ sensor gas sniffer with an OLED display powered by a 5V USB C power brick. The 5V is used to power the sensors and a small fan that pulls air through while the MPU operates on 3.3V.
I bought a second set of three of these, the expansion board, and a handful of grove connector cables. I honestly don't know if I will use the expansion board since I have had little trouble experimenting with these with a few I2C devices. The expansion board has a debug interface that might make it useful one day for me.
If one does not need the wifi or BLE of an ESP32/8266 then I would recommend this microcontroller. I used YouTube for all of my initial research and the manufacturer's web site and forums afterward. I develop with PlatformIO, but was also able to program using the Arduino IDE.
Similar items that ship from close to you
Page 1 of 1 Start overPage 1 of 1
Product Description
Seeeduino Xiao VS Arduino Nano
Typical Application
- Wearable devices
- Rapid prototyping (directly attached to the expanded PCB as a minimal system)
- Perfect for all the projects need mini arduino
- DIY keyboard
- USB development (USB to multi-channel TTL/USB host mode, etc.)
- A scenario where you need to read multiple mock values The DAC output
Tips:
Seeeduino XIAO board has been becoming more and more popular in our community since it was released! many fans of Seeeduino XIAO board have been asking whether we will have a Grove Shield for it, the much-anticipated Grove Shield for Seeeduino XIAO is released.
Grove Shield for Seeeduino XIAO is a plug-and-play Grove extension board for Seeeduino XIAO board. With the on-board battery management chip and battery bonding pad, you could easily power your Seeeduino XIAO with lithium battery and recharge it. And On-board Power Switch and Charging Status Indicator Light.
Seeeduino XIAO main features
|
|
|
|
|---|---|---|
[Powerful CPU]Seeeduino XIAO development board carries ARM Cortex-M0 + 32bit 48MHz microcontroller (SAMD21G18) and low power consumption. The clock frequency is 48MHz, which is three times that of Arduino Uno and Arduino Nano. In addition, this Arduino IDE compatible board is equipped with 256KB flash memory and 32KB SRAM. |
[Flexible Compatibility]The Seeeduino XIAO development board is Fully compatible with the Arduino IDE ,you can easily develop some small projects with the help of the large and comprehensive Arduino library. As it has a 2.54mm pin pitch, it is an Arduino microcontroller that can be used even when inserted into a breadboard. |
[Ultra Small]This Arduino IDE compatible board is as small as your thumb (about 20x17.5mm) and can be used to make small devices such as wearable devices. The Seeeduino XIAO Development Board is the smallest Arduino compatible board in the Seeeduino series. |
Seeeduino XIAO Hardware Pinout
Seeeduino XIAO main features
[Multiple development interfaces]
11 digital/analog pins, 10 PWM Pins, 1 DAC output, 1 SWD Bonding pad interface, 1 I2C interface, 1 UART interface, 1 SPI interface.
[14 GPIO PINs]
The Seeeduino XIAO microcontroller has 14 GPIO PINs, 11 of which can be used as digital input/output or analog input.
Some of these pins have multiple functions. For example, pins A1/ D1 to A10/D10 can be used for PWM output,
and pins A0/D0 can be used as DAC output. In addition, there are pins that can be used as interfaces such as I2C, UART, and SPI.
Attention:All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.
[USB Type-C interface]
The Seeeduino XIAO development board supplies power from the USB Type-C interface and writes sketches to the microcomputer board. Type-C is a more robust interface than Micro USB.
There is also a power pad on the bottom of the Seeeduino XIAO that allows you to connect a battery.
Seeeduino XIAO has not only power LED but also user LED, so you can enjoy Blinky immediately. It also has a 32.768kHz crystal for the built-in RTC.
Specification
- CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
- Storage: 256KB Flash,32KB SRAM
- I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
- Interface: 1 I2C interface,1 UART interface, 1 SPI interface
- Power supply and downloading interface: USB Type-C interface
- LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading
- Reset button: two reset button short connect to reset
- Power Pads: For the battery power supply
- Software compatibility: Compatible with Arduino IDE
- Projection cover for protecting the circuit
- Dimensions: 20x17.5x3.5 mm

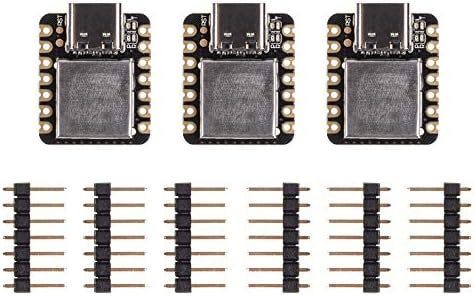

Part List
- 3 x Seeeduino XIAO - Arduino Microcontroller - SAMD21 Cortex M0+
- 6 x 7pins header
- 12 x pasters
Note：
3 pair of non-soldered 7-pin headers are accompanied in this Seeeduino XIAO. You could solder them before connecting Seeeduino XIAO with the Shield by plugging the soldered pin headers into the female headers on the Shield.
Compare with similar items
This Item  seeed studio Seeeduino XIAO Board Based on SAMD21Cortex M0+, 100% Compatible with Arduino IDE, Mounted breadboard Compatible USB Type-C (3pcs) | Recommendations  |  |  |  |  | |
| Price | — | $7.50 | $9.90 | $9.99 | $16.99 | $16.99 |
| Delivery | — | Get it as soon as Monday, Oct 14 | Get it as soon as Monday, Oct 14 | Get it as soon as Monday, Oct 14 | Get it as soon as Monday, Oct 14 | Get it as soon as Monday, Oct 14 |
| Customer Ratings | ||||||
| Sold By | — | Seeed Studio Official | Seeed Studio Official | Seeed Studio Official | Seeed Studio Official | Seeed Studio Official |
| hardware interface | usb, usb c | — | bluetooth | — | bluetooth | — |
| RAM tech | — | SRAM | — | SRAM | — | PSRAM |
| connectivity tech | USB, I2C | GPIO, I2C | Wi-Fi | I2C | I2C, NFC, Bluetooth | Wi-Fi |
| wireless standard | bluetooth | bluetooth | bluetooth | 802 11 B | bluetooth | infrared |
| core count | 1 | 2 | 1 | 2 | 1 | 2 |
My favorite little not-ESP.
I honestly just do not see myself using any other microcontroller for my non-wifi projects.I had to do some shopping for libraries to use to get everything working but I think most of that was just inexperience on my part.The project pictured above is a four MQ sensor gas sniffer with an OLED display powered by a 5V USB C power brick. The 5V is used to power the sensors and a small fan that pulls air through while the MPU operates on 3.3V.I bought a second set of three of these, the expansion board, and a handful of grove connector cables. I honestly don't know if I will use the expansion board since I have had little trouble experimenting with these with a few I2C devices. The expansion board has a debug interface that might make it useful one day for me.If one does not need the wifi or BLE of an ESP32/8266 then I would recommend this microcontroller. I used YouTube for all of my initial research and the manufacturer's web site and forums afterward. I develop with PlatformIO, but was also able to program using the Arduino IDE.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on April 11, 2021
I honestly just do not see myself using any other microcontroller for my non-wifi projects.
I had to do some shopping for libraries to use to get everything working but I think most of that was just inexperience on my part.
The project pictured above is a four MQ sensor gas sniffer with an OLED display powered by a 5V USB C power brick. The 5V is used to power the sensors and a small fan that pulls air through while the MPU operates on 3.3V.
I bought a second set of three of these, the expansion board, and a handful of grove connector cables. I honestly don't know if I will use the expansion board since I have had little trouble experimenting with these with a few I2C devices. The expansion board has a debug interface that might make it useful one day for me.
If one does not need the wifi or BLE of an ESP32/8266 then I would recommend this microcontroller. I used YouTube for all of my initial research and the manufacturer's web site and forums afterward. I develop with PlatformIO, but was also able to program using the Arduino IDE.
I had to do some shopping for libraries to use to get everything working but I think most of that was just inexperience on my part.
The project pictured above is a four MQ sensor gas sniffer with an OLED display powered by a 5V USB C power brick. The 5V is used to power the sensors and a small fan that pulls air through while the MPU operates on 3.3V.
I bought a second set of three of these, the expansion board, and a handful of grove connector cables. I honestly don't know if I will use the expansion board since I have had little trouble experimenting with these with a few I2C devices. The expansion board has a debug interface that might make it useful one day for me.
If one does not need the wifi or BLE of an ESP32/8266 then I would recommend this microcontroller. I used YouTube for all of my initial research and the manufacturer's web site and forums afterward. I develop with PlatformIO, but was also able to program using the Arduino IDE.
Images in this review
Reviewed in the United States on June 29, 2020
Reviewed in the United States on July 21, 2020
Reviewed in the United States on February 18, 2021
Reviewed in the United States on July 13, 2020
Reviewed in the United States on May 29, 2023
Reviewed in the United States on November 16, 2020
Cheap, educational, and fun. What more do you want?
Images in this review
Reviewed in the United States on July 15, 2020
Small and easy to use----This is the smallest Arduino compatible board among all the development boards I have used,
Surprisingly, although this development board is small, it has a large capacity and rich interfaces. Also the size provides enough to be used in a complete PCB project.
Surprisingly, although this development board is small, it has a large capacity and rich interfaces. Also the size provides enough to be used in a complete PCB project.
