I used this unit in a mudroom that had two light switches; one on each end of the room that controlled the same light.
I used the instruction set that spoke to having two (2) controls; not the single-pole instruction set.
I had/have 2 black wires coming out of the wall, which doesn't help as I'm no electrician and not good with home wiring.
Don't forget to turn off the electricity to the room at your breaker box.
Read the instructions carefully, more than once, and follow instructions! :) I didn't. LOL
I connected one black wall wire to the unit black wire and the other black wall wire to the unit red and black wires. And, green to ground, of course. The unit comes with 1 green, 1 red, and 2 black. (So, to reiterate, I had one red and one black wire ON THE SWITCH connected to ONE of the black wires coming from the wall. That's right. Three wires were connected on one of the orange caps. I didn't know which black wire was which, but nothing bad happened when I had them initially reversed. In fact, I had the wires in several different configurations before getting it right with power on (not paying close enough attention) and nothing ever popped or sparked.)
As it turns out, I had black wires backward initially, so I turned off the breaker and switched the black wires only and turned the power on again and it worked.
I used a small screwdriver to set dials to: test, high sensitivity, and OCC, which equates to full left, full right, and full right on unit's dials reading from left to right.
Hope it helps.
Recommended from our brands
Page 1 of 1 Start overPage 1 of 1
More items to explore
Page 1 of 1 Start overPage 1 of 1

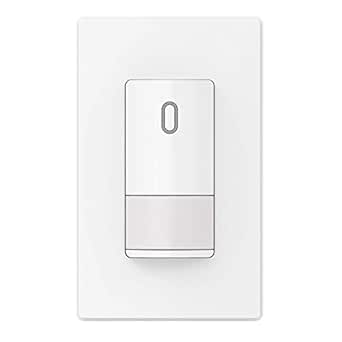

Product Description
ELEGRP LIGHTING CONTROLS
ELEGANT ART
Light up you home in the gentle night.
MULTIPLE SETTING MODES - Features multiple setting modes for different usage scenarios at home
—————————————————————————————————————————————————————————————————————
Set It Into An Occupancy Sensor Switch
OCC Mode: Automatic ON & Automatic OFF
- Set delay TIME to " • " , "0", “1” , “2” or "3" as desired.
- Set human body SENSOR sensitivity as desired.
- Set LIGHT sensitivity to “1”, “2” or "3" as desired. DO NOT set the LIGHT to " • ".
—————————————————————————————————————————————————————————————————————
Set It Into A Vacancy Sensor Switch
VAC Mode: Manual ON & Automatic OFF
- Set delay TIME to " • " , "0", “1” , “2” or "3" as desired.
- Set human body SENSOR sensitivity as desired.
- Set LIGHT sensitivity fully counterclockwise to " • " to disable automatic ON function.
The device will turn on the loads manually only and turn off the loads automatically when the time delay elapses.
—————————————————————————————————————————————————————————————————————
LARGE COVERAGE
The sensor detects motion in areas up to 900 square feet and up to 35 feet from the sensor, ideal for porch, closet, garage, hallway, stairs, basement, pantry and laundry room, etc.
Tips: Install the sensor switch about 4 feet from the floor to get better experience.
HANDS FREE LIGHT CONTROL
PRODUCT SPECIFICATION
Input Rating: 120 - 277V, 60Hz
Lamp Type: 300W LED, 300W CFL, 600W Incandescent
Switch Type: Single Pole / Two Location Control
Wire Gauge: #14 - #12 AWG
Wiring Type: Terminal cap
Operating Temperature: 32℉ to 104℉ (0℃ to 40℃)
Product Size: 4.17x1.73x1.77" (106x44x45mm)
Remark: Installation Instruction Included
|
|
|
|
|
|
|---|---|---|---|---|---|
| SP17OS-WH | SP17OS-BL | DM17-WH | 1001S-WH10 | 1004S-WH10 | |
| Description | Occupancy Sensor Light Switch | Occupancy Sensor Light Switch | Slide Dimmer Switch | Single Pole Toggle Switch | Single Pole Decorative Switch |
| Switch Type | Single Pole / Two Location Control | Single Pole / Two Location Control | Single pole / 3-way | Single Pole | Single Pole |
| Color | Matte White Finish | Matte Black Finish | Matte White Finish | Glossy white smooth finish | Glossy White smooth finish |
| Rating | 120 - 277V, 60HZ | 120 - 277V, 60HZ | 125V, 60Hz | 15A 120V | 15A 120-277V |
| Wiring | Terminal cap | Terminal cap | Terminal cap | Quick push-in wiring and side wiring | Quick push-in wiring and side wiring |
| UL/CUL Listed | ✓ | ✓ | ✓ | ✓ | ✓ |
