This is the best oscilloscope I’ve seen. It offers an impressive range of functions for a very reasonable price. With 4 channels and 100 MHz bandwidth, it’s a highly advantageous tool for any work environment. It not only generates signals but also allows for great versatility in various applications. I highly recommend it. Additionally, it has options to add a USB drive or hard disk to store screen captures, and it includes an RJ45 port. This port allows you to manage the oscilloscope via its IP address within your LAN, making it much easier to handle in certain cases.
Add to your order
-
Coverage for accidental damage including drops, spills, and broken parts, as well as breakdowns (plans vary) -
24/7 support when you need it. -
Quick, easy, and frustration-free claims.
Cover this product:
3-Year Protection Plan $60.99
4-Year Protection Plan $78.99
Cover all of your eligible devices:
Asurion Complete Protect: One plan covers all eligible past and future purchases (Renews Monthly Until Cancelled) $16.99/month
Select a plan
Add to your order
- Coverage for accidental damage including drops, spills, and broken parts, as well as breakdowns (plans vary)
- 24/7 support when you need it.
- Quick, easy, and frustration-free claims.
Cover this product:
Select a plan
Enjoy fast, free delivery, exclusive deals, and award-winning movies & TV shows with Prime
Try Prime
and start saving today with fast, free delivery
Ships in product packaging This item has been tested to certify it can ship safely in its original box or bag to avoid unnecessary packaging. Since 2015, we have reduced the weight of outbound packaging per shipment by 41% on average, that’s over 2 million tons of packaging material.
If you still require Amazon packaging for this item, choose "Ship in Amazon packaging" at checkout. Learn more Packaging
Ships in product packaging This item has been tested to certify it can ship safely in its original box or bag to avoid unnecessary packaging. Since 2015, we have reduced the weight of outbound packaging per shipment by 41% on average, that’s over 2 million tons of packaging material.
If you still require Amazon packaging for this item, choose "Ship in Amazon packaging" at checkout. Learn moreFrequently bought together

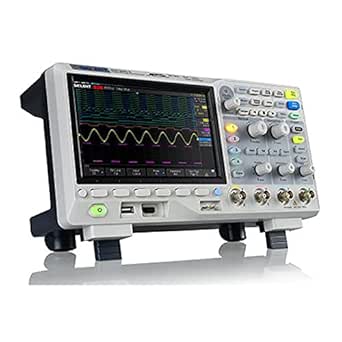

This item: Siglent Technologies SDS1104X-E 100Mhz Digital Oscilloscope 4 channels Standard Decoder, Grey
$475.53
Get it as soon as Wednesday, Nov 6
In Stock
+
$24.99
Get it as soon as Wednesday, Nov 6
In Stock
+
$359.00
Get it as soon as Wednesday, Nov 6
In Stock
Total price: $00
To see our price, add these items to your cart.
Choose items to buy together.
From the brand
SIGLENT TECHNOLOGIES
Every Bench. Every Engineer. Every Day.
-
SIGLENT TECHNOLOGIES is a global leader in research & development, engineering, manufacturing, sales, and service support for electronic test and measurement equipment that combines innovative features and functionality with a strong commitment to quality and performance. SIGLENT is ISO 9001:2015 and ISO 14001:2015 Certified for its product quality and environmental management programs.
-
From the manufacturer
SDS1000X-E Series Super Phosphor Oscilloscope
SIGLENT’s new SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels.
Key Features
- Math co-processor speeds front panel operation
- Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
- Low background noise and 500 μV / div to 10 V / div voltage scales
- Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
- On-screen Bode plot and web-browser control (standard on 4 channel only)
- WiFi control (optional on 4 channel only)
- True measurement and math can use all 14 Mpts of memory
- Large 7-inch TFT-LCD display with 800 * 480 resolution
Key Performance Specifications
- 100 MHz-200 MHz
- 2+EXT/4 CH
- 14 Mpts Record length
- 1 GSa/s sample rate
- 1Mpts FFT
- 16 Logic/MSO Optional on 4 Channel Only
|
|
|
|
|
|---|---|---|---|
Gate and Zoom MeasurementThrough Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility. |
Hardware-Based High Speed Pass/ Fail FunctionThe SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing. |
1Mpts FFTThe new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers. |
History Waveforms (History) Mode and Segmented Acquisition (Sequence)Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame. |
|
|
|
|
|
|---|---|---|---|
Serial Bus Decoding Function (Standard)SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format. |
True Measurement to 14 M PointsSDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use. |
Bode Plot (Four Channel Series Only)SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk. |
Web Control (Four Channel Series Only)With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel |
|
|
|
|
|---|---|---|---|
| SDS1104X-E | SDS1202X-E | SDS1204X-E | |
| Customer Reviews |
913
|
1,374
|
72
|
| Price | $475.53 | $346.53 | $700.75 |
| Bandwidth | 100 MHz | 200 MHz | 200 MHz |
| Channels | 4 | 2+EXT | 4 |
| Real Time Sampling Rate | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| 256 -Level Intensity Grading and Color Temperature Display | ✓ | ✓ | ✓ |
| Memory Depth (Max.) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) |
| Trigger Type | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video |
| Capture Rate | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) |
| USB AWG Module (Four Channel Series Only, Option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output (SAG1021I only) | Not Support | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output (SAG1021I only) |
| 16 Digital Channels (Four Channel Series Only, Option) | Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH | Not Support | Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH |
best value for money
I have using this product for a year now and it's one of the most cost-effective products I have ever had. it does everything I need without a hustle.but there are a couple of things that bother me:- there are a couple of features like a Wifi-enable server, external signal generator, etc.. (around 4 features) each one requires a software license to be enabled and these licenses cost a lot compared to their functionality.- the device hardware can be used for 200 MHZ signals but for some reason, Siglent limited the bandwidth for this device to 100 MHZ using the software.- if you increase the horizontal scale to be in terms of seconds, there is no real-time plotting of the signal. As you have to wait until the device finishes acquiring the signal then you can examine the signal.- the memory depth for that device is a little small for my daily usage.but other than that, the product is great and the best bang for your buck.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Top reviews from other countries
Jorge Emilio Silva Velasco
exelente producto
Reviewed in Mexico on July 29, 2023Style: DecoderVerified Purchase
Jacob Bayless
Good value for a new 4-channel scope
Reviewed in Canada on May 10, 2022Style: DecoderVerified Purchase
Lucas Teske
Excelente osciloscópio hackeavel.
Reviewed in Brazil on August 20, 2021Style: DecoderVerified Purchase
Lucas Teske
Reviewed in Brazil on August 20, 2021
O FFT é meio lerdo, e o decoder de protocolo as vezes falha quando é realtime (o melhor é pausar a captura pra decodificar). Fiz um review no canal Teske's Lab no YouTube.
