![RAIGEN Helium Miner 8dBi Antena LoRa 915 MHz 43.3 pulgadas pararrayos para exteriores Omnidireccional HNT Hotspot para Nebra, RAK, Bobcat, Syncrob y Sensecap [los cables se venden por separado] (8](https://m.media-amazon.com/images/I/31mt2mxQARL._AC_UF480,480_SR480,480_.jpg)

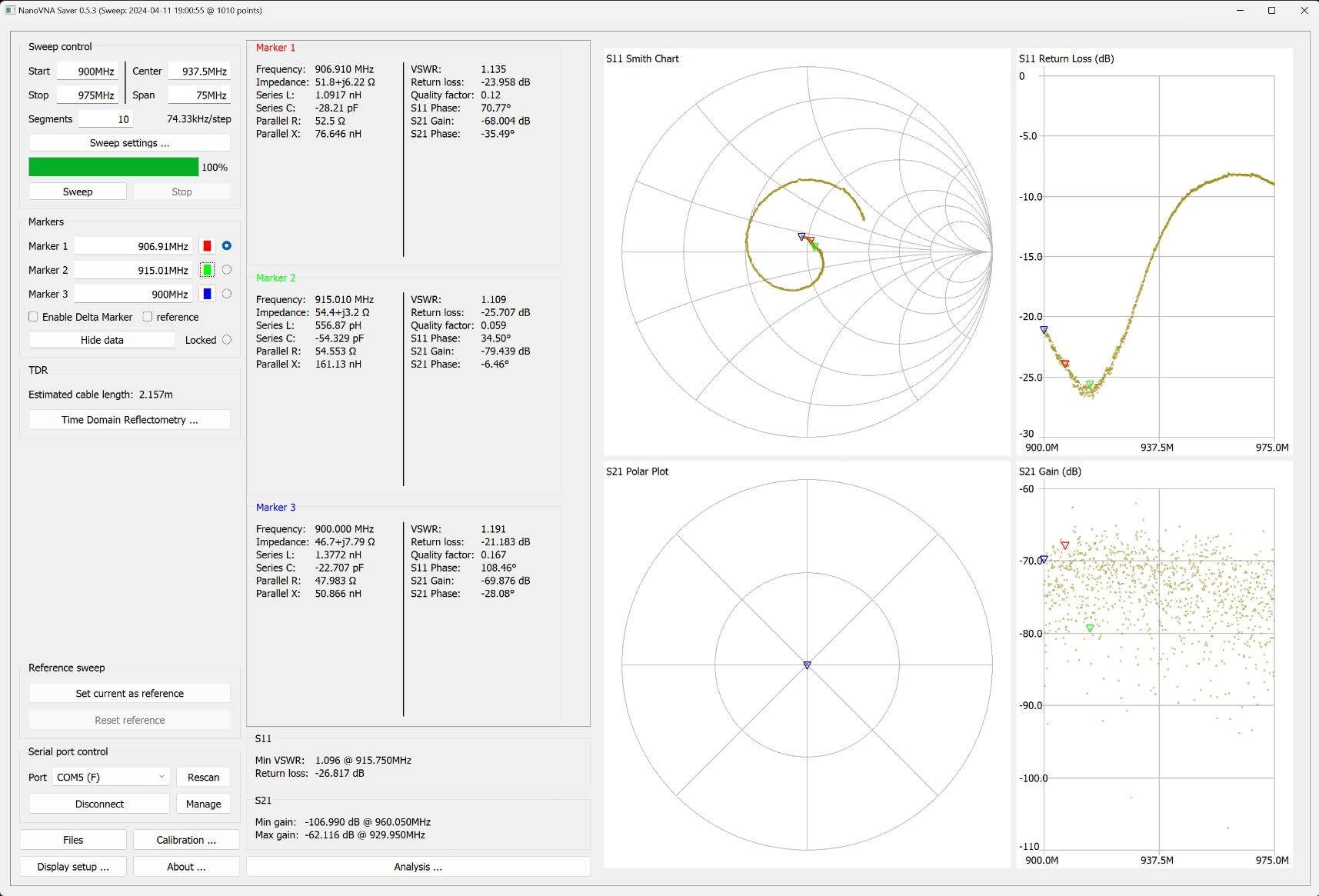

I got this antenna and ran it through my VNA and was impressed at the numbers I got. Very low SWR in the 915MHz frequency (and especially 906.875MHz where you would want to use it for Meshtastic) which was my intended purpose for this antenna, but after checking the data sheet that is located on the SignalPlus web site, it reads 10.5dBi not 15dBi. I contacted both the Amazon seller as well as tech support at SignalPlus and they confirmed that this seller IS in fact their distributor on Amazon but with regards to the 10.5dBi vs 15dBi numbers "The antenna can be 15dbi, BUT only under very ideal circumstances and only at high frequency point." So that the frequencies most people would use it for (in the 900-920MHz range), plan on 10.5dBi of gain. If you want to use it above 1GHz, you might get 15dBi out of it.
Having said that, this is a great antenna and I do recommend it. It has very good gain for Meshtastic ... at the full +22dBm power output of most transmit units, and a reasonable amount of low loss coax, you will be at or slightly above legal limits for transmit power for ISM devices. The build quality is excellent and comes well packed and arrived fast. The 32 feet of RG58 is of good build quality, but the included RG58 cable is the wrong cable for the 915MHz frequency. Even with a perfect 1:1 SWR, the coax will lose 5.087dB (69% of your power at .25w). By comparison, LMR-400 of the same length, only has a loss of 1.285dB or 26%.
Again, this is a quality antenna, but you should count on lower antenna gain numbers and if you are operating at 900+ MHz, sell the included cable at a hamfest.
Disfruta de una entrega rápida y GRATIS, ofertas exclusivas y películas y programas de TV galardonados con Prime
Prueba Prime
y comienza a ahorrar hoy con entrega rápida y gratis
Cupón:
Comprados juntos habitualmente
US$72.66
Recíbelo el sábado, 20 de julio
Disponible
+
Precio total:
Para consultar nuestro precio, agrega estos elementos a tu carrito
Elige artículos para comprar juntos.
Comparar con productos similares
Este artículo  Antena meshtastic de 915 mhz LoRa 12dbi para módulo meshtastic LORA32, helio HNT Miner Hotspot LoraWan Gateway Antenas con cable RP-SMA de 32 pies |  |  |  |  |  | |
| Precio | US$72.66 | US$29.99 | US$43.00 | US$79.00 | US$44.99 | -8% US$79.95 Típico: US$86.70 |
| Entrega | Recíbelo el sábado, 20 de julio | Recíbelo el sábado, 20 de julio | Recíbelo el sábado, 20 de julio | Recíbelo el jul 24 - ago 5 | Recíbelo el sábado, 20 de julio | Recíbelo el sábado, 20 de julio |
| Calificaciones de los clientes | ||||||
| Vendido por | antenna manufacturer | LZKstores | antenna manufacturer | antenna manufacturer | Prima Zone | RAIGEN |
| rango máximo | 110 centimeters | 1.1 meters | 0.4 meters | 1 meters | 7000 meters | 43.3 inches |
| impedancia | 50 ohm | 8 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm |
| descripción de antena | helio antenas 915mhz | Radio | Antena lora 915MHz | Radio | Radio | Radio |
Videos
Página 1 de 1Volver a comenzarPágina 1 de 1
Videos de este producto
1:36
Haz clic para reproducir el vídeo
12dBi helium lora antenna
antenna manufacturer
Opiniones con imágenes
VERY GOOD antenna, but it is 10.5dBi not 15dBi @ 915MHz
I got this antenna and ran it through my VNA and was impressed at the numbers I got. Very low SWR in the 915MHz frequency (and especially 906.875MHz where you would want to use it for Meshtastic) which was my intended purpose for this antenna, but after checking the data sheet that is located on the SignalPlus web site, it reads 10.5dBi not 15dBi. I contacted both the Amazon seller as well as tech support at SignalPlus and they confirmed that this seller IS in fact their distributor on Amazon but with regards to the 10.5dBi vs 15dBi numbers "The antenna can be 15dbi, BUT only under very ideal circumstances and only at high frequency point." So that the frequencies most people would use it for (in the 900-920MHz range), plan on 10.5dBi of gain. If you want to use it above 1GHz, you might get 15dBi out of it.Having said that, this is a great antenna and I do recommend it. It has very good gain for Meshtastic ... at the full +22dBm power output of most transmit units, and a reasonable amount of low loss coax, you will be at or slightly above legal limits for transmit power for ISM devices. The build quality is excellent and comes well packed and arrived fast. The 32 feet of RG58 is of good build quality, but the included RG58 cable is the wrong cable for the 915MHz frequency. Even with a perfect 1:1 SWR, the coax will lose 5.087dB (69% of your power at .25w). By comparison, LMR-400 of the same length, only has a loss of 1.285dB or 26%.Again, this is a quality antenna, but you should count on lower antenna gain numbers and if you are operating at 900+ MHz, sell the included cable at a hamfest.
Opiniones destacadas de los Estados Unidos
Ha surgido un problema al filtrar las opiniones justo en este momento. Vuelva a intentarlo en otro momento.
Calificado en Estados Unidos el 13 de abril de 2024
Having said that, this is a great antenna and I do recommend it. It has very good gain for Meshtastic ... at the full +22dBm power output of most transmit units, and a reasonable amount of low loss coax, you will be at or slightly above legal limits for transmit power for ISM devices. The build quality is excellent and comes well packed and arrived fast. The 32 feet of RG58 is of good build quality, but the included RG58 cable is the wrong cable for the 915MHz frequency. Even with a perfect 1:1 SWR, the coax will lose 5.087dB (69% of your power at .25w). By comparison, LMR-400 of the same length, only has a loss of 1.285dB or 26%.
Again, this is a quality antenna, but you should count on lower antenna gain numbers and if you are operating at 900+ MHz, sell the included cable at a hamfest.
Color: Cable de 12dBi +32.8 ftCompra verificada
VERY GOOD antenna, but it is 10.5dBi not 15dBi @ 915MHz
Calificado en Estados Unidos el 13 de abril de 2024
I got this antenna and ran it through my VNA and was impressed at the numbers I got. Very low SWR in the 915MHz frequency (and especially 906.875MHz where you would want to use it for Meshtastic) which was my intended purpose for this antenna, but after checking the data sheet that is located on the SignalPlus web site, it reads 10.5dBi not 15dBi. I contacted both the Amazon seller as well as tech support at SignalPlus and they confirmed that this seller IS in fact their distributor on Amazon but with regards to the 10.5dBi vs 15dBi numbers "The antenna can be 15dbi, BUT only under very ideal circumstances and only at high frequency point." So that the frequencies most people would use it for (in the 900-920MHz range), plan on 10.5dBi of gain. If you want to use it above 1GHz, you might get 15dBi out of it.Calificado en Estados Unidos el 13 de abril de 2024
Having said that, this is a great antenna and I do recommend it. It has very good gain for Meshtastic ... at the full +22dBm power output of most transmit units, and a reasonable amount of low loss coax, you will be at or slightly above legal limits for transmit power for ISM devices. The build quality is excellent and comes well packed and arrived fast. The 32 feet of RG58 is of good build quality, but the included RG58 cable is the wrong cable for the 915MHz frequency. Even with a perfect 1:1 SWR, the coax will lose 5.087dB (69% of your power at .25w). By comparison, LMR-400 of the same length, only has a loss of 1.285dB or 26%.
Again, this is a quality antenna, but you should count on lower antenna gain numbers and if you are operating at 900+ MHz, sell the included cable at a hamfest.
Imágenes en esta reseña
Calificado en Estados Unidos el 31 de diciembre de 2021
For anyone looking to buy a Lora antenna for your miner with similar situation as mine you should definitely consider this antenna. I’d also recommend purchasing a separate LMR 400 cable with it as the RG 58 cable it comes with doesn’t allow the antenna to utilize its full power potential and place it outdoors and as high as possible. My furthest witness so far is 37km. Also pick up a Sandisk extreme 64gb A2 microSD card to process blocks faster.
Color: Cable de 5.8dBi +9.8 ftCompra verificada
Great Outdoor Antenna for Rak Helium Hotspot Miner
Calificado en Estados Unidos el 31 de diciembre de 2021
This antenna flat out works great! I’ve tried a couple antennas for my Rak helium miner. The stock antenna, a 3db, a 9db, and this one doubles my earnings living in a saturated city with sub optimal transmit scale. You can tell the quality is excellent.Calificado en Estados Unidos el 31 de diciembre de 2021
For anyone looking to buy a Lora antenna for your miner with similar situation as mine you should definitely consider this antenna. I’d also recommend purchasing a separate LMR 400 cable with it as the RG 58 cable it comes with doesn’t allow the antenna to utilize its full power potential and place it outdoors and as high as possible. My furthest witness so far is 37km. Also pick up a Sandisk extreme 64gb A2 microSD card to process blocks faster.
Imágenes en esta reseña
Calificado en Estados Unidos el 13 de febrero de 2022
Color: Cable de 12dBi +32.8 ftCompra verificada
Believe me; it is not for helium. After one month of hanging it on my rooftop, I Finally proved that it is not working with helium miners. I had 14 witnesses before using it; after a couple of days of using this antenna, my witnesses dropped to 6. So I thought that might be from the cable, so I ordered another genuine cable from Amazon, the same six witnessed. I do have many hotspots near me. So I changed the antenna with another one; now I have 21 witnesses.
Imágenes en esta reseña
Calificado en Estados Unidos el 18 de enero de 2022
Color: Cable de 15dBi +32.8 ftCompra verificada
It's been 3 days and I went from 215 beacons to 319. I will wait a few more days to give you guys an update. Definitely better than the 5dbi that I had before. I live in a town with no high buildings.
Update! After 5 days i went from 215 to 405 beacons. from 45 witnesses to 95. I used a LMR400 cable, didn't used the cable provided. It works!!!!
Update! After 5 days i went from 215 to 405 beacons. from 45 witnesses to 95. I used a LMR400 cable, didn't used the cable provided. It works!!!!
Imágenes en esta reseña
Opiniones más destacadas de otros países
Jeff D.
Decent antenna
Calificado en Canadá el 3 de mayo de 2024Color: Cable de 5.8dBi +9.8 ftCompra verificada
DONOVAN
Excelente
Calificado en México el 21 de mayo de 2023Color: Cable de 10dBi +32.8 ftCompra verificada
José Roldan
Mejoro mis ganancias HNT
Calificado en México el 1 de febrero de 2022Color: Cable de 5.8dBi +9.8 ftCompra verificada
José Roldan
Calificado en México el 1 de febrero de 2022
Imágenes en esta reseña
Tamer Zeineldin
Fair price for the value
Calificado en Canadá el 1 de febrero de 2022Color: Cable de 12dBi +32.8 ftCompra verificada
Charly
Excelente
Calificado en México el 14 de diciembre de 2021Color: Cable de 12dBi +32.8 ftCompra verificada
