Signstek M4070 AutoRanging LCR Meter Up to 100H 100mF 20MR, 1% Accuracy 5 Digit Display

3.8 out of 5 stars 61 ratings

Currently unavailable.
We don't know when or if this item will be back in stock.

Product details

  • Is Discontinued By Manufacturer ‏ : ‎ No
  • Product Dimensions ‏ : ‎ 6.69 x 3.94 x 1.57 inches; 10.56 ounces
  • Date First Available ‏ : ‎ March 13, 2013
  • Manufacturer ‏ : ‎ Sunkee
  • ASIN ‏ : ‎ B00GYT5WL8
  • Customer Reviews:
    3.8 out of 5 stars 61 ratings

Product description

Signstek M4070 AutoRanging LCR Meter Up to 100H 100mF 20MR, 1% accuracy 5 digit display

Description of Signstek M4070:
Signstek M4070 LCR meter is auto-ranging component tester, which can drive up to 500 KHz. Suitable for small value capacitor and inductor measurement, provides very stable and high resolution measurement up to 5 digits.

Meter can measure 0.00pF to 100.00mF capacitance, 0.000uH to 100.00H and 0.00Ω to 10.000MΩ. M

This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance.


Feature:
Fully auto-ranging designed
High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH, 0.01R
High stability and measurement range for L/ C/ R
USB charging with rechargeable battery inside
Large LCD display with backlight
USB PC program, can take record and pass and fail component sorting function.

Specification:
LCR Testing Parameter: Main Parameter: L / C / R
Testing frequency: C: 10 to 500Khz & L: 10 to 360Khz
Testing Method: Auto select LC and RC Oscillation
Calibration: Power on auto calibrate with internal reference capacitor
Testing voltage:~1.5Vrms
Best Tolerance: L: 1% +1 Digit C: 1% +1 Digit R: 0.5% +1 Digit
LCD update or Testing time (* vary on component value):(e.g. 100mF Capacitor <30s)
Range Selection: Automatically
Zeroing: Open / short circuit
Terminal: Mini-USB(Virtual Com Port)
LCD Display: 128X64 Dot Matrix, with back-light
Fuse Protection: 200mA
Charging terminal: Mini-USB (500mA)
Battery: internal 3.7V Li-polymer
Number of Testing Terminal: Main 3, Secondary 4
Reading Display: Max. 99999

Packages:
1*M4070
2*Lead
1*Cable
1*Manual

Customer reviews

3.8 out of 5 stars
61 global ratings

Customers say

Customers find the LCR meter extremely accurate, with one noting it checks out favorably against other meters, and appreciate its functionality, with one mentioning it can measure inductance on toroid cores. They praise its ease of use, build quality, and wide measurement range, considering it excellent value for money. They like the auto-ranging feature, and one customer notes it automatically adjusts for component type. Customers have mixed opinions about the rechargeable battery, with one mentioning it charges in about an hour.

38 customers mention "Accuracy"29 positive9 negative

Customers find the LCR meter extremely accurate, with one customer noting it checks out favorably against other meters.

"...It seems to be very accurate. I will update when my bechtop meter comes back with some comparison tests but so far this one seems to be good." Read more

"Appears to be accurate, measured a known 3mH iron core inductor, it was spot on." Read more

"Unit works well and seems very accurate. It is a giant step up from the days when there was no practical/cheap way to measure LCR...." Read more

"Here's the thing. This works great, but it is a cheap LCR meter...." Read more

20 customers mention "Functionality"15 positive5 negative

Customers find that the LCR meter works well, with one customer noting that it runs all day and night, and another mentioning its ability to measure inductance in toroid cores.

"Unit works well and seems very accurate. It is a giant step up from the days when there was no practical/cheap way to measure LCR...." Read more

"Here's the thing. This works great, but it is a cheap LCR meter...." Read more

"...The inductance meter function doesn't seem to work at all. I have tried large and small inductors and the display always reads "OL"...." Read more

"Works great!" Read more

16 customers mention "Value for money"14 positive2 negative

Customers find the LCR meter excellent for its price.

"Seems to be accurate and a good value......" Read more

"...It would be nice if it measured capacitor ESR, but at this price point you really can't ask for more...." Read more

"excellent value it works" Read more

"...I would give it another half star if possible. Good value for the money" Read more

12 customers mention "Ease of use"11 positive1 negative

Customers find the LCR meter easy to use, with one mentioning it's a welcome addition to their engineering workbench.

"Works as advertised, easy to use. Auto-ranging so quick usage process. Accurate when compared to my other instruments (resistance only)...." Read more

"This meter is very easy to use. I use it to measure capacitors and resistors in the logic boards of iPhones...." Read more

"I am finding this meter very handy. It was recommended by a friend who uses it much more than I. It checks out favorably against my other meters...." Read more

"...Overall good construction with tilt display, perfect for the professional engineer's workbench...." Read more

5 customers mention "Auto ranging"4 positive1 negative

Customers appreciate the auto ranging feature of the LCR meter, with one customer noting that it automatically adjusts for component type, and another mentioning its self-calibrating capability.

"Outstanding... Auto ranging... Self calibrating ... Wide range!" Read more

"...that figures out what it is looking at, and automatically adjusts for the component type and range needed to make the measurement...." Read more

"...The auto ranging is a nice feature but a manual override would be nice to have if you want a readout in pf, nf or uf... or mH instead of uH... just..." Read more

"...Could not select frequency for measuring resistance, meter reading drifted. Just think product design and/or quality was poor...." Read more

4 customers mention "Build quality"3 positive1 negative

Customers appreciate the build quality of the LCR meter.

"VERY GOOD PRODUCT AND WELL MADE!" Read more

"...PC connectivity for part tolerance sorting. Overall good construction with tilt display, perfect for the professional engineer's workbench...." Read more

"...Cheap parts are cheap because they require sorting to do what you want with them. Bin and sort them with this...." Read more

"...The screen is well illuminated and the product is very solidly built...." Read more

4 customers mention "Range"4 positive0 negative

Customers appreciate the meter's wide range of measurement capabilities.

"I am impressed with this hand-sized LCR meter. It has a broad range of measurement and appears to be accurate." Read more

"Outstanding... Auto ranging... Self calibrating ... Wide range!" Read more

"I give this meter 5 stars, because of the range, accuracy & value you get for the lower price...." Read more

"Great accuracy over a very wide range!" Read more

5 customers mention "Rechargeable battery"3 positive2 negative

Customers have mixed experiences with the LCR meter's rechargeable battery, with one customer noting it charges in about an hour, while another mentions it arrives with a low charge.

"...Unit has a built-in non-replaceable rechargeable battery. Charger and leads supplied with the unit I received. Would buy again." Read more

"...Arrived with low charge in the rechargeable battery...." Read more

"More accurate and easier to use than expected. The lipo battery was a small surprise. Just needed a recharge. Works fine." Read more

"...The lipo battery was a small surprise. Just needed a recharge. Works fine." Read more

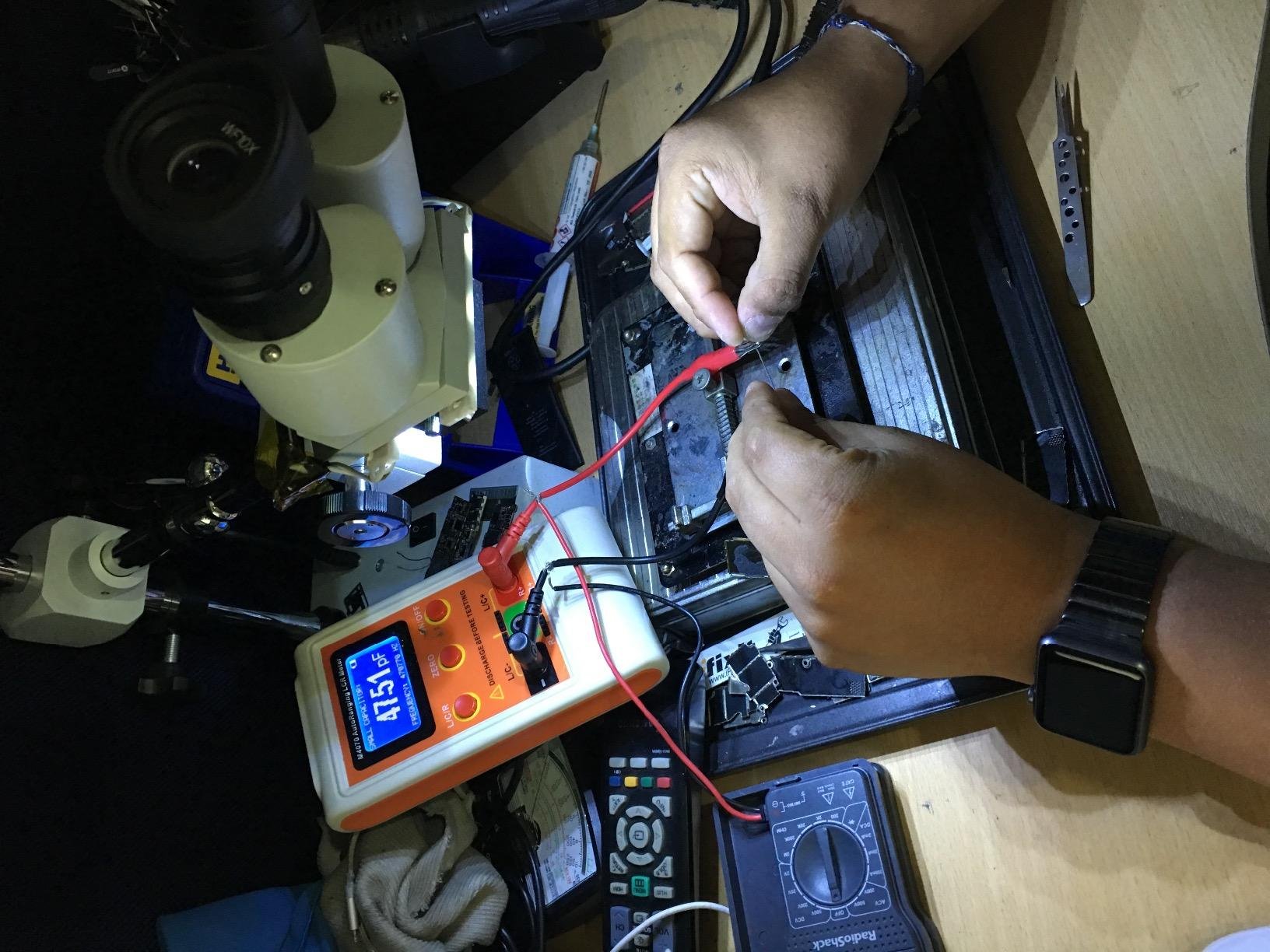

It's great to measure small capacitors on logic boards
5 out of 5 stars
It's great to measure small capacitors on logic boards
This meter is very easy to use. I use it to measure capacitors and resistors in the logic boards of iPhones. You have to use very thin probes to measure this kind of small capacitors and a stereo microscope to see what are you doing. I totally recommend it when you are a electronic engineer like me.
Thank you for your feedback
Sorry, there was an error
Sorry we couldn't load the review

Top reviews from the United States

  • Reviewed in the United States on January 24, 2015
    After researching all my options, I bought this LCR Meter to measure some home made air core inductors in the 0.1 uH to 200 uH range and was trying to not spend a lot of money. I started out testing a variety of commercial inductors with tolerances of 5 to 10 percent (probably made in China). The LCR Meter readings were all over the place. I was getting worried about the M4070. But then I started measuring a wide variety of inductors that I had carefully wound myself based on frequently used formulas (wire size, turns per inch, diameter, length) and the LCR meter was right on the money (exactly) every time. Every "pair" of inductors of the same desired value not only gave the same reading, but the reading was precisely what the formulas predicted. Similarly, when measuring some high quality silver mica capacitors, the readings agreed with the marked values within the tolerances for the capacitors. While you may feel like you are using someone's science project while working with the M4070 LCR Meter (you can almost watch it think), it appears to be very accurate and very easy to use. It obviously has a microprocessor that figures out what it is looking at, and automatically adjusts for the component type and range needed to make the measurement. My area of interest was for inductors in the range mentioned above and for capacitors in the 1 pF to 1000 pF range. I have not used the M4070 LCR Meter yet to measure much higher L and C values. If you don't want to spend a lot of money, I'm of the opinion that this little meter will get the job done.
    14 people found this helpful
    Report
  • Reviewed in the United States on December 5, 2016
    I am finding this meter very handy. It was recommended by a friend who uses it much more than I. It checks out favorably against my other meters. I would give it another half star if possible. Good value for the money
    2 people found this helpful
    Report
  • Reviewed in the United States on March 11, 2015
    Wanted a reliable way to test capacitors and inductors. Singstek M4070 works great! It's far more accurate than my multimeter at measuring capacitance and I couldn't measure inductance at all before I got this meter.

    The screen is well illuminated and the product is very solidly built. It is a bit toy like in appearance but don't let that fool you, this is a solid product. You turn it on and it just works. You can hear the relay clicking inside which feels sort of cool.

    It's very easy to use. It also auto detects what you are testing, messages like "Small Inductor", or "Large Capacitor" appear above the measured value. It would be nice if it measured capacitor ESR, but at this price point you really can't ask for more.

    I must say this LCR meter has exceeded my expectations. I give it thumbs up all the way!

    EDIT: well I spoke too soon. I turned the meter on and it can no longer measure capacitance. Now I may have made a mistake as I still had the capacitor plugged into the meter from when I measured it before when I turned it on, but I wouldn't think that should damage the meter. The capacitor is brand new and was only ever unpacked to test with the meter, so there was never any other charge in it other than the one provided by the meter for testing (which should be safe.)

    Anyways the meter now goes into this autorange cycle mode and it can't measure sub uF capacitance, as it keeps cycling.
    4 people found this helpful
    Report
  • Reviewed in the United States on December 27, 2016
    Seller was fine and delivery was fine. Was not satisfied with product. Virtually no instructions. Objective was to measure resistance/conductivity of battery electrolyte. Could not select frequency for measuring resistance, meter reading drifted. Just think product design and/or quality was poor. Considering returning it.
    One person found this helpful
    Report
  • Reviewed in the United States on November 9, 2017
    I'm not quite sure how to rate this. It measures everything fine for the most part. There is an issue with a specific range of inductor values that seem to be right around where it switches between two measurement ranges and it gets stuck in a loop. But more curiously it has developed an issue where I can't turn it off. I press the on/off button and displays the message "Thanks for using, goodbye" but then just goes back to the screen it was on before. It stays on till the battery dies and then I have to plug it in the next time I want to use it. I'm assuming the soft off button puts the microcontroller into a deep sleep mode and for some reason the code isn't letting it get there.
