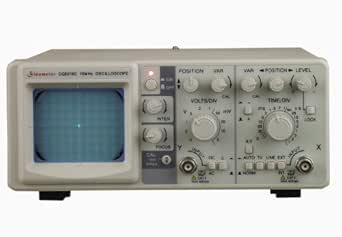

10 MHz Single Channel Oscilloscope, CQ5010C

3.3 3.3 out of 5 stars 28 ratings
Currently unavailable.
We don't know when or if this item will be back in stock.
  • Lightweight with low power consumption
  • TV synchronizing, X-Y operating
  • Supplied with 1 (X1, X10) probe and manual
  • High performance & sensitive 5mV/DIV
  • 90 days money back guarantee and 1 year limited warranty
› See more product details

Product details

  • Is Discontinued By Manufacturer ‏ : ‎ No
  • Product Dimensions ‏ : ‎ 12.4 x 5.54 x 10.6 inches; 8 Pounds
  • Item model number ‏ : ‎ YB4328
  • Date First Available ‏ : ‎ August 8, 2004
  • Manufacturer ‏ : ‎ Sinometer
  • ASIN ‏ : ‎ B000CCILTS
  • Customer Reviews:
    3.3 3.3 out of 5 stars 28 ratings

Product Description

Vertical Deflection Operating Mode CH1 (Y1),CH2 (Y2), CHOP, ALT, ADD, X-Y Sensitivity and Accuracy (Both Y1 & Y2) 5mV-10V/div, 5X MAG, in 12 calibrated steps of 1:2:5 sequence Band-width DC: 0 ~ 20Mhz / AC: 10Hz ~ 20Mhz Rise Time 17.5ns Input Coupling AC, GND, DC Input Impedance 1M ohm (<30pF) Maximum Input Voltage 400V (DC+AC peak) CH1 Signal Output 25mV/div, 50 ohm, 20Hz-10MHz(-3dB) Horizontal Deflection Sweep Mode AUTO, TRIG, LOCK, SINGLE Time Base 0.1 uS-0.2S/div, 20 steps of 1:2:5 sequence Sweep Magnification 5 X (Maximum sweep speed is 20 ns per division) Accuracy 3%, 5% at 10X times Trigger Source CH1, CH2, ALT, Ext, Line Trigger Coupling AC/DC, TV/NORM Trigger Slope Rising or falling edges External Trigger Input Impedance 1M ohm Minimum trigger level 5Hz ~ 20MHz: INT - 1 div; EXT - 0.2Vp-p TV Signal: INT - 2 div; EXT - 0.3Vp-p Trigger Lock: INT - 2 div X-Y Operation Input X axis: CH1 Y axis: CH2 Frequency Response DC: 0 ~ 1 MHz (-3dB); AC: 10Hz ~ 1 MHz (-3dB) Phase Difference <3 degree General Power AC110V, 60 Hz Power Consumption 35W Dimension 316x132x410(mm) Dimension 316x132x410(mm) Weight 16 lbs
