Three stars, because as others have noted, the wiring is wrong. But I couldn't find any other slot PS/2 like this. It's pretty easy to pull the contacts from the plug using a small screwdriver. I used a 8 pin connector instead of the 10 pin it came with to connect it to my motherboard.
On my adapter, the wiring was as follows, but you best measure yourself:
red - gnd
green - vcc
brown - data
yellow - clk

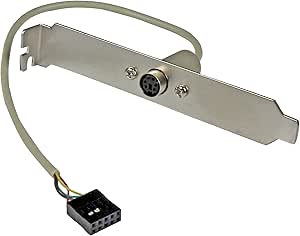

StarTech.com 6 Pin MiniDIN PS/2 Mouse Slot Plate Bracket - PS/2 panel - PS/2 (F) to 10 pin IDC (F) - 6 in - beige - PLATE6F
Currently unavailable.
We don't know when or if this item will be back in stock.
We don't know when or if this item will be back in stock.
| Connector Type | Coaxial |
| Compatible Devices | Mouse, Keyboard |
| Color | Beige |
| Brand | StarTech |
| Connector Gender | Female-to-Male |
About this item
- Make sure this fits by entering your model number.
- Add a 6-pin MiniDIN Mouse port to the back of your computer
- Easy to use and install
- Beige
This fits your .
Exclusive items from our brands
Page 1 of 1 Start overPage 1 of 1
Customers who bought this item also bought
Page 1 of 1 Start overPage 1 of 1
Customers also viewed these products
Page 1 of 1 Start overPage 1 of 1
Product description
If you’re looking to replace a PS/2 keyboard or mouse port connector for your PC, you’ll be glad you came to StarTech.com. Featuring 6-pin MiniDIN Female, IDC 10 connectors and a lifetime warranty, you’ll never have to go looking for the little things ever again.
Product information
| Product Dimensions | 4.8 x 0.71 x 8.66 inches |
|---|---|
| Item Weight | 0.64 ounces |
| ASIN | B0002AFZV2 |
| Item model number | PLATE6F |
| Customer Reviews |
4.1 out of 5 stars |
| Best Sellers Rank |
#57 in PS/2 Cables
|
| Is Discontinued By Manufacturer | No |
| Date First Available | September 8, 2004 |
| Manufacturer | STARTECH.COM |
| Language | English |
Feedback
Have a question?
Find answers in product info, Q&As, reviews
Your question might be answered by sellers, manufacturers, or customers who bought this product.
Please make sure that you are posting in the form of a question.
Please enter a question.
Customer reviews
4.1 out of 5 stars
4.1 out of 5
10 global ratings
How are ratings calculated?
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzes reviews to verify trustworthiness.
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on July 10, 2019
Verified Purchase
3 people found this helpful
Report abuse
Reviewed in the United States on February 1, 2020
Verified Purchase
I'm writing this because the majority of the reviews for this thing was written by some major galaxy brains. I bought this for a windows 98 machine that I like to play old DOS games on. The problem I had was the ps/2 port on my mobo is blocked by the case. It happens to have a nice 5 pin ps/2 header though. Now this is wired for some 2x5 connector which obviously wont work. This is where the problem comes in for most of the people reviewing this product. All you have to do is look at a pinout of a female ps/2 and wire this thing accordingly. You also don't need to buy 2 and dissemble 1 to see where the wires go. Get a multi meter, genius. Re-wiring the dupont connector is very simple. You can remove each wire by lifting the little black tabs with a needle and the wire comes right out. It's very simple if you use your brain. Any way this thing worked out perfectly after I painlessly re-wired it for my machine. No more serial ball mice for me. 10/10 would buy and review again.
Reviewed in the United States on June 29, 2016
Verified Purchase
With small modification, I was able to use this to connect to an old Pentium 120MHz board that had no exposed PS/2 ports. What a lucky thing that startech makes this obscure piece of hardware that saved me the trouble of having to buy a connector, drill a case panel, and solder a connector header.
One person found this helpful
Report abuse
Reviewed in the United States on March 8, 2014
Verified Purchase
Pin-Out is nonstandard, meaning you will have a fried mouse if you plug it into this.
Nearly impossible to open the clamshell header to redo the pinout too, ended up going serial trackball for that machine.
I'm not sure if the one I received was even from star-tech, it was in a unbranded bag from one of the amazon market sellers.
Nearly impossible to open the clamshell header to redo the pinout too, ended up going serial trackball for that machine.
I'm not sure if the one I received was even from star-tech, it was in a unbranded bag from one of the amazon market sellers.
One person found this helpful
Report abuse
Reviewed in the United States on February 28, 2017
Verified Purchase
Had to buy 2 of them to get the pin out right to hook into an old motherboard I had. At least they could of put a paper what each color wire does. I litterly had to break one of them to wire the second one.
One person found this helpful
Report abuse
Reviewed in the United States on April 18, 2013
Verified Purchase
I needed this part for a project of mine and it was great that I could purchase it through Amazon. I checked with all local stores to see if anyone still carried this connector with no luck. The connector is of good quality and was perfect for my project.
Top reviews from other countries
Matt
5.0 out of 5 stars
Ps2 pinout WAS NEVER STANDARDIZED
Reviewed in Canada on February 9, 2021Verified Purchase
I see a lot of complaints about the non-standard pinout, PS/2 headers were never standardized. So with a tiny flathead you can rearrange them as needed. I'm using it on a shuttle Hot-569 supersocket 7. As posted in a few reviews the wire colours of the bracket are as follows:
red - gnd,
brown - data,
yellow - clock,
green - +5V(VCC)
You'll need to find your motherboards pinout to arrange them properly, the Shuttle Hot-569(A) are as follows
Starting at the edge of the mobo 1-Data, 2-Not connected, 3-Ground, 4-VCC(+5v), 5-Clock
I hope this info helps, it's a perfect product as far as I'm concerned, I love that us retro PC Gamers can still find these.
red - gnd,
brown - data,
yellow - clock,
green - +5V(VCC)
You'll need to find your motherboards pinout to arrange them properly, the Shuttle Hot-569(A) are as follows
Starting at the edge of the mobo 1-Data, 2-Not connected, 3-Ground, 4-VCC(+5v), 5-Clock
I hope this info helps, it's a perfect product as far as I'm concerned, I love that us retro PC Gamers can still find these.
Peter Godwin
5.0 out of 5 stars
Works, but note the pinout
Reviewed in Australia on June 23, 2020Verified Purchase
I bought this to use with an old AT motherboard's PS/2 mouse header. However, I'm not sure there was ever a true "standard" for these headers.
So before using this, make sure you check your motherboard manual for the pinout. I had to swap a couple of pins around on mine to work with my motherboard.
So before using this, make sure you check your motherboard manual for the pinout. I had to swap a couple of pins around on mine to work with my motherboard.
