|Model||Superwinch Terra 45 Winch|
|Item Weight||22.1 pounds|
|Product Dimensions||15.1 x 4.5 x 4.8 inches|
|Item model number||1145220|
|Manufacturer Part Number||1145220|
|OEM Part Number||1145220|
|ABPA Partslink Number||13|
|Vehicle Service Type||all-terrain-vehicles|
Other Sellers on Amazon
+ Free Shipping

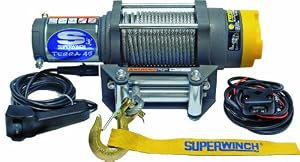

Superwinch 1145220 Terra 45 ATV & Utility Winch (4500lbs/2046kg Rating)
- Make sure this fits by entering your model number.
- High-efficiency, low amp draw, sealed 1.6 hp permanent magnet motor featuring mechanical load holding and dynamic brake
- 55' of 1/4" steel wire rope with ergonomic cam action freespooling clutch
- All steel planetary gear twice as wide as those used by the competition and utilizes machined-in, oil pocket bronze bearings
- Circuit breaker protected and weather sealed solenoid contact.4-way roller fairlead, heavy duty latched hook with thimble and limited lifetime warranty
- Circuit breaker protected and weather sealed solenoid contact
Compare with similar items
Champion 4500-lb. ATV/UTV Wireless Winch Kit
VIPER Midnight 4500lb ATV/UTV Winch Kit with 50 feet BLACK Synthetic Rope
Superwinch (1140230) Black 12 VDC LT4000ATV SR Winch - 4000 lb. Load Capacity
Warn 89040 Vantage 4000 Winch - 4000 lb. Capacity
SuperATV 5000 Lb. Black Ops Synthetic Rope UTV/ATV Winch - With Wireless Remote and 50' Synthetic Rope
|Shipping||FREE Shipping||FREE Shipping||FREE Shipping||FREE Shipping||FREE Shipping||FREE Shipping|
|Item Dimensions||15.12 x 4.49 x 4.8 in||17 x 14.5 x 9.5 in||13.1 x 4.5 x 4.5 in||15.6 x 10.3 x 6.4 in||15.5 x 13 x 6.5 in||—|
Have a question?
Find answers in product info, Q&As, reviews
Please make sure that you are posting in the form of a question.
Designed to be compatible with most four-bolt pattern ATV winch mount kits available on the market today, the Terra 45 is a fit for virtually any utility vehicle you ride. Along with a hefty 4,500-LB line pull rating via 55-feet of 1/4" steel wire rope and a 1.6 hp weather-sealed permanent magnet motor powered by an easy to establish permanent connection to your vehicle battery, the Terra 45 features the power and reliability of a heavy-duty all-metal 3-stage planetary gear train. Unlike planetary gears used by competitors, its rugged all steel gears are twice as wide as those used by the competition and utilize machined-in, oil pocket bronze bearings guaranteeing smooth, uncompromised movement for years to come, no matter the weather conditions. Additional features include, a handlebar mounted switch, an ergonomic cam action freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed, at any time, a four-way roller fairlead (mounting plate sold separately), a heavy duty latched hook with thimble and a limited lifetime warranty.
From the manufacturer
Will this fit your ATV/UTV?
Yes! It is most likely the Superwinch Terra will fit your vehicle with the correct Winch Mounting Kit that is specially designed just for your make and model year ATV/UTV. Simply add this winch to your cart then search for your make/model and winch mount and you'll find options. Superwinch Terra winches feature universal mounting bolt pattern.
Your ATV/UTV may come stock with a winch mount.
Superwinch's Competitive Advantages
One look at the Superwinch Terra's massive copper windings, sealed bearings end to end, and it's apparent this motor means business. More power, faster cooling and better efficiency.
Superwinch Gears are 2X Wider. Extra wide gears for better engagement and longer life.
Clever Design allows motor terminals to be rotated for best fit in tight spaces.
Superior Steel Drums
Terra drums are engineered for the abuse of synthetic rope. Cast aluminum drums can not meet rated line pull with synthetic rope and break. Terra winches come standard with steel reinforced drums on both steel and synthetic rope versions.
* Powers load in and out.
* Mechanical load holding and dynamic brake.
* All steel planetary gear twice as wide as those used by the competition and utilizing machined-in grease pockets.
* Ergonomic cam action freespooling clutch.
* High efficiency, low amp draw, sealed permanent magnet motors.
* Circuit breaker protected.
* Weather sealed solenoid contactor.
* 4-way roller fairlead.
* Wire or Synthetic Rope.
* Heavy duty latched hook with thimble.
* Handle bar mounted toggle switch.
* Hand Held remote.
* Limited lifetime warranty.
|1125220 Terra 25||1125230 Terra 25SR||1135220 Terra 35||1135230 Terra 35SR||1145220 Terra 45||1145230 Terra 45SR|
|Rated Line Pull||2,500 lbs (1,134 kgs)||2,500 lbs (1,134 kgs)||3,500 lbs (1,588 kgs)||3,500 lbs (1,588 kgs)||4,500 lbs (2,041 kgs)||4,500 lbs (2,041 kgs)|
|Motor||Sealed 1.3 HP (.96 kW) Permanent Magnet, 12V DC||Sealed 1.3 HP (.96 kW) Permanent Magnet, 12V DC||Sealed 1.6 HP (1.2kW) Permanent Magnet, 12V DC||Sealed 1.6 HP (1.2kW) Permanent Magnet, 12V DC||Sealed 1.6 HP (1.2kW) Permanent Magnet, 12V DC||Sealed 1.6 HP (1.2kW) Permanent Magnet, 12V DC|
|Brake||Mechanical and Dynamic||Mechanical and Dynamic||Mechanical and Dynamic||Mechanical and Dynamic||Mechanical and Dynamic||Mechanical and Dynamic|
|Rope||Steel 3/16" (4.8mm) x 50' (15.2m)||Synthetic 3/16" (4.8mm) x 50' (15.2m)||Steel 7/32" (5.5mm) x 50' (15.2m)||Synthetic 3/16" (4.8mm) x 50' (15.2m)||Steel 1/4" (6.5mm) x 55' (16.76m)||Synthetic 1/4" (6.5mm) x 55' (16.76m)|
|Fairlead||Heavy-Duty, 4-Way Roller||Blue Anodized Aluminum Hawse||Heavy-Duty, 4-Way Roller||Blue Anodized Aluminum Hawse||Heavy-Duty, 4-Way Roller||Blue Anodized Aluminum Hawse|
|Remote||Handlebar mounted toggle & 10' Handheld Remote||Handlebar mounted toggle & 10' Handheld Remote||Handlebar mounted toggle & 10' Handheld Remote||Handlebar mounted toggle & 10' Handheld Remote||Handlebar mounted toggle & 10' Handheld Remote||Handlebar mounted toggle & 10' Handheld Remote|
|Dimensions||13.2" l. x 4.5" d. x 4.8" h. (335mm l. x 114mm d. x 122mm h.)||13.2" l. x 4.5" d. x 4.8" h. (335mm l. x 114mm d. x 122mm h.)||13.4" L x 4.5" D x 4.8" (340mm L x 114mm D x 122mm H)||13.4" L x 4.5" D x 4.8" (340mm L x 114mm D x 122mm H)||15.1" L x 4.5" D x 4.8" (383mm L x 114mm D x 122mm H)||15.1" L x 4.5" D x 4.8" (383mm L x 114mm D x 122mm H)|
|Mounting Bolt Pattern||3.0" x 4.87" (76mm x 124mm)||3.0" x 4.87" (76mm x 124mm)||3.0" x 4.87" (76mm x 124mm)||3.0" x 4.87" (76mm x 124mm)||3.0" x 6.66" (76mm x 169mm)||3.0" x 6.66" (76mm x 169mm)|
|Installed Weight||18.0 lbs (8.16 kg)||15 lbs (6.8 kgs)||20.0 lbs (9.07 kgs)||17 lbs (7.7 kg)||22.0 lbs (9.98 kgs)||19.0 lbs (8.6 kgs)|
|Line Pull &||Amperage||Draw||Line Pull &||Amperage||Draw|
|0 lbs (0 kgs)||25.0 FPM (7.62 MPM) 25 Amps||25.0 FPM (7.62 MPM) 25 Amps||22.5 FPM (6.86 MPM) 19 Amps||22.5 FPM (6.86 MPM) 19 Amps||15.0 FPM (4.57 MPM) 21 Amps||15.0 FPM (4.57 MPM) 21 Amps|
|500 lbs _(227 Kgs)||21.0 FPM (6.40 MPM) 49 Amps||21.0 FPM (6.40 MPM) 49 Amps||19.3 FPM (5.88 MPM) 45 Amps||19.3 FPM (5.88 MPM) 45 Amps||14.0 FPM (4.27 MPM) 35 Amps||14.0 FPM (4.27 MPM) 35 Amps|
|1000 lbs (454 Kgs)||18.0 FPM (5.49 MPM) 71 Amps||18.0 FPM (5.49 MPM) 71 Amps||17.3 FPM (5.27 MPM) 67 Amps||17.3 FPM (5.27 MPM) 67 Amps||13.0 FPM (3.96 MPM) 52 Amps||13.0 FPM (3.96 MPM) 52 Amps|
|1500 lbs (680 Kgs)||15.5 FPM (4.72 MPM) 102 Amps||15.5 FPM (4.72 MPM) 102 Amps||15.3 FPM (4.66 MPM) 90 Amps||15.3 FPM (4.66 MPM) 90 Amps||12.0 FPM (3.66 MPM) 70 Amps||12.0 FPM (3.66 MPM) 70 Amps|
|2000 lbs (907 Kgs)||12.5 FPM (3.81 MPM) 130 Amps||12.5 FPM (3.81 MPM) 130 Amps||13.8 FPM (4.21 MPM) 114 Amps||13.8 FPM (4.21 MPM) 114 Amps||11.0 FPM (3.35 MPM) 87 Amps||11.0 FPM (3.35 MPM) 87 Amps|
|2500 lbs (1134 Kgs)||9.50 FPM (2.90 MPM) 162 Amps||9.50 FPM (2.90 MPM) 162 Amps||12.3 FPM (3.75 MPM) 138 Amps||12.3 FPM (3.75 MPM) 138 Amps||10.0 FPM (3.05 MPM) 102 Amps||10.0 FPM (3.05 MPM) 102 Amps|
|3000 lbs (1161 Kgs)||N/A||N/A||10.8 FPM (3.29 MPM) 164 Amps||10.8 FPM (3.29 MPM) 164 Amps||8.80 FPM (2.68 MPM) 123 Amps||8.80 FPM (2.68 MPM) 123 Amps|
|3500 lbs (1588 Kgs)||N/A||N/A||9.30 FPM (2.83 MPM) 190 Amps||9.30 FPM (2.83 MPM) 190 Amps||7.50 FPM (2.29 MPM) 140 Amps||7.50 FPM (2.29 MPM) 140 Amps|
|4000 lbs (1814 Kgs)||N/A||N/A||N/A||N/A||6.50 FPM (1.98 MPM) 160 Amps||6.50 FPM (1.98 MPM) 160 Amps|
|4500 lbs (2041 Kgs)||N/A||N/A||N/A||N/A||5.50 FPM (1.68 MPM) 178 Amps||5.50 FPM (1.68 MPM) 178 Amps|
