The 8-Port 10/100Mbps PoE Switch; model TPE-S80; reduces equipment and installation costs by delivering data and power over existing Ethernet cables to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras. Boost office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 15.4 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non-PoE devices can connect to the switch-auto-sensing PoE technology cuts power to non-PoE connected devices. Use TRENDnet's PoE Splitter with the TPE-S80 to install non-PoE devices in remote locations.

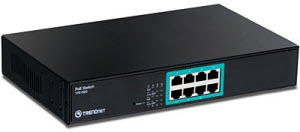

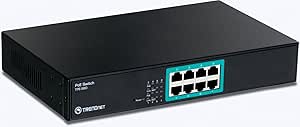

TPE-S80 8-Port 10/100Mbps PoE Switch
The 8-Port 10/100Mbps PoE Switch, model TPE-S80, reduces equipment and installation costs by delivering data and power over existing Ethernet cables to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras.
Boost office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 15.4 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non- PoE devices can connect to the switch—auto-sensing PoE technology cuts power to non-PoE connected devices. Use TRENDnet's PoE Splitter with the TPE-S80 to install non-PoE devices in remote locations
Overview – TPE-S80
- Reduces equipment cost by delivering data and power over existing network cables
- 8 x 10/100Mbps Full Duplex PoE ports
- 1.6Gbps switching capacity

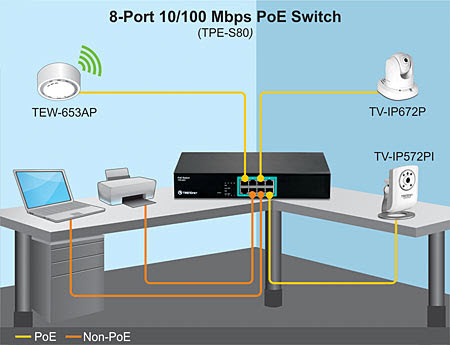

- Use with TRENDnet's PoE Splitter to network and power non-PoE devices
Standards:
- IEEE 802.3af Power over Ethernet
Network Media:
- Ethernet: 10/20Mbps (half/full duplex)
- Fast Ethernet: 100/200Mbps (half/full duplex)
TRENDnet USB Adapter Comparison Chart
|  |  |  |  |
| Model | TPE-S44 | TPE-S80 | TPE-S160 | TPE-224WS |
|---|
| Product Title | 8-Port 10/100Mbps PoE Switch | 8-Port 10/100Mbps Switch | 16-Port 10/100Mbps PoE Switch | 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Mini-GBIC Slots |
| Ports | | | | |
|---|
| Mini-GBIC | | | | 2x |
| Gigabit | | | | 4x |
| 10/100Mbps | 8x | 8x | 16x | 24x |
| PoE | 4x | 8x | 16x | 24x |
| Features | | | | |
|---|
| Forwarding Capacity | 1.6Gbps | 1.6Gbps | 3.2Gbps | 12.8Gbps |
| Data Ram Buffering | 96Kbytes | 64Kbytes | 1.5Mbits | 128Kbytes |
| 802.3x Flow Control | ✔ | ✔ | ✔ | ✔ |
| MAC address entries | 1k | 1k | 4k | 8k |
| Enclosure Materials | Metal | Metal | Metal | Metal |
| Max PoE consumption | 30 watts | 126 Watts | 254 Watts | 170 watts |
Package Contents:
- Multi-Language Quick Installation Guide
