| Hard Drive | thunderbolt 3 |
|---|

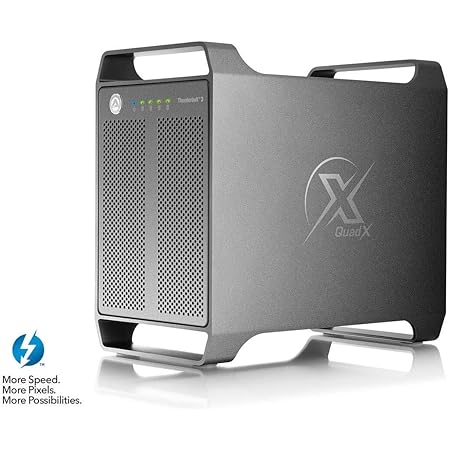

Thunder3 Quad X - Enclosure Only (MacOS and Windows Certified)
We don't know when or if this item will be back in stock.
| Digital Storage Capacity | 40 GB |
| Hard Disk Interface | IEEE_1284 |
| Connectivity Technology | USB, Thunderbolt, SATA |
| Brand | Akitio |
| Hard Disk Form Factor | 2.5 Inches |
| Hard Disk Description | thunderbolt 3 |
| Compatible Devices | Laptop |
| Installation Type | Dashboard Mount |
| Color | Black/Silver |
| Item Weight | 6.02 Kilograms |
About this item
- Thunderbolt 3 interface for lightning fast transfer speeds up to 40 Gbps
- Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gbps), and DisplayPort devices
- Power delivery provides up to 27W of power to recharge compatible laptops
- Holds up to four 2.5” or 3.5" drives with SATA 6Gb/s interface
- Dedicated DisplayPort for additional monitor to expand the workspace
Customers also viewed these products
Sonnet Solo 10G Thunderbolt 3 to SFP+ 10 Gigabit Ethernet Adapter (SFP+ [SR] Included)Amazon's Choicein Laptop Network Adapters
Compare with similar items
This item Thunder3 Quad X - Enclosure Only (MacOS and Windows Certified) | TERRAMASTER D5 Thunderbolt 3 Professional-Grade 5-Bay External Hard Drive Enclosure RAID 0/RAID1/RAID5/RAID10/JBOD Hard Disk RAID Storage (Diskless) | USB-C Hub with Hard Drive Enclosure, Hagibis Type-C Docking Station & Stand for Mac Mini M2, Mac Studio M1 Max Ultra with SATA, USB 3.0, SD/TF Card Reader and USB2.0 for Laptop (MC25 Silver) | Akitio Node Titan Thunderbolt 3 eGPU Enclosure with 650W PSU | |
|---|---|---|---|---|
| Customer Rating | 4.3 out of 5 stars (47) | 3.7 out of 5 stars (151) | 4.2 out of 5 stars (2342) | 4.2 out of 5 stars (71) |
| Price | Unavailable | $699.99$699.99 | $54.99$54.99 | $279.00$279.00 |
| Shipping | — | FREE Shipping. Details | FREE Shipping. Details | FREE Shipping. Details |
| Sold By | — | TERRAMASTER | HAGIBIS | OWC (Other World Computing) |
| Item Dimensions | 9.53 x 5.31 x 8.75 inches | 10.5 x 9.9 x 6.4 inches | 7.68 x 7.68 x 0.59 inches | 14.06 x 5.31 x 10.47 inches |
Videos
Videos for related products

1:08
Click to play video

Introducing the AKiTiO Node Titan
OWC (Other World Computing)
Product information
Technical Details
| Brand | Akitio |
|---|---|
| Item model number | 130801 |
| Hardware Platform | Mac |
| Operating System | Mac OS 10.5 or later |
| Item Weight | 13.24 pounds |
| Product Dimensions | 9.53 x 5.31 x 8.75 inches |
| Item Dimensions LxWxH | 9.53 x 5.31 x 8.75 inches |
| Color | Black/Silver |
| Hard Drive Interface | IEEE_1284 |
| Manufacturer | Akitio |
| ASIN | B076C72RX2 |
| Is Discontinued By Manufacturer | No |
| Date First Available | October 10, 2017 |
Additional Information
| Customer Reviews |
4.3 out of 5 stars |
|---|
Warranty & Support
Feedback
Product Description
AKiTiO Thunder3 Quad X
Features:
- Thunderbolt 3 interface for lightning fast transfer speeds up to 40 Gbps
- Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gbps), and DisplayPort devices
- Power delivery provides up to 27W of power to recharge compatible laptops
- Dedicated DisplayPort for additional monitor to expand the workspace
- Holds up to four 2.5” or 3.5" drives with SATA 6Gb/s interface
- Removable trays for easy SSD and HDD installation
- Two big handles makes it easy to carry the device
- Large fan for active cooling with power switch
- Kensington security slot
External Thunderbolt 3 Storage Solution
This 4-bay storage enclosure is designed to house up to four 2.5-inch or 3.5-inch drives. With Software RAID, four striped SSDs can reach data transfer speeds of up to 1480 MB per second while the Thunderbolt 3 interface provides sufficient bandwidth for additional 4K video signal streams and data transfers at the same time. An ultra durable aluminum casing provides efficient heat dissipation, plus an extra large rear fan keeps your drives cool during long hours of operation.
4-Bay Storage Solution with Removable Trays
Designed to house up to four 2.5-inch or 3.5-inch drives, the tray based system allows for easy installation and replacement of either the large desktop hard disk drives or the portable laptop drives and SSD's.
Note: Spare trays are sold separately in a set of four trays, extra screws and drive labels.
Thunderbolt 3: The USB-C that does it all
|
|
|
|
|---|---|---|
Thunderbolt ConnectivityThunderbolt 3 Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device. For the first time, one computer port connects to Thunderbolt devices, every display, and billions of USB devices. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying power to bus-powered devices. The Thunder3 Quad X has two Thunderbolt 3 ports. The second port operates the same as a Thunderbolt 3 computer port by supporting Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices. DisplayPortThe dedicated DisplayPort connector makes it easy to connect an additional monitor to extend your workspace and it will free up the second Thunderbolt 3 port for other Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices |
Reversible USB Type-C Connect
The reversible USB Type-C (USB-C) connector enhances ease of use for connecting devices with a focus on minimizing user confusion for plug and cable orientation. The Thunder3 Quad X also supports power delivery (PD) over USB-C, providing 27W of power to compatible laptops like the MacBook Pro (late 2016) that support charging through the USB-C cable. This allows you to recharge your battery even though the laptop is not plugged into any other power source. Both Thunderbolt 3 ports provide 27W of power, so it doesn't matter which port you connect to the computer and if you plug in another device that is compatible with USB PD (power delivery) to the second port, you can also charge at 27W. |
Performance
With Software RAID, the Thunder3 Quad X provides users the ability to edit and playback multiple streams of HD and/or 4K content with enough headroom to simultaneously daisy-chain additional monitors and storage devices. For traditional hard disk drives (HDDs), depending on the RPM, the maximum transfer rate for a single drive (Non-RAID) is around 100-200 MB/s. When using four drives in a striped RAID set (RAID 0), the maximum transfer rate is therefore somewhere around 700-800 MB/s. For solid state drives (SSDs), the maximum transfer speed is limited by the PCIe to SATA controller inside the Thunder3 Quad X to around 370 MB/s per drive. Because of this limitation, the maximum transfer rate for four striped drives (RAID 0) is about 1480 MB/s, despite the fact that the Thunderbolt 3 interface is capable of speeds faster than that. |
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on Amazon-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.

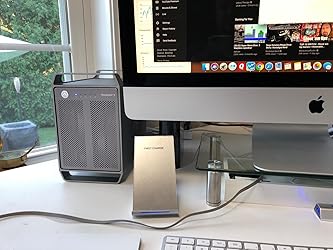

Original review in Nov. 2018: Overall I like the Thunder3 Quad X, despite the following comments, which are not really the fault of the manufacturer, as far as I can tell.
I was updating from a 2009 Mac Pro tower, which had 4 drives (3 HDD, 1 SSD) that I wanted to remove and connect to a new iMac. My goal was to simply move my old drives to a new enclosure, connect them to the iMac via Thunderbolt 3, and get back to work. I researched and decided the QuadX was at the pricepoint/feature set that might work, with some possible future-proofing for RAID and SSD capabilities. I have not used RAID before, and am not quite ready to do so (though may soon), so I'm using JBOD (4 separate disks) in the enclosure. There's a lot of hype about Thunderbolt 3 speeds (from Apple and others) which I have come to learn do not really apply to spinning hard drives, unless you're using a RAID. As I understand it, single spinning drives simply cannot move data to match the speed of Thunderbolt. (They can't even reach typical USB 3.0 speeds.) Even SDDs may not do so unless in a RAID config. Still, I wanted to believe I'd get more speed.
So in my ignorance I've felt somewhat let down that my HDDs and the SSD are not performing any "faster" than they were in an 8-year-old Mac Pro (as measured in Blackmagic Speed Test). Specifically, one 4tb 7200rpm drive is about 160MB/s in either system; an 8tb 7200rpm drive measured around 120 MB/s in both. (I've since purchased a newer 8tb drive which is running closer to 160 MB/s after cloning from the older one). Maybe there are faster spinning drives but it's hard for the casual user to discern the truth through all the marketing hype by hard drive manufacturers, and even through reading reviews. I was unable to test the 2tb SSD as it is my boot drive (installed in the QuadX) and there's some kind of permissions issue in the new device when booting my iMac (which I am trying to resolve but everything works otherwise). I am using the short cable which came with the QuadX, connected directly to my iMac's Thunderbolt 3 port.
I thought about just going back to a USB 3.0 enclosure for my drives, but I do like the quality, non-plastic (aluminum) construction and relative ease of mounting the drives in the QuadX, and the design which reminds me of the "cheese grater" Mac I am leaving behind. I am also using the supplied Displayport connection for a second monitor and that works great. So I may actually buy a second one of these units for backups and as for testing as I ease into using a RAID setup in search of faster speeds, probably what I should have been doing before.
BTW I'm not bothered by the fan noise level others have reported as a negative. When I shut off the fan during testing, I can still hear the 3 spinning drives, making about 50% of the overall noise, with 50% coming from the fan. The Mac Pro was far noisier (multiple fans including 2 on graphics cards) so I don't consider it a major issue but YMMV. Despite my comments above, moving to the 27-inch iMac has been great, it's faster overall and the monitor is awesome.
My goal is to add a year of life to my current iMac. I'm tempted by the current 27" 5K iMac, but figure mac is overdue for a major overhaul, and next year's will be an even bigger improvement. This enclosure made so much more sense to me than, say an internal SSD upgrade, since, when I'm ready, I can migrate everything to my next generation. The enclosure cost is less than the labor cost of an internal drive upgrade which would have to stay with the old system.
Note that my old iMac supports only Thunderbolt 1, which is 10 GB/s, not the 40 GB/s of 3. To make it work, I needed to purchase a Thunderbolt 2 cable (same connector as T1) and the Apple Thunderbolt 2 to 3 adapter (the T3 cable that comes with the enclosure is useless for this purpose). Warning, I discovered it IS POSSIBLE TO PLUG IN A THUNDERBOLT 2 CABLE REVERSED INTO THE BACK OF MY iMAC... it was a little snug going in the wrong way, but I didn't "force it". Still, the cable didn't work in that orientation, and I despaired about getting the system running until I decided to see if I could reverse it. Going in the "right" way was still snug, though not quite as snug, but the system connected instantly.
So far I'm very pleased with the change. The system suspends power in the enclosure when I shut down, and restarts automatically when I turn on my iMac. So far, it's been completely reliable. The fan is quiet, though it would be slightly audible if it were on my desk. I just bought a 2m cable and installed it on the floor under my desk. I certainly can't hear the fan now.
I haven't yet replaced my Time Machine disk, as I'm saving up my money to buy a 12TB drive. However, as an experiment, I did install a 3TB SATA drive I had surplus. It was a snap to install (just had to reformat it, which took only a couple of minutes), and it's works great.
The new SSD boot drive is working fine. It's not wildly faster on initial boot up: saving about 20 seconds (55 seconds vs. 1:15 or so). Still, the OS on a fusion drive is supposed to be on an SSD anyway, but I'm pleased there's some savings v the internal drive.
Where I really notice a difference is in application performance and changing contexts. Apps definitely open up more quickly than they used to, and switching windows is snappy.
