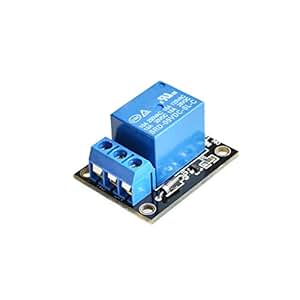

Tolako 5v Relay Module for Arduino ARM PIC AVR MCU 5V Indicator Light LED 1 Channel Relay Module Works with Official Arduino Boards
|Price:||$5.80 & FREE Shipping on orders over $25. Details|
Fulfillment by Amazon (FBA) is a service we offer sellers that lets them store their products in Amazon's fulfillment centers, and we directly pack, ship, and provide customer service for these products. Something we hope you'll especially enjoy: FBA items qualify for FREE Shipping and .
If you're a seller, Fulfillment by Amazon can help you increase your sales. We invite you to learn more about Fulfillment by Amazon .
- Enter your model number to make sure this fits.
- Microcontroller development board can be used as modules, can be used as appliance control
- 5V - 12 V control signal of the TTL
- Control DC or AC signals can control the 220V AC Load
- there is a normally open and open normally closed contact
- Useful to control a motor, a led strip, or any other module using arduino. How to use it: Just connect a digital output of your arduino to your relay module, and you can control a power-demanding appliance with the digital signal provided by your arduino.
Frequently bought together
Customers who viewed this item also viewed
The Arduino 5V relay module is suitable for SCM development, home appliance control. It is with 5V~12V TIL control signal which can control DC / AC signal. The module is perfect for common Arduino application.
- Color: Blue + black
- Suitable for SCM development, home appliance control
- 5V-12V TTL control signal, can control DC/AC signal
- Can control 220V AC load
Useful to control a motor, a led strip, or any other module using arduino. How to use it: Just connect a digital output of your arduino to your relay module, and you can control a power-demanding appliance with the digital signal provided by your arduino.
Top customer reviews
I just hooked this up to my circuit and tested it out. I have 5 Volts running to positive and negative terminal pins and when I apply 5 volts to the in1 (labeled a bit oddly as IPP ON (InPut Port On maybe?) then I hear the coil flipping the switch inside with a nice click.
I have a separately powered circuit running about 2.3 volts with a 330ohm resistor and a small red led. That circuit runs through the NO (normally open) side so it is not lit until I input the 5v on the IPP. When I do, I hear the click and I see the red LED turn on.
It's just a test set up but this is one of my first projects and it is so cool I keep applying/removing the 5v very quickly and hear the nice switch clicking away inside the relay and seeing the red LED turn on and off very fast.
Lots of fun and a great little product. I will buy more from this company because the product works well and their shipping was great.
I used the same USB cable for power and signal, even though the USB only runs at 5v it was able to power and close the relay.
Your code may differ. For example, you may find that a digital pin and digitalWrite works for you. In any case the delays allow the circuit to stabilize and transients to dissipate between trip and close. The analog write 255 sets the voltage on pin 6 to +5V, and the analog write 0 command turns it off. You can hear the relay click on and off, and use a multimeter on the output lugs to confirm that it is working.
Relays need a diode across the input coil to prevent a bounce spike from ruining your Arduino when the relay shuts off. This little circuit has that, plus a handy LED to indicate a trip state, plus a circuit to match the current from the Arduino Uno, and for those reasons this is better than a bare relay.
