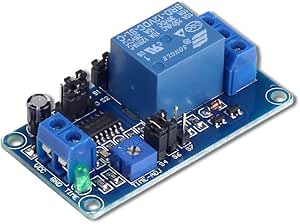

UCTRONICS DC 12V Time Delay Relay Module for Smart Home, Tachograph, GPS, PLC Control, Industrial Control, Electronic Experiment, Arduino Robot

Visit the UCTRONICS Store

142 ratings

| 49 answered questions

Amazon's Choice for Power Converters by UCTRONICS

Price:

$8.59 Get Fast, Free Shipping with Amazon Prime & FREE Returns

This fits your .

Make sure this fits by entering your model number.

Operating Voltage: DC 12V; Quiescent Current: 5.5mA; Max. Operating Current: 42mA; Max. Load Voltage: terminal NC is DC 30V or AC 250V, terminal NO is DC 28V or AC 125V; Max. Load Current: 10A
Functions: Supports on delay and off delay modes, the delay time can be adjusted from 0.1s to 1h, the delay mode and delay time can be set by shorting or opening the jumper pins and rotating the potentiometer.
Self Protection: Built with protection against reversal diode, supports anti-reverse protection. NOTE: Please keep the jumper pins S5 open when control the AC current exceeds 220V or other DC current voltage higher than the VCC port, otherwise the module will be burnt.
Applications: This module works as a switch with time delay on and off function, highly recommended for automotive circuit modification, and LED lights, DC motors, pump and smart home control system.
Search for ASIN B08TQTY8MP to get the module with protective case.

Frequently bought together

Total price: $35.57

Buy the selected items together

This item:UCTRONICS DC 12V Time Delay Relay Module for Smart Home, Tachograph, GPS, PLC Control, Industrial… $8.59
In Stock.
Sold by UCTRONICS and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00. Details
UCTRONICS DC 12V Programmable Multifunction Time Delay Relay Module with Segment LEDs Display for… $12.99
In Stock.
Sold by UCTRONICS and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00. Details
Timer Relay, DROK Time Delay Relay DC 5V 12V 24V Delay Controller Board Delay-off Cycle Timer 0.01s… $13.99
In Stock.
Sold by DROK and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00. Details

Customers who viewed this item also viewed

Page 1 of 1 Start overPage 1 of 1

More to consider from our brands

Page 1 of 1 Start overPage 1 of 1

Special offers and product promotions

Amazon Business : For business-only pricing, quantity discounts and FREE Shipping. Register a free business account

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Compare with similar items

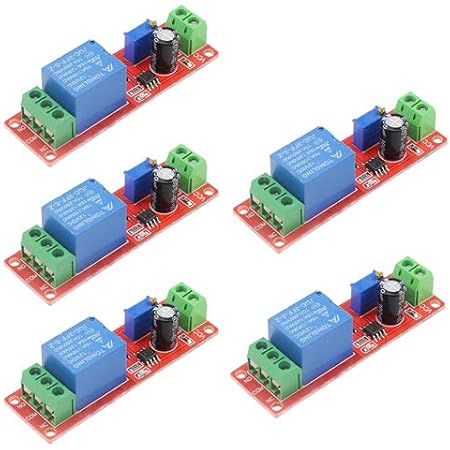

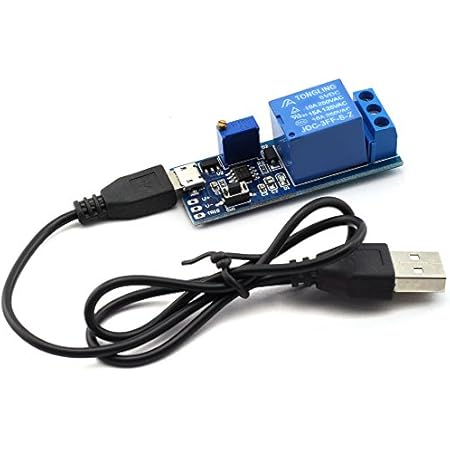

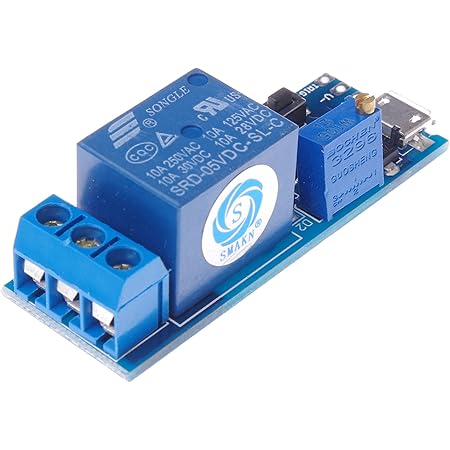

		1 PCS NE555 Timer Switch Adjustable Module Time Delay Relay Module DC 12V Delay Relay Shield	XLX 5PCS 12V NE555 0-10 Seconds Delay Module Constant Current Regulator High Power High Efficiency Timer Delay on Monostable Delay Switch Converter for Automotive Control System Electrical Equipment	SMAKN Wide Voltage 5V-30V Power Supply Adjustable Trigger Delay Time Relay Module	DAOKI 5PCS NE555 DC 12V Delay Relay Shield Timer Switch Adjustable Module 0 to 10 Second	DZS Elec 5V-30V 1 Channel Wilde Voltage 0-24s Adjustable Delay Internal/External Trigger Relay Board with Timer Delay Conduction Delay Circuit Switch with USB to Micro USB Power Line

Customer Rating	(142)	(5)	(49)	(17)	(9)	(55)
Price	$8.59	$5.95	$12.99	$7.22	$10.99	$7.89
Shipping	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime
Sold By	UCTRONICS	CNLW	XLX	SMAKN	DAOKI	DZS Elec

Compare with similar items

Product description

Color:Module

Product description
The DC 12V time delay relay module is versatile and adjustable. The delay time can be adjusted with potentiometer at shortest 0.1s up to 1h.
User can delay time as needed, widely used in Smart home, Tachograph, GPS, PLC control, industrial control, electronic experiment, Arduino robot etc.

Features:
Input voltage: 12V
Quiescent dissipation: 5.5mA
Maximum power consumption:42mA

Relay load capacity:
250V 10A AC (2500W ideal power AC)
30V 10A DC (300W ideal power DC)

Functions:
Short S6, open S7, delay turn off
Short S7, open S6, delay turn on
Tips：When relay control the AC current 220V or other DC current voltage higher than VCC port, set S5 jumper off,
or the high voltage will flow inversely to module and burn down the module.

Package including
1pcs Time Relay module

Product information

Color:Module

Package Dimensions

4.57 x 2.99 x 0.87 inches

Item Weight

0.704 ounces

ASIN

B07BT25J52

Item model number

U6031

Customer Reviews

142 ratings

4.5 out of 5 stars

Best Sellers Rank

#38,055 in Automotive (See Top 100 in Automotive)
#209 in Power Converters

Is Discontinued By Manufacturer

Date First Available

March 29, 2018

Manufacturer

UCTRONICS

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer reviews

5 star		70%
4 star		17%
3 star		7%
2 star		1%
1 star		5%

How are ratings calculated?

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Jason Fultz

Worthless instructions. Use mine.

Reviewed in the United States on September 14, 2019

Color: ModuleVerified Purchase

Works like a charm for starting my truck 1 ish minute before amps and inverters kick on.

What a waste of paper and pdf. Totally wrong.
Here's how it REALLY works (and very well, at that)

S5: closing it makes it a latching relay. Once coil is on, it will stay on, even if accv is removed. Kinda cool if you have a momentary trigger input. I don't. Its open for me.

S6 and S7: are backwards in the first part of the instruction. Close S7 and open S6 for on-delay. Eyeroll... Headdesk...

For the most part, the delay grid is correct.

S4: closing it adds delay time. The most time. Call it the rough drafter.

S1: closing it adds delay time. Medium strength.

S2: closing it adds delay time. Fine tuning.

S3: there is no S3. Just kidding.

Potentiometer: clockwise adds delay time.

I was able to achieve 58 to 63s on delay using the following:
S1:1,Closed
S2:1,Closed
S4:Open
S5:Open
S6:Open
S7:Closed
Pot:fully left, CCW

I could go shorter by opening S2, or longer by dialing the pot right, CW.

23 people found this helpful

Helpful

Alan G

Using a relay to switch connections, completely isolates the timer circuitry from it.

Reviewed in the United States on April 6, 2019

Color: ModuleVerified Purchase

I tested the unit on my workbench, and was very happy with the operation of the unit. My particular use for this is quite unusual. Have you ever driven your car somewhere and after parking, realized that your cell phone is out of juice? But you can't charge it while you're shopping, because your car has turned off the 12 volt supply to your USB charger to protect discharging your car battery. With the 12V DC Time Delay Module. I can provide up to the 3600 second (1 hour) limit of "Hot" 12 volt power to my USB charger, and then switching the power line back to the accessory 12 volt circuit to save the car battery. That one hour of charging is enough to get you back on the air, until you can finish the charge. And if after the cycle has completed, you forget to switch off the 12 volt (Hot) supply to the timer, the standby current drain from the timer is so low (less than 6 ma.), that it shouldn't impact the car battery, anymore that all the other circuits in your car that are "always" drawing current from it. The "timer on" current drain is only 60 ma., a small fraction of the current your device is using while charging. This current could be lowered even more, if the "on" LED light is removed. I don't need to see mine, as I have installed it inside an aluminum "project box", and fused it with a one amp "pico fuse" to protect its' circuitry and car the car wiring.

6 people found this helpful

Helpful

ZacTop Contributor: Camping

Not the device I was looking for...

Reviewed in the United States on September 2, 2020

Color: ModuleVerified Purchase

I needed a device that would come on and stay on when triggered, then shut off after a few seconds when the trigger is gone. This isn't that. Instead, it comes on when triggered then goes off after a preset time regardless of the trigger's status. If that's what you need (a timed output that consistently goes off after a period of time regardless of what the trigger is doing), then this should be good. I ended up sending it back and going with a different device that does it all.

3 people found this helpful

Helpful

Mike R

Great for momentary fuel pump operation!

Reviewed in the United States on July 20, 2020

Color: ModuleVerified Purchase

I use this device to run a priming fuel pump on an old 1973 automobile, if the vehicle sets too long the carburetor dries out, then I need to crank the engine for 60 seconds to get the fuel pumped to the carburetor.
I installed a "free flow" electric fuel pump and used this time delay circuit to power the pump, the timer turns on the pump when I push a "momentary" button, it runs for 12 seconds then shuts off, all I have to do is push the button one time and walk away, If I hold it down it makes no difference which prevents the possibility causing the fuel to overflow the carburetor if the pump is on for too long, it’s always on for only 12 seconds, if you want to run it again you have to wait for the pump to complete its 12 second cycle, then you can run it for another 12 seconds.

2 people found this helpful

Helpful

K. Mares

Works fine but the instructions and a few other items reduce the rating of this item

Reviewed in the United States on July 8, 2019

Color: ModuleVerified Purchase

The item works well once configured but configuration takes much additional time as the provided instruction sheet is incorrect, poorly written or translated and unclear. Significant improvement can be made to the instructions and ensuring that they are correct unlike the one I received and other reviewers have also commented. Additionally, circuit board jumper blocks are very tiny and require needle nose pliers to remove and relocate, and can be easily lost. Larger jumpers or simple dip switches would be easier to manage. And finally, the wire screw down lugs will only accommodate an 18 gauge or smaller wire. They could be larger to accommodate at least 16 gauge which would be necessary to support the rated amperage.

2 people found this helpful

Helpful

Chris

nice timer

Reviewed in the United States on August 6, 2020

Color: ModuleVerified Purchase

This is a nice timer. the instructions are not perfect and it is difficult to adjust for a specific amount of time but seems to work well. I'm using it to power the trigger wire for my e-fan controller on my jeep for 10 mins after i turn the ignition it off to help prevent heat soak. It seems to work well once you have it set up. The biggest issue is that it doesn't come with a case to put it in.

2 people found this helpful

Helpful

Walter Woodland

Thanks to those who came before.

Reviewed in the United States on November 23, 2020

Color: ModuleVerified Purchase

Thanks to all the previous reviewers who filled in the tremendous gaps in the manufacturer's documents.

In my 7.3 liter when I flip the key on the glow plugs circuit lights up and my aftermarket stereo begins to start up and connect to my Bluetooth device then after the glow plugs cycle I start the truck which kills power to the radio and starts over the radio and bluetooth process once the truck is running. Depending on the temperature this can be rather inconvenient. My goal is that when I first turn the key and switched power is delivered to the radio then the relay will begin to draw power from an always hot circuit (there are numerous unused circuits of adequate size under the dash) for the next 55 seconds which should give ample time for glow plug cycle and starting the truck then the relay switched back to the normal, switched radio power. I've prewired on my bench according to the drawing and it looks to function as described. Now to install in a case and wire to the truck.
