| Brand | Ventamatic |
|---|---|
| Model Name | Adjustable Thermostat for Attic Ventilators |
| Item Dimensions LxWxH | 4.75 x 2.5 x 4.75 inches |
| Special Feature | Programmable |
| Color | White |
| Included Components | 1 FIRESTAT |
| Power Source | Corded Electric |
| Item Weight | 0.35 Pounds |
| Voltage | 120 Volts |
| Material | Aluminum |
| Shape | Square |
| Display Type | Manual |
| Control Type | Button Control |
| Number of Items | 1 |
| Control Method | App |
| Style | Modern |
| Backlight | Yes |
| Product Dimensions | 4.8"D x 2.5"W x 4.8"H |
| Manufacturer | Ventamatic |
| Part Number | XXFIRESTAT |
| Item Weight | 5.6 ounces |
| Product Dimensions | 4.75 x 2.5 x 4.75 inches |
| Item model number | XXFIRESTAT |
| Is Discontinued By Manufacturer | No |
| Size | One Size |
| Item Package Quantity | 1 |
| Special Features | Programmable |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | 2-year limited warranty. Product replacement only. |
Enjoy fast, FREE delivery, exclusive deals and award-winning movies & TV shows with Prime
Try Prime
and start saving today with Fast, FREE Delivery
Ventamatic XXFIRESTAT 10-... has been added to your Cart
Frequently bought together
- +
- +
Total price:
To see our price, add these items to your cart.
Choose items to buy together.
Customers also search
Page 1 of 1Page 1 of 1
From the manufacturer
Additional Feature :
- Color: White
- Power Source: Corded-electric
- 10 Amps / 120 Volts AC
- 2-year limited warranty

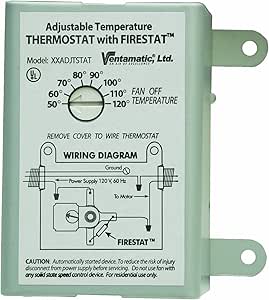

XXFIRESTAT - Adjustable Thermostat for Power Attic Ventilators
The Ventamatic Firestat Thermostat controls power attic ventilators. The Firestat Temperature Range is 183°F at which point it cuts off the appliance. The Thermostat is adjustable by the use with a simple screw driver adjustment.
- Controls up to three units, not to exceed 10 amps
- Adjusts from 60 - 120 degrees F.
- Normal settings are from 95- 115 degrees F, depending on average regional temperatures
- If setting is too low, fan will run continuously - if setting is too high, air turns will be insufficient for proper ventilation
Wiring Instructions
1) Disconnect the power to the unit.
2) Remove the thermostat cover.
3) Remove the box.
4) Mount the new box to the rafter using wood screws to attach.
5) Connect one black wire from the thermostat to the black wire of the incoming power supply.
6) Connect the other black wire from the thermostat to the black motor wire.
7) Connect the white wire from the power supply to the white motor wire.
8) Attach the ground from the incoming power supply to the ground screw.
Videos
Page 1 of 1Start OverPage 1 of 1
Videos for this product
1:12
Click to play video
Perfect addition for greenhouse exhaust fan
Damian Brindle
Videos for this product
0:12
Click to play video
Customer Review: Increasing Temperature = Switch Close
J WEAVER
Videos for related products
0:41
Click to play video
Thermospeed(TM) Temperature and Speed Controller
Dr. Heater USA
Videos for related products
1:42
Click to play video
iLiving Wall-Mounted Variable Speed Shutter Exhaust Fan
Dr. Heater USA
Works Fine as Temp Control for DIY Attic Solar Fan Installation
Reviewed in the United States on July 9, 2021
I purchased this red fan to add to the previous black one to vent the "attic" space on our manufactured home. I'd purchased a second solar panel (the larger of the two on the antenna stand) to bring my total wattage available to 140 Watts. The two fans are rated at 80 watts each so the 140 will not let them get to full speed, but I can tell that on sunny days (there are a few here in San Antonio) the fans are pumping out a lot of air and the noise level in the house from them is barely discernible.If you look close at the uncovered turtle in the foreground I've highlighted the "Control" to the thermostat suspended about 8" down in the attic. A added a lever arm to the adjustment screw and use an old bicycle spoke which I taped in position, I've got this setup on both fans, and start the one in the next turtle to go on when the attic gets to 75 deg, and this one just before 80 deg.With the two fans in the attic temps are running only a few degrees hotter than the OAT, prior to installing these fans the temps would reach as much as 40 degrees higher than OAT. Incidentally, the white tarps are temp control as well, the tarp surface will read about 130 on a 95 degree day, while the shingle will read 160+.
Reviewed in the United States on July 9, 2021
Images in this review
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States 🇺🇸 on August 15, 2022
Reviewed in the United States 🇺🇸 on April 4, 2014
Reviewed in the United States 🇺🇸 on July 9, 2021
If you look close at the uncovered turtle in the foreground I've highlighted the "Control" to the thermostat suspended about 8" down in the attic. A added a lever arm to the adjustment screw and use an old bicycle spoke which I taped in position, I've got this setup on both fans, and start the one in the next turtle to go on when the attic gets to 75 deg, and this one just before 80 deg.
With the two fans in the attic temps are running only a few degrees hotter than the OAT, prior to installing these fans the temps would reach as much as 40 degrees higher than OAT. Incidentally, the white tarps are temp control as well, the tarp surface will read about 130 on a 95 degree day, while the shingle will read 160+.
Works Fine as Temp Control for DIY Attic Solar Fan Installation
Reviewed in the United States 🇺🇸 on July 9, 2021
I purchased this red fan to add to the previous black one to vent the "attic" space on our manufactured home. I'd purchased a second solar panel (the larger of the two on the antenna stand) to bring my total wattage available to 140 Watts. The two fans are rated at 80 watts each so the 140 will not let them get to full speed, but I can tell that on sunny days (there are a few here in San Antonio) the fans are pumping out a lot of air and the noise level in the house from them is barely discernible.Reviewed in the United States 🇺🇸 on July 9, 2021
If you look close at the uncovered turtle in the foreground I've highlighted the "Control" to the thermostat suspended about 8" down in the attic. A added a lever arm to the adjustment screw and use an old bicycle spoke which I taped in position, I've got this setup on both fans, and start the one in the next turtle to go on when the attic gets to 75 deg, and this one just before 80 deg.
With the two fans in the attic temps are running only a few degrees hotter than the OAT, prior to installing these fans the temps would reach as much as 40 degrees higher than OAT. Incidentally, the white tarps are temp control as well, the tarp surface will read about 130 on a 95 degree day, while the shingle will read 160+.
