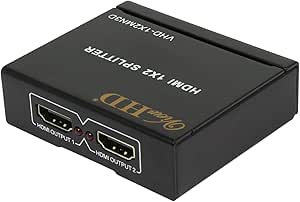

ViewHD 2 Port 1x2 Powered HDMI 1 in 2 Out Mini Splitter for 1080P & 3D | Model: VHD-1X2MN3D
Learn more
Purchase options and add-ons
| Color | 1x2 |
| Connector Type | HDMI |
| Brand | ViewHD |
| Compatible Devices | Tablet |
| Cable Type | HDMI |
About this item
- The model "VHD-1X2MN3D"may come under two labels: U9 or ViewHD; HDMI 1.3 supports 480i/576i/480p/576p/720p/1080i/1080p + 3D; for 3D application, both of the connected displays must support 3D for 3D to work.
- This model is for 1080p@60Hz or lower video. Please check our latest "U9-Pluto" model instead, the U9-Pluto model can completely replace this model and is compatible to HDMI v2.0 source and displays
- HDMI 1x2 Splitter provides the same video and audio signals identical to HDMI input signal at both outputs at the same time.
- Durable and reliable full metal jacket construction; package includes: universal 100V - 240V AC to DC 5V1A Universal power adapter with US plug, user manual and 1x2 DHMI splitter
- Edid duration 4 seconds. This model doesn't support CEC, CEC is not a suitable feature for HDMI splitter, it is good for HDMI switch.
- Max Cable extension 10 meters by 28Awg HDMI cable 15 meters by 26Awg HDMI cable
- For HDMI 2.0 4k@60 application, check our latest HDMI 2.0 Models: UHD1X2S and UHD1X2SA
- Please feel free to contact us if there is any questions, please always contact us when encounter any application problem
- ViewHD / U9 one year replacement warranty
Consider a similar item
Frequently bought together

Sold by certified minority-owned businesses
Important information
To report an issue with this product, click here.
Product Description
U9 ViewHD HDMI 1x2 Splitter, Model: VHD-1X2MN3D Product Description
|
|
|
|
|
|---|---|---|---|
HDMI v1.3b 10.2Gbps
|
Bitstream Audio Up to 6CH
|
Compatible with 1080P TVs
|
Package Content
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| VHD-1X2MN3D | U9-Pluto | VHD-1X2HSACi | UHD1X2S | UHD1X2SA | VHD-HM6X2i | |
| Custom EDID Settings | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Built-in Audio Extractor | ✓ | ✓ | ✓ | |||
| Optical Audio Output | ✓ | ✓ | ✓ | |||
| Custom EDID designed in for HDMI Receiver Audio Application | HDMI v1.3, 1.4, 2.0 HDMI AV Receiver | HDMI v1.3, 1.4, 2.0 HDMI AV Receiver | ||||
| Built-in 4K to 1080P Scaler | ✓ | ✓ | ||||
| Power Source | 100V-240V AC to 5V1A DC Adapter | USB Power Cable Included | 100V-240V AC to 5V1A DC Adapter | 100V-240V AC to 5V1A DC Adapter | 100V-240V AC to 5V1A DC Adapter | 100V-240V AC to 5V DC Adapter |
What is an HDMI splitter?
An HDMI splitter is a device used to distribute a single HDMI source to multiple displays. It is usually designed with an HDMI input port and multiple HDMI output ports, like 1×2, 1×4. You can connect an HDMI source, like a cable box, DVD player, PC to it via its HDMI input port, then connect multiple displays to it via its HDMI output ports.
Compare with similar items
What's in the box
Looking for specific info?
Product information
| Product Dimensions | 2.76 x 2.36 x 0.79 inches |
|---|---|
| Item Weight | 8.1 ounces |
| ASIN | B004F9LVXC |
| Item model number | VHD-1X2MN3D |
| Customer Reviews |
4.5 out of 5 stars |
| Best Sellers Rank | #19 in Satellite TV Splitters |
| Is Discontinued By Manufacturer | No |
| Date First Available | April 13, 2017 |
| Manufacturer | U9LTD |
Warranty & Support
Feedback
Videos
Videos for related products

6:53
Click to play video

4K HDMI Splitter - How to Use
OREI Direct
Videos for related products

0:57
Click to play video

4K HDMI Splitter 1 Input 2 Outputs
TOPYIYI US
Videos for related products

1:17
Click to play video

Simple 1 in 2 out 4k HDMI splitter works as advertised!
SMARTIPS

Videos for related products

1:16
Click to play video

A Must Have For Video Game Content Creators
✅ Keep It Real Reviews

Videos for related products

4:53
Click to play video

Watch movie in two TVs by HBAVLINK HDMI Splitter 1 in 4 out
HB Link US
Videos for related products

1:44
Click to play video

Setting extended mode for hdmi splitter 1 in 4 out
MT-ViKI
Customer reviews
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonReviews with images
Submit a report
- Harassment, profanity
- Spam, advertisement, promotions
- Given in exchange for cash, discounts
Sorry, there was an error
Please try again later.-
Top reviews
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
I bought an M-Classic to upscale Switch, Xbox360, and PS3 games. It worked great except my TV would not recognize it's 1440p signal. So the M-Classic would only upscale to 1080p.
Buying the EVanlak HDMI Edid emulator to trick my TV and M-Classic to handshake at 1440p. It worked perfect except for my PS3 because I could not turn off HDCP in the settings.
I tried to buy the recommended OREI splitter to disable HDCP but the model selling now no longer does this.
I found this and read the reviews that said this would strip HDCP. I figured why not.
I am glad I took the risk. This works great!
I can now upscale to 1440p 60hz on my PS3.
As far as I can tell this adds little to no noticeable lag.
My set up is PS3 to splitter to remove HDCP, splitter to M-Classic to upscale, and M-Classic to Edid to force the handshake to my TV.
For reference my TV is Vizio M55Q8-H1
Some times when switching games I would have to unplug and plug back in the M-Classic usb to get picture. That is on the M-Classic not this splitter.
Hope this helps those like me.
Reviewed in the United States on August 16, 2023
I bought an M-Classic to upscale Switch, Xbox360, and PS3 games. It worked great except my TV would not recognize it's 1440p signal. So the M-Classic would only upscale to 1080p.
Buying the EVanlak HDMI Edid emulator to trick my TV and M-Classic to handshake at 1440p. It worked perfect except for my PS3 because I could not turn off HDCP in the settings.
I tried to buy the recommended OREI splitter to disable HDCP but the model selling now no longer does this.
I found this and read the reviews that said this would strip HDCP. I figured why not.
I am glad I took the risk. This works great!
I can now upscale to 1440p 60hz on my PS3.
As far as I can tell this adds little to no noticeable lag.
My set up is PS3 to splitter to remove HDCP, splitter to M-Classic to upscale, and M-Classic to Edid to force the handshake to my TV.
For reference my TV is Vizio M55Q8-H1
Some times when switching games I would have to unplug and plug back in the M-Classic usb to get picture. That is on the M-Classic not this splitter.
Hope this helps those like me.
I purchased this for him and helped him set it up to his capture card.
It was super easy to set up and works perfectly fine. I find that sometimes we had to unplug it and plug it back in to get the capture card to register it, but that is a rare occurrence.

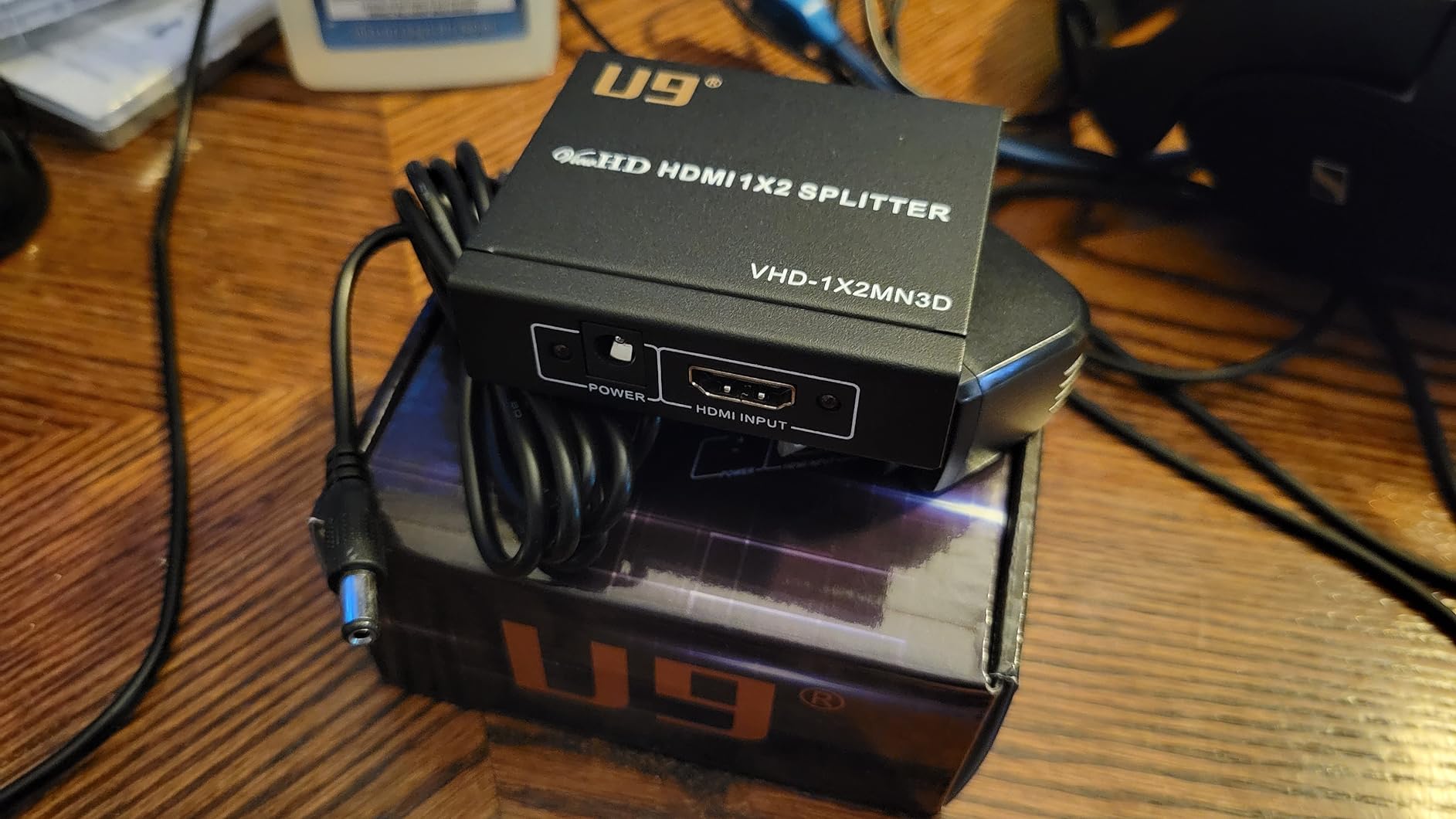

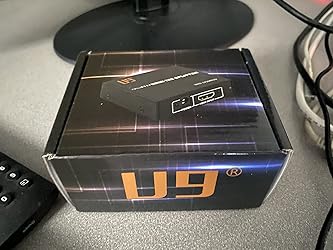

Upon unboxing the splitter, I was surprised that the device was a bit heftier than I had initially expected, which was promising. All you get in the small package is the splitter itself and its power adapter, and so you'll have to supply your own output HDMI cable.
Setting the splitter up with my PS3 was simple enough. I first moved the output end of the PS3's HDMI cable into the splitter's input port, and then I grabbed a spare HDMI cable I had on hand and got both ends plugged into the splitter's "Output 1" port and one of my HDMI switcher's input ports respectively.
During my testing, I noticed that my recorded footage had an AWFUL screeching noise in place of the game audio. In an attempt to troubleshoot the issue, I re-ran the PS3's automatic audio setup on HDMI, which seemed to fix the issue by only picking out the default "Linear PCM 2 Ch. 44.1kHz" and "Linear PCM 2 Ch. 48kHz" options that you can't untick if I recall correctly. If the automatic audio setup doesn't pick those for whatever reason, make sure those are the only options picked.
I would like to make it clear that using this splitter with a PS3 will limit your available audio settings through HDMI to the default "Linear PCM 2 Ch. 44.1kHz" and "Linear PCM 2 Ch. 48kHz" options, so I'd suggest any audiophiles to keep that in mind if that's something you're worried about.
I was using OBS Studio for my recordings, and I'd recommend looking up how to adjust the program's audio sampling rate. OBS's setting should match with the sampling rate on the other audio devices in your PC's recording setup to minimize lag when you have OBS output sound from your capture device. However, I'd like to clarify that the audio in recordings don't seem to suffer from any sort of lag problem.
Unfortunately, you'll lose HDMI-CEC or "Control for HDMI" functionality on Slim and Super Slim PS3 systems when using this splitter with those systems, since it explicitly doesn't support that as mentioned in the product description.
Lastly, I've seen suggestions to use the splitter's 2nd output port for PS3 HDCP stripping purposes, but I'd like to note that using the 1st output port has been working fine for me personally.
Top reviews from other countries
Ended up fixing the case myself, but still have concerns over the board being defunct as the product does not work.
Left feedback for the seller via Amazon, but no response yet. To be fair, it's the first time I've ever had to leave a problem feedback so I hope it was done correctly.
Regardless, given the experience so far, I would not recommend either the product or the seller.
Im Betrieb konnte ich keine Verschlechterung der Bildqualität, Störungen, Aussetzer oder Verzögerung feststellen.
Ein netter Bonus des Splitters, er kann anscheinend kein HDCP. In meinem Testsetup war es problemlos möglich, eine Blu-ray Disc von der PS4 mit einem Elgato Game Capture HD in 1080p aufzunehmen. Dabei war es unerheblich, ob am zweiten Ausgang des Splitters noch ein HDCP-konformes Ausgabegerät gesteckt war oder nicht.
Die Leistungsaufnahme des Splitter (gemessen mit einem Brennenstuhl Energiemessgerät Primera-Line PM 231 E ) beträgt im Standby 2-2,1 Watt. Im Betrieb benötigt er 2,9-3,3 Watt und wird angenehm warm - wärmer, als ich erwartet hatte.
Sinon il fait amplement son boulot sans perte de signal ou de qualité.
Testé avec un avermedia sur PS4/PS3
Couplé avec l'Avermedia Live Gamer Portable (C875) vous pourrez enregistrer toute source HDMI.
