I purchased this drive to go into a Thermaltake BlacX docking enclosure to have as a backup drive on an external eSATA connection. I also had to buy the external port and attached cable to connect the Mother Board socket to the computer back plate. My mother Board has 4 SATA sockets. Worth a check before you try this solution for a backup drive if you already have 2 internal hard drives. So far the drive and enclosure works fine.
At first when coping from the (int)C:\ drive to the new external drive, after creating two 495 Gig partitions and formatting them (which took about 4 hours to run BTW) the drive was extraordinarily slow. It took about 220 minutes to copy a 12 Gig folder. However form the (int)D:\ drive, the same folder took only 6 minutes. About the same when coping between the two internal drives.
I had to take a look at the properties of the controllers and fix the speed settings for the PCI ATT/ATAPI Controllers. My PC shows 3 of these and the first Primary controller was set to PIO transfer rate. This is the slowest rate possible and is normally auto set when the Controller received Busy/Timeouts back from the channel. My assumption is that happened when I first hung the new drive on the system and it was not prepped/formatted.
The fix is easy, just right click on "My Computer", select "Manage", then "Device Manager", and open up the "IDE ATT/ATAPI Controllers", There were 3 listed on my Win-XP PC. Two Primary and a Secondary. Open up each controller and select the top tab "Advanced Settings". Check to see what the "Current Transfer Mode" window is set at. It should say "DMA if available" and "Ultra DMA Mode 5" or 2.
If it says "PIO Only" mode, then the transfer rate has been set to the slowest possible speed.
To solve this, Right click on the errant Controller and select "Uninstall". You will then be prompted to Reboot. The controller will be reset to the maximum speed again and following another prompted Reboot. After the controller is found and reinstalled, check that it says "DMA if available" and "Ultra DMA Mode 5" or 2.
The speeds will then be up to snuff :)
This is an excellent solution for keeping backups of your important data on another device with good speed and integrity.
I thoroughly recommend it.
| The power of choice. The quality of WD. | ||
 |  |  |
| WD Caviar® Blue™ | WD Caviar® Green™ | WD Caviar® Black™ |

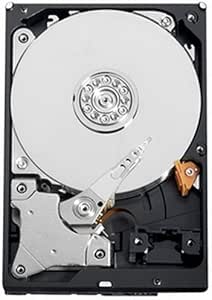

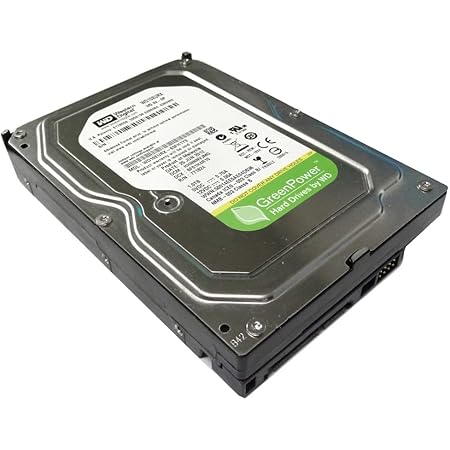

WD Caviar Green – Cool, quiet.
As hard drive capacities increase, the power required to run those drives increases as well. WD Caviar Green drives make it possible for energy-conscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.
|
 WD Caviar Green drives use less power and support quieter, cooler-running desktop PCs and external storage devices.  |
Reduced power consumption - WD has reduced power consumption by up to 40 percent compared to standard desktop drives with the combination of WD's IntelliSeek, NoTouch, and IntelliPower technologies.
Helps enable PCs - WD Caviar Green drives yield an average drive power savings of 4-5 watts over standard desktop drives making it possible for our energy-conscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.
Cool and quiet - WD GreenPower Technology™ yields lower operating temperatures for increased reliability and low acoustics for ultra-quiet PCs and external drives.
Massive capacity - Capacities up to 2 TB offer the most available capacity for storage-intensive programs and space-hungry operating systems, like Windows Vista®, with plenty of room left over for photos, music, and video.
Perfect for external drives - External drive manufacturers can eliminate the need for a fan in a high-capacity product with a WD Caviar Green drive, the coolest and quietest in its class.
 View IntelliSeek demo here. |
 PMR |
IntelliPower - A fine-tuned balance of spin speed, transfer rate and caching algorithms designed to deliver both significant power savings and solid performance.
IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise, and vibration.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Perpendicular Magnetic Recording (PMR) - Employs PMR technology to achieve even greater areal density.
StableTrac™ - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking, during read and write operations. (2 TB models only)
Low power spin-up - WD Caviar Green drives consume less current during startup allowing lower peak loads.
Advanced power technology - Electronic components deliver best-in-class low power consumption for reduced power requirements and increased reliability.
