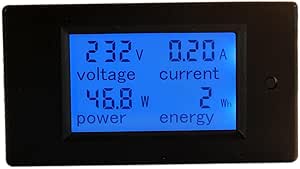

bayite AC 80-260V 100A BAYITE-PZEM-061 LCD Display Digital Current Voltage Power Energy Multimeter Ammeter Voltmeter with Current Transformer CT

Brand: bayite

446 ratings

Amazon's Choice for Multi Testers by bayite

Price:

$16.98 Get Fast, Free Shipping with Amazon Prime & FREE Returns

This fits your .

Make sure this fits by entering your model number.

The meter can only measure the active power(real power). It doesn't show Apparent power.
Voltage test range: One-Phase 80~260V AC Power, 50/60HZ
Store energy data when power off(can be reset).
Large-screen LCD (display voltage, current, active power, energy at the same time).
The blue backlight can be turned on/off manually.

› See more product details

New (2) from $16.98 & FREE Shipping on orders over $25.00

Make it a bundle

We found 2 bundles with this item:

bayite AC 80-260V 100A BAYITE-PZEM-061 LCD Display Digital Current Voltage Power Energy Multimeter Ammeter Voltmeter with Current Transformer CT

Page 1 of 1Start overPage 1 of 1

AC Multimeter and Plastic Junction Box

24.99 27.93

This bundle contains 2 items
AC Multimeter and Plastic Junction Box with Lock

30.49 33.97

This bundle contains 2 items

Frequently bought together

Total price: $33.97

Buy the selected items together

This item:bayite AC 80-260V 100A BAYITE-PZEM-061 LCD Display Digital Current Voltage Power Energy Multimeter… $16.98
In Stock.
Sold by CrocSee and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00. Details
bayite DC 6.5-100V 0-100A LCD Display Digital Current Voltage Power Energy Meter Multimeter Ammeter… $16.99
In Stock.
Sold by CrocSee and ships from Amazon Fulfillment.
FREE Shipping on orders over $25.00. Details

Customers who viewed this item also viewed

Page 1 of 1 Start overPage 1 of 1

More items to explore

Page 1 of 1 Start overPage 1 of 1

Special offers and product promotions

Amazon Business : Discover discounts and FREE shipping on work supplies. Register a free business account

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.

All Product Information Customer Q&A's Customer Reviews

Compare with similar items

		CrocSee AC 80-260V 100A CRS-022B LCD Display Digital Current Voltage Power Energy Frequency Power Factor Multimeter Ammeter Voltmeter with 100A Split Core Current Transformer	AC Current Voltage Amperage Power Energy Panel Meter LCD Digital Display Ammeter Voltmeter Multimeter with Split Core Current Transformer CT AC 80-260V 100A (AC 100A Meter(Split Core Transformer))	AUTENS AC Digital Meter AC 80-260V 100A Current Voltage Power Energy Panel Monitor (AC 100A Meter with Split Core CT)	bayite AC 80-260V 100A BYT-VAEM-034 Digital Current Voltage Power Energy Analyzer Meter Ammeter Voltmeter with Open-Close Current Transformer Split Core CT

Customer Rating	(446)	(334)	(800)	(24)	(178)
Price	$16.98	$19.98	$22.99	$26.69	$18.98
Shipping	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime	FREE Shipping. Details	FREE Shipping on orders over $25.00 shipped by Amazon or get Fast, Free Shipping with Amazon Prime
Sold By	CrocSee	CrocSee	MorningGroup	AUTENS DIRECT	CrocSee

Compare with similar items

Product description

This meter can only be used with one-phase AC power. And it can only measure the active power(real power). It doesn't show Apparent power. For more information about the difference, please search AC POWER on wikipedia.

Main Specifications:

Working voltage: 80 ~ 260VAC
Working frequency: 50/60Hz
Measuring Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Store data when power off.
The blue backlight can be turned on/off manually

Test Range:

1. Power test range: 0~22kW
2. Energy test range: 0~9999kWh
3. Voltage test range: 80~260V(single-phase)
4. Current test range: 0~ 100A

Cautions

1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.
3. Wiring order can not be wrong.
4. This module is suitable for indoor applications, please do not use outdoors.

Package includes:
1x AC Power Multimeter

Warranty:
1-year free replacement or full refund without return.
If the item you have received is defective in any way, please message us for free replacement or a full refund without return.

Product information

Technical Details

Manufacturer

Bayite

Part Number

BAYITE-PZEM-061

Item Weight

3.84 ounces

Product Dimensions

3.54 x 1.97 x 0.94 inches

Is Discontinued By Manufacturer

Item Package Quantity

Batteries Included?

Batteries Required?

Additional Information

ASIN

B00YY1KOHA

Customer Reviews

446 ratings

4.5 out of 5 stars

Best Sellers Rank

#48,494 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement)
#105 in Multi Testers

Date First Available

June 5, 2015

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to tell us about a lower price?

Customer Questions & Answers

See questions and answers

Customer reviews

5 star		73%
4 star		18%
3 star		2%
2 star		2%
1 star		4%

How are ratings calculated?

Top reviews from the United States

There was a problem filtering reviews right now. Please try again later.

Brandon

Works great to monitor load while running on generator.

Reviewed in the United States on October 1, 2017

Verified Purchase

I purchased two of these to monitor the power usage within my home while running on my 7500 watt generator during a power outage. These things work great! You can easily monitor the power usage and get more efficiency out of your generator without worrying about miscalculating load. I installed 2 of these in a 240v 70 amp distribution panel. I connected the top monitor to the line 1 (120v) and the bottom monitor to line 2 (120v). Now I can see the actual power load of the appliances in my home which allows me to use things like my toaster oven and microwave that I never thought was possible while on generator.

15 people found this helpful

Helpful

Bob Barker

Just Watt you've been looking for!

Reviewed in the United States on June 9, 2017

Verified Purchase

Fun little AC Ammeters! When our power bill spiked several months ago I picked up a few of these to track down usage by circuit. You can use them on both 120V and 240V AC circuits, but be aware some 240V AC appliances (dryer, oven) don't have similar readings on each legs, whereas others (hot water heater, air conditioner) do.

I really appreciate how the readings aren't discarded upon loss of power.

One can easily cut an appropriate size hold in a 4" metal junction box cover using a drill and jig jaw, mount the meter on that, and then put the whole shebang in a junction box. These are right at home on top of your existing service panel (see pics).

Sometimes I'll get minor readings showing very slightly power consumption when there is none... or the Watts / Volts = Amps equation is not quite in check (again, very minor errors), but keep in mind this is an inexpensive meter and lab-grade accuracy should not be expected.

I'd definitely buy again!

13 people found this helpful

Helpful

Teck

I couldn't be happier with the result of this meter

Reviewed in the United States on September 21, 2015

Verified Purchase

Now I can finally see how much power my desktop is finally pulling. I have been trying to get an idea of my power usage and amp draw while in game. I couldn't be happier with the result of this meter. One note I have to make mention of there is really no mounting hard ware for this meter. That being said you need to figure out your own enclosure and mounting style. I wired it inside a 2X4 grounded electrical box as I have posted an image below.

I didn't deduct a star from this meter because from looking at the images it didn't appear to have a mounting method so just keep that in mind if you decide to buy.

31 people found this helpful

Helpful

Brian A. Weaver

Make sure you get the orientation right

Reviewed in the United States on October 1, 2018

Verified Purchase

Well I had a 50/50 chance and I managed to install my meter upside down. I misplaced the instructions, but they were pretty minimal from what I remember. I can't complain about the meter though. It works great, especially once I figured out how to reset the energy usage.

I installed it to measure the Total Energy cost for my EV on a 240V circuit. That included the cost of electricity that the meter itself consumes, which is roughly 1.5 watts of power if it's correct. The current transformer (CT) was sufficiently large enough to slip a 6 gauge wire though for the power measurement.

I only wish it had a bit better resolution on the kWH energy meter. Once it gets into the teens you lose the tenth of a digit of precision. It really doesn't matter since the power company bills on kWH. I just happen to be a data nerd. For the cost of the meter it's seems like an outstanding value.

5 people found this helpful

Helpful

T. Davis

Nice inexpensive way to measure circuits at the panel

Reviewed in the United States on January 18, 2020

Verified Purchase

5th star is for the excellent diagram posted to Help comments by the seller. This support diagram makes the product make sense.

Did myself a favor and ran all wires with 12ga out of a 2-ft hunk of Romex, with wire nuts and tie wraps to fix it all together into a fairly usable "tool". This way I can pull the hot & neutral off a circuit, wire-nut them thru the tool, and have full-load current flow to get the best measurements.

It'd be nice if there was a peak hold and a way to read and save surge-current curve, for accurate measurement of motor startup loads. As it is, the readings showed up too slow to give me any info on LRA surge for my septic pump, but was quick enough to show me the soft-start surge steps for my furnace fan.

2 people found this helpful

Helpful

Brent H

Great for my whole house energy inventory

Reviewed in the United States on October 3, 2018

Verified Purchase

Warning: Don't try this unless you have Electrician skills. Extreme shock hazard!

So glad I found this!
I love it for 220V wired-in appliances. First up is my water heater. About 15 more items to go after that. I plan to do most of them right at the breaker panel. The split core current sensor is great for doing it at the breaker panel, since don't need to disconnect the Romex from the breakers. Can even monitor several lines at once, just clip the core over the wires you want.

After my inventory, I plan to leave one permanently hooked up to the line to my daughter's AC/Heat Pump. If she's burning through the KWh, I want to know about it.

3 people found this helpful

Helpful

The Dancing Banana

Maybe I got a bad one? Not accurate at all.

Reviewed in the United States on January 20, 2021

Verified Purchase

I purchased this to monitor the power output of a new tie inverter. Although my off-grid solar controller was showing 410 watts of DC power going in from my ten 100 watt panels, the bayite meter was showing only 120 watts of AC power going out. At first I thought the tie inverter was suffering from serious inefficiencies because the scale was the same for any amount of power -i.e. the solar controller always showed about 3.5 times more power going in than the bayite meter showed going out. But as a last resort I got a new AC power meter made by DROK, set it up using the same configuration and cabling, and it showed output power that was within just one or two watts of that which was reported going in from the solar controller. Just to be sure, I re-installed the bayite meter and verified that the inaccuracy still existed. At this point I don't know if it was the bayite meter that was inaccurate or the hall sensor that came with it or both, but I'll be steering clear of bayite instruments from now on.

Helpful

Awesome little power meter.

Reviewed in the United States on May 2, 2017

Verified Purchase

Glad to report that this little power meter is working as advertised. Quickly I hooked up a couple incandescent lights, 60W and 100W, and you can see that my HIOKI DMM is indicating basically the same current, therefore, same power. Too bad they do not make it the same size to fit in an outlet electrical box, that will be super!
