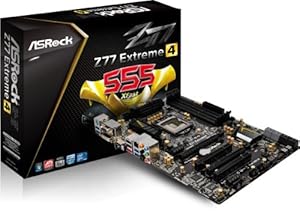

AS Rock LGA1155 DDR3 SATA3 USB3.0 Quad CrossFireX and Quad SLI A GbE ATX Motherboard Z77 EXTREME4

4.2 out of 5 stars 278 customer reviews
| 80 answered questions
Available from these sellers.
    This fits your .
  • Enter your model number to make sure this fits.
  • CPU: LGA1155; Supports 2nd/3rd Generation Intel Core i7/ i5/ i3 Processor; Supports Intel Turbo Boost 2.0 Technology; Supports Hyper-Threading Technology
  • Chipset: Intel Z77
  • Memory: 4X DDR3-2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMM Slots, Non-ECC, Unbuffered, Dual Channel, Maxi Capacity up to 32GB
  • Slots: 2X PCI-Express 3.0 X16 Slots (runs at X8), 2 X PCI Express 2.0 X1 Slots, 2 X PCI Slots
  • SATA: 4X SATA3 Ports (one connector is shared with eSATA3 port), Two Support RAID 0, 1, 5, 10; 4X SATA2 Ports, Support RAID 0, 1, 5, 10
  • Ports: 8X USB 2.0 Ports (2 rear, 6 via header); 6X USB 3.0 Ports (4 rear,?2 via header); 1X PS/2 Keyboard/Mouse Port; 1X?VGA Port; 1X DVI Port; 1X Optical SPDIF Out Port; 1X HDMI Port; 1X eSATA3 Port; 1X RJ45 LAN Port; Audio I/O Jacks
  • Power Connector: 1X 24-Pin ATX Main Power Connector, 1X 8-Pin 12V Power Connector
Show more
Refurbished (1) from $381.31 & FREE shipping.
Computers and Accessories Gift Guide

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)

Product Description

AS Rock Z77 EXTREME4 LGA1155/ DDR3/ SATA3&USB3.0/ Quad CrossFireX & Quad SLI/ A&GbE/ ATX Motherboard

Product Information

Technical Details

Collapse all
Summary : Screen Size, Screen Resolution, Graphics Coprocessor, Graphics Card RAM
Other Technical Details

Technical Specification

User Manual [pdf ]

Additional Information

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.
Product Warranty: For warranty information about this product, please click here

Feedback

Would you like to update product info or give feedback on images?
Would you like to tell us about a lower price?

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsAwesome board
By bob on November 2, 2012
I put this board in my computer about 6 months ago. My computer is a 2u that sits as a thick client in a server rack. There are several reasons I chose this board, other than price.

1) Solid capacitors (caps are the leading cause of boards bricking over time. "cross-tops" or non-solid capacitors can split or even leak 'goo' when they heat up. It isn't that they aren't rated for their designated uF, they just aren't built for longevity. Solid caps are.)

2) 8+4 phased VRM with pulse modulation (the cleaner the current is to the CPU, the more efficient it is. Pulse modulation uses switching to deliver current much like high end PSUs. With the additional {8+4} transistors/chokes/phases the load is spread out more, letting it run cooler and making it safe (virtually unheard of) from overloading the CPU. These are features that make this board inherently reliable.)

3) The second SATAIII controller {ASMedia ASM1061}supports hot swap at full 6.0 speed.
The Intel controller only supports 2 of the four SATAIII connectors {SATA3_0 and SATA3_1 for RAID}. It's the same with all cougar and panther point chipsets (p67, h67, z68, z77, x79 etc. anything with a numeric designator of 65 and up)

Speaking of SATAIII:

TRIM is NOT supported in RAID 0 in anything but a 75, 77 or 79 series chipset at present (Also you have to have the Intel Rapid Storage Tech version 11.6 or newer which is upgradable on Intel's download site. Without it, you can run 'fsutil behavior query', and it will still say zero, but enabled, and 'on' are two different things in this case). If you want to RAID 0 a pair of SSDs, and have that performance last, you have to get the TRIM working. This board meets the requirements to do that.Read more ›
40 Comments 113 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsExcellent Value, Overclockable, All The Modern Ports
By SCOTT A VIETH on December 24, 2012
I've been using this board for about two months now and have no complaints. Obviously first and foremost, it does its job quite well, and is running my Core i7-2700K Sandy Bridge CPU without any issues (although it's made for Ivy Bridge, 3rd-Generation CPUs).

POSITIVES

* The number of USB3 ports is excellent, and the fact that the on-board USB3 ports are driven by separate chipsets (two on-board, two with an ASMedia chipset) means less congestion when you're pushing all of the ports at once. Plus, the additional headers making for a total of six USB3 ports is a nice overall number.

* The SATA2 and SATA3 ports are nicely organized, but they're definitely made for a case with bottom-mounting hard drives. The case I bought actually had a special mount at the bottom of the case for a 2.5" SSD or hard drive, and with how this board is built, it's perfect.

* The tools that come with the board work well, and aren't overly intrusive. XFast Turbo USB does help with USB speeds (although not as much as they claim), the XFast LAN tool provides great insight on the LAN activity of the computer, and the tuner allows for basic overclocking on the fly. I don't know if this is a CPU, or if it's the board, but the heat factor goes way up even on a small overclock, so like some other reviewers have said, I don't think I'd use this board for hardcore overclocking, but if you need a small boost, maybe 10%, this would do ok even with air-cooling.

NEGATIVES

* The SATA port that's shared with the external SATA3 port isn't clearly marked on the board, so you have to really watch which one you're using if you want to still use the eSATA port.Read more ›
3 Comments 29 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsMother of all gaming motherboards on a budget
By MO from NJ on February 28, 2013
Verified Purchase
I recently ordered this MB and built my first ever gaming rig after a long time. I've to give this motherboard 5 stars as it is built of high quality components and very easy to install. Only issue is that it doesn't come with onboard wireless chip but I still give it 5 stars because you pay half the price for this board compared to Asus or Gigabyte. I would definitely recommend this board for gamers who want to get the juice out of your OC'able processor.

My rig config.
This is the best overclockable processor to build a budget gaming system. Easily OC'ed to 4.2 Ghz without getting hot.
My gig
Intel Core i5-3570K
Rosewill Challenger Case
Corsair Vengeance 8Gb
Rosewill FORTRESS 750 Platinum 80 plus certified PSU
OCZ Vertex 4 128GB SSD
ASROCK Z77 EXTREME4 MOTHERBOARD
1 Comment 15 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
1.0 out of 5 starsWorks when it wants to.
By Gunslinger on December 2, 2015
Verified Purchase
This board is way too erratic. I've never had so much trouble with a PC build ever.

Right out of the box it refused to boot, and was showing a different error code each time. Returned it for another, which worked for a few weeks past warranty before it started having the same problems.

For no reason I can figure out, it will occasionally choose to go into a boot loop when I start it up. It will continue starting up and powering down over and over until I reset it (which doesn't always fix it on the first try).

Trying to navigate the error codes is pointless - they change each time it reboots, and I've tested the issues the codes supposedly report with no problems on other builds.

I'm not sure where the issue is, but its very prevalent in this mobo, I advise going with another board. Just look up asrock boot loop and see how many people have this issue - which is largely unresolved.
Comment 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse

Most Recent Customer Reviews

5.0 out of 5 starsFast boot indeed

Beat my ASUS on fast boot, I'm asus fan. Never had a problem so far, will update this every 6 months or 1 year

Published 3 days ago by Jskillz
5.0 out of 5 starsFive Stars

I just can't play my old games

Published 12 days ago by gabriel figueroa
1.0 out of 5 starsVery disappointed in a company sending out a bad product to ...

Product was damaged an didn't work! Very disappointed in a company sending out a bad product to begin with

Published 22 days ago by Amanda Templon
4.0 out of 5 starsA good medium range board

No complaints.

Published 1 month ago by Jakob Noone
1.0 out of 5 starsAsrock sucks

Failed in days. Motherboard had issues with pci express slots getting stuck at 2x. Asrock is made of cheap components. Flimsy, they Do Not Use digital vrm. Read more

Published 1 month ago by Amazon Customer
2.0 out of 5 starsNo rock, and all roll

My SO, a computer repair technician, purchased this as a temporary board until she could upgrade her from older i7 processor later on. Read more

Published 2 months ago by Jon
5.0 out of 5 starsWorks

Works fine.

Published 2 months ago by Christine V.
5.0 out of 5 starsI think I've found my new favorite mobo brand

Bought as a replacement board. One of the few boards of this generation with official NVMe support BIOS.

This thing oozes quality... Read more

Published 2 months ago by M
5.0 out of 5 starsand the motherboard was on excellent conditions. This one has an...

There was no delay on the delivery time, and the motherboard was on excellent conditions. This one has an improvement compared to the previous one I bought: the cpu's socket cover... Read more

Published 2 months ago by Francisco Hernandez
5.0 out of 5 starsFive Stars

great

Published 3 months ago by elite oc club
