I ordered this Baofeng programming cable to transfer a bunch of frequencies as well as access the squelch settings of my Baofeng UV-5RVP Hi-Power, dual band radio. At first I assumed that it would work only on my Baofeng handheld transceiver, but was pleasantly surprised that this cable also works for my TYT UV8-R and Welink M5 handheld transceivers.
Although I primarily use the popular CHIRP software, I discovered that this cable also works well with the factory supplied programming software from TYT and Baofeng. If you have a Welink M5, Google for the SainSonic RST-599 programming software as the waterproof Welink M5 handheld is actually based on the RST-599.
The programming cable is well built and the USB-to-serial electronics are nicely encapsulated into the head. Note that you must ensure that the dual pronged jacks snap into your handheld's mic and earphone sockets snugly for this cable to work with your programming software. If CHIRP fails to communicate with your radio, always check whether the pins snap into your radio tightly.
If you're a Windows user, this cable seems to select COM3 or COM4 as the default communications port. Windows 10 users should take special note: you'll require the older Windows Vista Prolific driver ver 3.2.0.0. for this cable to work properly. If Windows 10 automatically updates to its latest driver, you'll have to roll back to the version 3.2.0.0 via Device Manager (look under the Ports (COM & LPT) category).
In a nutshell, I am very pleased with this product. There are other programming cables for amateur radio equipment out there but this one works not only for Baofeng radios, but with any brand and model that the CHIRP software (actually it's donation-ware) supports.
Add a debit or credit card to save time when you check out
Convenient and secure with 2 clicks. Add your card
Top rated similar items
Page 1 of 1 Start overPage 1 of 1
Frequently bought together
$19.99
Get it as soon as Friday, May 31
In Stock
+
Total price:
To see our price, add these items to your cart.
Choose items to buy together.
Reviews with images

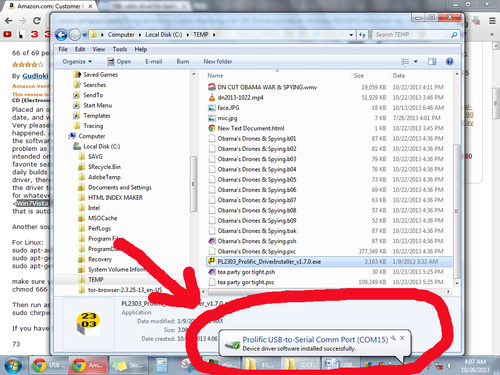

---> HOW TO INSTALL DRIVER FOR WINDOWS 7 <---
FIX & FIGURED OUT!First let me say that before I correctly installed the proper driver first, plugging the Cable into the Radio & the PC would put the Baofeng UV-5R into Transmit mode, and cause my PC to shut down. Here is how you fix that!Important: DO NOT plug in the cable to the radio until you get the driver installed. This may cause an excessive power demand from your PC's USB port and cause shut down or damage.Here is the quick & easy way to install a working driver that is already inside of Windows.Plug in the USB Radio Cable to your PC only.Wait for Windows to recognize the new device. (If Windows does not recognize device, go to Device Manager to configure USB Cable driver.)When asked for a driver/location select Install Driver Manually.Select HAVE DISC button.For the TYPE of device scroll down & select PORTSFor the driver manufacturer scroll down & select PROLIFIC(The USB Serial GPS should be selected on right half of window.)Windows will give you a warning about the driver, just ignore and continue.Make sure you look to remember which Port it used. (Ex. COM7)If you forget which Port is used, you can bring up Device Manager to find the device & port.If you install Chirp software, you will need to configure it for the Baofeng UV-5R. Make sure you select the correct Port# or it will not find your radio. It will also give you a warning about Baofeng compatibility, just ignore that and continue to "clone" the information from your radio into Chirp software.When the radio is SENDING information to the software app, the light on the radio will blink RED.When the radio is RECEIVING information from the software app, the light will blink GREEN.Below is an alternate method for installing the software that came on the mini CD-ROM disc.Okay folks...I had the similar problems of not being able to install the driver, nor the WIN7 OS being able to assign a correct one so here is what I did to make it work - EASY!1. Insert the small drivers disc into your CD-ROM/DVD-ROM.2. Navigate to the root directory and you will see the Folder "M_K"3. Go inside the "M_K" folder and you will see a folder named "USB"4. Go inside the USB folder and you will see another folder named "新版驱动" Example: F:\M_K\USB\新版驱动 (where "F:" is your CD/DVD drive.)5. Inside the folder named "新版驱动" you will see a file named: "PL2303_Prolific_DriverInstaller_v1.7.0.exe"6. Copy that file to a temporary folder somewhere on your hard drive (C:)7. You can now run the file without it crashing!8. The installation should go without any issues and report that the USB driver has been installed correctly.For some reason, the file is not able to run from the root directory on the mini CD-ROM, and needs to be copied to your computer to run.You may also want to right-click ("I said, RIGHT-CLICK!") and select "Run as Administrator" if there are problems. I didn't have any, but I am logged on as Administrator of my machine and only have one logon account for this machine.Please gimme a thumbs up by clicking the "this helped me out" button below!
Top reviews from other countries
ADNET
Produit inutilisable sur UV-5R car non reconnu sur pc w10
Reviewed in France on January 3, 2021
