OK, I don't know why it took so long for me to find something like this. I mean, trying to cram CAT6 cables into an RJ-45 plug is awful. You have to line them up, trim them so they're even, and pray that you get them all in the right holes the first time. Sometimes you get it on the first try, and sometimes you're fidgeting with one termination for 20 minutes. It's like like trying to shoot billiards with a rope. On top of that, you don't know if you got it until you test the cable. Even then, you'll sometimes just barely hit one of the leads on the plug. It tests fine, but a little wiggling and the cable loses the link, usually for the boss, and usually during the most critical possible time. Well no more. With this crimper, you can put each wire in individually. (I find this faster and less frustrating than trying to get all eight in one shot.) You do lose an additional 2-3 inches off each end, so be sure to measure your cable appropriately. Also, and I found this out through trial and error, be sure that each cable is very straight before inserting it. Especially if you're terminating stranded cable. The natural waves in the wire from the twisting will play havoc on trying to put the wires in. Once they're all in, you can pull, not push, until it's tight, so as to minimize the untwisted distance of the cable. You can verify that it's correct, then crimp it, with the full knowledge that the contacts will all be correctly seated and secure. I've tested every cable I've made with this, and so far, not a single one has had any problems. Plus, if you utilize the whole EZ-RJ45 system, you also get strain relief boots for the cables. (Which is required for CAT6) This makes for accurate, factory quality cables each and every time.
Of course the plugs are more expensive than standard RJ-45. Platinum Tools has patented a genius product, and they know it. It's one of those "Man, why didn't I think of that?" things. Plus, when you consider the time and the cost of re-terminating bad cables, it's more than worth it to buy into the system. It seems like a bit of a racket, but this tool really is top-notch quality. As good or better than any crimper on the market, and in fact, you can use it on standard RJ-45 plugs if you need to.
I wouldn't hesitate to recommend this system to anyone who makes cables. The extra expense saves time, money and frustration in the long run.
4 stars and above
Page 1 of 1Start overPage 1 of 1
From the manufacturer
Platinum Tools 100054C Clamshell EZ-RJPRO HD Crimp Tool
The new EZ-RJPRO HD Crimp Tool is designed for the professional installer providing a ratcheted, high leverage, ultra stable platform for consistent, repeatable terminations. This heavy duty tool is the perfect solution when working with high performance, larger OD cables that are tougher to terminate due to larger wire gauges, thicker, harder insulation on the conductors and pair separating splines. Not only will you overcome these connectivity obstacles but you can be assured that every termination will meet FCC specifications. Compatible with all EZ-RJ45 and EZ-RJ12/11 connectors as well as all standard modular plugs, except AMP.
- Zero flex frame prevents torque loss during the crimping cycle.
- Tool steel die head assembly provides 360 degree of connector support during crimp.
- Clean, ultra flush trim on the EZ-RJ45 extended conductors.
- Expanded surface area on contact drivers delivers full, uniform crimp force.
- Built-in cutter and stripper for flat and round cable.
- Patented 'crimp and trim system' delivers a clean, flush trim on the extended conductors for all EZ connectors.
- Ratcheted, high leverage and stable platform for consistent, repeatable terminations.
- Full surface to surface contact delivers uniform crimp force.
- Laser marked with wiring guide for proper wire sequence.
Application
The EZ-RJPRO HD Crimp Tool uses the EZRJ45 patented 'crimp & trim' system and is designed to handle larger dimensional size cables.
- EZ-RJ45 CAT5e connectors.
- EZ-RJ45 Shielded CAT5e connectors.
- EZ-RJ12/11 connectors and all other RJ45, RJ12 and RJ11 modular plug connectors except AMP.
- EZ-RJ45 CAT6 connectors.
Compare with similar items
This Item  Platinum Tools 100054C Clamshell EZ-Rjpro Hd Crimp Tool | Recommendations  |  |  |  |  | |
| Price | — | $59.99 | $27.99 | $22.49 | $23.99 | $80.99 |
| Delivery | — | Get it as soon as Monday, Oct 14 | Get it as soon as Monday, Oct 14 | Get it as soon as Monday, Oct 14 | Get it as soon as Thursday, Oct 17 | Get it as soon as Tuesday, Oct 15 |
| Customer Ratings | ||||||
| Sold By | — | trueCABLE | YWNEGWE Direct | YWNEGWE STORE | PROTOOL | RedBarn Warehouse |
| handle material | Alloy Steel | Acrylonitrile Butadiene Styrene (ABS), Plastic, Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) | Alloy Steel | Thermoplastic Elastomer (TPE) |
Related products with free delivery on eligible orders
Page 1 of 1Start overPage 1 of 1
Sponsored | Try Prime for unlimited fast, free shipping
Absolutely Genius!!!!!!

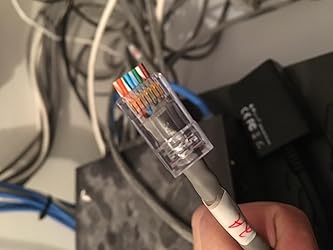

Amazing!!!! I have a Klein crimper which I have been using and getting mixed results. I was trying to finish a video surveillance installation with cat six cable and could not get a good signal, I switched to the platinum crimper with the pass-through platinum crimp plugs, and every single crimp was a successful one!!!! I was definitely wary of the high price of the crimper and the high price of the plugs, but considering that each plug was a success it was worth the money. I did find that after cramping, some of the pass-through wires, especially the ones on the ends, would not cut properly, but that was easily addressed by trimming the wires to 1/2" before crimping (see pic below). If you leave the wires too long before cramping, they want to bend and not cut cleanly
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on October 3, 2012
Reviewed in the United States on May 6, 2012
Top reviews from other countries
Glen
A fantastic quality crimp tool
Reviewed in Canada on October 18, 2018Style: Crimp toolVerified Purchase
FC
Perfect Tool for Crimping EZ-RJ45 Connectors
Reviewed in the United Kingdom on June 22, 2018Style: Crimp toolVerified Purchase
Benjamin Cooper
Beware of fake PlatinumTools 100054C
Reviewed in Japan on January 16, 2021Style: Crimp toolVerified Purchase
Benjamin Cooper
Reviewed in Japan on January 16, 2021

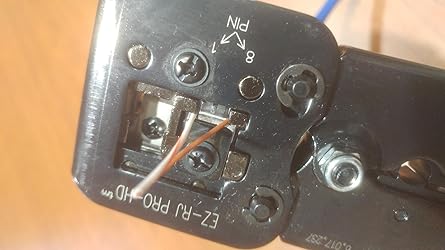

I ordered this tool from two different sellers. I received a genuine PlatinumTools crimping tool from サバーイランド , and a clone from サンセットストア.
Please see the attached photos I made so you can see the differences.
The cloned tool does not crimp RJ45 connectors fully, which may cause damage to your equipment.
Please be careful and ask the seller to verify before ordering to avoid disappointment.
Images in this review
Garrett
Still works after dropping a couple times
Reviewed in Canada on February 5, 2019Style: Crimp toolVerified Purchase
