Este producto: Módulo de guardia de potencia PWRshield LVD-HVD de la pérdida baja, PWRguard
US$48.00
Recíbelo el martes, 30 de julio
Solo queda(n) 14 en stock (hay más unidades en camino).
+
US$45.00
Recíbelo el martes, 30 de julio
Disponible
+
US$59.00
Recíbelo el martes, 30 de julio
Disponible
Precio total:
Para consultar nuestro precio, agrega estos elementos a tu carrito
Elige artículos para comprar juntos.
Opiniones con imágenes

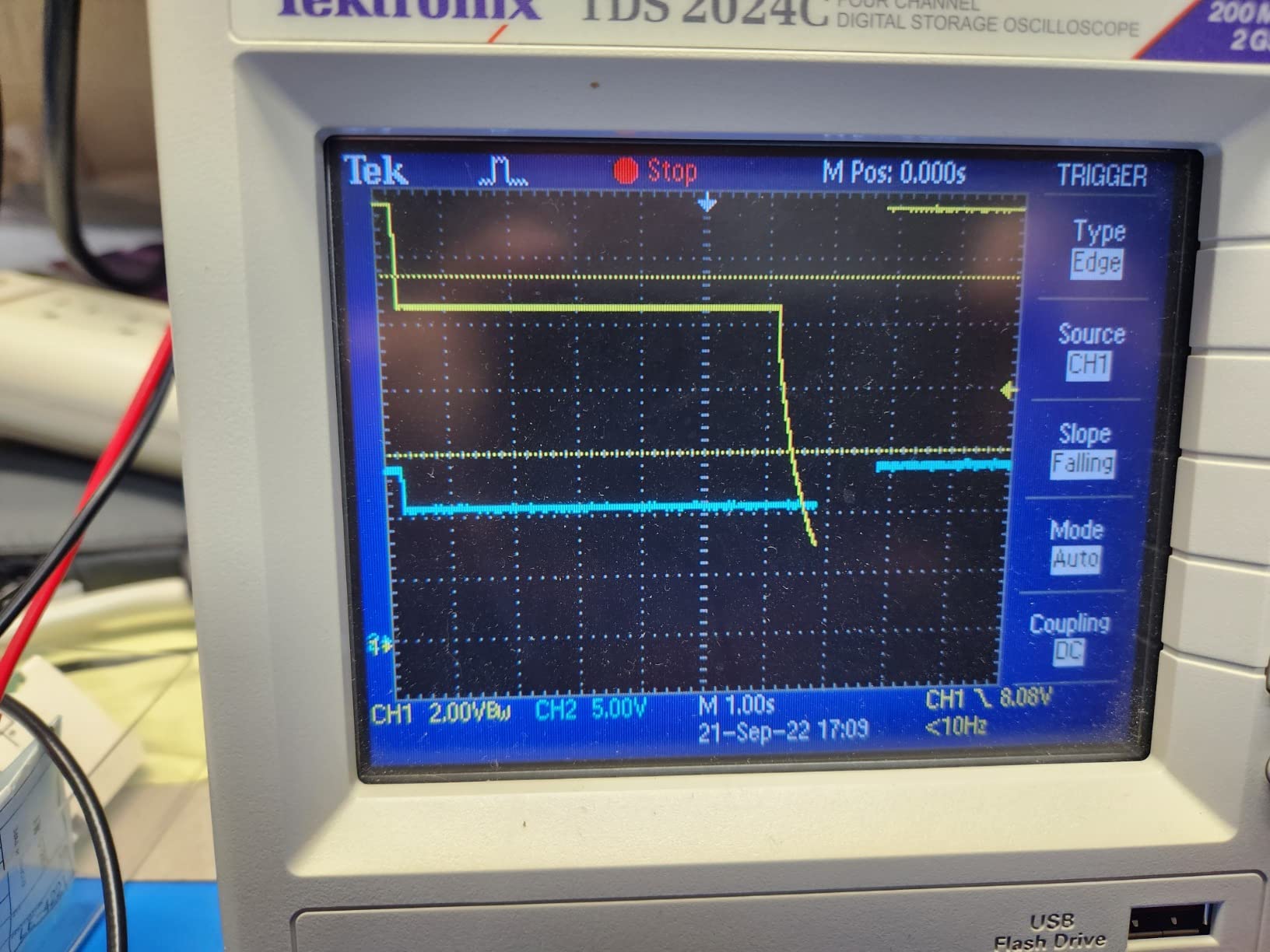

Product works, huge delay in shutoff on low voltage side, slow to turn back on
The product works as stated. I did several tests of the unit. For its purpose to protect batteries from over draining it will shut off at the voltage stated and at room temperature the cutoff was quite accurate on low shutoff, turn back on and the same on the high shut off.The on is on and off is off, both are good options to have so that if you need to use below voltage then you can, but it would also allow high potentially damaging voltage through too. Having an off switch is always a good idea.What I did find was that on low cut off it took 5.8 seconds to disconnect so quick dips do not shut off the output. For example if you are using a ham radio and the current pull causes the battery voltage to drop below 11V for fractions of a second at a time it will not shut off. The same is true for turn on voltage it has a delay of about 5.8 seconds after crossing the enable voltage. That is likely fine so again if using a ham radio and you are protecting your car battery from too much drain it will shut off as it slowly depletes and then not turn back on until after you crank the vehicle and it runs for a few seconds. Likely a good design for this.On the high shutoff, it works well and reasonably quickly. If the voltage is too high at power on then only about 0.5V passes through to the load (I did not have a real load only high impedance in my test so it may allow less if there is real current draw). I want to do some more testing if say you were using a ham radio and the voltage went from 13.8 to 15V how much would pass before it shut off.Quality of the enclosure is good. Quality of the circuit design and soldering is lackluster, no PCB cleanup after soldering, lots of splatter or flux and less than ideal solder joints in many locations, but nothing to prevent it from working.Product came with good instructions, extra parts for like DIN rail mounting and extra PowerPoles and boots for making cables. The only comment about the included paperwork is the flowchart (also was shown on the order page) was printed in black and white and the text of most of the blocks was not readable.The reason I did not give it 5 stars is because of the documentation not being readable and that the long delay in shutoff on under voltage or lack of ability to set it.Initially I believe I will be very happy with my intended purpose.
Opiniones destacadas de los Estados Unidos
Ha surgido un problema al filtrar las opiniones justo en este momento. Vuelva a intentarlo en otro momento.
Calificado en Estados Unidos el 3 de febrero de 2021
Calificado en Estados Unidos el 9 de febrero de 2021
Calificado en Estados Unidos el 22 de septiembre de 2022
The on is on and off is off, both are good options to have so that if you need to use below voltage then you can, but it would also allow high potentially damaging voltage through too. Having an off switch is always a good idea.
What I did find was that on low cut off it took 5.8 seconds to disconnect so quick dips do not shut off the output. For example if you are using a ham radio and the current pull causes the battery voltage to drop below 11V for fractions of a second at a time it will not shut off. The same is true for turn on voltage it has a delay of about 5.8 seconds after crossing the enable voltage. That is likely fine so again if using a ham radio and you are protecting your car battery from too much drain it will shut off as it slowly depletes and then not turn back on until after you crank the vehicle and it runs for a few seconds. Likely a good design for this.
On the high shutoff, it works well and reasonably quickly. If the voltage is too high at power on then only about 0.5V passes through to the load (I did not have a real load only high impedance in my test so it may allow less if there is real current draw). I want to do some more testing if say you were using a ham radio and the voltage went from 13.8 to 15V how much would pass before it shut off.
Quality of the enclosure is good. Quality of the circuit design and soldering is lackluster, no PCB cleanup after soldering, lots of splatter or flux and less than ideal solder joints in many locations, but nothing to prevent it from working.
Product came with good instructions, extra parts for like DIN rail mounting and extra PowerPoles and boots for making cables. The only comment about the included paperwork is the flowchart (also was shown on the order page) was printed in black and white and the text of most of the blocks was not readable.
The reason I did not give it 5 stars is because of the documentation not being readable and that the long delay in shutoff on under voltage or lack of ability to set it.
Initially I believe I will be very happy with my intended purpose.
Product works, huge delay in shutoff on low voltage side, slow to turn back on
Calificado en Estados Unidos el 22 de septiembre de 2022
The product works as stated. I did several tests of the unit. For its purpose to protect batteries from over draining it will shut off at the voltage stated and at room temperature the cutoff was quite accurate on low shutoff, turn back on and the same on the high shut off.Calificado en Estados Unidos el 22 de septiembre de 2022
The on is on and off is off, both are good options to have so that if you need to use below voltage then you can, but it would also allow high potentially damaging voltage through too. Having an off switch is always a good idea.
What I did find was that on low cut off it took 5.8 seconds to disconnect so quick dips do not shut off the output. For example if you are using a ham radio and the current pull causes the battery voltage to drop below 11V for fractions of a second at a time it will not shut off. The same is true for turn on voltage it has a delay of about 5.8 seconds after crossing the enable voltage. That is likely fine so again if using a ham radio and you are protecting your car battery from too much drain it will shut off as it slowly depletes and then not turn back on until after you crank the vehicle and it runs for a few seconds. Likely a good design for this.
On the high shutoff, it works well and reasonably quickly. If the voltage is too high at power on then only about 0.5V passes through to the load (I did not have a real load only high impedance in my test so it may allow less if there is real current draw). I want to do some more testing if say you were using a ham radio and the voltage went from 13.8 to 15V how much would pass before it shut off.
Quality of the enclosure is good. Quality of the circuit design and soldering is lackluster, no PCB cleanup after soldering, lots of splatter or flux and less than ideal solder joints in many locations, but nothing to prevent it from working.
Product came with good instructions, extra parts for like DIN rail mounting and extra PowerPoles and boots for making cables. The only comment about the included paperwork is the flowchart (also was shown on the order page) was printed in black and white and the text of most of the blocks was not readable.
The reason I did not give it 5 stars is because of the documentation not being readable and that the long delay in shutoff on under voltage or lack of ability to set it.
Initially I believe I will be very happy with my intended purpose.
Imágenes en esta reseña
Calificado en Estados Unidos el 19 de febrero de 2021
Por el momento solo realice pruebas de labirstorio y el dispositivo corta la alimentación según los parámetros configurados.
La contrucción es robusta y los conectores mantienen excelente contacto.
La contrucción es robusta y los conectores mantienen excelente contacto.
Imágenes en esta reseña
Calificado en Estados Unidos el 3 de enero de 2024
Calificado en Estados Unidos el 2 de enero de 2024
Works great to protect over under voltage on expensive radio
Calificado en Estados Unidos el 2 de enero de 2024
This a test set up for over under voltage testing. Set low dip switches to 10-11 voltage and Hi to 14-15 volts. Varied powesupply and it worked perfectly. Going to use on my portable ham radio set up,.
