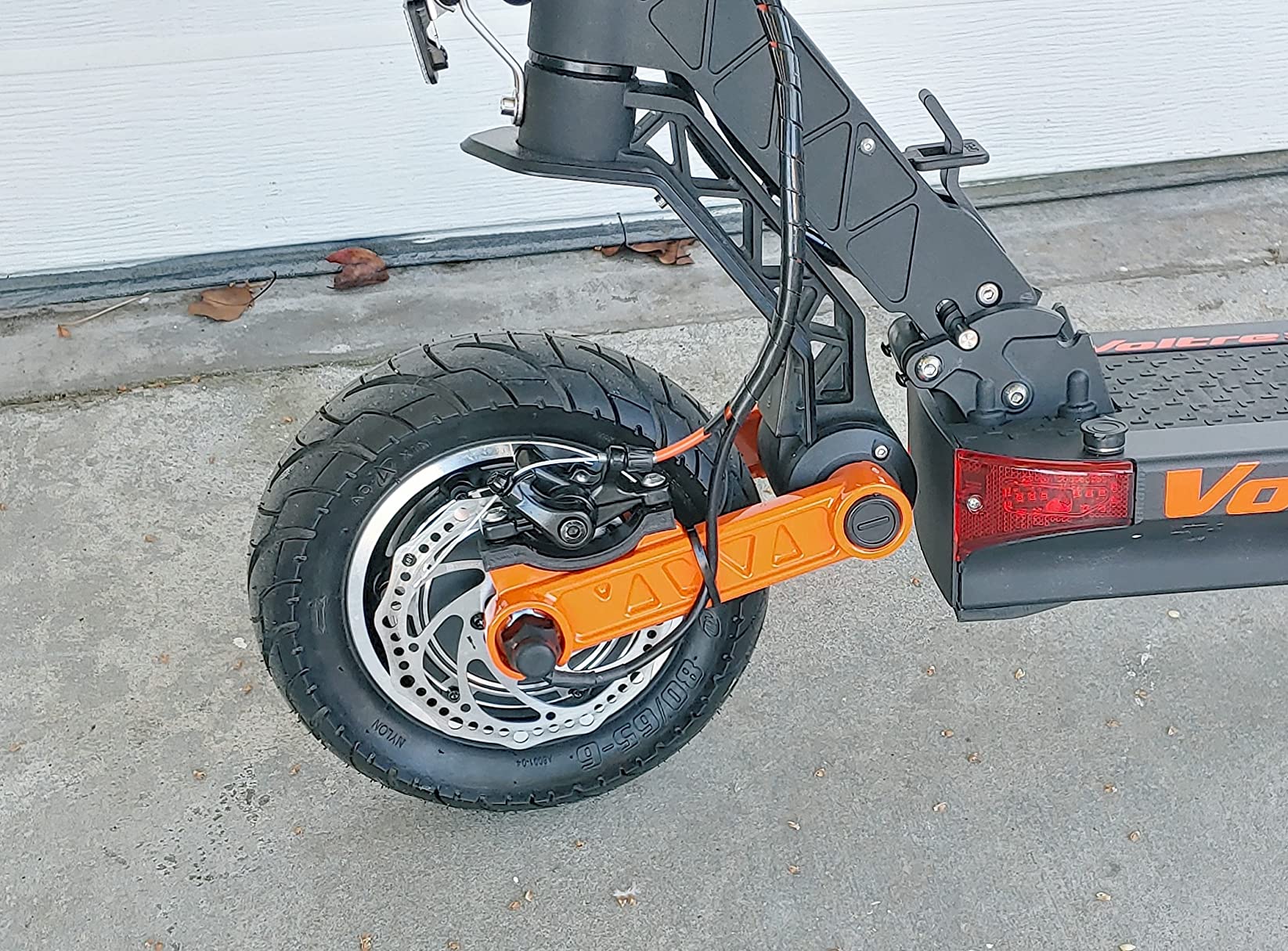

Upped my humble 600w Joyor S5 into a powerhouse of an escooter with a 2nd front motor. Now at a nominal combined 2040w. Loses slight traction off the line and top speed is up by 5-8 mph. I liked this controller so much I bought a 2nd one for one of my other escooters.
Con/Pro: Range has diminished significantly, battery amp hours have been converted to adrenaline inducing fun.
Be sure to connect the thin red wire labeled "door lock" aka ignition to battery positive (also labeled "must be connected"). Add an on/off switch to engage the controller function.
Bare minimum wires that need to be connected for controller to function:
Thick Red, Black (battery + -)
Thick Green, Yellow, Blue (3 phase)
Throttle wire(s), only white is needed to tap signal, if adding a 2nd hub motor.
Thin red switched to battery + (door lock/ignition)
Hall is optional, though will function better in sinewave mode.
Frequently bought together

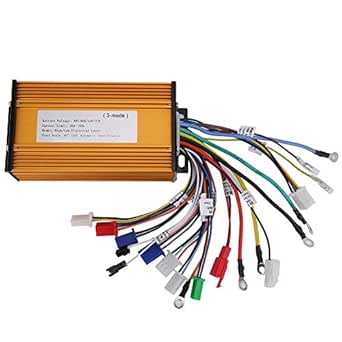

This item: Speed Motor,48V, 60V, 64V, 72V, 84V Universal Brushless Controller 3‑Mode Sinusoid 12 Tube Fit for Electric Scooter
$48.40
Sold by Linfote and ships from Amazon Fulfillment.
+
$12.99
Get it as soon as Tuesday, Nov 12
In Stock
Total price: $00
To see our price, add these items to your cart.
Choose items to buy together.
Videos
Page 1 of 1Start OverPage 1 of 1
Videos for this product
1:43
Click to play video
Customer Review: Can run Etek BLDC Motor at 48V and 72V
Joel Baluyut
Videos for this product
0:29
Click to play video
Customer Review: Worked on bench and toasted on first ride
Jason magana
Videos for this product
0:20
Click to play video
48V, 60V, 64V, 72V Universal Brushless Controller
Ama Official
Beast of a controller.
Upped my humble 600w Joyor S5 into a powerhouse of an escooter with a 2nd front motor. Now at a nominal combined 2040w. Loses slight traction off the line and top speed is up by 5-8 mph. I liked this controller so much I bought a 2nd one for one of my other escooters.Con/Pro: Range has diminished significantly, battery amp hours have been converted to adrenaline inducing fun.Be sure to connect the thin red wire labeled "door lock" aka ignition to battery positive (also labeled "must be connected"). Add an on/off switch to engage the controller function.Bare minimum wires that need to be connected for controller to function:Thick Red, Black (battery + -)Thick Green, Yellow, Blue (3 phase)Throttle wire(s), only white is needed to tap signal, if adding a 2nd hub motor.Thin red switched to battery + (door lock/ignition)Hall is optional, though will function better in sinewave mode.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on December 5, 2022
Upped my humble 600w Joyor S5 into a powerhouse of an escooter with a 2nd front motor. Now at a nominal combined 2040w. Loses slight traction off the line and top speed is up by 5-8 mph. I liked this controller so much I bought a 2nd one for one of my other escooters.
Con/Pro: Range has diminished significantly, battery amp hours have been converted to adrenaline inducing fun.
Be sure to connect the thin red wire labeled "door lock" aka ignition to battery positive (also labeled "must be connected"). Add an on/off switch to engage the controller function.
Bare minimum wires that need to be connected for controller to function:
Thick Red, Black (battery + -)
Thick Green, Yellow, Blue (3 phase)
Throttle wire(s), only white is needed to tap signal, if adding a 2nd hub motor.
Thin red switched to battery + (door lock/ignition)
Hall is optional, though will function better in sinewave mode.
Con/Pro: Range has diminished significantly, battery amp hours have been converted to adrenaline inducing fun.
Be sure to connect the thin red wire labeled "door lock" aka ignition to battery positive (also labeled "must be connected"). Add an on/off switch to engage the controller function.
Bare minimum wires that need to be connected for controller to function:
Thick Red, Black (battery + -)
Thick Green, Yellow, Blue (3 phase)
Throttle wire(s), only white is needed to tap signal, if adding a 2nd hub motor.
Thin red switched to battery + (door lock/ignition)
Hall is optional, though will function better in sinewave mode.
Images in this review
Reviewed in the United States on September 9, 2022
Using this controller to power a 500 W monorim on a Xiaomi scooter….45MPH @58.8 v!
This is an absolutely awesome extremely versatile controller… I recommended to all of my friends who also have scooters with upgrades! Building an E bike very shortly and will be using the exact same controller!
This is an absolutely awesome extremely versatile controller… I recommended to all of my friends who also have scooters with upgrades! Building an E bike very shortly and will be using the exact same controller!
Images in this review
Reviewed in the United States on May 15, 2023
Reviewed in the United States on December 2, 2023
Reviewed in the United States on October 26, 2021
Powerful motor controller replacement
Reviewed in the United States on October 26, 2021
Upgraded the motor controller because the Ebike pictured left burnt out going up a moderate hill. Very dissapointing. Also had to use a switch to choose between 36V and 48V. When this new motor controller arrived I just ran the batteries in parallel for 84V and WOW! I would give this 5 stars, but I found the wiring a little difficult. The wires are labled so maybe it's my fault. There are youtube videos to help you figure it out. Remember that the orange door lock wire must be connected to positive for the thing to go on. The white self programing wires are to set the hall effect sensors up correctly. Just watch some youtube videos and you'll figure it out.Reviewed in the United States on October 26, 2021
Images in this review
