I've been a shortwave listener since 1975. I have enjoyed many types of antennas from long wires up to 75 ft, to ground mounted verticals with 18 radials to multiband attic dipoles. Recently I have wanted to be able to listen to my shortwave portable from my easy chair in the living room, but the feed line to my good antennas is upstairs on the other side of the building. So I either confine myself to one room or I find a way to get a better signal than the little whip can deliver.
I have read many reviews on the MLA 30 plus, some very positive and some quite negative. Curiosity finally got to me and I got one this week. I live in an HOA so I have to "fly under the radar" so to speak. I put the MLA 30 plus together and mounted it on a 5 ft wooden Pole. I wanted to try driving the pole maybe 6 inches to a foot into the ground outside the front of my house and then run the feed line under the front door to where I sit. I wasn't expecting much because it's only a few feet above ground.
Much to my amazement this antenna is pulling in probably about 10 times as many stations as I can get on the whip, or even a random wire strung around the living room ceiling. And it holds its own quite well against a multiband vertical dipole I have out by the fence in my backyard, but it is much more portable and can be put away when HOA nasties come around. The stations I always could get come in much louder and much clearer with a lot less background noise. But I also can pick up lots of stations that completely disappear when I unplug the outdoor antenna and listen with just the whip. And even those stations come in plenty loud and plenty clear.
I am using this antenna with my Tecsun PL 880 and I have found that I need to put the attenuator switch on local to keep it from picking up bleed over from the FM broadcast band. I attribute this to the not so perfect filtering of the radio, and not to the antenna. But even with the attenuator switch in this position performance is far, far beyond what I expected for an antenna just 4 to 5 ft above the ground. I wonder if those who said the amplifier is noisy, are just hitting their radios with larger signals than they can handle without overloading the front end. The signals from the MLA-30 are too much for a radio with a substandard front end filtering section. That's where the attenuator switch comes in very handy. Remember, shortwave portables are not the superstars in shortwave receivers. But they sure do have their place when convenience is a factor.
In other words this antenna solves my problem and I can enjoy scanning the shortwave bands and listening to my favorite stations with very little money put out, and very little effort to assemble the little antenna. I would suggest to those who say that the preamp is noisy, try using a better filtered USB supply. And also if you have one, set your attenuator for local operation. Once the amplifier does its job, even in this position you will get DX stations from around the globe, and quite well. To me this antenna is a minor miracle if you use it properly and do some experimenting to maximize your results. I could not be happier. it's portable, it's effective and it makes me a very happy shortwave listener once again.
And by the way I no longer feel like the shortwave bands have been completely abandoned in favor of the internet. Using this antenna there is more on the shortwave spectrum than I will probably ever get around to listening to. The bands are alive and well now that I have this incredible portable and clandestine antenna.
Enjoy fast, free delivery, exclusive deals, and award-winning movies & TV shows with Prime
Try Prime
and start saving today with fast, free delivery
Coupon:
Buy it with
$67.99
Get it as soon as Saturday, Jun 8
In Stock
Total price:
To see our price, add these items to your cart.
Choose items to buy together.
Similar items that may deliver to you quickly
Page 1 of 1 Start overPage 1 of 1
Product Description
- 1 x ring vibrator (304 stainless steel)
- 1 x RF.BOX preamp box
- 2 x P.BOX clips and screws (304 stainless steel)
- 1 x P.BOX feed box
- 1 x Dual SMA male adapter cable (1m)
- 1 x SMA male to 3.5 plug conversion cable (1m)
- 1 x SMA male to 3.5 plug conversion cable (1m)1 x Micro USB 2A charging cable (1m)
- 1 x TNC male and SMA male 50-1.5 feeder cable (10m)
- 2 x antenna mounting hoops (304 stainless steel)
- 3 x PVC installation brackets, 2 x butt joints and 1x pipe cap are presented as gifts
Upgrade the 10 meter feeder to LMR100 96 braided pure copper with the densest mesh and aluminum platinum double shielding layer feeder. The shielding effect is better and the loss is smaller
RF BOX gain test
It is best to ensure that your radio has a corresponding band external low-impedance input port of 50-75 0hms. Only radios without external antenna input port of the corresponding band on the pull rod cannot function properly(mismatch of high impedance external ports of 300-500 0hms)
The antenna's screws are made of 304 stainless steel for durability, and the front-end amplification box is fully waterproof, suitable for long-term outdoor use in harsh weather conditions.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| GA800 | GA450 | Youloop | PAC-12 | K-480wla Antenna | GA506 Antenna | |
| Customer Reviews |
53
|
53
|
13
|
56
|
29
|
1
|
| Price | $139.99 | $89.99 | $29.99 | $158.99 | $159.99 | $98.99 |
| Wide Frequency | 10KHz-159MHz | 10KHz-159MHz | 10KHz-30MHz | 7MHz-50MHz | 0.5MHz-500MHz | 2.3-899MHz /90MHz-450MHz |
| Battery | 2600mAh | 1000mAh | No | No | 1800mAh | No |
| Avoid Noise | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 20W QRP Antenna | UHF&VHF Donut Antenna | SW Mini Loop Antenna | MW Mini Loop Antenna | Mini Loop Antenna | WV-601 Antenna | |
| Customer Reviews |
22
|
10
|
10
|
10
|
2
|
3
|
| Price | $88.99 | $35.99 | $16.99 | $16.99 | $75.99 | $189.99 |
| Wide Frequency | 76MHz-108MHz | 400M-470MHz | 4MHz-24MHz | 500khz-2000khz | 76-110MHz | 10KHz-899MHz |
| Avoid Noise | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| K-180wla(10 meters) | MRA-6313 Antenna | MRA-QRP Antenna | QRP HF Antenna | WB Donut Antenna | HDFY Active Loop Antenna | |
|
|
||||||
| Customer Reviews |
29
|
4
|
— |
— |
— |
— |
| Price | — | $159.99 | $139.99 | $79.99 | $35.99 | $69.99 |
| Wide Frequency | 100KHz-180MHz | 3.5-30MHz | 5-30MHz | 14-30MHz | 10KHz - 180MHz | 50K-500MHz |
| Avoid Noise | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
From the brand
Exceptional Service, Always
Enhance Your Listening Experience with GOOZEEZOO - Your Perfect Choice for Radios and Antennas!
-
Our company is dedicated to providing professional enthusiasts like you with superior listening experiences and endless enjoyment.
With a passion for innovation, we continuously strive to deliver the highest quality products.
Accompanied by a team of skilled engineers, we are ready to provide expert answers and top-notch service for your listening needs.
Join us on this extraordinary journey.
-
Portable Shortwae Radio
-
Si4732 Full Band Radio
-
HF & Shortwave Radio Antenna
-
Antenna Tuner & Antenna &GPSDO
-
Shortwave loop Antenna
-
Shortwave Antenna
-
Donut Antenna
Compare with similar items
This Item  GOOZEEZOO K-180WLA Shortwave Radio Active Loop Antenna 100KHz-180MHz Full Band Radio Antenna LW/MW/SW/FM/VHF 20dBi Magnetic Loop Antenna |  |  |  |  |  | |
| Price | $67.99 | $69.80 | $189.99 | $47.90 | $89.99 | -16% $8.30 List: $9.90 |
| Delivery | Get it as soon as Saturday, Jun 8 | Get it as soon as Saturday, Jun 8 | Get it as soon as Saturday, Jun 8 | Get it as soon as Saturday, Jun 8 | Get it as soon as Saturday, Jun 8 | Get it as soon as Saturday, Jun 8 |
| Customer Ratings | ||||||
| Value for money | ||||||
| Easy to assemble | ||||||
| Easy to use | ||||||
| For beginners | ||||||
| Sound quality | ||||||
| Sold By | GOOZEEZOO | WellHome Innovation | GOOZEEZOO | WellHome Innovation | GOOZEEZOO | xhdata US |
| maximum range | 10 meters | 55 centimeters | — | 10 meters | 3.3 feet | 23 feet |
| impedance | 75 ohm | — | 50 ohm | — | 50 ohm | — |
| antenna description | Radio | Radio | Radio | Radio | Radio | Radio |
Reviews with images

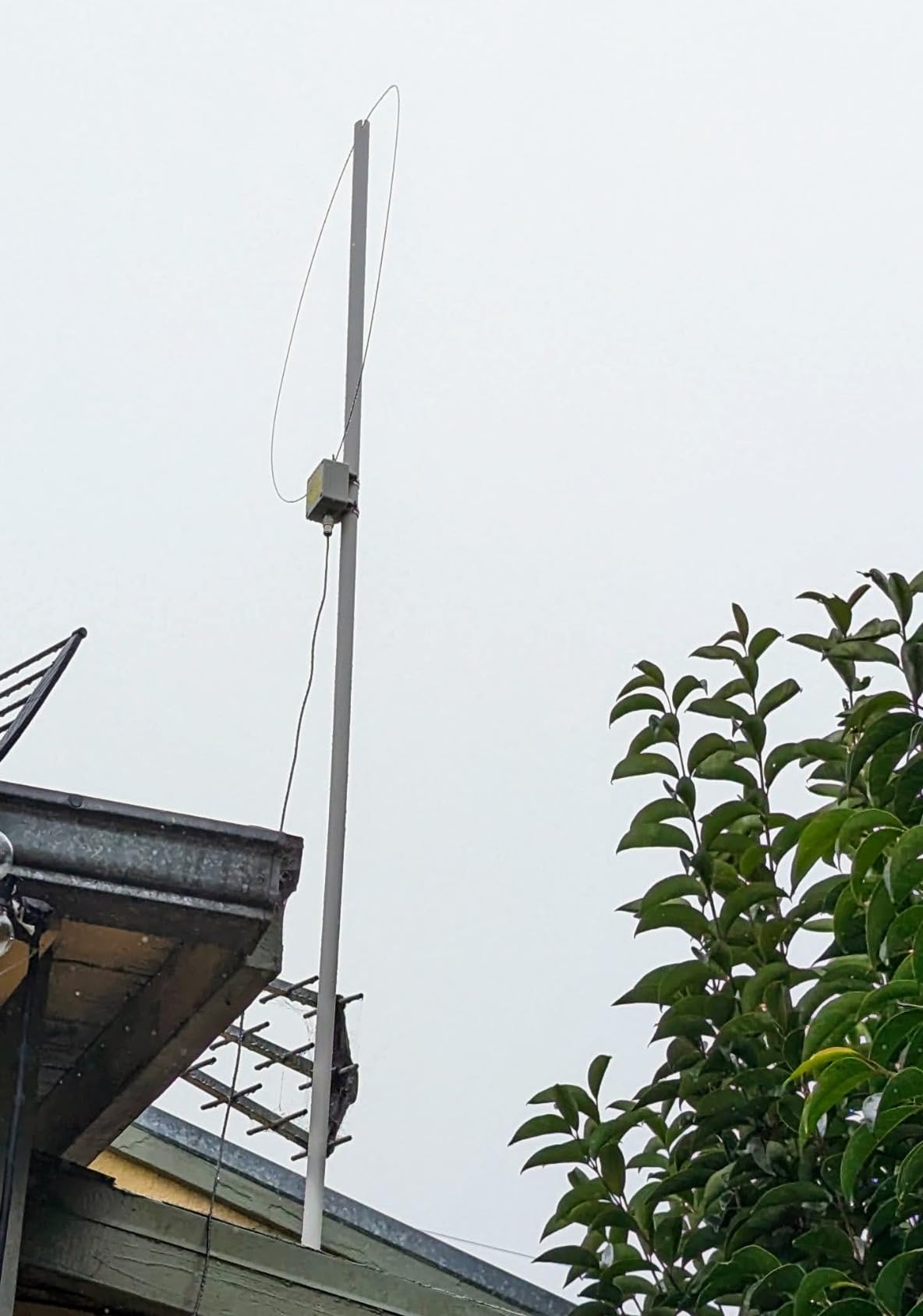

Excellent Radio Antenna with the accessories you need
At first the antenna didn't seem to do much, but it worked very well for me once the battery in the "P.Box" was charged. The description doesn't mention that it comes with a SMA to BNC adapter which was very helpful as my Tecsun S-8800 uses BNC for the FM/SW input. Mine came with an English language manual that was also very helpful. There are some misleading reviews about this antenna on some SWL websites and YouTube. I suspect either they didn't have the manual or they were using a previous version of this antenna. According to the manual the latest 2022 version has a FMDX/HF switch which is shipped in the FMDX position. To access the switch, you have to remove the cover of the preamplifier (see attached photo). Some reviews mention FM signals interfering with SW. After setting mine to the HF position, I didn't have any FM interference above 4kHz, so it wasn't an issue and maybe the reviewers that do weren't aware of the switch. Also, some reviewers complain about low gain. The 2022 version of the "P.Box" feed box has a power switch not only turns the power on, it also steps through 3 levels of gain. I'm pleased that the antenna came with a 30 foot feed line and the pipe supports are close enough in size to 1/2" so you can assemble it and use it right away without having to find extra parts.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on October 22, 2023
Style: k-180wla 10meters FeederVerified Purchase
Excellent Radio Antenna with the accessories you need
Reviewed in the United States on October 22, 2023
At first the antenna didn't seem to do much, but it worked very well for me once the battery in the "P.Box" was charged. The description doesn't mention that it comes with a SMA to BNC adapter which was very helpful as my Tecsun S-8800 uses BNC for the FM/SW input. Mine came with an English language manual that was also very helpful. There are some misleading reviews about this antenna on some SWL websites and YouTube. I suspect either they didn't have the manual or they were using a previous version of this antenna. According to the manual the latest 2022 version has a FMDX/HF switch which is shipped in the FMDX position. To access the switch, you have to remove the cover of the preamplifier (see attached photo). Some reviews mention FM signals interfering with SW. After setting mine to the HF position, I didn't have any FM interference above 4kHz, so it wasn't an issue and maybe the reviewers that do weren't aware of the switch. Also, some reviewers complain about low gain. The 2022 version of the "P.Box" feed box has a power switch not only turns the power on, it also steps through 3 levels of gain. I'm pleased that the antenna came with a 30 foot feed line and the pipe supports are close enough in size to 1/2" so you can assemble it and use it right away without having to find extra parts.
Reviewed in the United States on October 22, 2023
Images in this review
Reviewed in the United States on October 16, 2023
Reviewed in the United States on December 23, 2023
Worth the financial investment for your hobby!
Style: k-480wlaVerified Purchase
Best Yet for MALAHIT DSP2 (China vers)
Reviewed in the United States on December 23, 2023
Exceptionally receptive on all bands (including aviation). I keep the wire free of PVC Supports and use it for travel with suctions cups on windows.Reviewed in the United States on December 23, 2023
Worth the financial investment for your hobby!
Images in this review
