seeed studio RF Explorer Near Field Antenna Kit

Visit the seeed studio Store

5.0 8 ratings

| Search this page

Antenna	Radio
Brand	seeed studio
Number of Channels	1
UPC	717520030645
Manufacturer	Seeedstudio

About this item

Robust calibrated near field low cost 3x H-Loop and 1x E-Field antenna
Can work with RF Explorer Spectrum Analyzer, Signal Generator and other RF instruments and devices
Easy to use, reliable to find interference sources with high accuracy and resolution Can be used to detect hidden bugs and transmission sources with remarkable spatial resolution Feasible to generate interferences with Signal Generator and confirm RF circuit sensitivity
Include semi-rigid RF cable with coupled Push-ON SMA for easy operation and antenna selection
Protected by custom-designed, wooden box case with quality foam protection inside.

› See more product details

Report an issue with this product or seller

11
$37.00
Get it as soon as Monday, Oct 7
FREE Shipping by Amazon
Only 7 left in stock - order soon.
25
$13.99 ($2.80/Item)
Get it as soon as Sunday, Oct 6
FREE Shipping on orders over $35 shipped by Amazon
50
$449.00
Get it as soon as Sunday, Oct 6
FREE Shipping by Amazon
Only 9 left in stock - order soon.
582
Amazon's Choice
in External TV Tuners
$34.95
Get it as soon as Sunday, Oct 6
FREE Shipping on orders over $35 shipped by Amazon
179
-11%$239.99
List: $269.99
Get it as soon as Monday, Oct 7
FREE Shipping by Amazon

Compare with similar items

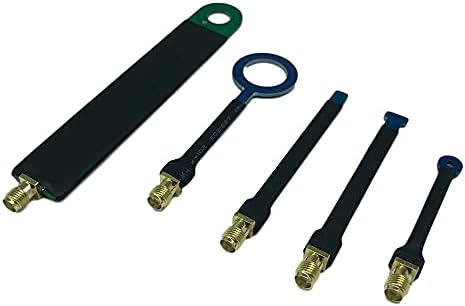

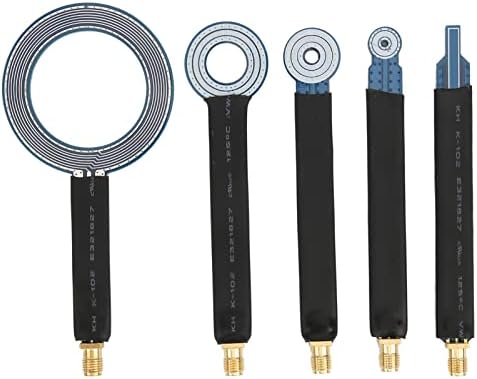

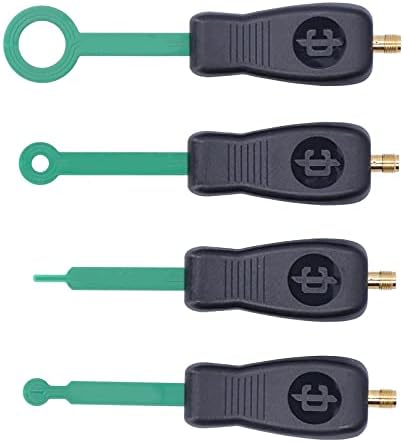

	This Item seeed studio RF Explorer Near Field Antenna Kit	Recommendations Thincol EMC EMI Near-Field Probe Set, Half Shield Anti-Interference RF Explorer Near Field Antenna Kit,Frequency 1Mhz-7GHz, SMA Male Thread (5Pcs)	4PCs Near Field Probe 30MHz‑3GHz KCR20B EMI EMC Pre Certified Magnetic Field Antenna Near Field Antenna Kit Test Tool	SaiDian 5Pcs/Set EMC EMI Near Field Probe 9KHz-3GHz SMA Female Antenna Fine for Conducted Radiation	EMRSS RF Explorer H-Loop Near Field Antenna (RFEAN25)
	Buying options	Try again! Details Added to Cart spCSRF_Treatment	Try again! Details Added to Cart spCSRF_Treatment	Try again! Details Added to Cart spCSRF_Treatment	Try again! Details Added to Cart spCSRF_Treatment
Price	—	$15.50	-7% $22.35 Typical: $24.11	$13.99	$37.00
Delivery	—	Get it as soon as Tuesday, Oct 8	Get it as soon as Monday, Oct 7	Get it as soon as Sunday, Oct 6	Get it as soon as Monday, Oct 7
Customer Ratings	5.08	4.311	4.49	4.525	4.611
Sold By	—	Linkchen	nineone	Saidian	EMR Shielding Solutions

Looking for specific info?

Product information

Features & Specs

Warranty & Support

Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions here.

Feedback

Would you like to tell us about a lower price?

Item details

Product Description

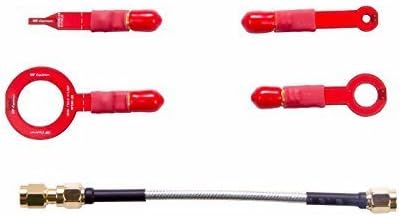

RF Explorer Near Field Antenna Kit is a collection of high performance set of 4 antennas designed for the most demanding RF diagnosis tasks:
RFEAH-25 – 25mm H-Loop
RFEAH-15 – 15mm H-Loop
RFEAH-5 – 5mm H-Loop
RFEAE-10 – 10mm E-Field

The three magnetic H-Loop antennas are very sensitive, compact and easy to use antennas for all sort of radiation sources. As the antenna diameter gets shorter, the antenna increase spatial resolution at the cost of some sensitivity loss; you should select RFEAH-25 for best sensitivity with connectors, large ICs and isolated signal traces, whereas RFEAH-5 works best for very narrow selective work in a populated PCB with close-by signal traces. RFEAH-15 is a good in-between compromise.

The electric field RFEAE-10 offers a remarkable spatial resolution to determine the exact component in the PCB causing a problem, no matter how small it is.

The low loss design of these antennas exhibits at least 10dB more sensitivity than other near field antennas in the market, at a much lower cost.

Compared with other near field antennas, RF Explorer are smaller and lighter, exactly what fits best when space is constrained in a PCB.

Included with the antenna is high quality semirigid RF cable; this cable works as the handler of the antenna. The big advantage of this approach: you can shape the cable the way you want for the antenna to be located exactly where you need it, in most cases with no need to hold it in your hand.

The RF cable is coupled with a fast, easy to use SMA Push-On adapter. There is no need to deal with SMA nuts, just plug-n-play antennas.

Capable of pre-EMC compliance tests

Specifications:
Antenna Connector: SMA female
High frequency RF SMA Male-Male cable included
SMA Push-On adapter included
E-Field and H-loop near field antennas
Characterized response: 1MHz to 7Ghz
