I have no fancy equipment to verify that these connector shells and contacts are within the allowed tolerances of the JST-XH specification, but what I can say is that the first 10 crimps I made - attaching female pins to 24 ga wire - went smoothly and flawlessly with an IWS-3220 crimp tool (1.6 mm slot). Insertion of the crimped contacts into this kit's 2 pin shells was easy.
The goal was to shorten cables from 8" to 3.5" on five 4020 fans (2 wires each). The shortened cables all mated securely with existing circuit board JST-XH sockets, and the fans worked fine. For under $10 the cost of this approach (maximum $2 per cable, completely discounting the excess shells and pins included) was worth it to me.
One caveat; if you don't already have a crimp tool you would have to include that cost along with potentially "wasted" consumables as you learn to use it. Fortunately the cost of many crimp tools has become quite reasonable, even for occasional use.
Of course, with a project involving only 10 wires and contacts are cheaper solutions - such as keeping the existing cable end connectors, cutting out a section of the cables, and rejoining the wires with barrel crimps or perhaps solder with heat shrink insulation. However, with these methods the very short cables would not be very flexible, nor would they look very good, IMO.
Several different crimp tools are available that accept these contacts. Fortunately the one I have (noted above) works well with the contacts in this kit.
The other connectors included (i.e. the remaining 2 pin, as well as 3 and 4 pin ones) I won't use right now, but for the price it is like getting them for free, and I've no doubt that eventually I'll put them to use. They store nicely in the provided plastic box.
Overall for my small job there were no problems at all, other than ensuring up front that I was ordering the right JST connector variant (-XH in this case) to match my existing components, so 5 stars.
Featured items you may like
Page 1 of 1 Start overPage 1 of 1
Enough parts to make 50 inline connections

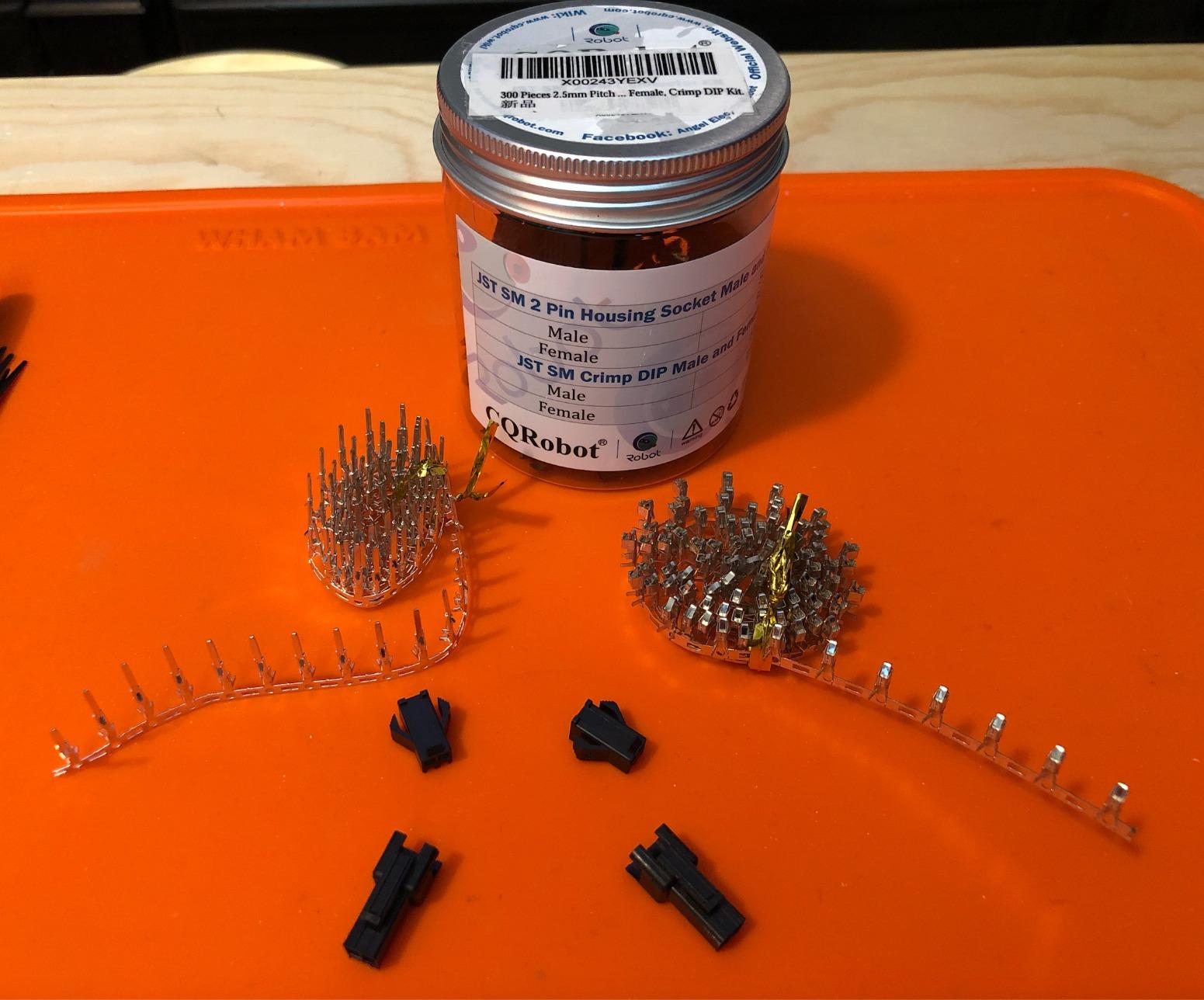

I like using these JST SM connectors as inline fan connectors for my 3D printers. The JST SM connectors are locking connectors, so they stay connected until you're ready to disconnect them. To me, they're better than two-pin Dupont connectors because the Dupont connectors don't lock together.Also, I like that these come in a jar instead of a flat pack. It's kind of a unique way of packaging them.
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on February 14, 2021
Size: JST-XH2.54Style: XH 2P/3P/4PVerified Purchase
Top reviews from other countries
Gabriel
best packaging!!!
Reviewed in Canada on January 17, 2023Size: JST-PH2.0Style: PH 8P/9P/10PVerified Purchase
Gert-Jan Droogers
Goed product, slimme opbergdoos
Reviewed in the Netherlands on July 9, 2024Size: JST-XA2.54Style: JST Connector Adapter Cable Assembly PartsVerified Purchase
Cliente Amazon
Ottimo prodotto
Reviewed in Italy on November 30, 2023Size: JST-XH2.54Style: XH 8PVerified Purchase
