From the brand
-
-
-
-
-
-
-
CERRXIAN Back Scratcher
Great back scratcher for women, men and adults.
-
Product Description
|
|
|
|
|
|---|---|---|---|
|
Cable specification: 1.0m㎡--1.5m㎡/18-16 AWG Contact diameter × number: Φ1.8x5 Current rating(A): 12A Operating voltage (AC.V.rms): 500V Contact resistance <2.5mΩ |
Temperature rise: 12A per contact at 30℃, 15A per contact at40℃, 20A per contact at 50℃ |
Withstanding Voltage (AC.V) 1 minute: 2500V Insulation resistance: ＞500MΩ Protection level: IP67 Durability: ≥500 mating/unmating cycle Temperature rating: -40℃～80℃ |
Connecting mode: Plug/unplug Assembly wire: Solder Shell & Insulated parts: High performance engineer plastic Hardware metal:Zinc alloy(pearl hard chromium) Contact:Copper alloy(gold plated layer:2") Sealing:Silica gel |
Installation Hole: Φ21mm.
Installation Screw Hole: Φ3.2mm.

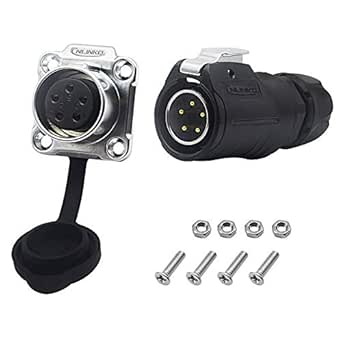

Package: 1 Pair x Plug Socket Connector with two waterproof circles( waterproof circles size:Φ12mm & Φ 6.5mm), 4 x Screw and Nut
NOTE:Prohibited to charged inserted
Reviews with images
Well made and robust for the cost, impressed by the quality.

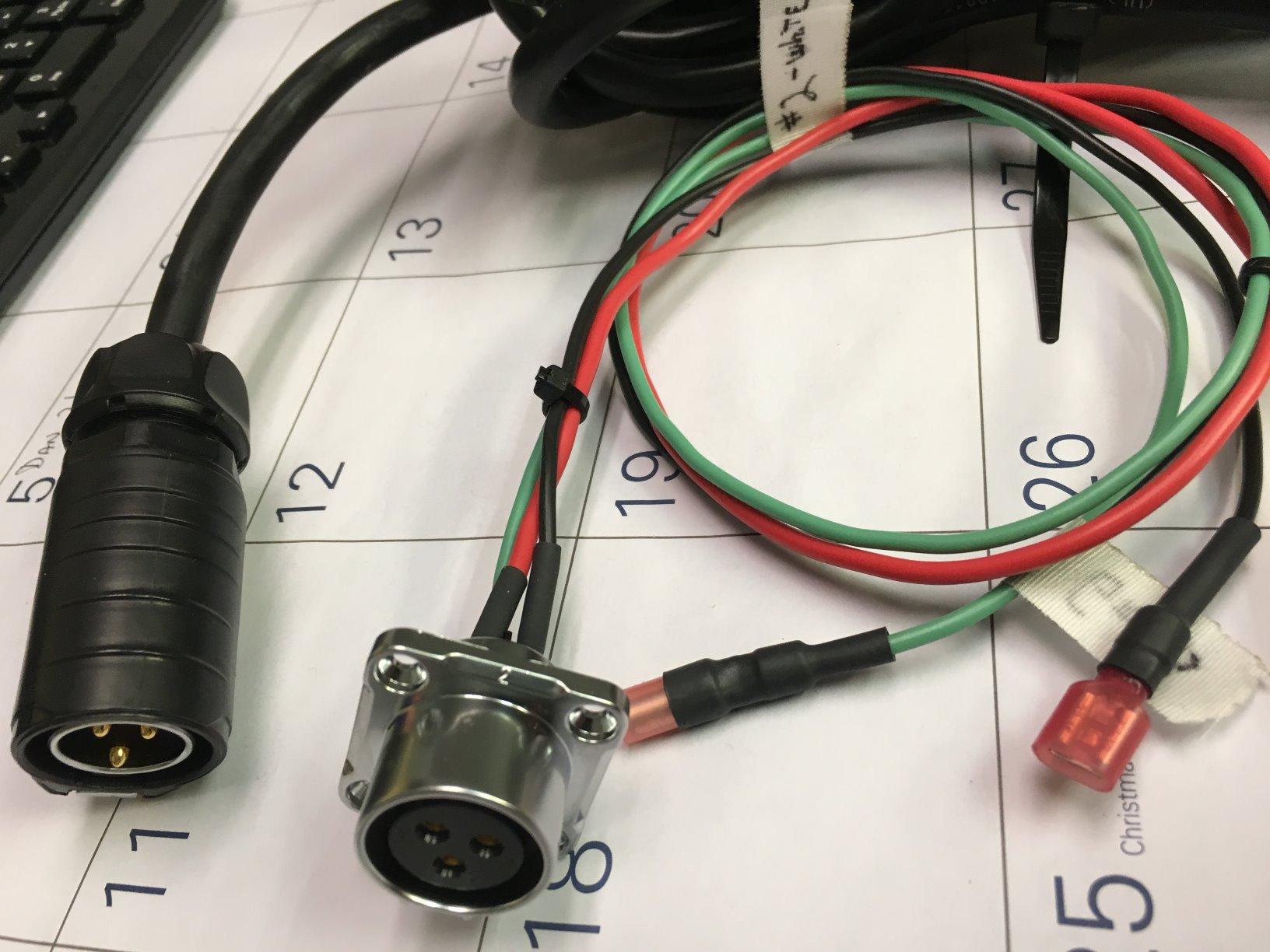

My application calls for a weatherproof three conductor male & female plug that is to me mounted in a Stahlin box. The XLR type was perfect for this low voltage application. I was impressed by the workmanship of this item. The machining is quite nice for the price and the fitment of the strain relief very good. Pins are brass and the male connector has an o-ring to prevent water egress. The female panel mount has a weather cap for closure when not in use. Two sizes of strain relief gaskets are a nice touch for fitment into the male plug depending on the size of the conductor used. I rarely leave feedback on purchases but this one warrants 5 stars. Thank you CERRXIAN!
Top reviews from the United States
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United States on December 8, 2018
Well made and robust for the cost, impressed by the quality.
Reviewed in the United States on December 8, 2018
My application calls for a weatherproof three conductor male & female plug that is to me mounted in a Stahlin box. The XLR type was perfect for this low voltage application. I was impressed by the workmanship of this item. The machining is quite nice for the price and the fitment of the strain relief very good. Pins are brass and the male connector has an o-ring to prevent water egress. The female panel mount has a weather cap for closure when not in use. Two sizes of strain relief gaskets are a nice touch for fitment into the male plug depending on the size of the conductor used. I rarely leave feedback on purchases but this one warrants 5 stars. Thank you CERRXIAN!
Reviewed in the United States on December 8, 2018
Images in this review
Reviewed in the United States on December 7, 2018
Modified my ebike battery to use an external charger. This worked great! Only gripe was the connectors had to be soldered which was not as simple as I was expecting.
Images in this review
Reviewed in the United States on March 2, 2019
Reviewed in the United States on December 20, 2020
Top reviews from other countries
Amazon Customer
Very nice quality for the price
Reviewed in Canada on December 8, 2019
