I just received my first two this afternoon, and uploaded several sketches to both. They work just fine. I like the little sticky tapes with the pin names on them. A few tips:
1) For those that complain about pressing the right-hand button to start an upload in the Arduino UI, this is very common, not a quirk in these particular boards. Not a big deal, really. Watch your sketch compile, then when it starts to upload, press the right-hand "boot" button for a few seconds. In my case, I hold the button until I see upload progress start, then let go. Nothing to it.
2) The on-board blue LED is connected to D2, by the way. Try the "blink" sketch first, and just change the default pin name or number to 2 instead of whatever the sketch default is.
3) When deciding what flavor of ESP32 board to select in the Arduino UI, I just use the generic "ESP32 Dev Module" and everything works fine for me. I have several other ESP32 modules, like the WROOM, and they all work with the Dev Module selection for me. Easy.
4) I also tried the very simple Wi-Fi server that can flash the on-board LED (no external connections needed) by going to Examples/WiFi/SimpleWiFiServer. Change the default pin 5 to pin 2 in several places, and then put in your home Wi-Fi SSID and your password. Enable the serial monitor for 115200 bps, and upload it. Once it connects, the ESP32 will tell you what its IP address is. Enter that IP address (like 192.168.1.123) in your phone or computer web browser, and you'll get a simple page coming from your ESP32 (which is now an HTTP server). The page tells you something like "click here to turn LED D2 on" (assuming you edited your sketch so that it says "D2" instead of D5) and a similar line to turn the LED off. Nothing to it, and you did this with zero hardware!
5) My modules did not have any labeling or silkscreen on them, but the included sticky labels are just fine. I stuck one set on the bottom of one module, and on the connector edge of the other. They are sticky enough that I'm not worried about them falling off.

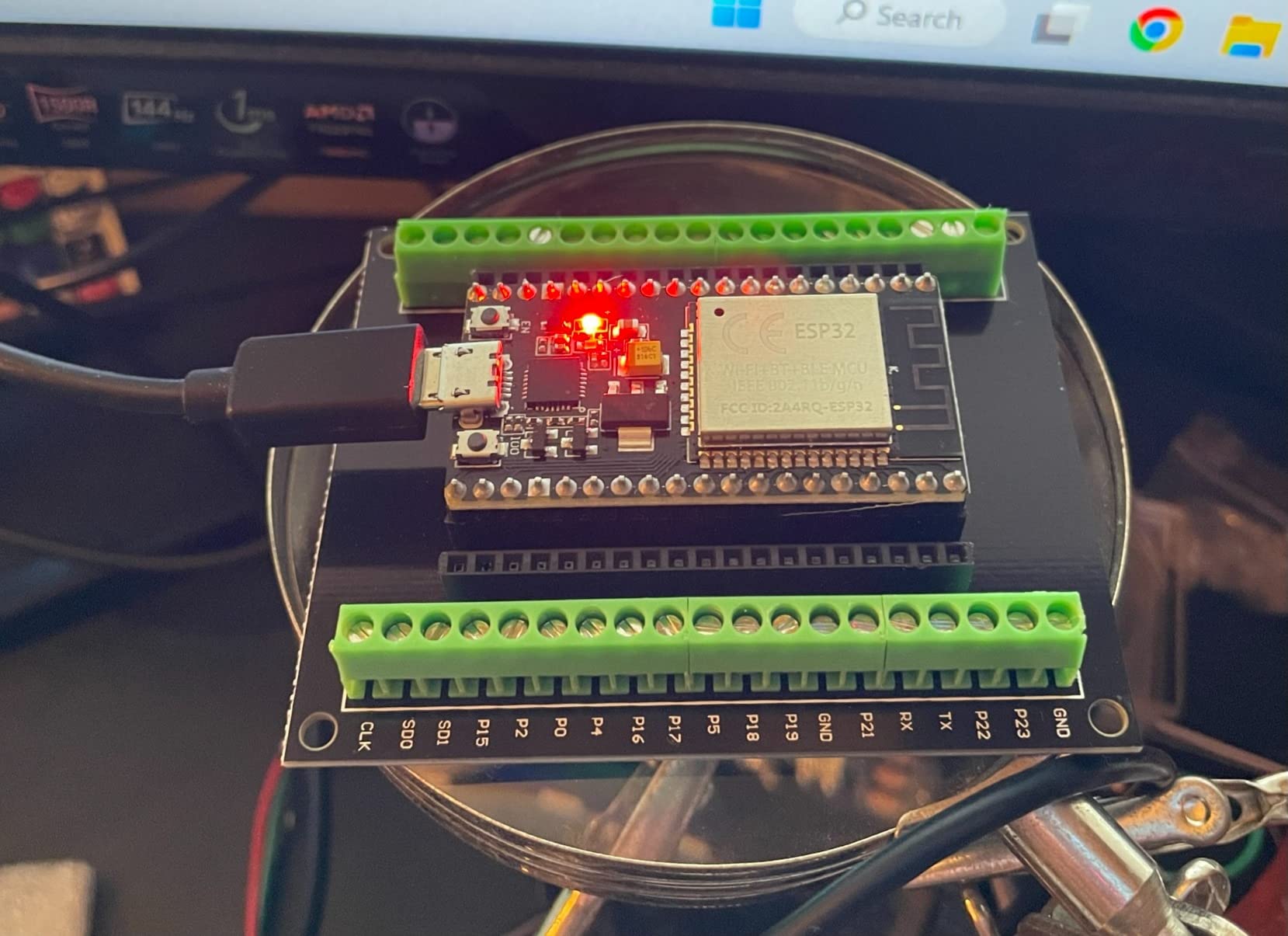

I really like these units, and will definitely buy more! I also bought a pair of the KeeYees breakout boards with screw terminals, and they perfectly match the pinout of these 38pin modules.
